Removal Procedure

  1. Remove the IP cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
  2. Using a taped flat bladed tool, gently pry the rear window defogger switch (1) from the instrument panel.

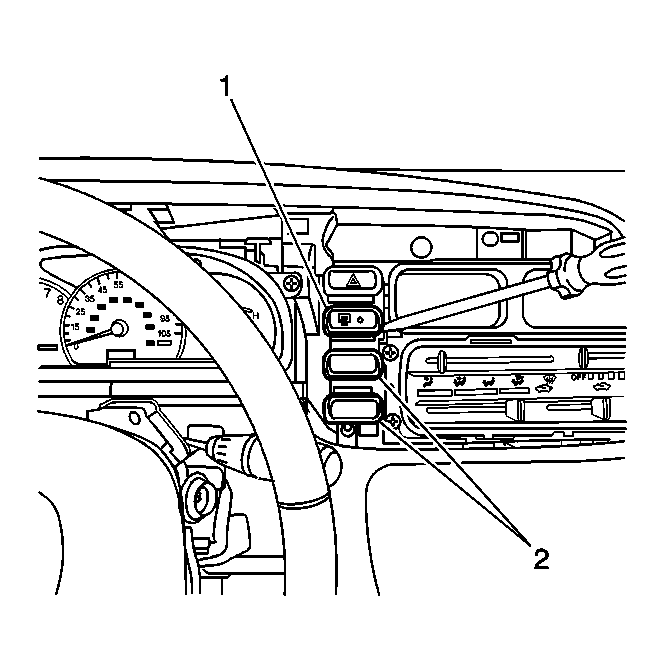

    3. Fig 1: View Of Rear Window Defogger Switch
    GM477545Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the rear window defogger switch electrical connector (2).
  4. Remove the switch (1) from the vehicle.
    5. Fig 2: View Of Rear Window Defogger Switch & Electrical Connector
    GM477547Courtesy of GENERAL MOTORS CORP.
