Engine Controls Connector End Views

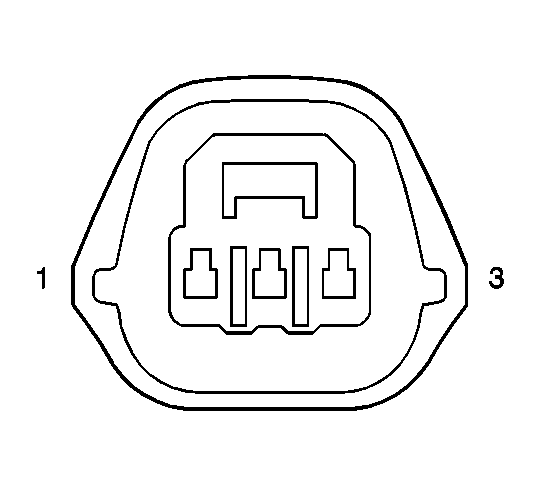

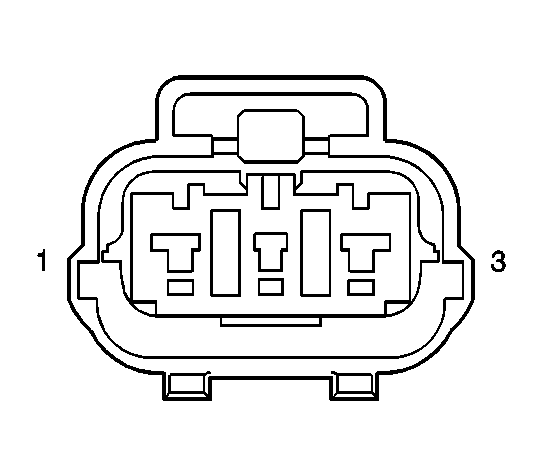

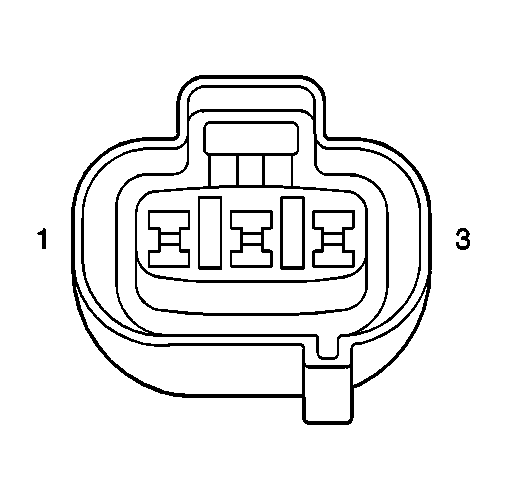

CKP Sensor Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BARE | Sensor Shield Ground |
| 2 | ORN/BLU | CKP Signal-Low |
| 3 | WHT/BLU | CKP Signal-High |

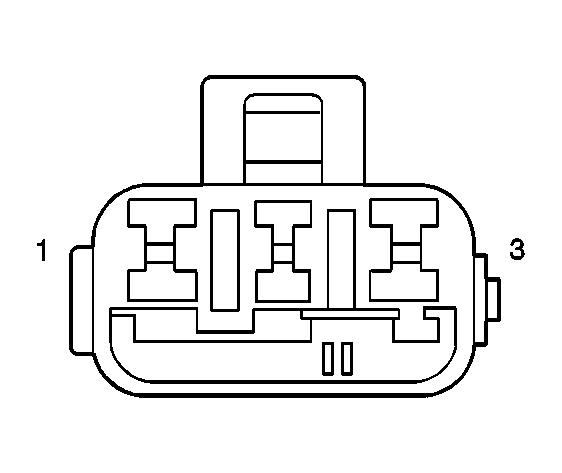

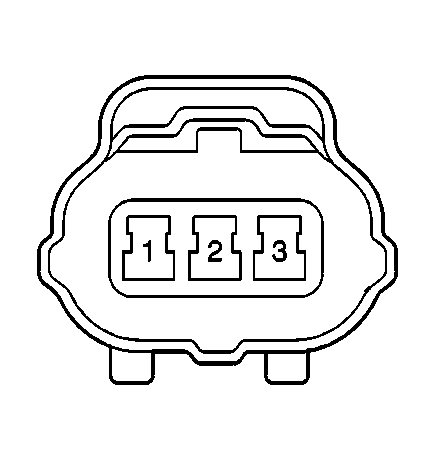

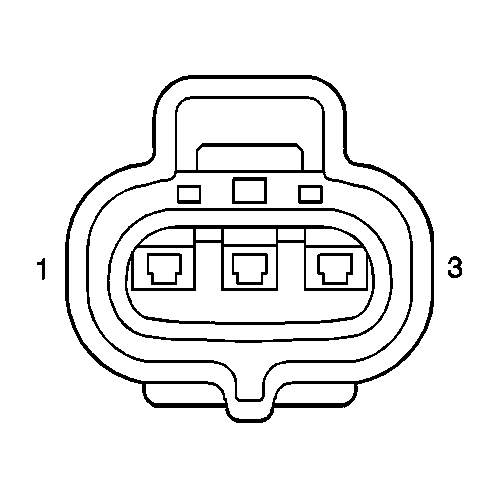

CMP Sensor Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLU/BLK | CMP Sensor Supply Voltage |
| 2 | YEL/BLU | CMP Sensor Signal |
| 3 | PPL/RED | CMP Sensor Ground |

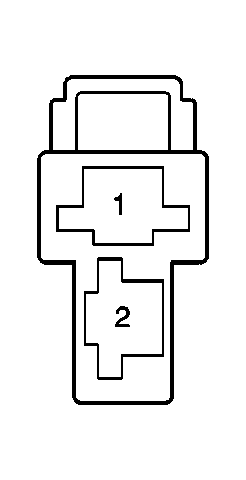

CPP Switch
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLK/RED | Ignition Switch Start Signal |
| 2 | BLK/YEL | Starter Motor Signal |
ECT Sensor Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | ORN/BLK | Sensor Input Signal |
| 2 | YEL/WHT | Temperature Indicator |
| 3 | BLU/WHT | Sensor Ground |

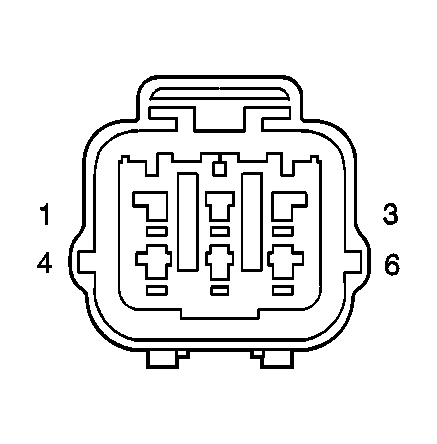

EGR Valve Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | GRN/WHT | EGR Coil Control |
| 2 | BLU/BLK | EGR Supply Voltage |
| 3 | GRN | EGR Coil Control |
| 4 | GRN/YEL | EGR Coil Control |
| 5 | BLU/BLK | EGR Supply Voltage |
| 6 | GRN/RED | EGR Coil Control |

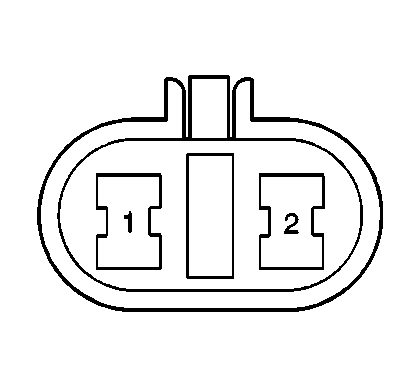

EVAP Canister Purge Valve Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLU/BLK | Purge Valve Supply Voltage |
| 2 | GRN/BLK | Purge Valve Control |
EVAP Canister Vent Solenoid Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Function | |
| 1 | BLU/BLK | Vent Solenoid Supply Voltage | |
| 2 | PPL/RED | Vent Solenoid Control | |

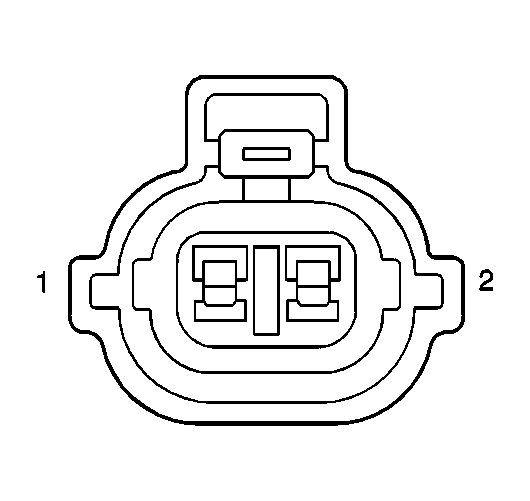

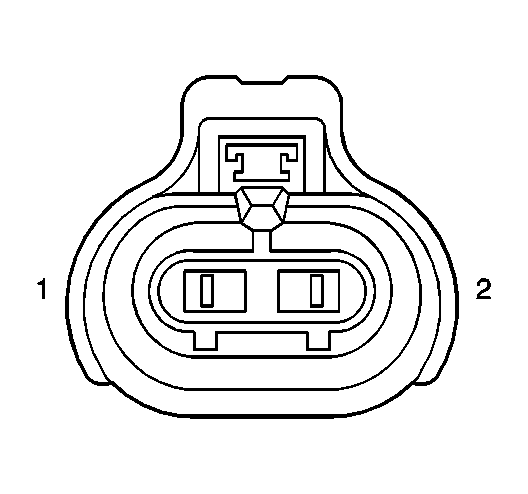

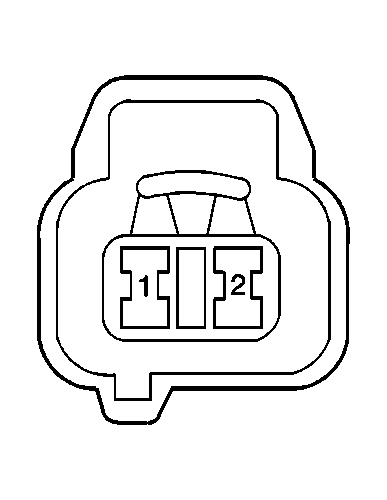

Fuel Injector 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Function | |
| 1 | PNK | Injector Control | |
| 2 | BLU/BLK | Injector Supply Voltage | |
Fuel Injector 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Function | |
| 1 | PNK/BLK | Injector Control | |
| 2 | BLU/BLK | Injector Supply Voltage | |
Fuel Injector 3 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Function | |
| 1 | PNK/GRN | Injector Control | |
| 2 | BLU/BLK | Injector Supply Voltage | |
Fuel Injector 4 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Function | |
| 1 | PNK/BLU | Injector Control | |
| 2 | BLU/BLK | Injector Supply Voltage | |

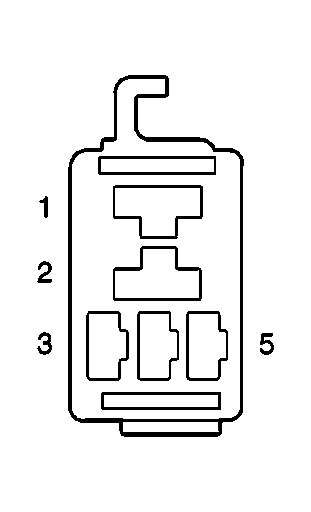

Fuel Pump Relay Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Function | |
| 1 | BLU/BLK | Fuel Pump Relay Supply Voltage-Switch Side | |
| 2 | PNK/BLK | Fuel Pump Relay-Switch Side to Load | |
| 3 | BLK/WHT | Fuel Pump Relay Supply Voltage-Coil Side | |
| 4 | - | Not Used | |
| 5 | WHT/GRN | Fuel Pump Relay Coil Control | |
Fuel Sender Assembly Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | PNK/BLK | Fuel Pump Supply Voltage |
| 2 | BLU/WHT | Fuel Level Sensor Input |
| 3 | BLK | Ground G-400 |
| 4 | BLK/YEL | Sensor Ground |

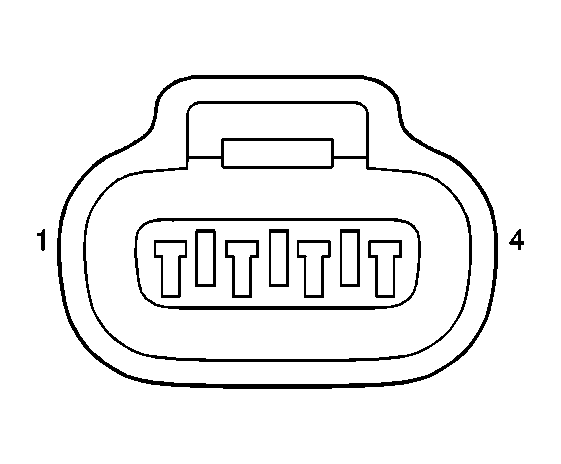

Fuel Tank Pressure Sensor Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BRN/RED | Tank Pressure Input |
| 2 | GRY/YEL | Sensor Ground |
| 3 | GRY/RED | Reference Voltage |
| 4 | GRY/GRN | Vapor Temperature Input |

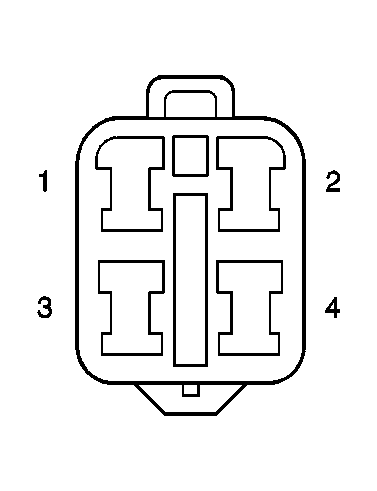

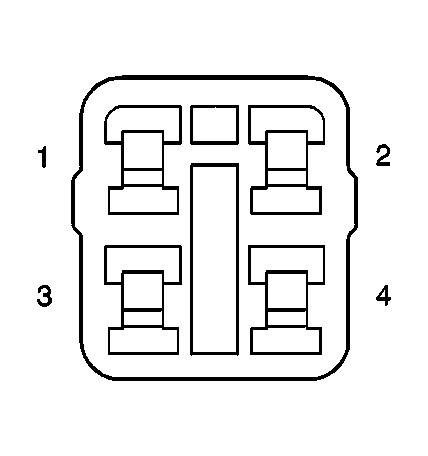

HO2S1 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | GRY/YEL | Sensor Ground |
| 2 | RED | HO2S Signal |
| 3 | GRY | Heater Control |
| 4 | BLK/WHT | Heater Supply Voltage |

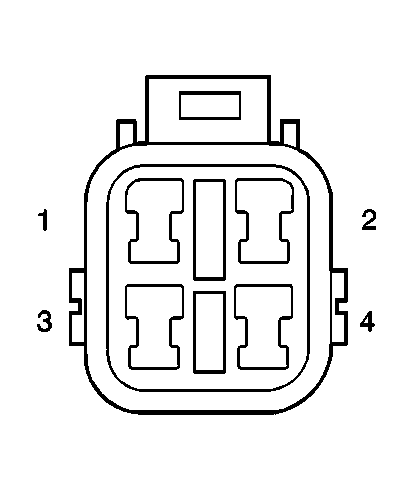

HO2S2 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | GRY/YEL | Sensor Ground |
| 2 | RED/GRN | HO2S Signal |
| 3 | PNK/GRN | Heater Control |
| 4 | BLK/WHT | Heater Supply Voltage |

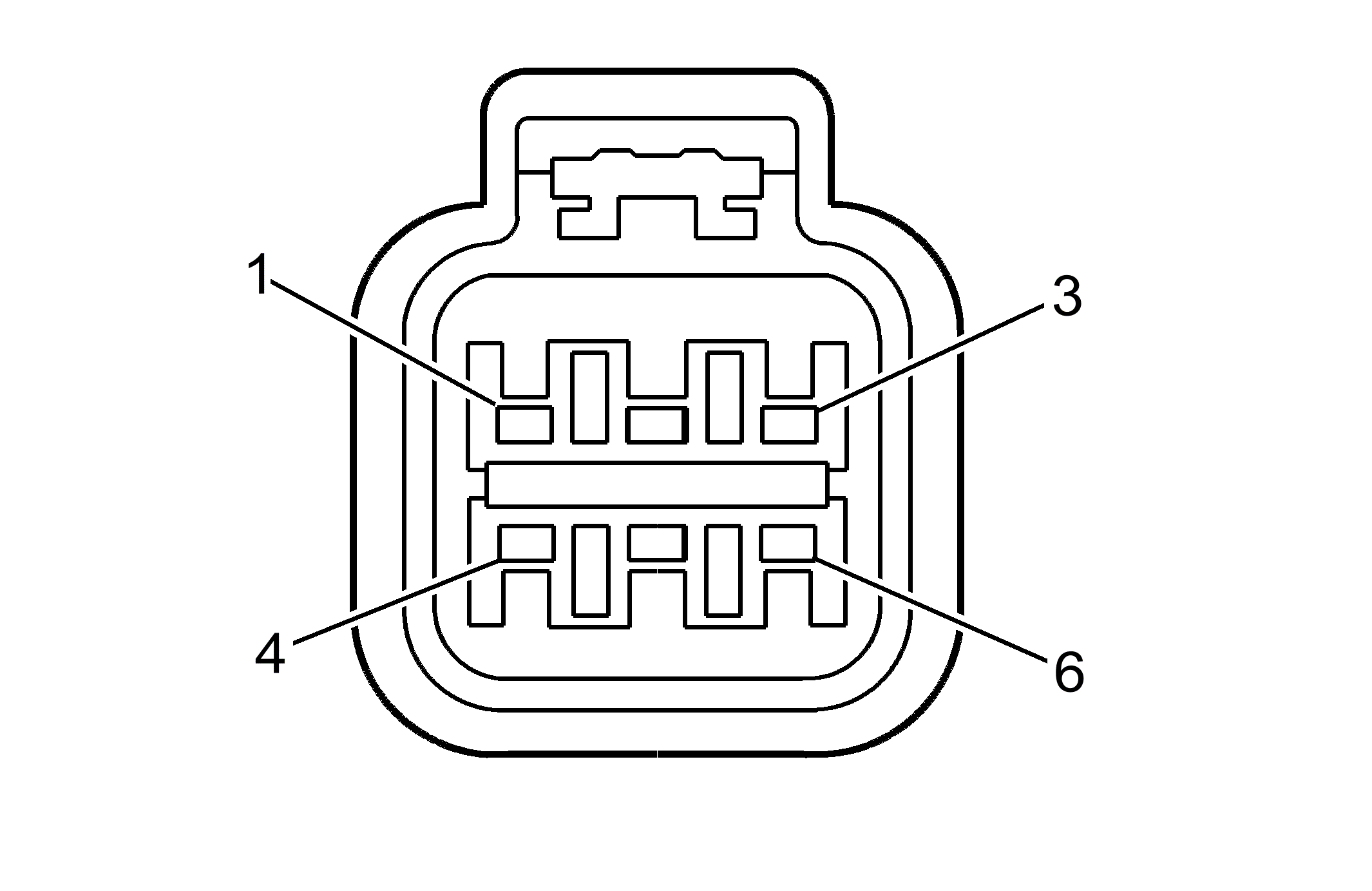

IAC Valve Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | PPL/BLK | IAC Coil Control |
| 2 | BLU/BLK | IAC Valve Supply Voltage |
| 3 | LT GRN/BLK | IAC Coil Control |
| 4 | GRY/BLU | IAC Coil Control |
| 5 | BLU/BLK | IAC Valve Supply Voltage |
| 6 | PPL/YEL | IAC Coil Control |
IAT Sensor Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLU/WHT | Sensor Ground |
| 2 | LT BLU | Sensor Input |

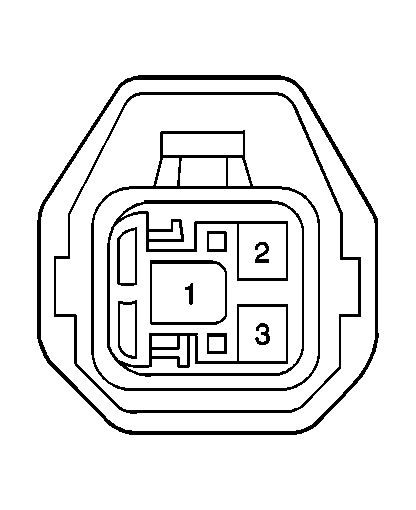

Ignition Coil - Cylinder 1 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLK/ORN | Ground G103 |
| 2 | BRN | Ignition Coil Control |
| 3 | BLK/WHT | Ignition Coil Supply Voltage |
Ignition Coil - Cylinder 2 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLK/ORN | Ground G103 |
| 2 | BRN/BLK | Ignition Coil Control |
| 3 | BLK/WHT | Ignition Coil Supply Voltage |
Ignition Coil - Cylinder 3 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLK/ORN | Ground G103 |
| 2 | BRN/WHT | Ignition Coil Control |
| 3 | BLK/WHT | Ignition Coil Supply Voltage |
Ignition Coil - Cylinder 4 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLK/ORN | Ground G103 |
| 2 | BRN/YEL | Ignition Coil Control |
| 3 | BLK/WHT | Ignition Coil Supply Voltage |
MAF Sensor Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLU/BLK | MAF Supply Voltage |
| 2 | PPL/WHT | MAF Signal |
| 3 | PPL/GRN | Sensor Ground |
Main Relay Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLK/RED | Main Relay Supply Voltage-Switch Side |
| 2 | BLU/BLK | Main Relay Switch Side to Load |
| 3 | BLK/RED | Main Relay Supply Voltage-Coil Side |
| 4 | - | Not Used |
| 5 | BLU | Main Relay Coil Control |
MAP Sensor Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | RED/WHT | MAP Sensor Input |
| 2 | BLU/WHT | Sensor Ground |
| 3 | WHT/RED | Reference Voltage |
TP Sensor Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | GRY/YEL | Sensor Ground |
| 2 | RED/GRN | TP Input |
| 3 | GRY/RED | Reference Voltage |

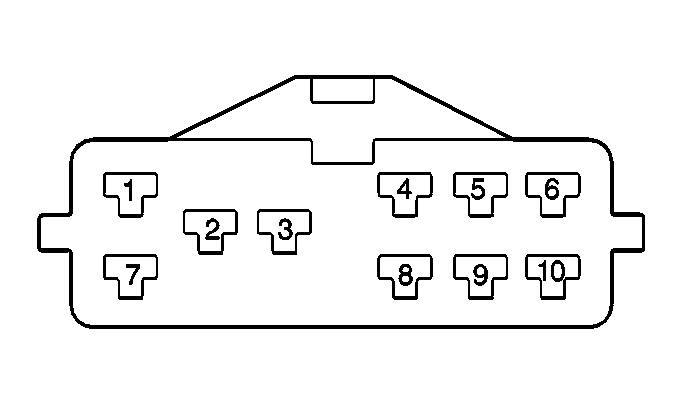

Transmission Range Switch Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | - | Not Used |
| 2 | BLK/RED | Ignition Switch Start Signal |
| 3 | BLK/YEL | Starter Motor Signal |
| 4 | GRN/ORN | 2nd Gear Position Signal |
| 5 | GRN/BLU | Low Position Signal |
| 6 | YEL | Transmission Range Switch Supply Voltage |
| 7 | ORN/GRN | Park Position Signal |
| 8 | RED | Reverse Position Signal |
| 9 | YEL/GRN | Drive Position Signal |
| 10 | ORN/BLU | Neutral Position Signal |
Transmission Shift Solenoid Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | GRN/RED | Shift Solenoid 2 Control |
| 2 | GRN | Shift Solenoid 1 Control |
| 3 | GRN/YEL | TCC Solenoid Control |
Vehicle Speed Sensor (VSS) Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLU/YEL | VSS Signal |
| 2 | BLK/YEL | Sensor Ground - G103 |
| 3 | BLU/BLK | VSS Supply Voltage |
