Removal Procedure

  1. Disconnect the electrical connector (1) from power steering pressure (PSP) switch.
  2. Remove the PSP switch (2) from the power steering pump (3).

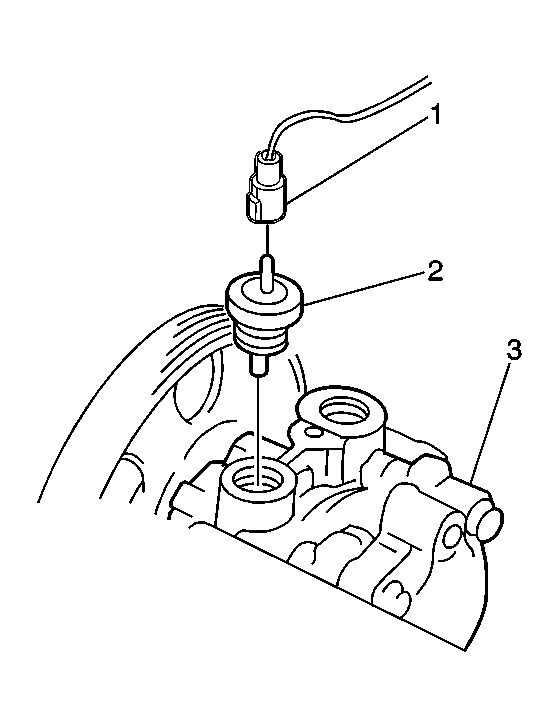

    3. Fig 1: View Of PSP Switch, Electrical Connector & Power Steering Pump
    GM464801Courtesy of GENERAL MOTORS CORP.
