Installation Procedure

Install the remote control door lock receiver (2) to the mounting bracket (3). Secure the receiver with 2 screws (1).

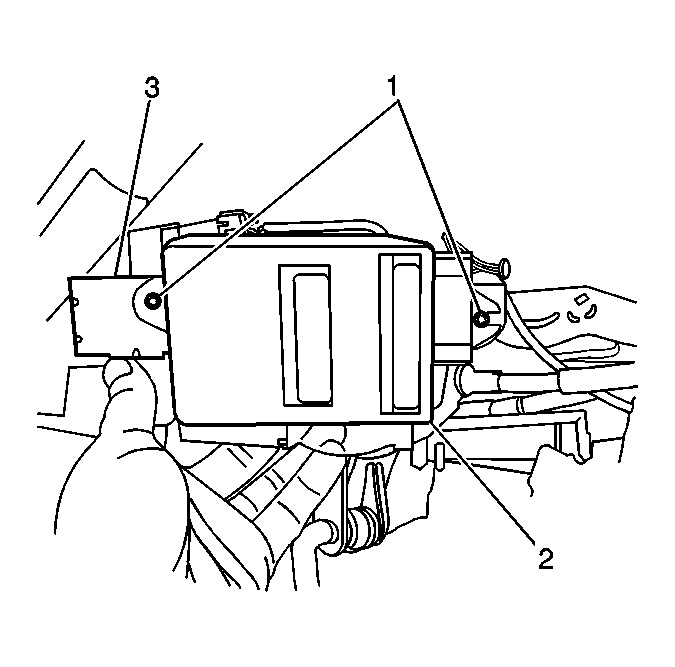

Fig 1: View Of Remote Control Lock Receiver Bracket

Courtesy of GENERAL MOTORS CORP.

Connect the receiver electrical connector (3).
Install the 2 retainers (2,4) which secure the remote control door lock receiver electrical connector (3).

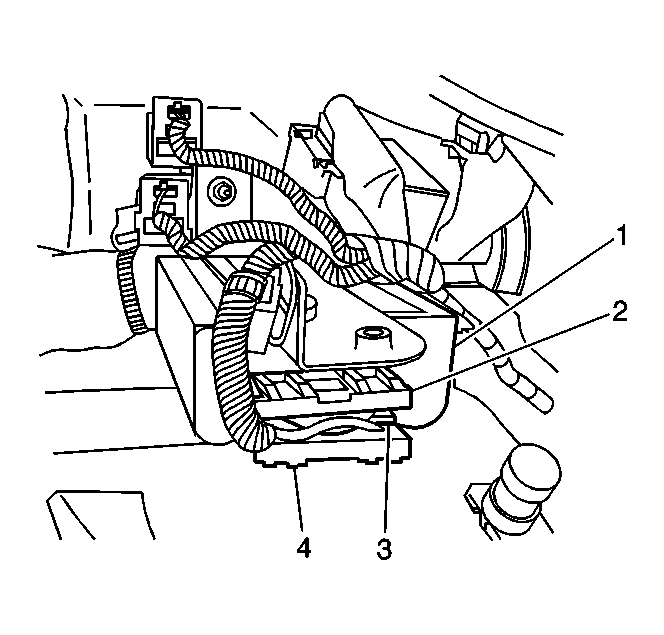

Fig 2: View Of Remote Control Door Lock Receiver Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Reposition the receiver bracket (2) back to its original position. Secure the receiver bracket with the retaining nut (1).
Tighten: Tighten the remote control door lock receiver bracket nut to 10 N.m (89 lb in).

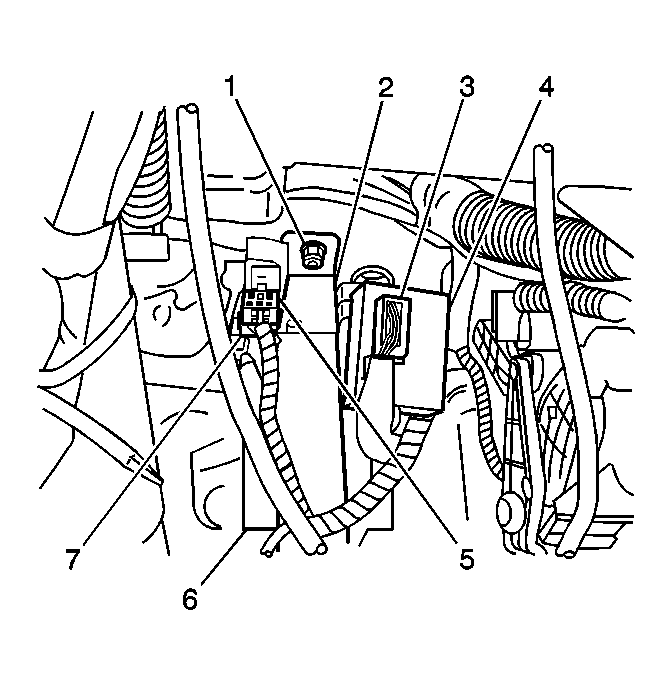

Fig 3: View Of Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Reprogram the remote control door lock receiver. Refer to Transmitter Programming (Second Method) .
