Stationary Windows Connector End Views

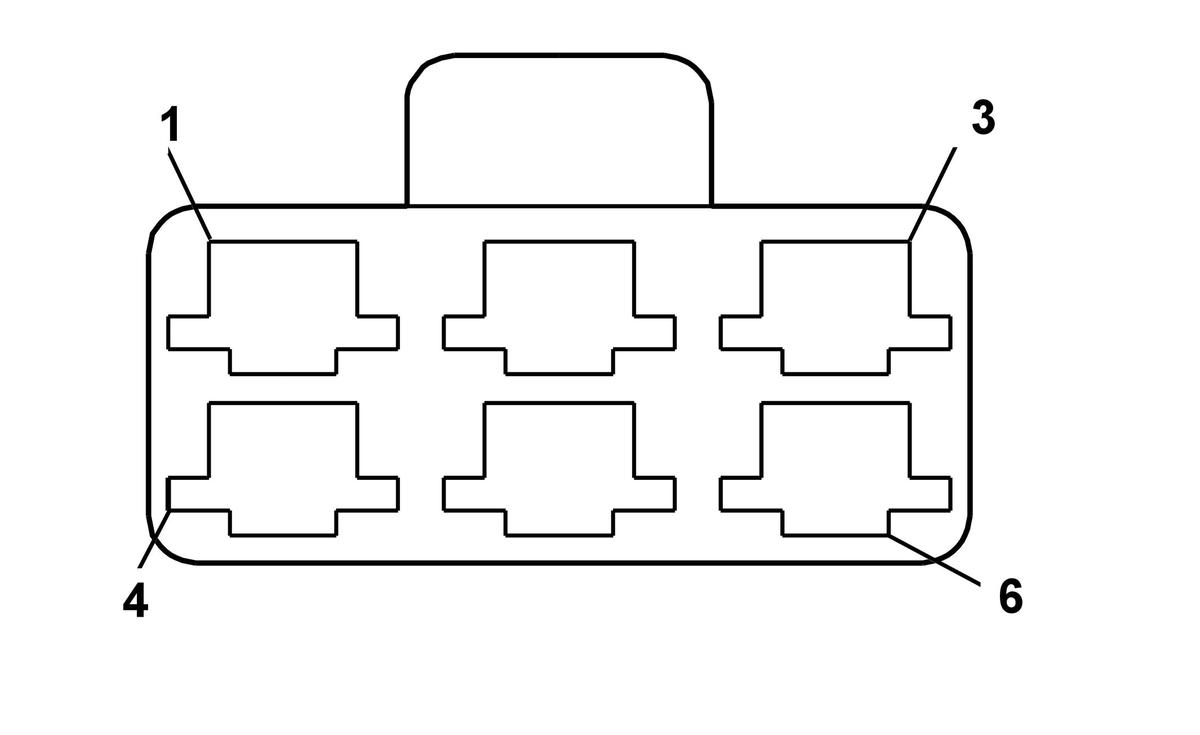

Rear Defogger Relay Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | YEL/GRN | Defogger Relay Supply Voltage |
| 2 | BLK/RED | Defogger Grid and Indicator Lamp Supply Voltage |
| 3 | BLK | Ground G200 |
| 4 | - | Not Used |
| 5 | RED/BLU | Defogger Switch On/Off Signal |
| 6 | YEL/GRN | Defogger Relay Supply Voltage |
Rear Defogger Switch Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | RED/BLU | Defogger Switch On/Off Signal |
| 2 | RED/YEL | Illumination Control Supply Voltage |
| 3 | BLK/RED | Defogger Indicator Supply Voltage |
| 4 | BLK | Ground G200 |
| 5 | - | Not Used |
| 6 | RED/GRN | Illumination Control Ground |
