Installation Procedure

  1. Connect the rear window defogger switch electrical connector (2).
  2. Install the rear window defogger switch (1) to the instrument panel. Ensure that the retaining tabs are fully engaged.
  3. Install the IP cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.

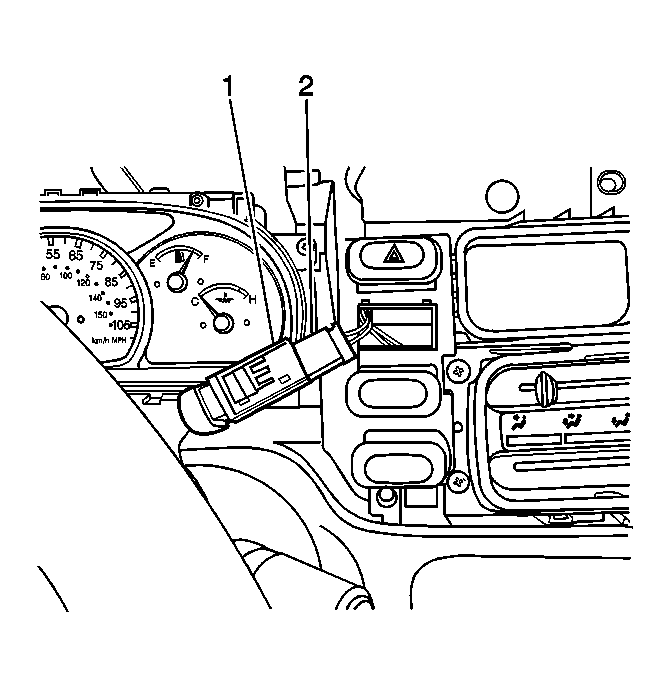

    4. Fig 1: View Of Rear Window Defogger Switch & Electrical Connector
    GM477547Courtesy of GENERAL MOTORS CORP.
