Installation Procedure

  1. Install a stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Install the windshield garnish molding to the vehicle. Ensure that the plastic retainers are completely engaged.
  3. Install the inside rearview mirror. Refer to Rearview Mirror Replacement .
  4. Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  5. Install the windshield wiper arms. Refer to Wiper Arm Replacement in Wipers/Washer Systems.
  6. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

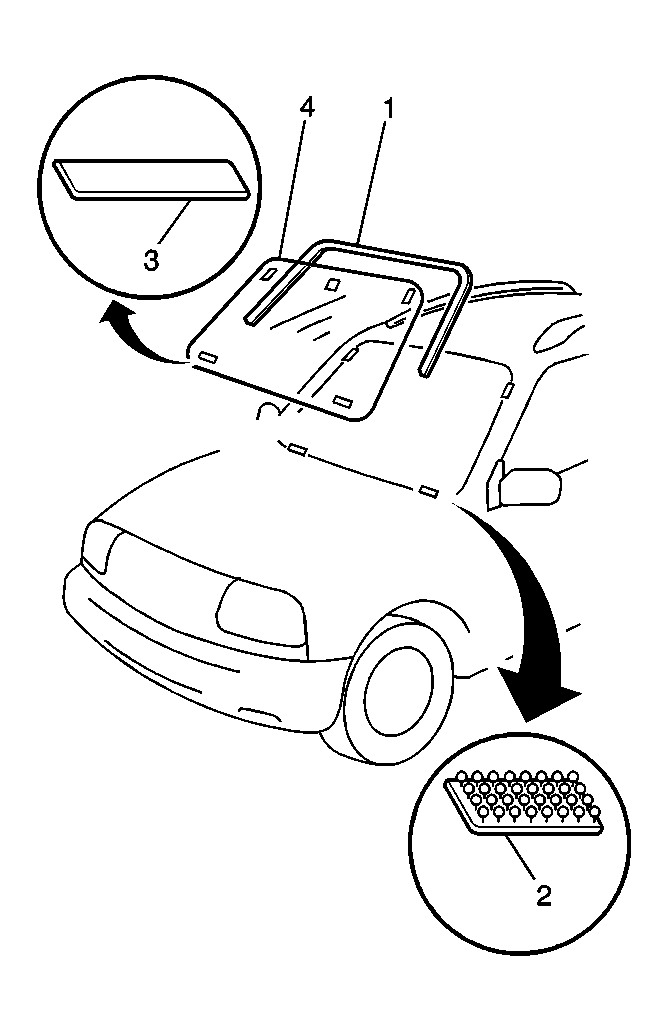

    7. Fig 1: View Of Windshield, Male & Female Retainer Ends
    GM488769Courtesy of GENERAL MOTORS CORP.
