ABS Component Views

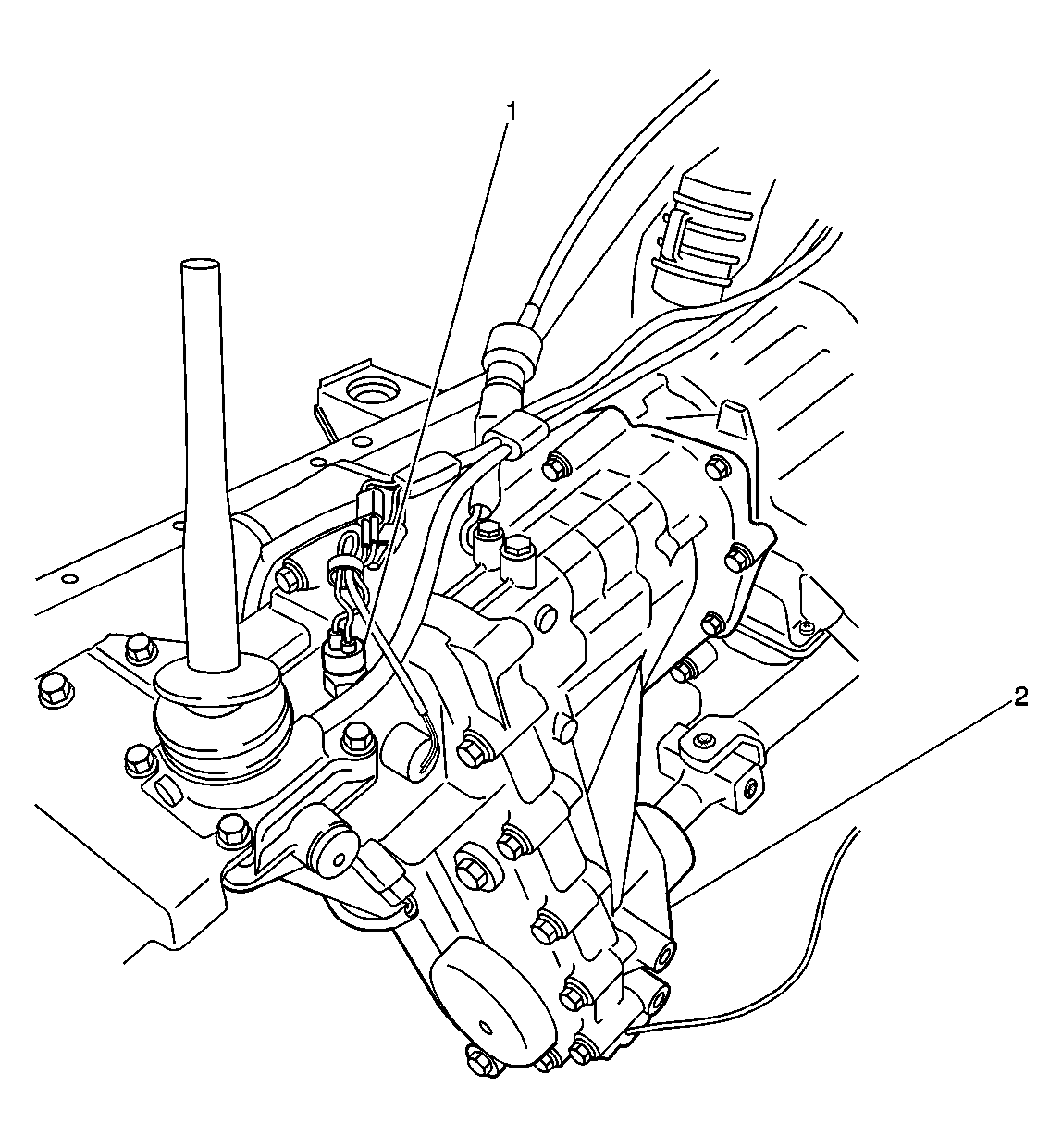

Fig 1: Four Wheel Drive Switch Component View
GM419240Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Four Wheel Drive Switch
2 Transfer Case

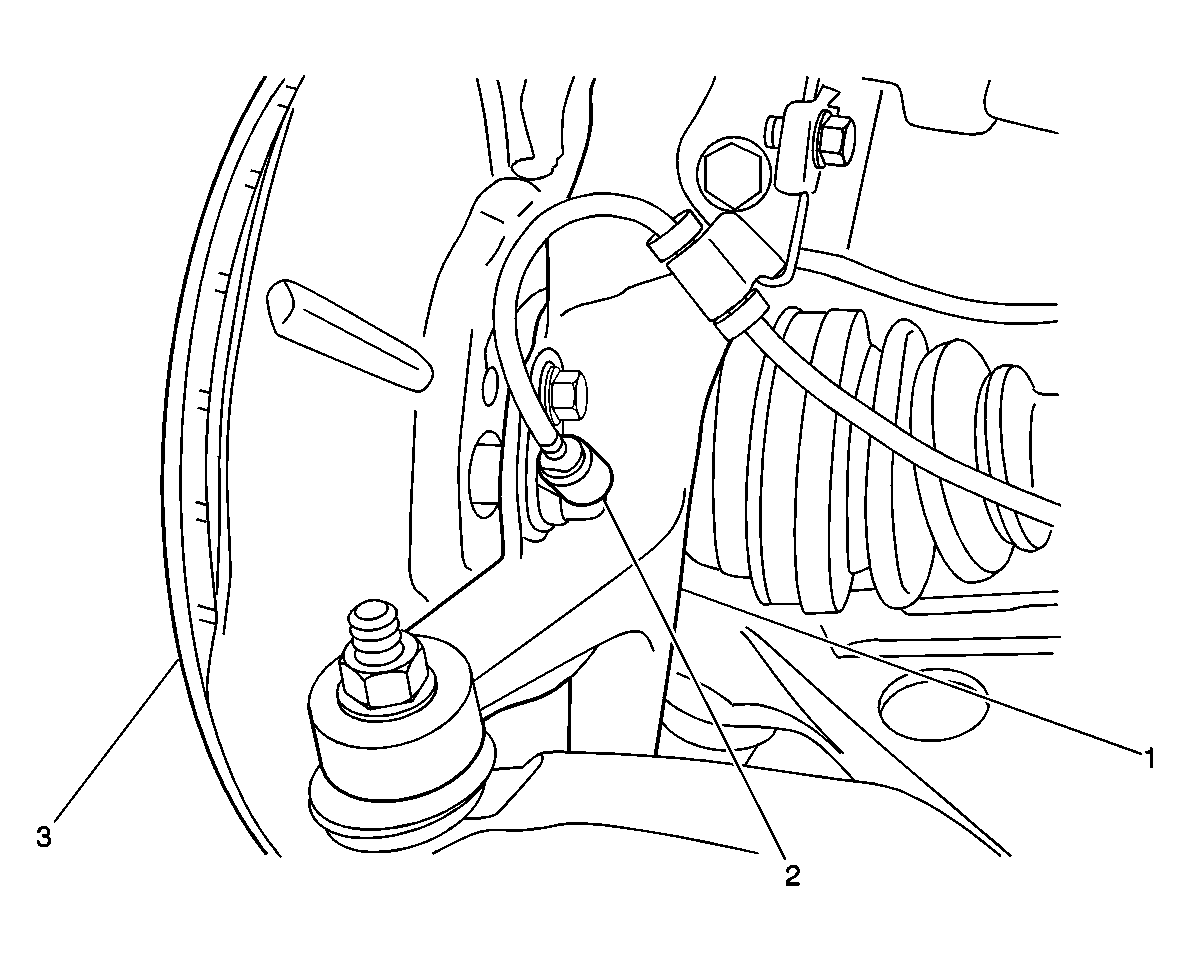

Fig 2: Front Wheel Speed Sensor Component View
GM419248Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Knuckle
2 Front Wheel Speed Sensor
3 Front Brake Rotor

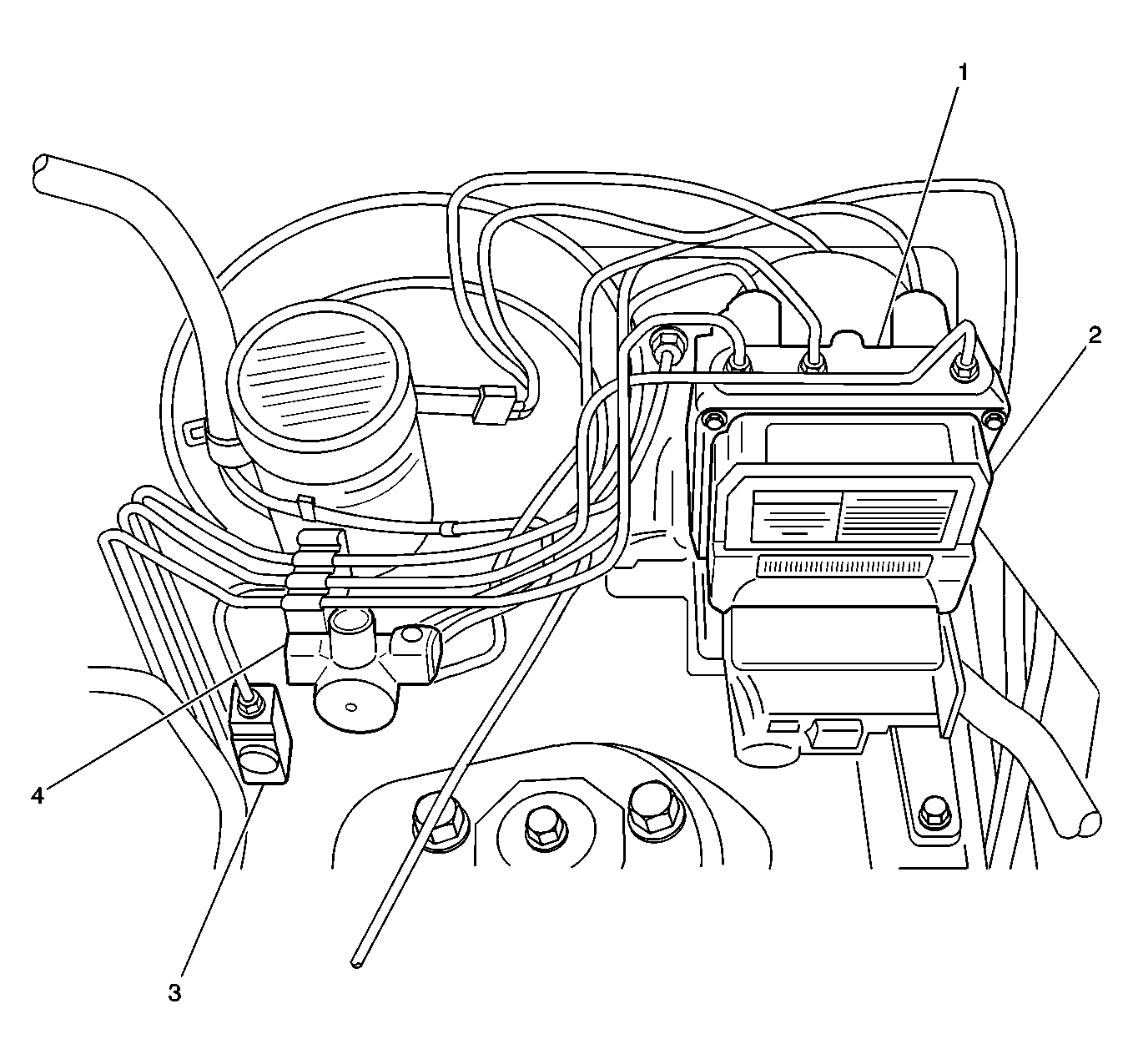

Fig 3: EBCM/BPMV Assembly Component View
GM622806Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Pressure Modulator Valve (BPMV)
2 Electronic Brake Control Module (EBCM)
3 Proportioning Valve
4 Master Cylinder

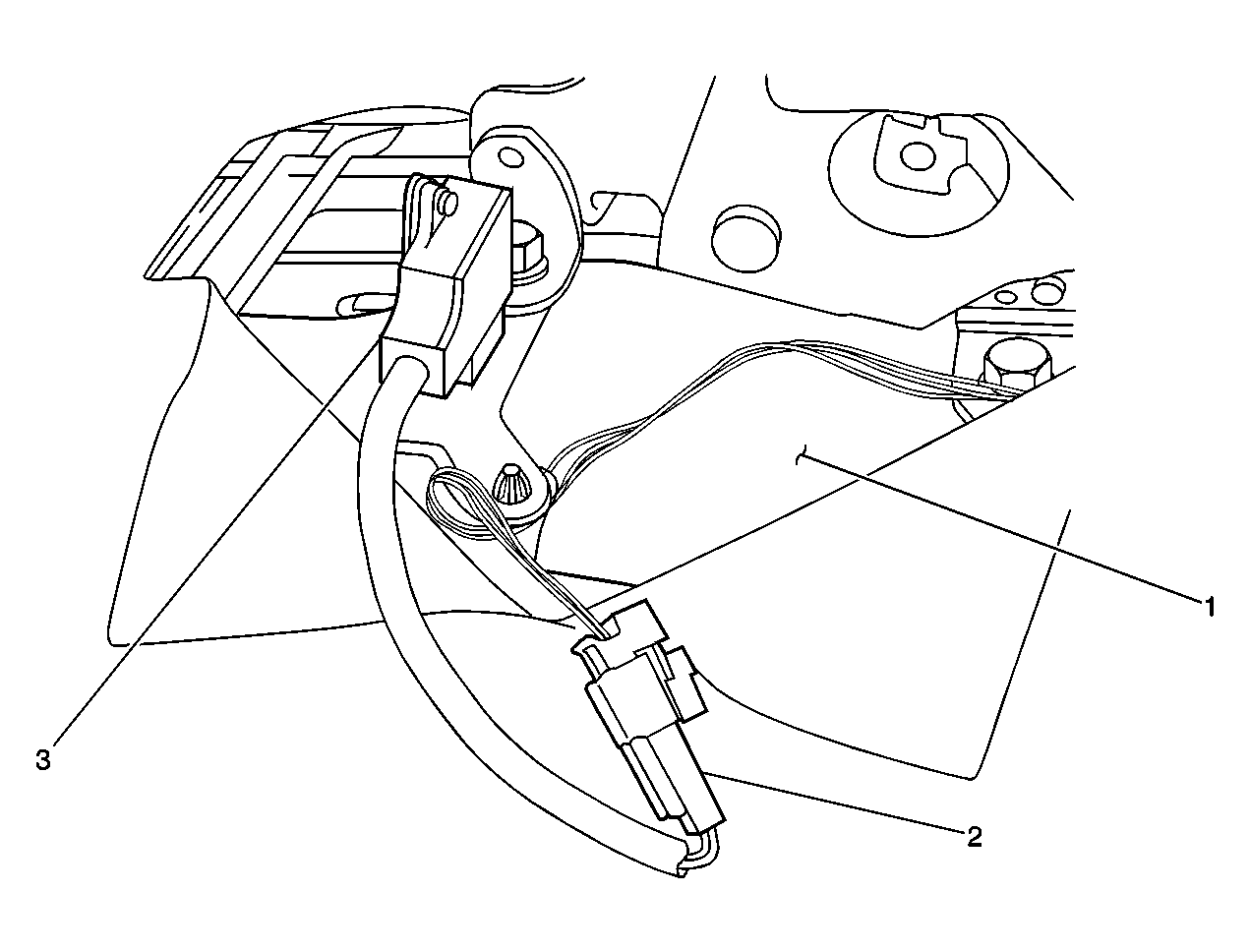

Fig 4: Accelerometer Component View
GM419256Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Tunnel
2 Accelerometer Connector
3 Accelerometer

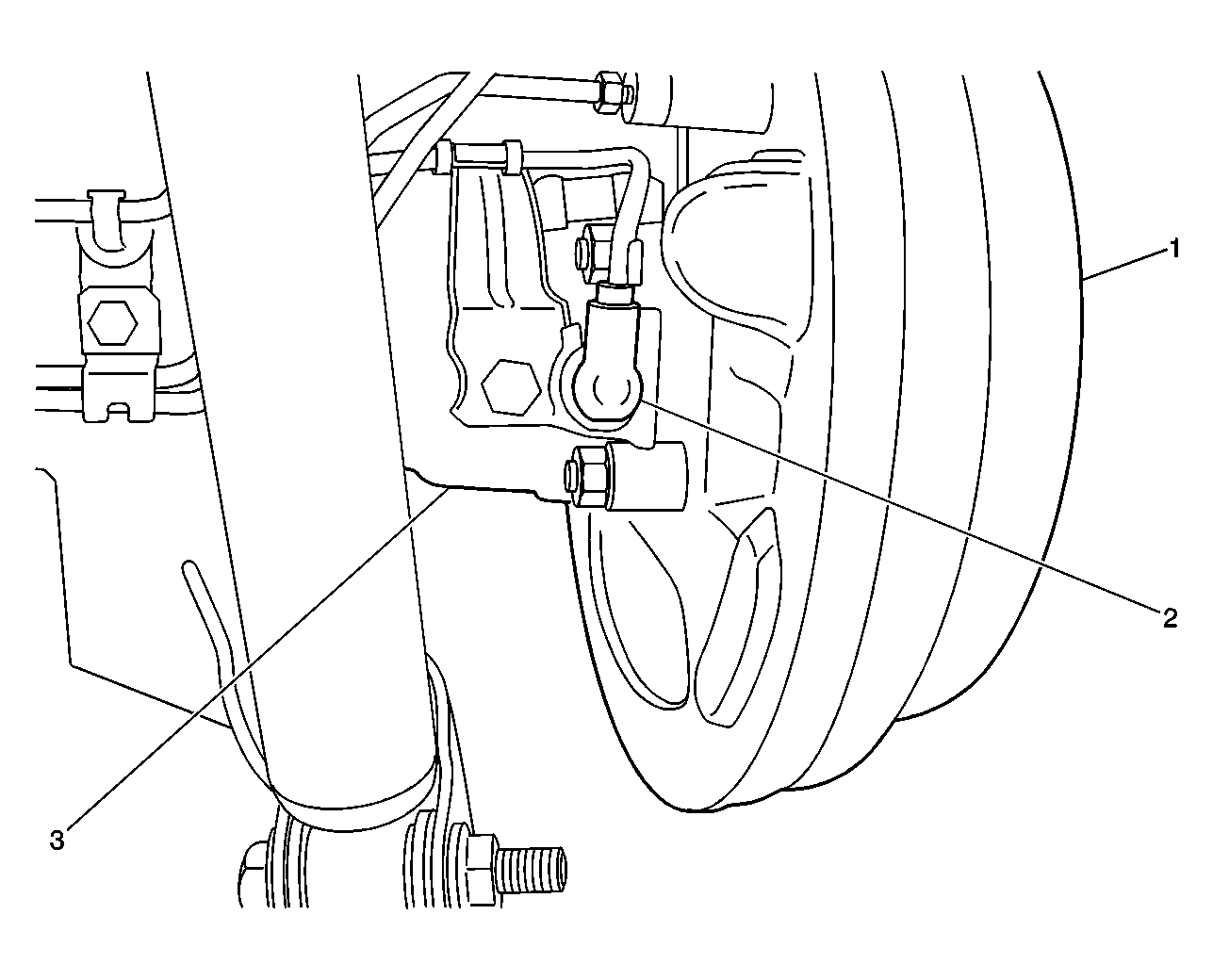

Fig 5: Rear Wheel Speed Sensor Component View
GM419258Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Brake Drum
2 Rear Wheel Speed Sensor
3 Rear Axle Housing
