Installation Procedure

  1. Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
  2. Install the EBCM (2) to the BPMV (4).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the four screws (1) that attaches the EBCM (2) to BPMV (4).

    Tighten:  Tighten the four screws to 5 N.m (44 lb in).

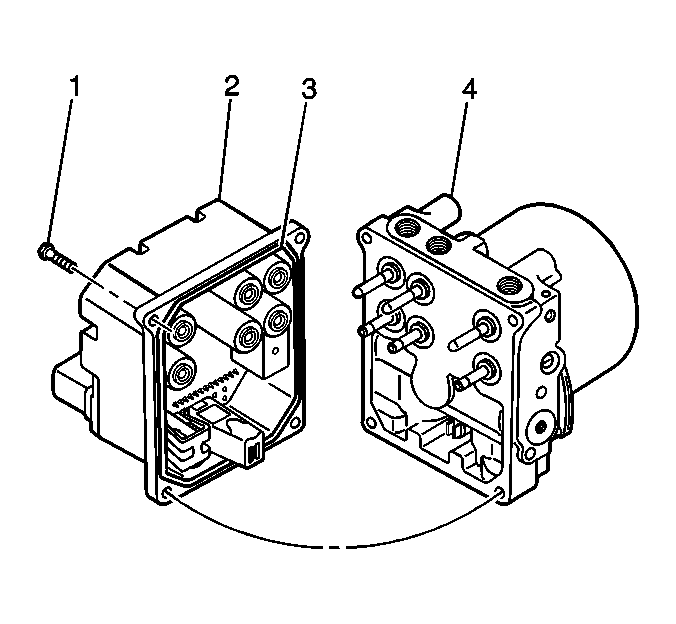

    4. Fig 1: View Of EBCM, EBCM Seal, BPMV & Screws
    GM373399Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector (2).
  5. Push down lock tab and then move sliding connector cover back in the home position to lock.

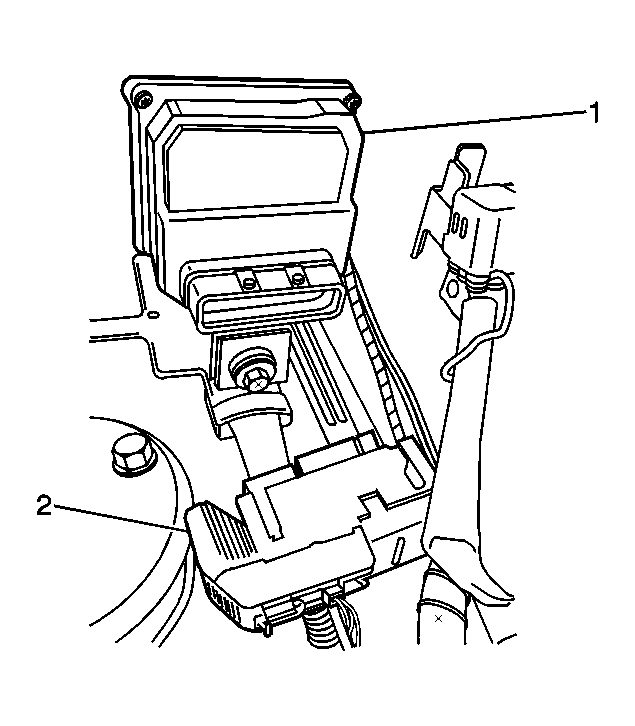

    6. Fig 2: View Of The Sliding Connector Cover
    GM395813Courtesy of GENERAL MOTORS CORP.
  6. Push the CPA (2) back into place.
  7. Perform Diagnostic System Check - ABS .
    8. Fig 3: Identifying Connector Position Assurance (CPA) Locking Tab And Connector Sliding Cover Lock Tab
    GM393786Courtesy of GENERAL MOTORS CORP.
