Installation Procedure

  1. Install the accelerometer (1) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the two bolts (2) that retain the accelerometer.

    Tighten:  Tighten the two accelerometer bolts to 16 N.m (12 lb ft).

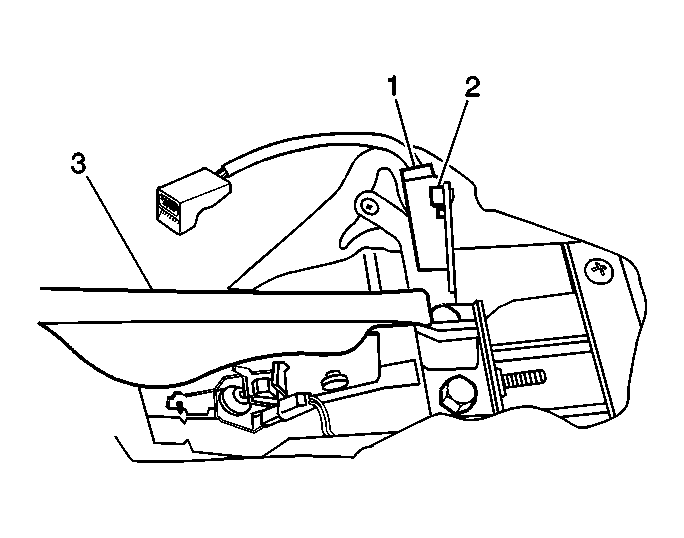

    3. Fig 1: View Of Accelerometer & Bolts
    GM221631Courtesy of GENERAL MOTORS CORP.
  3. Connect the accelerometer electrical connector (2).

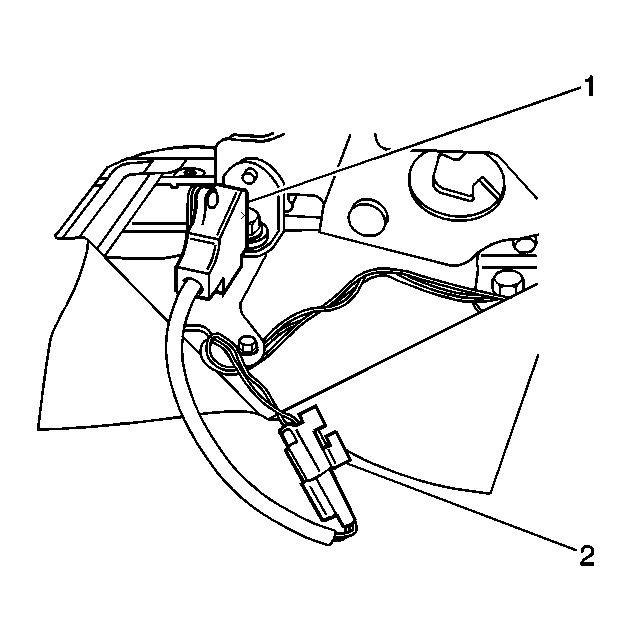

    4. Fig 2: View Of Accelerometer Electrical Connector
    GM395810Courtesy of GENERAL MOTORS CORP.
  4. Install the parking brake lever bezel (1).
  5. Install the parking brake lever bezel attaching screws (2).
  6. Perform Diagnostic System Check - ABS .

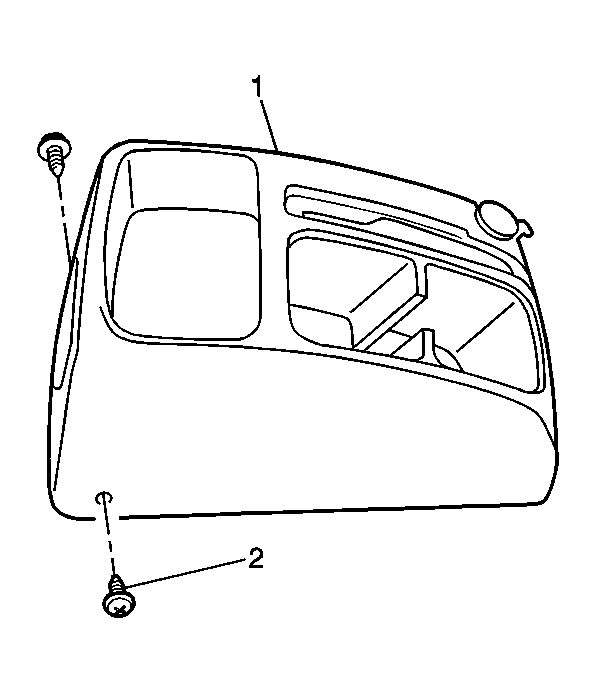

    7. Fig 3: View Of Parking Brake Lever Bezel & Screws
    GM479379Courtesy of GENERAL MOTORS CORP.
