Installation Procedure

  1. Install the front wheel speed sensor assembly (1) to the steering knuckle (2).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the retaining bolt (3).

    Tighten:  Tighten the retaining bolt to 7.8 N.m (69 lb in).

  3. Connect the front wheel speed sensor electrical connector.
  4. Lower the vehicle.
  5. Perform Diagnostic System Check - ABS .

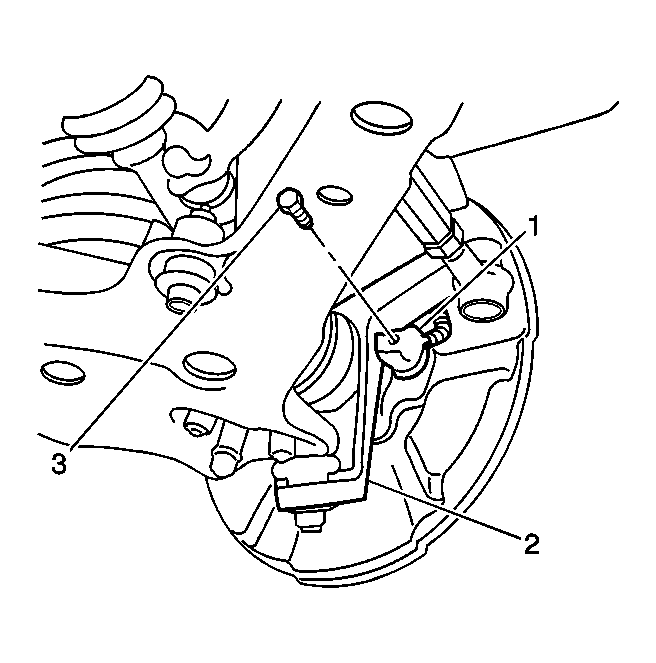

    6. Fig 1: View Of Front Wheel Speed Sensor, Steering Knuckle & Retaining Bolt
    GM221628Courtesy of GENERAL MOTORS CORP.
