Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

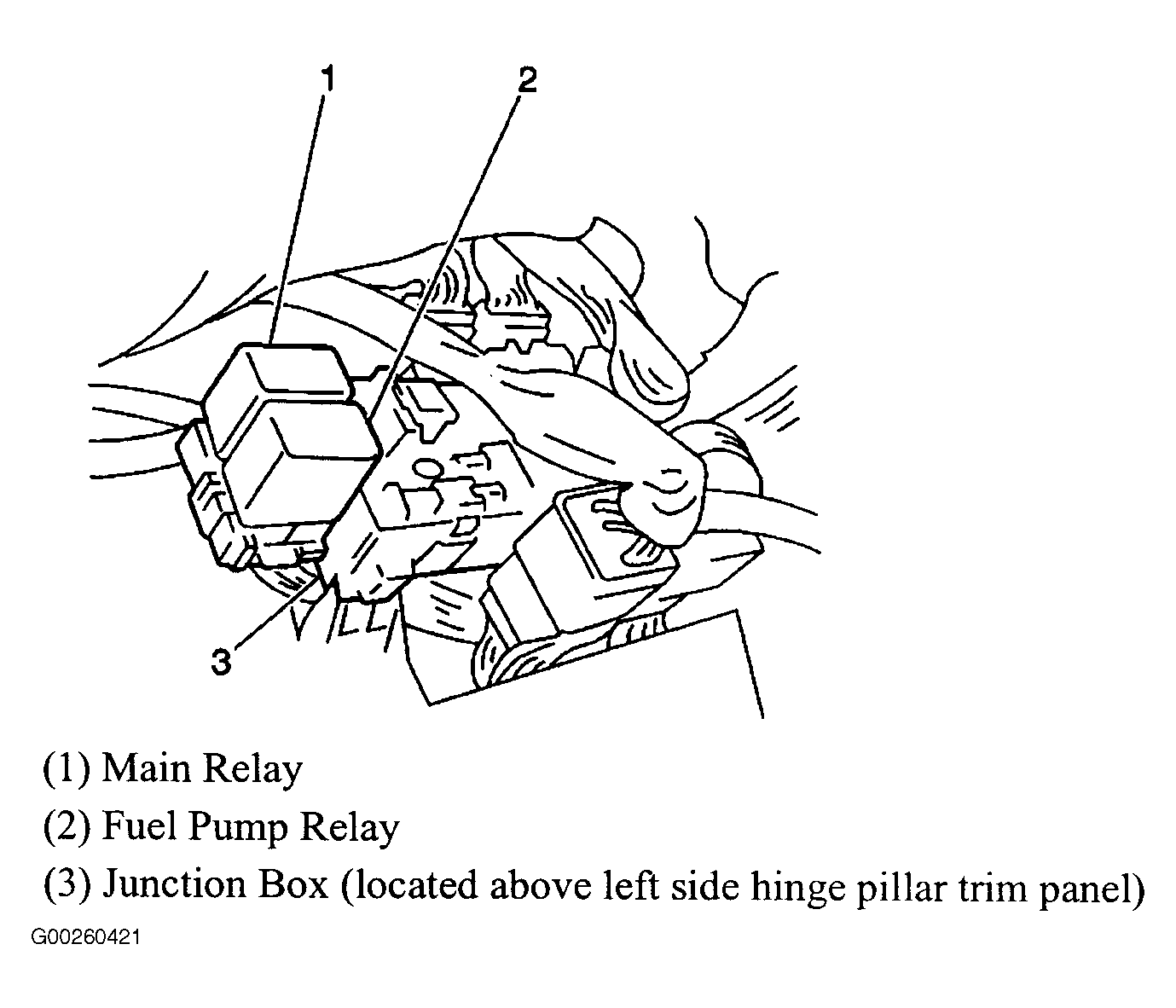

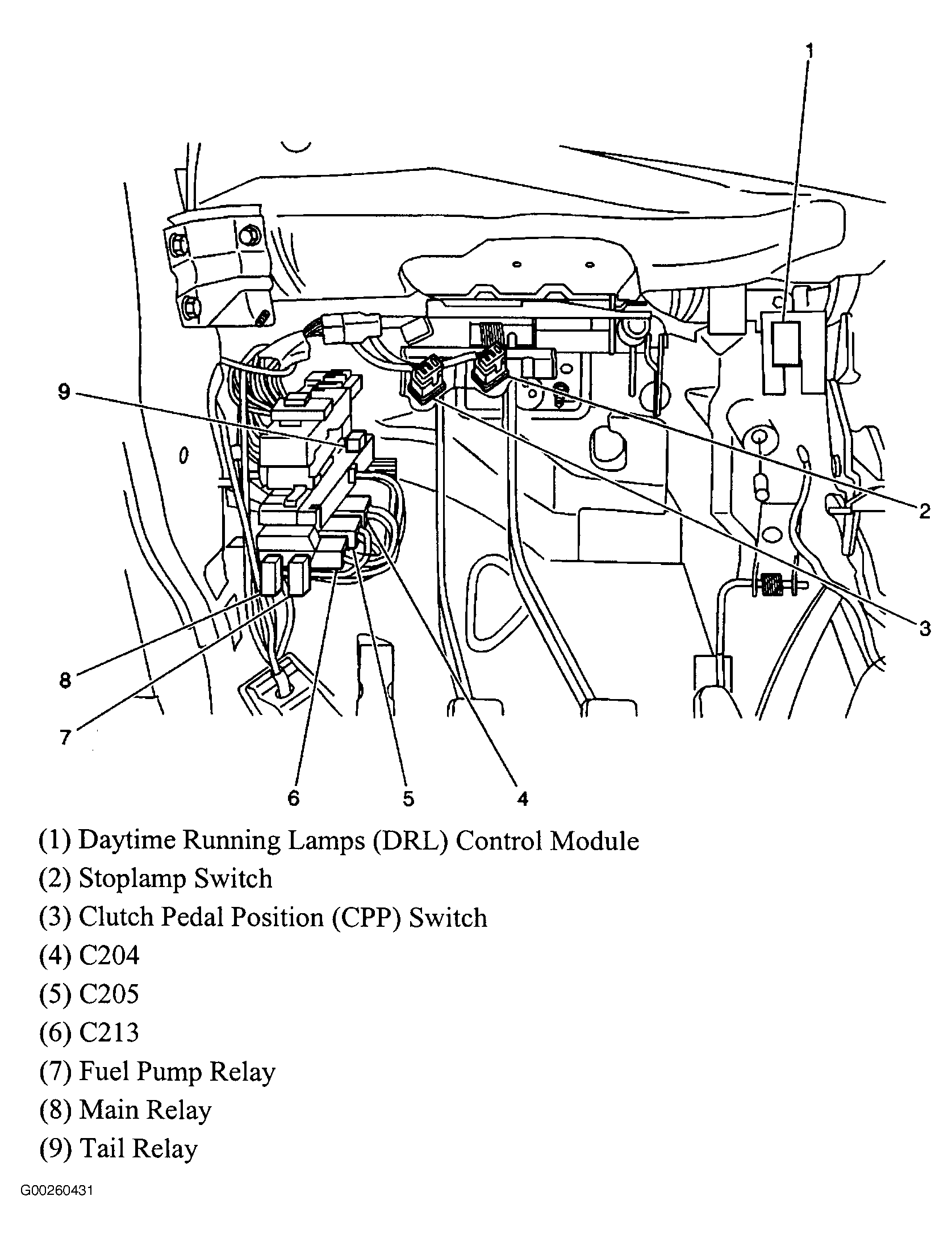

Fig 1: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

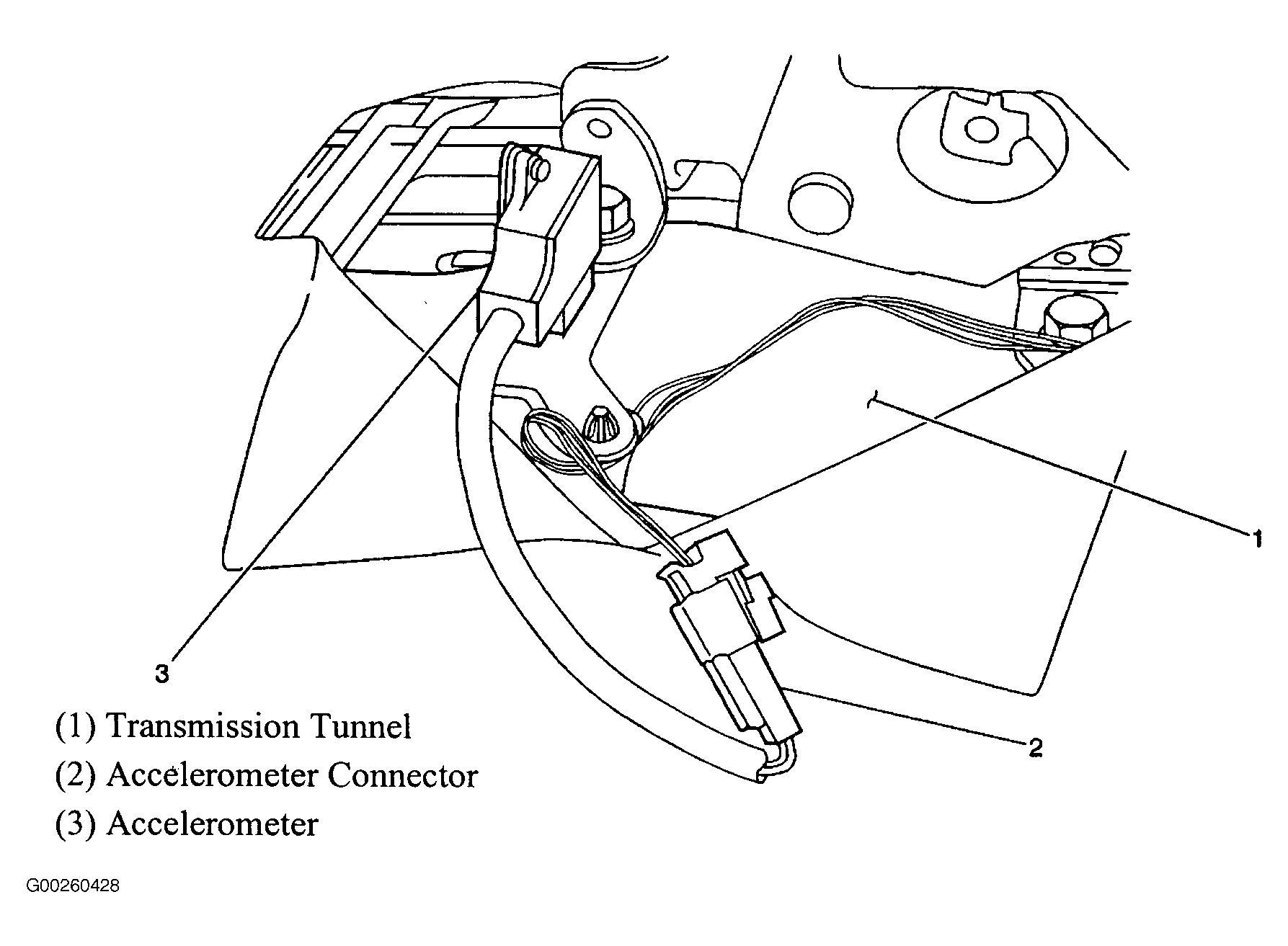

Fig 2: Under Center Console
Courtesy of GENERAL MOTORS CORP.

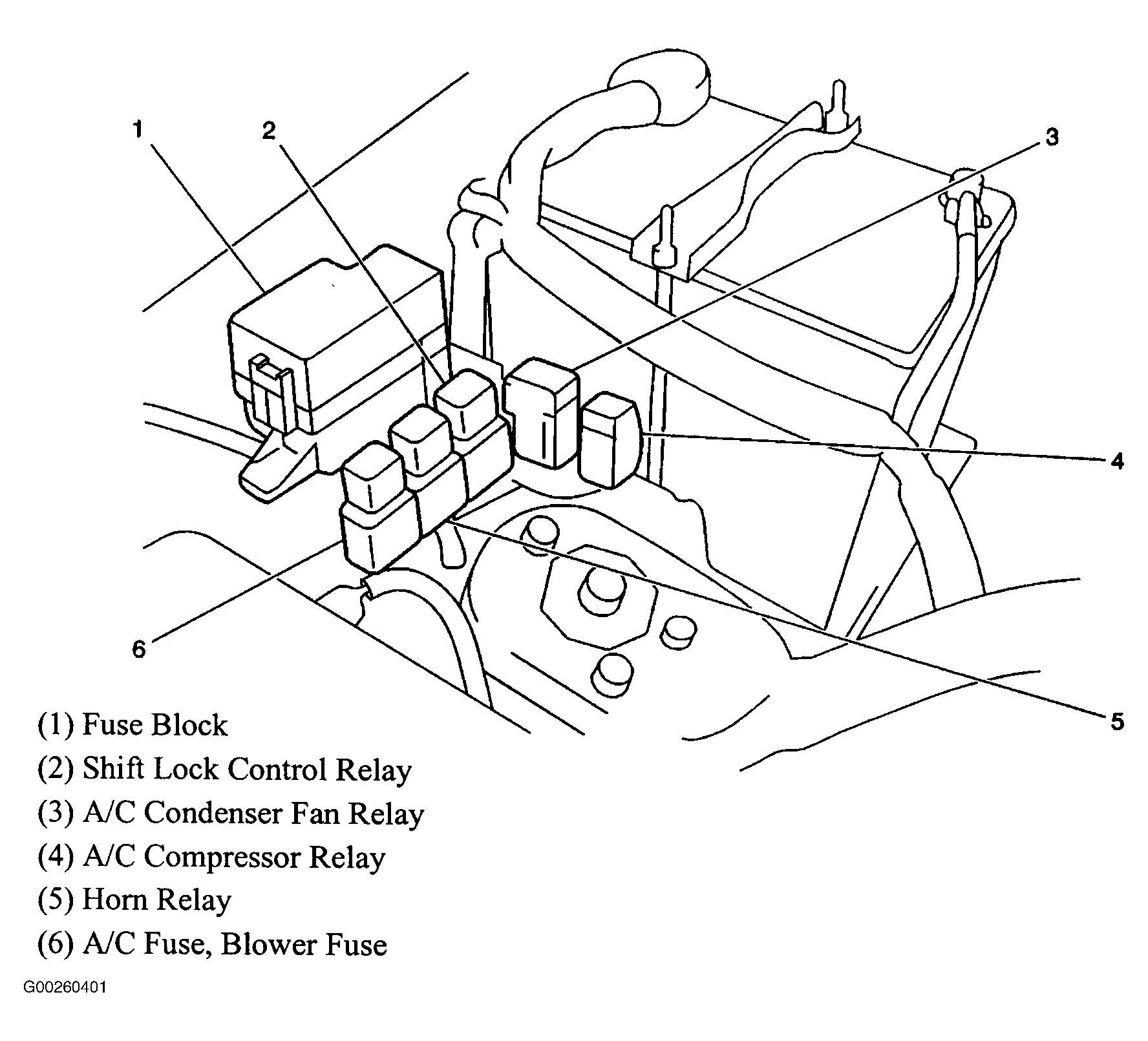

Fig 3: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

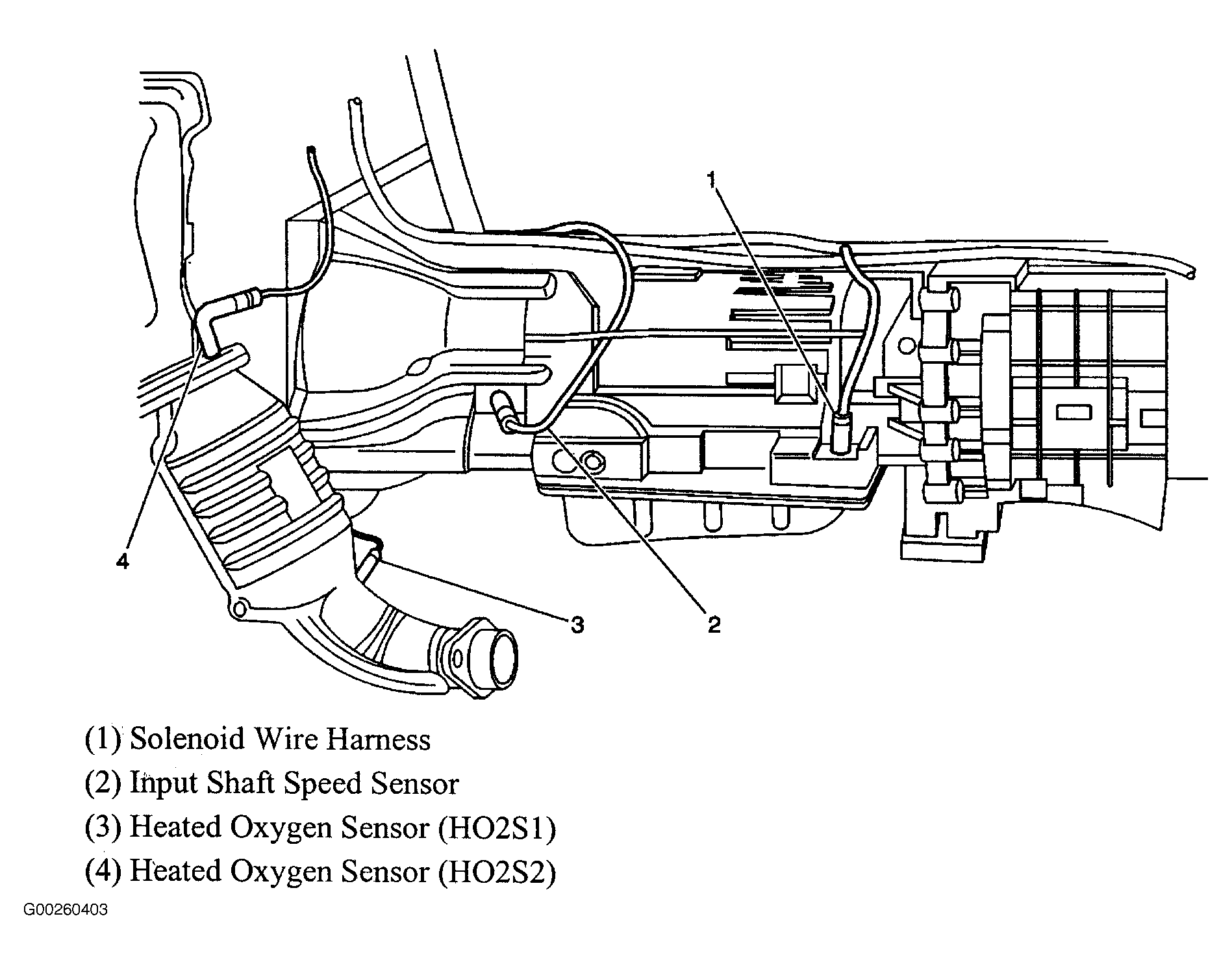

Fig 4: Left Side Of Transmission
Courtesy of GENERAL MOTORS CORP.

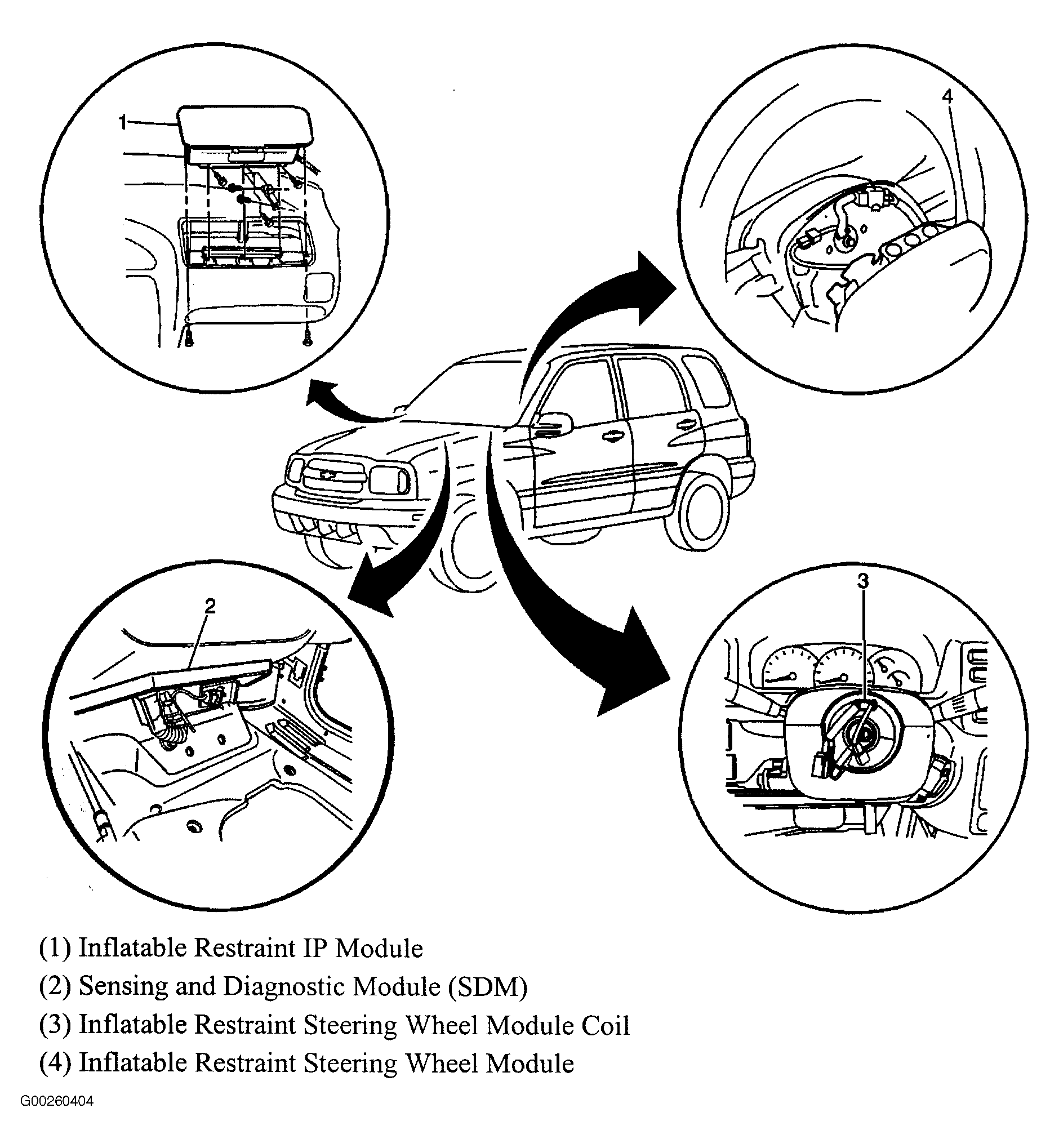

Fig 5: SIR System Overview
Courtesy of GENERAL MOTORS CORP.

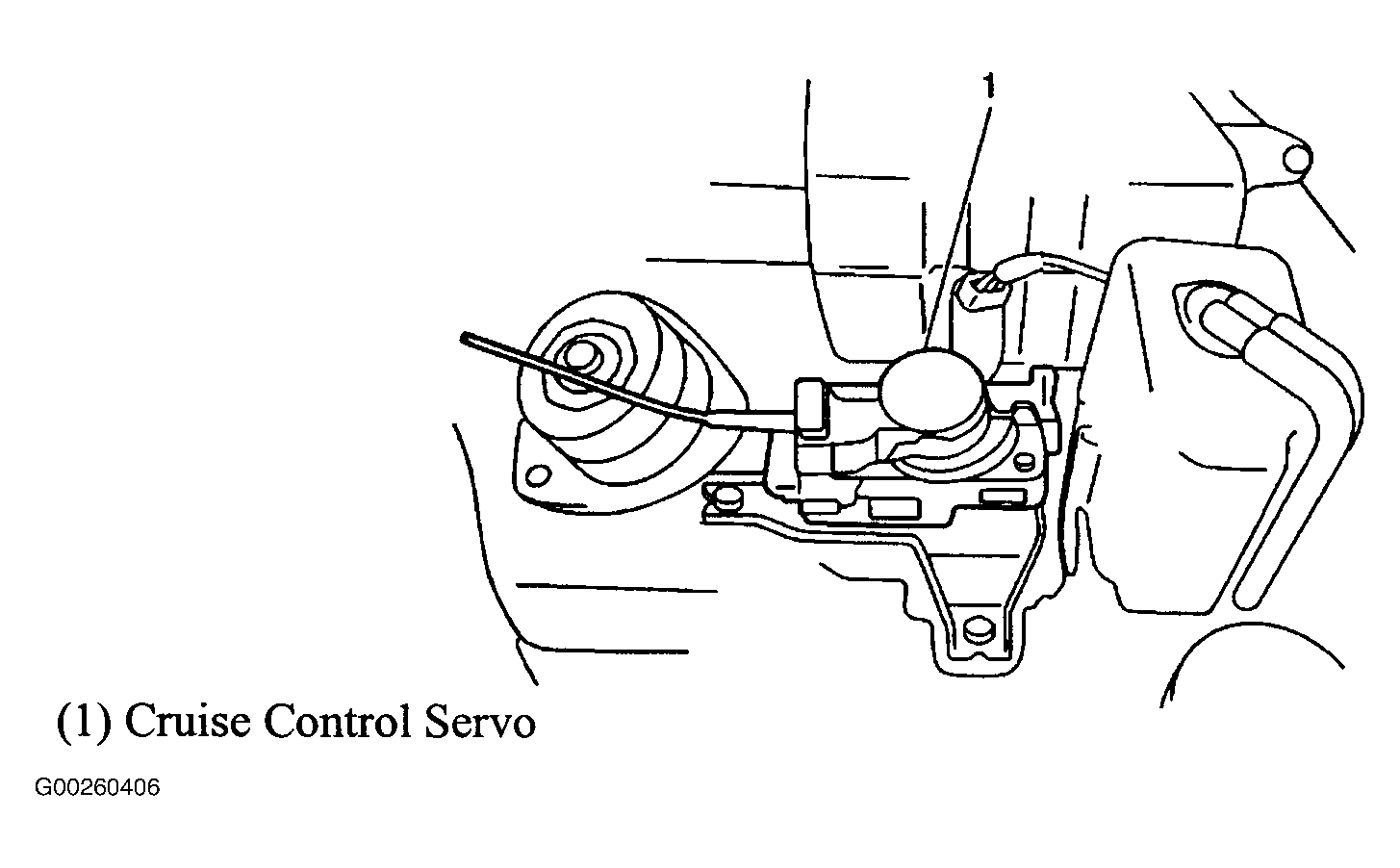

Fig 6: Near Left Front Strut Tower
Courtesy of GENERAL MOTORS CORP.

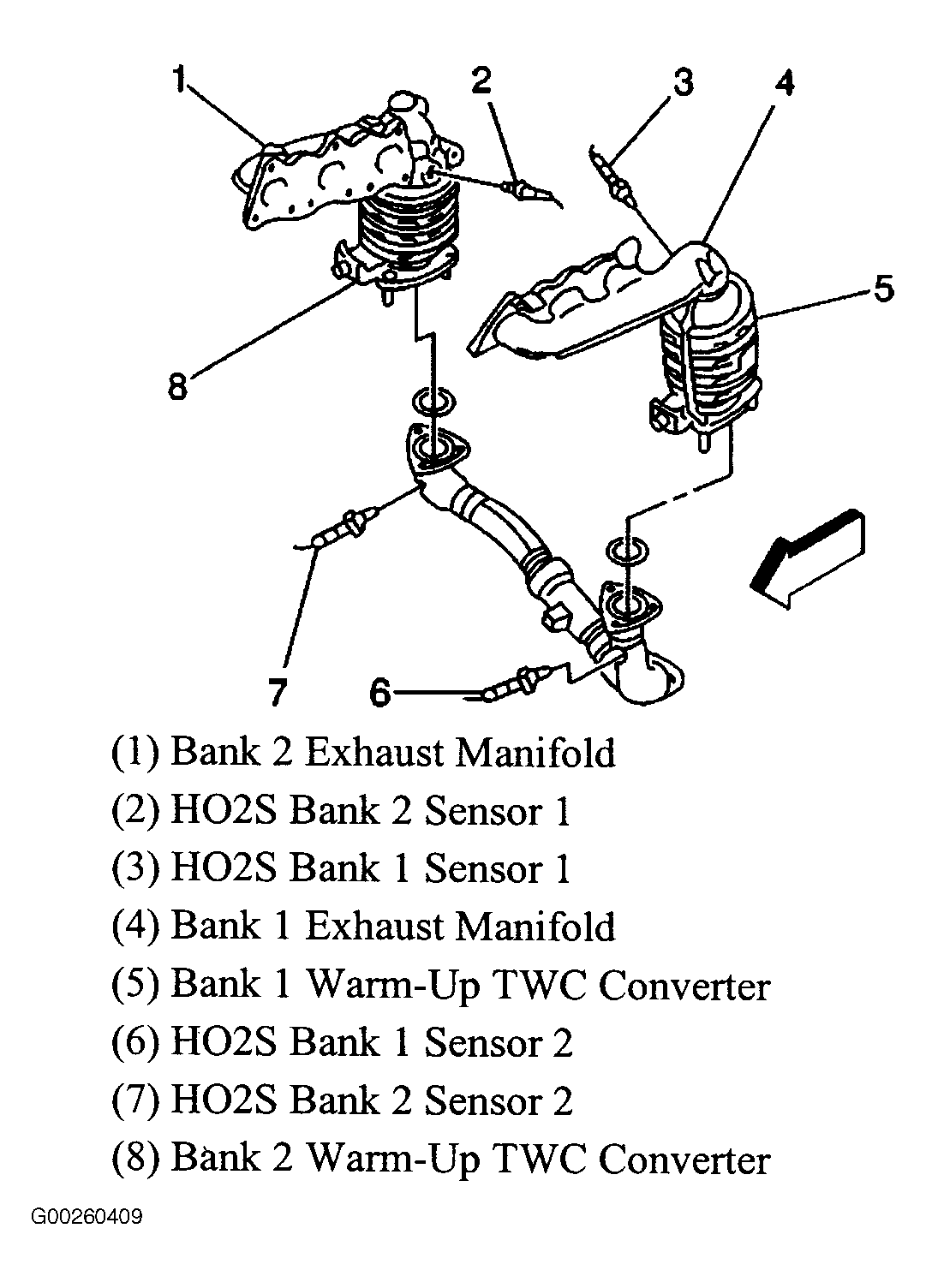

Fig 7: Exhaust System Overview
Courtesy of GENERAL MOTORS CORP.

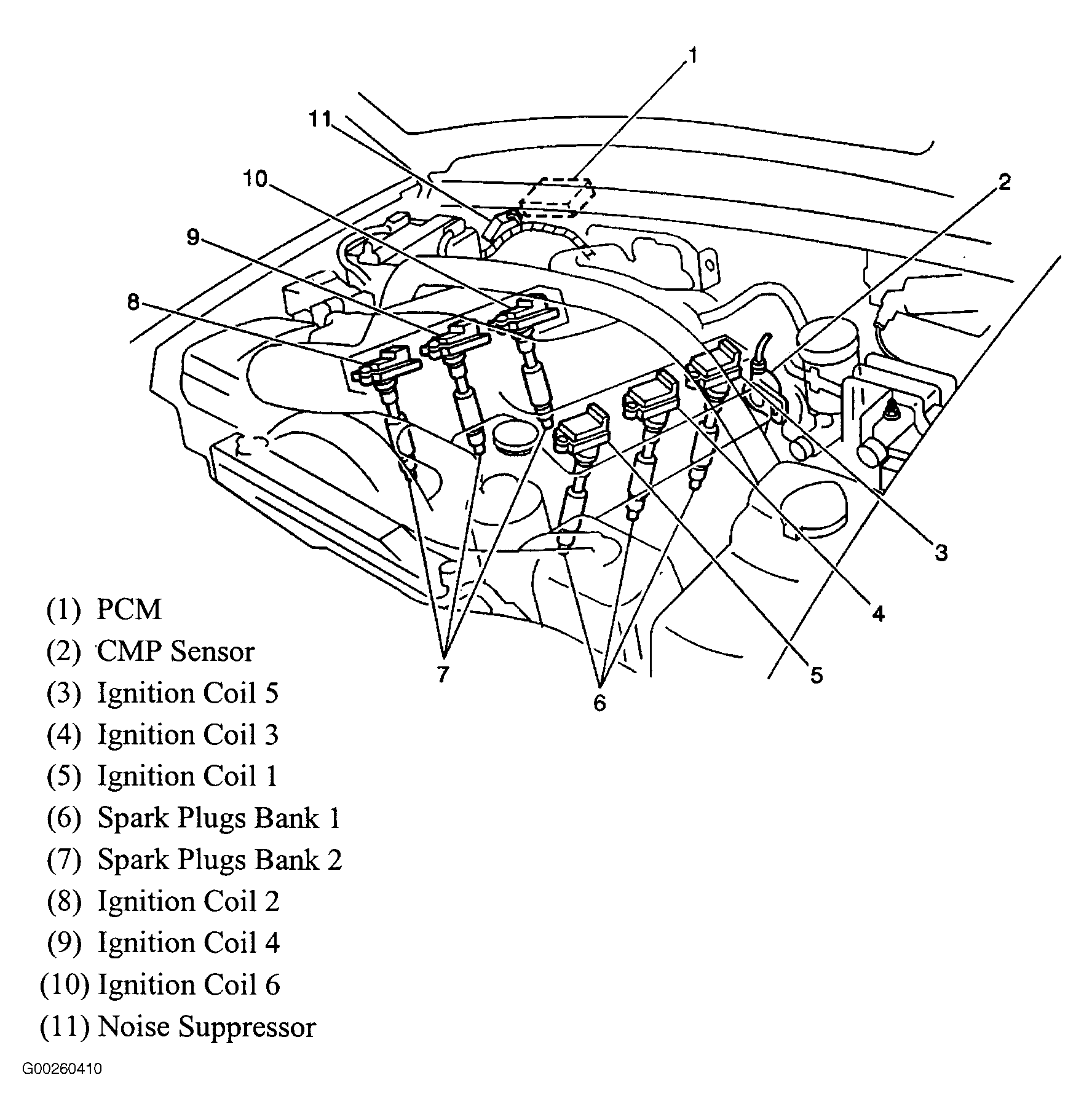

Fig 8: Ignition System Components
Courtesy of GENERAL MOTORS CORP.

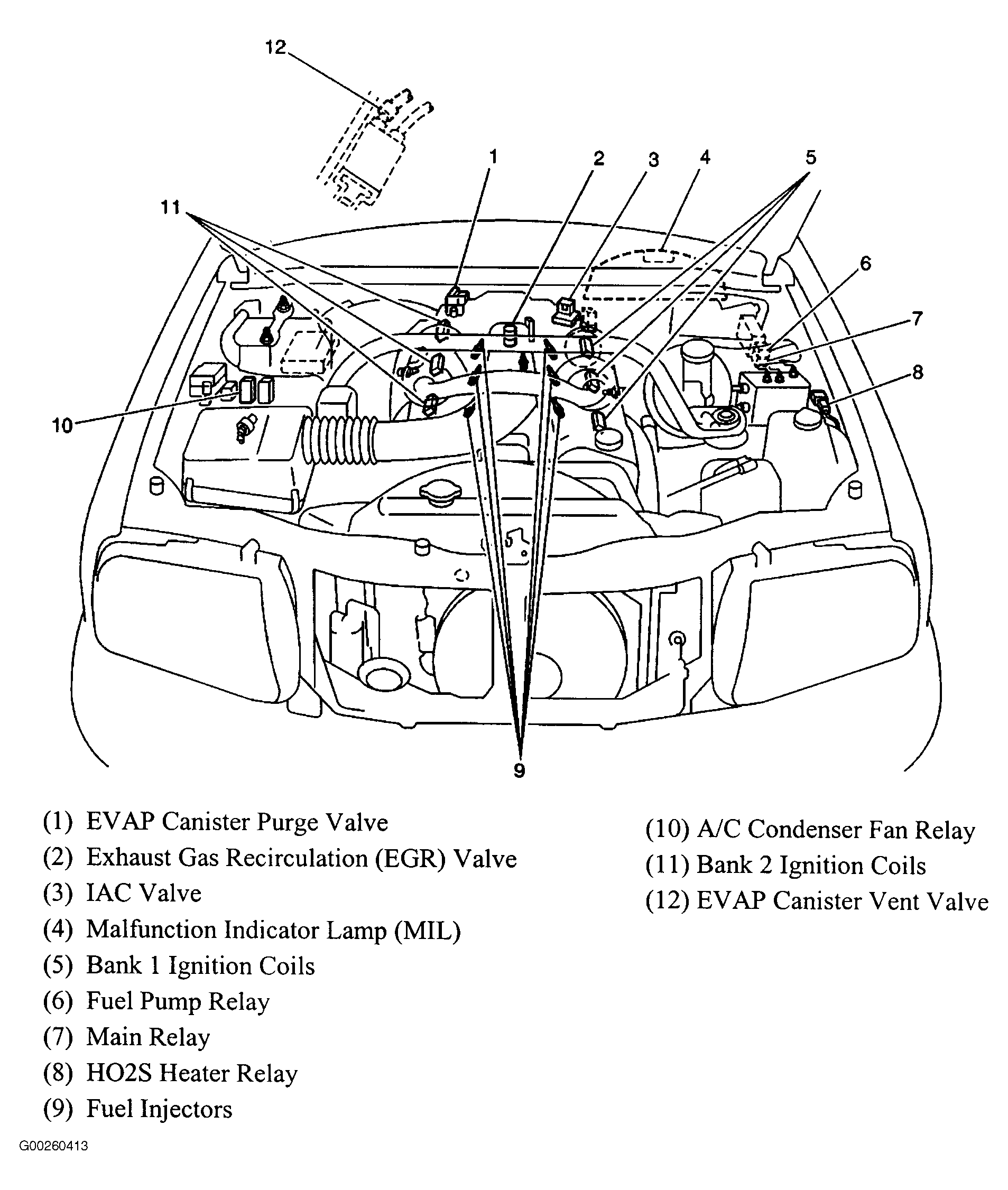

Fig 9: Engine Compartment, PCM Controlled Devices (6 Cylinder)
Courtesy of GENERAL MOTORS CORP.

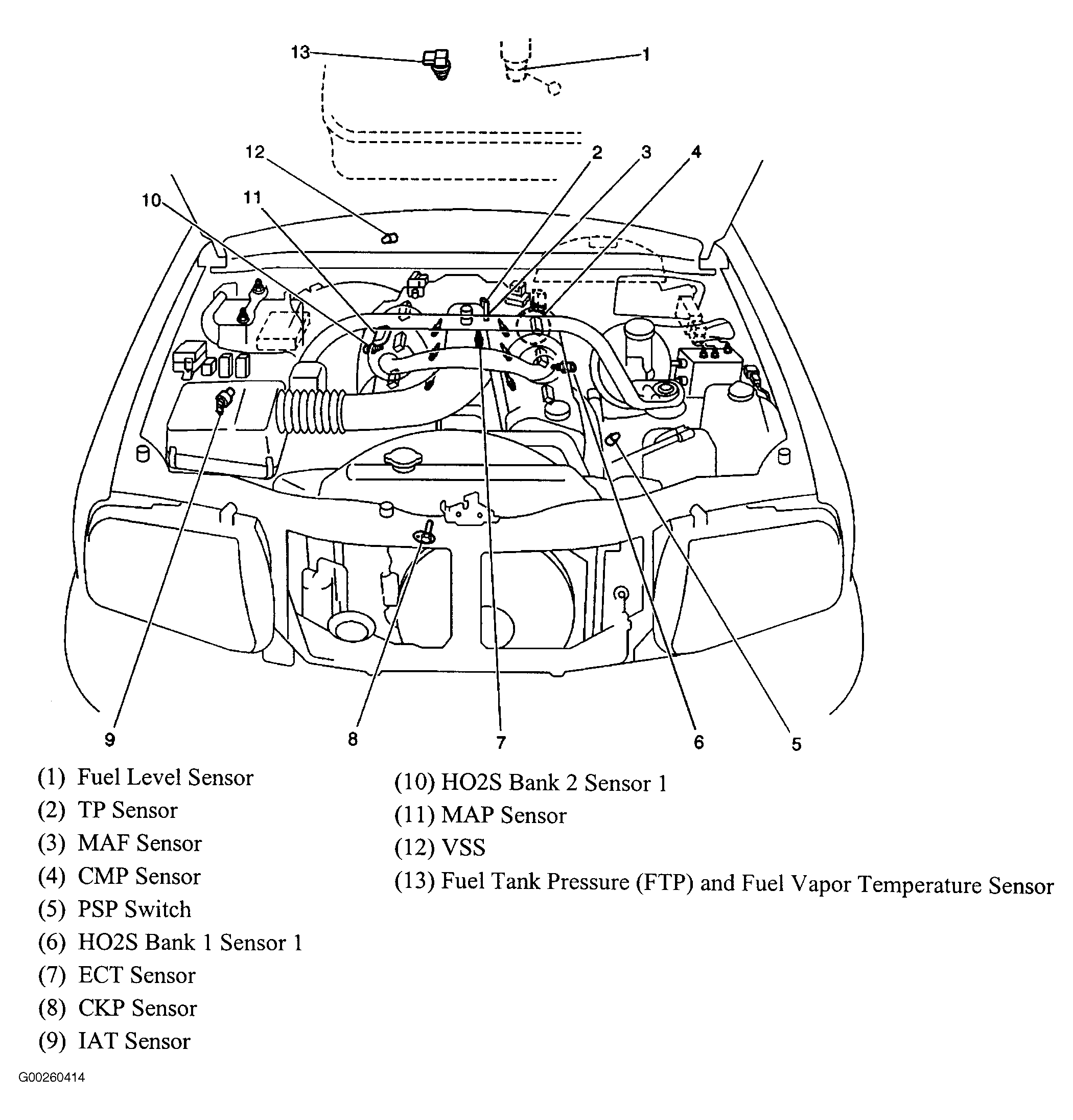

Fig 10: Engine Compartment Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

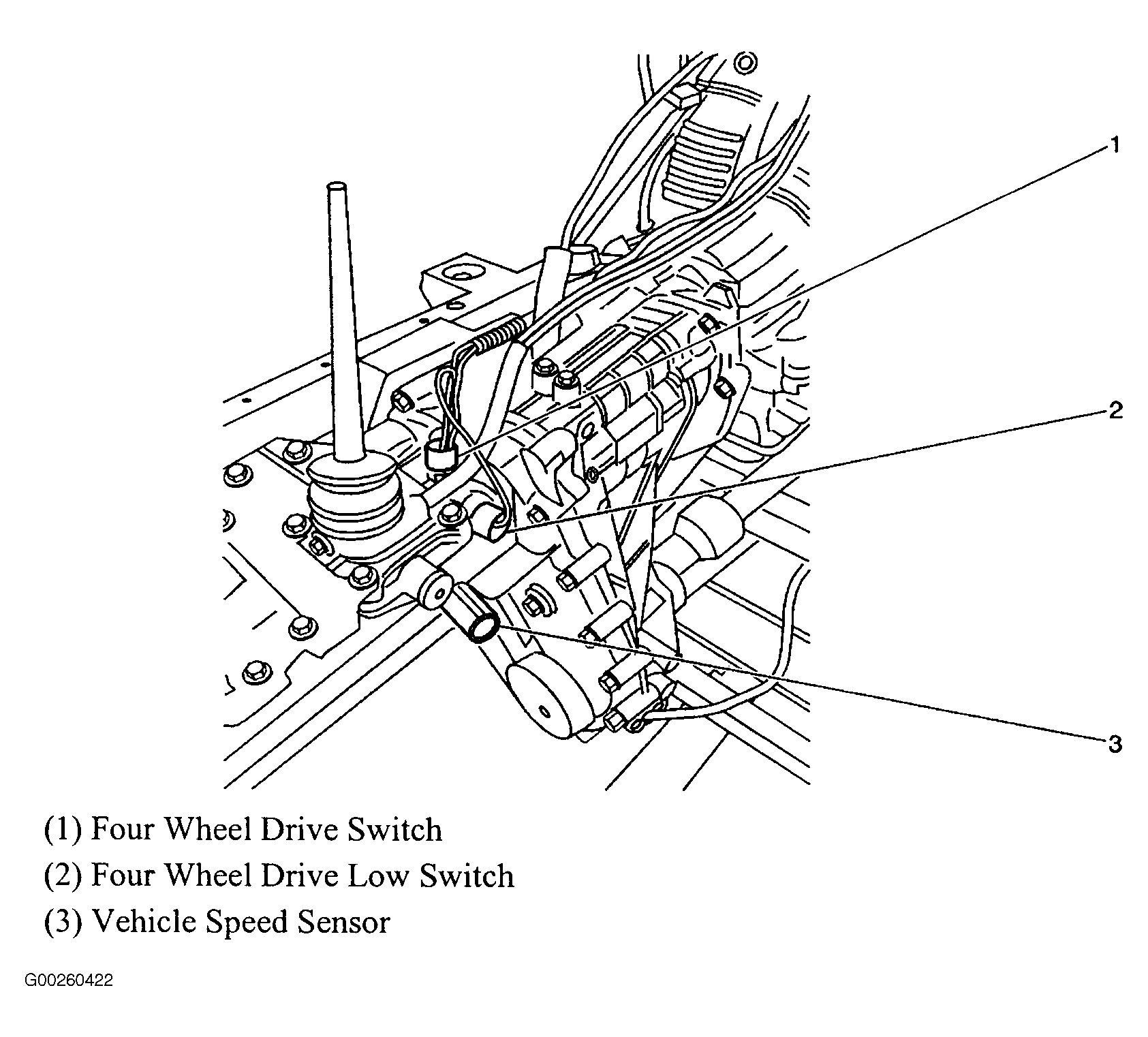

Fig 12: Transfer Case
Courtesy of GENERAL MOTORS CORP.

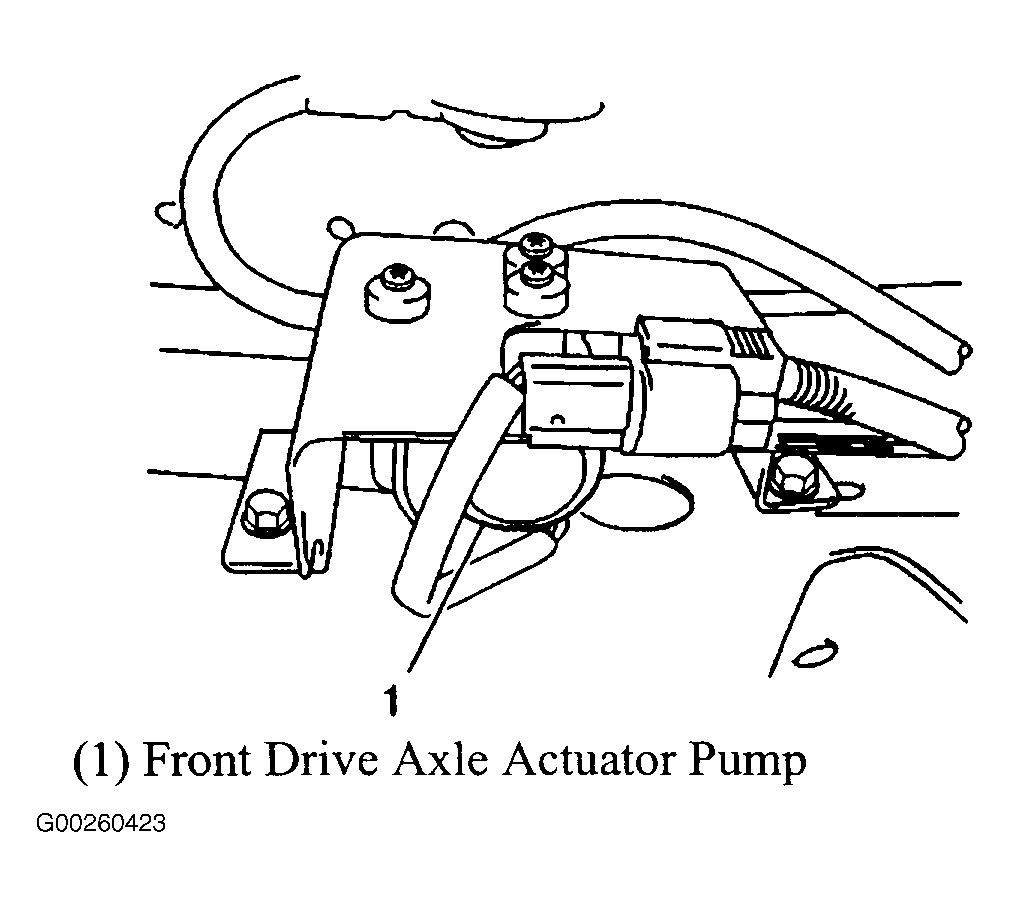

Fig 13: Lower Right Rear Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

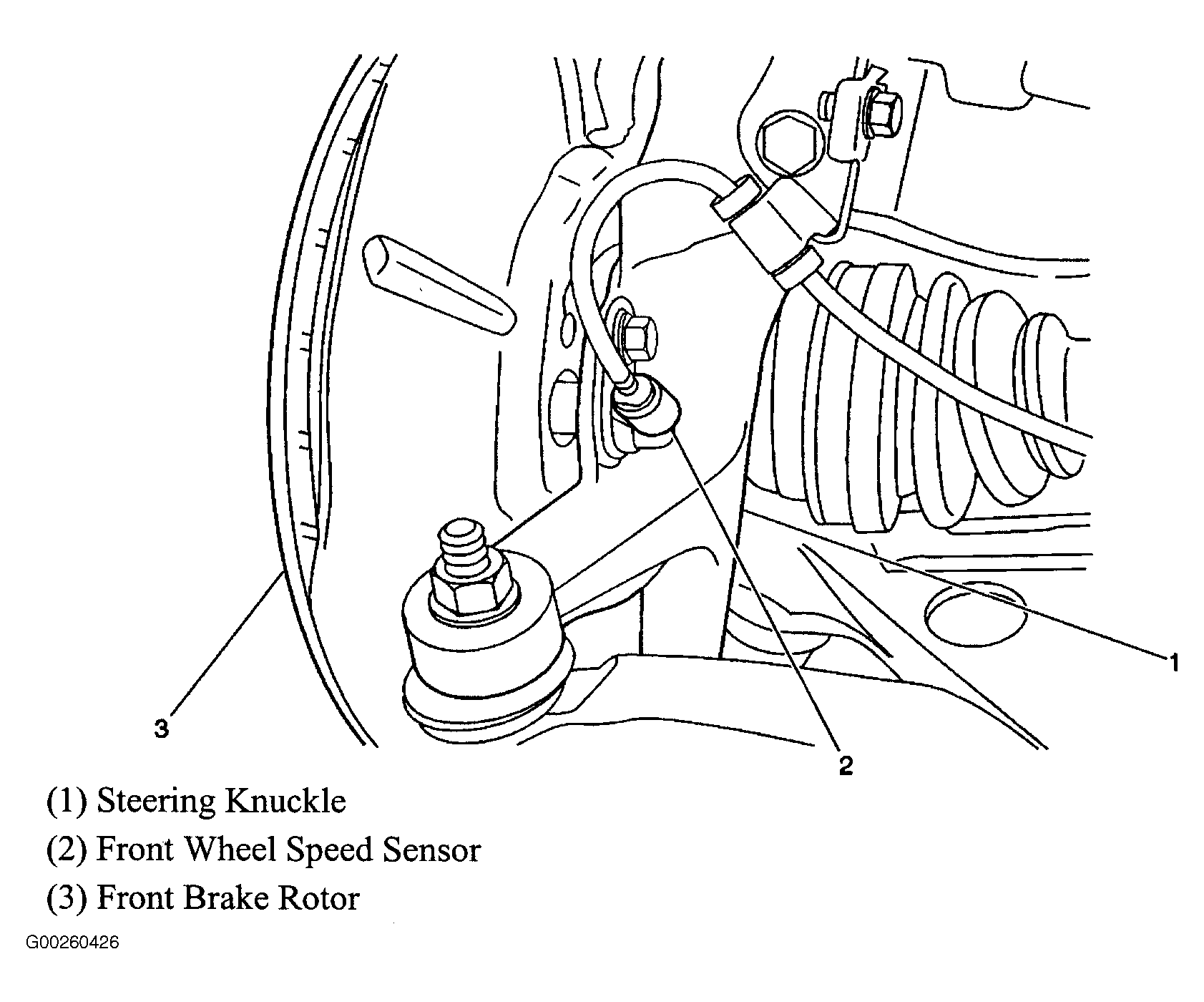

Fig 14: Front Wheel Components
Courtesy of GENERAL MOTORS CORP.

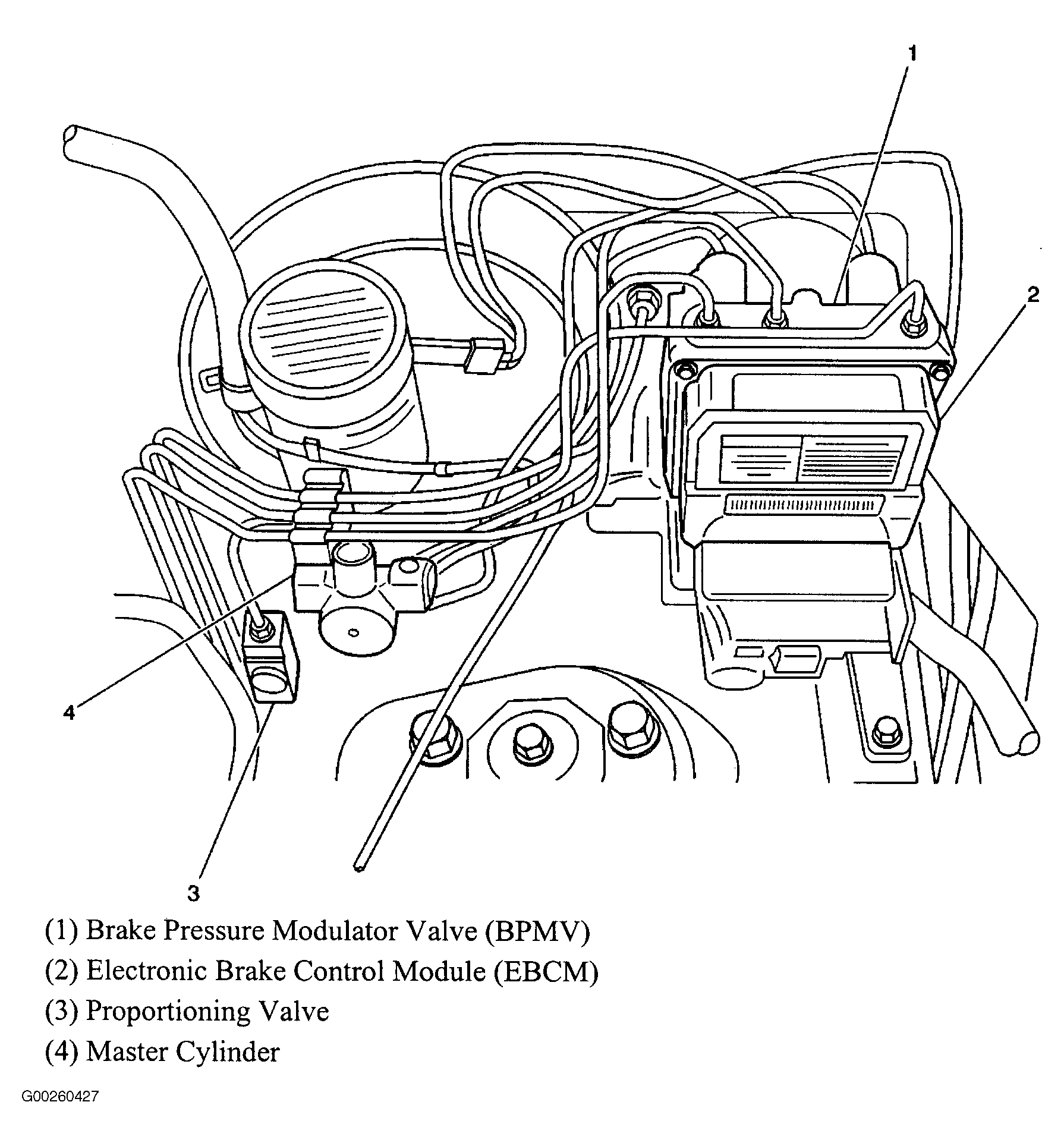

Fig 15: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

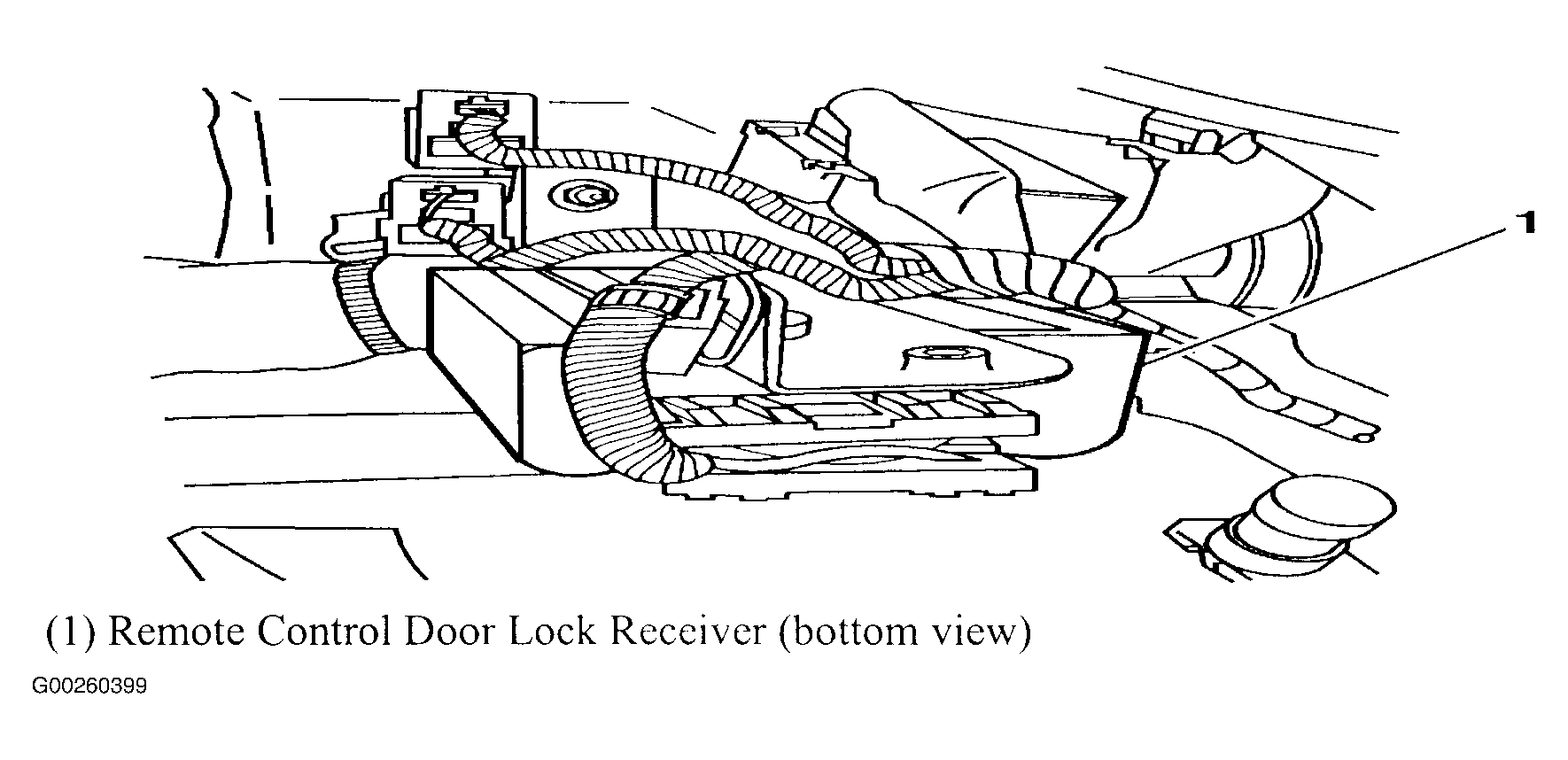

Fig 16: Under Rear Floor Console
Courtesy of GENERAL MOTORS CORP.

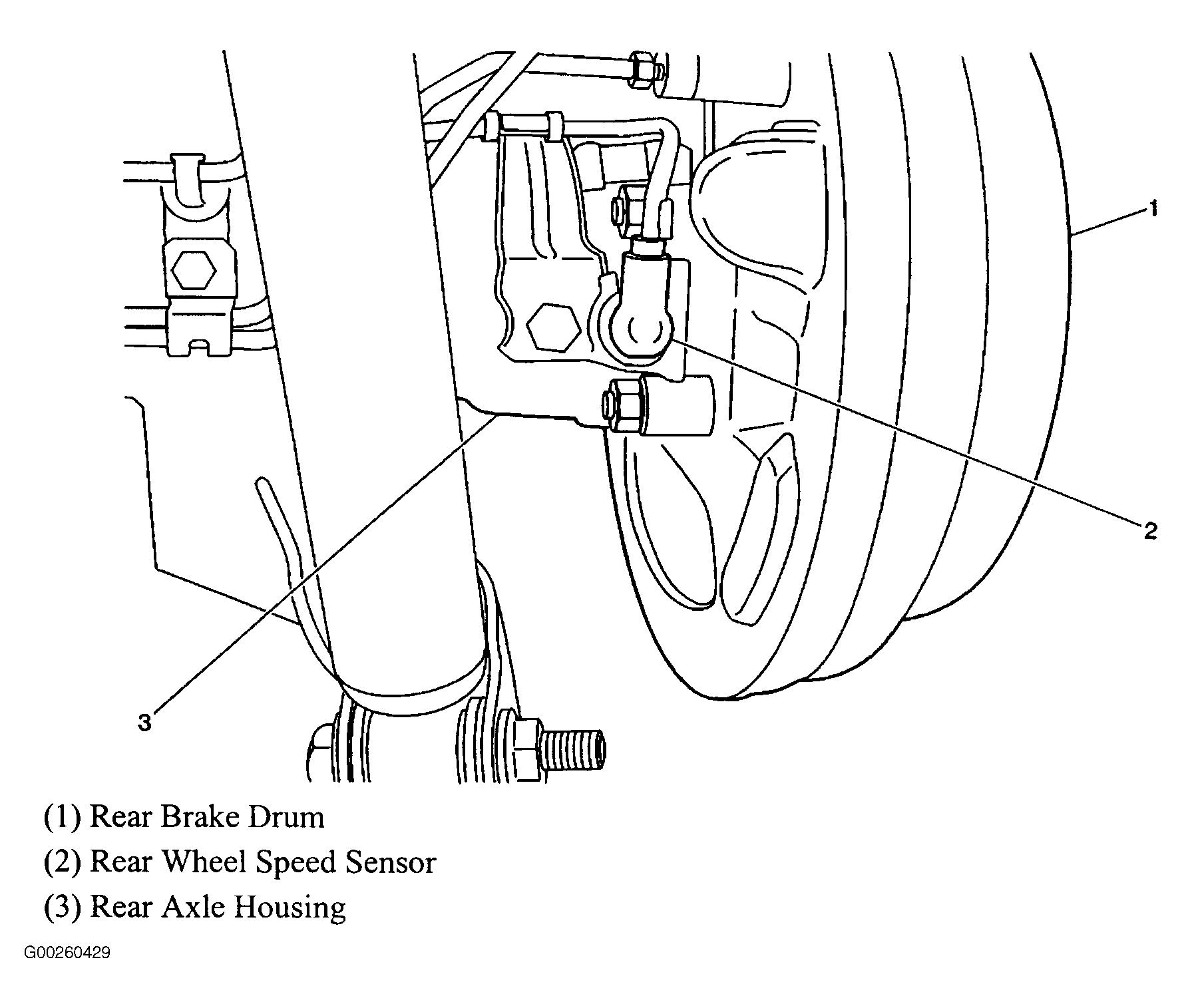

Fig 17: Rear Wheel Components
Courtesy of GENERAL MOTORS CORP.
Fig 18: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

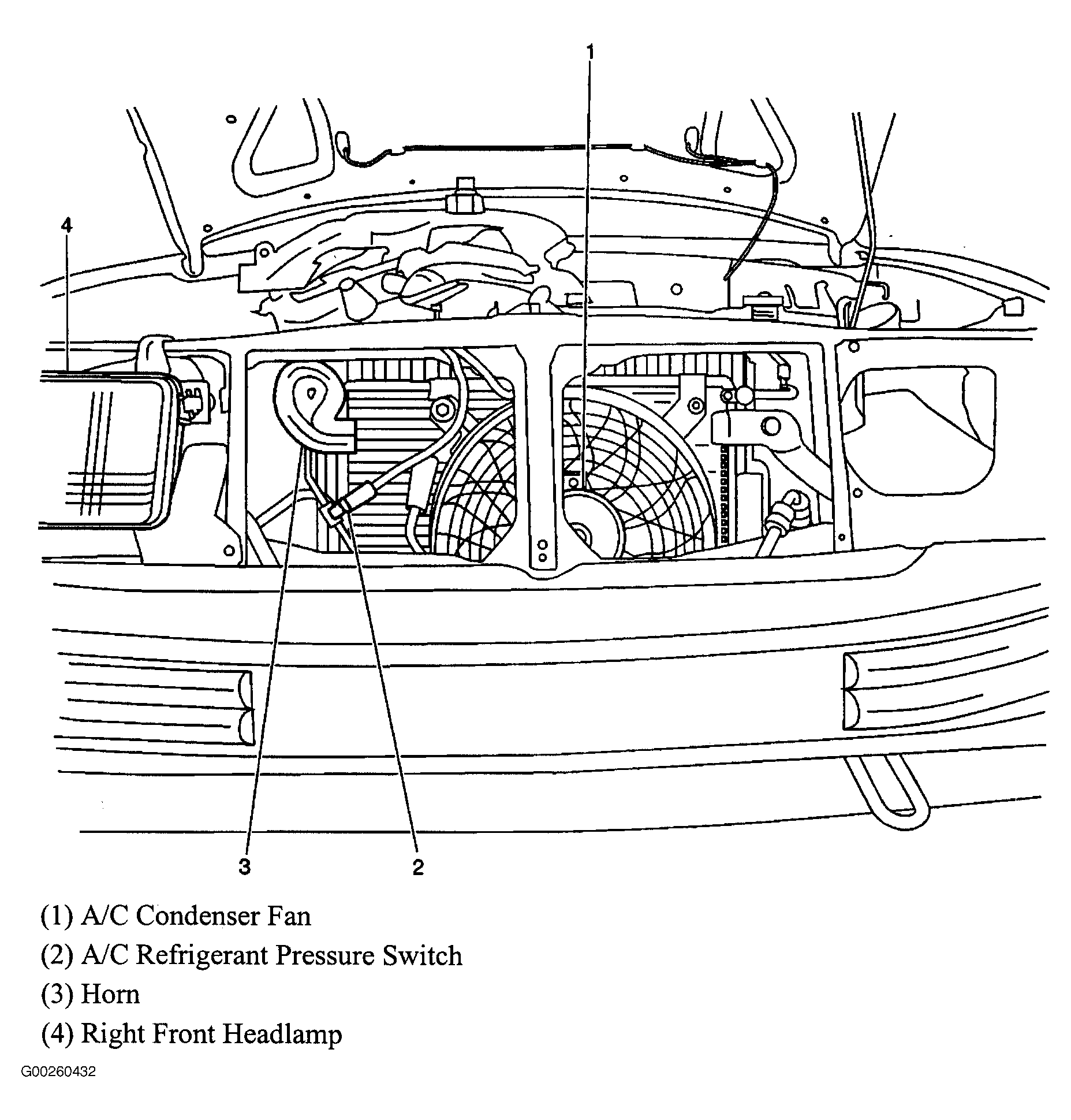

Fig 19: Behind Grille
Courtesy of GENERAL MOTORS CORP.

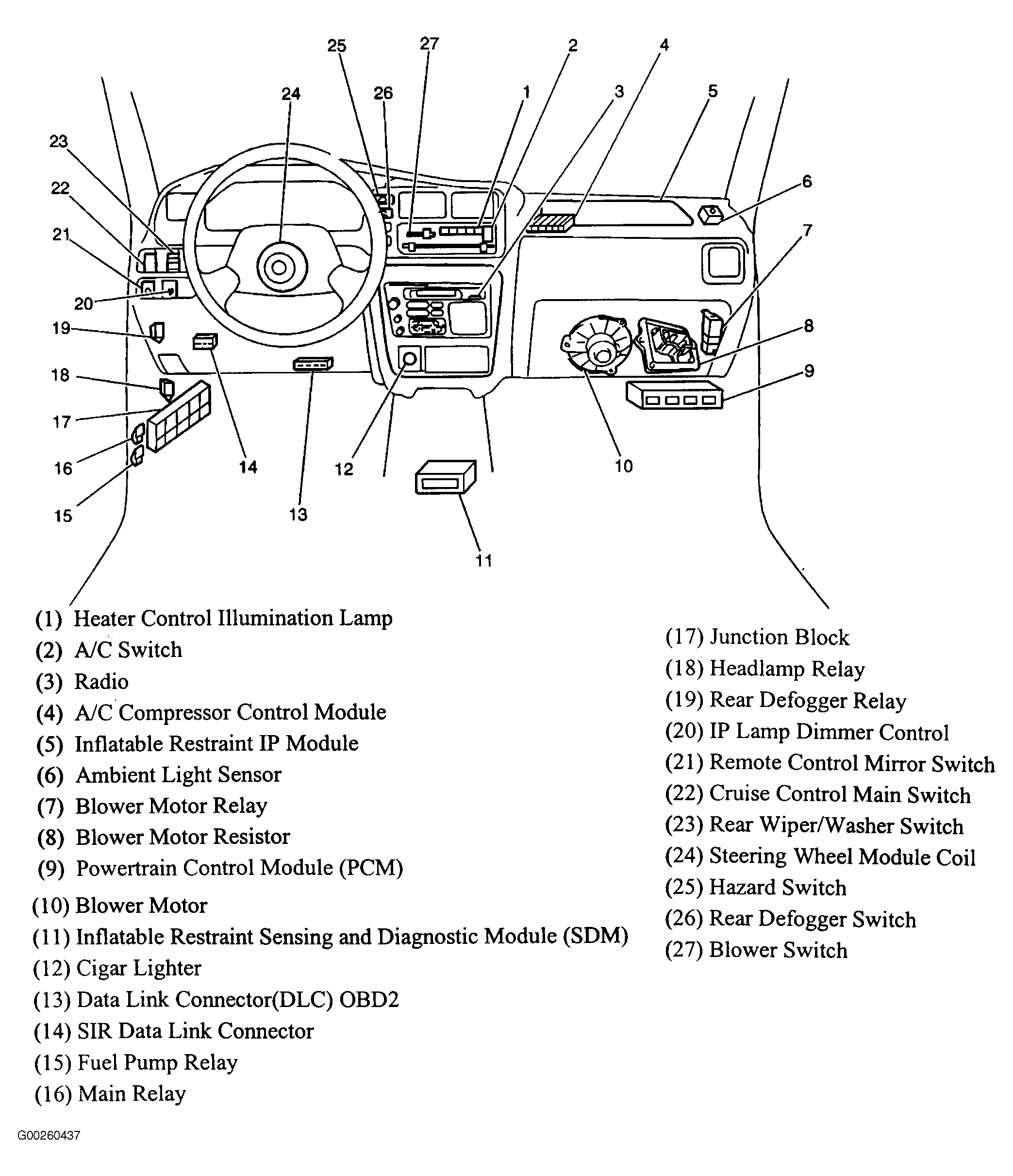

Fig 20: Dash
Courtesy of GENERAL MOTORS CORP.

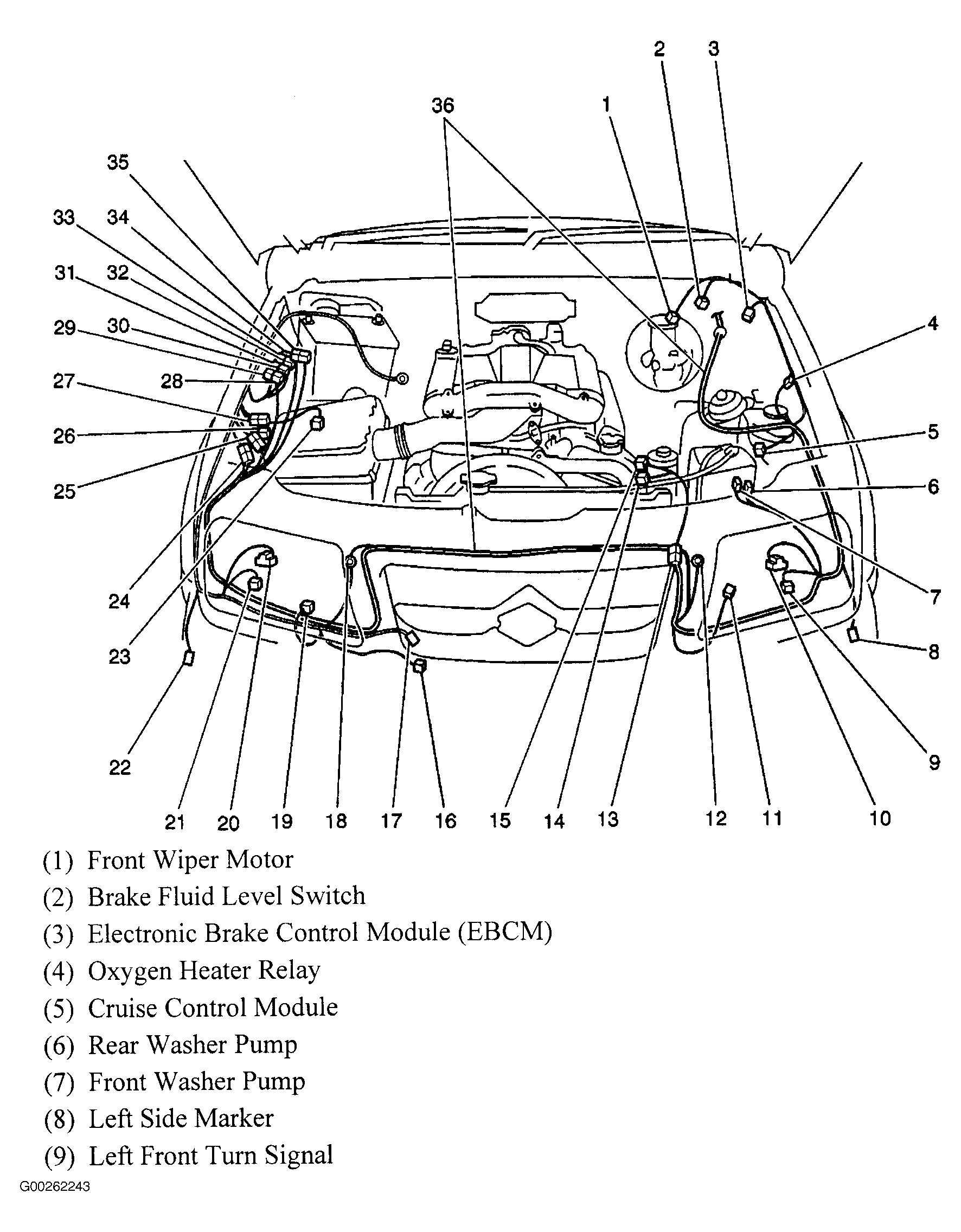

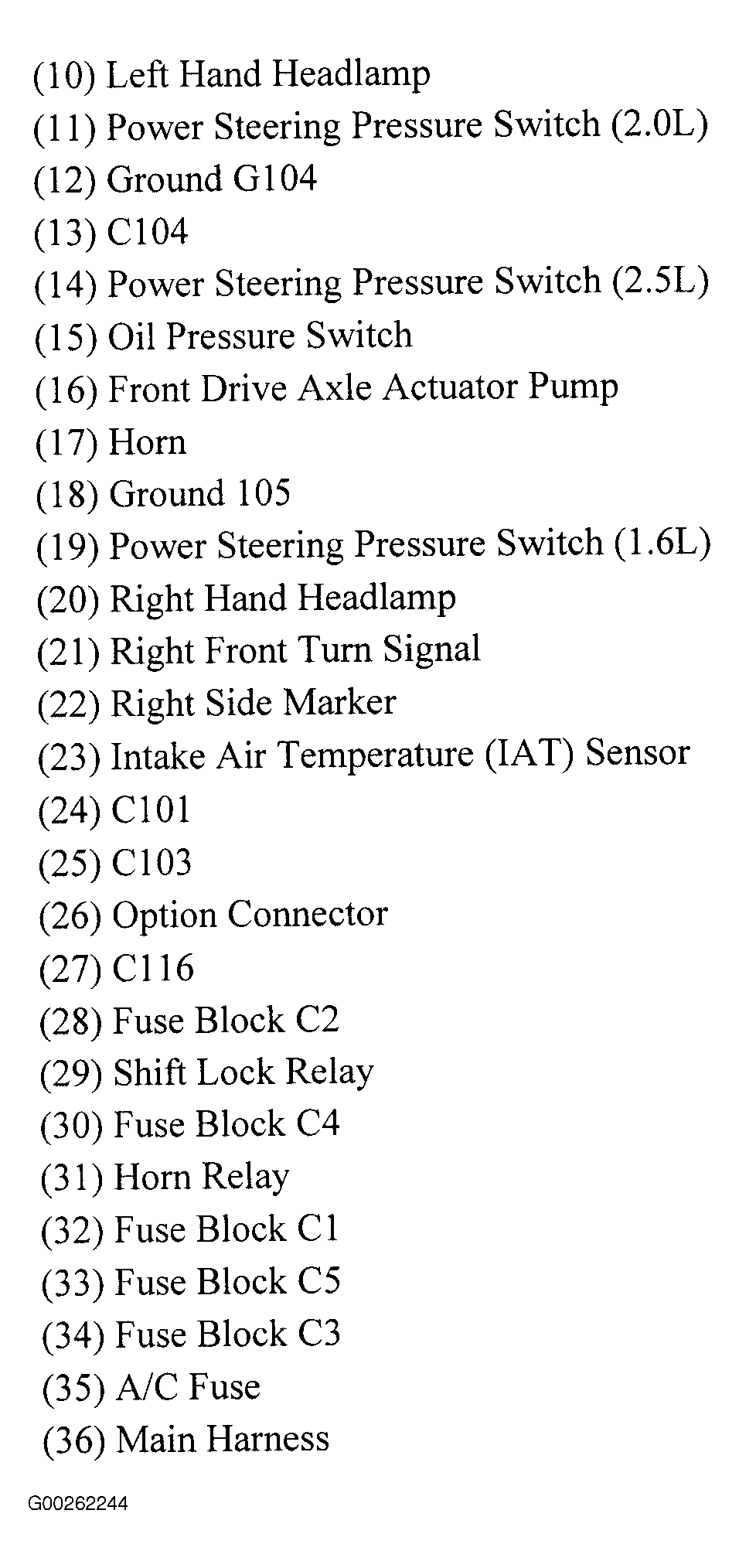

Fig 21: Engine Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Engine Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

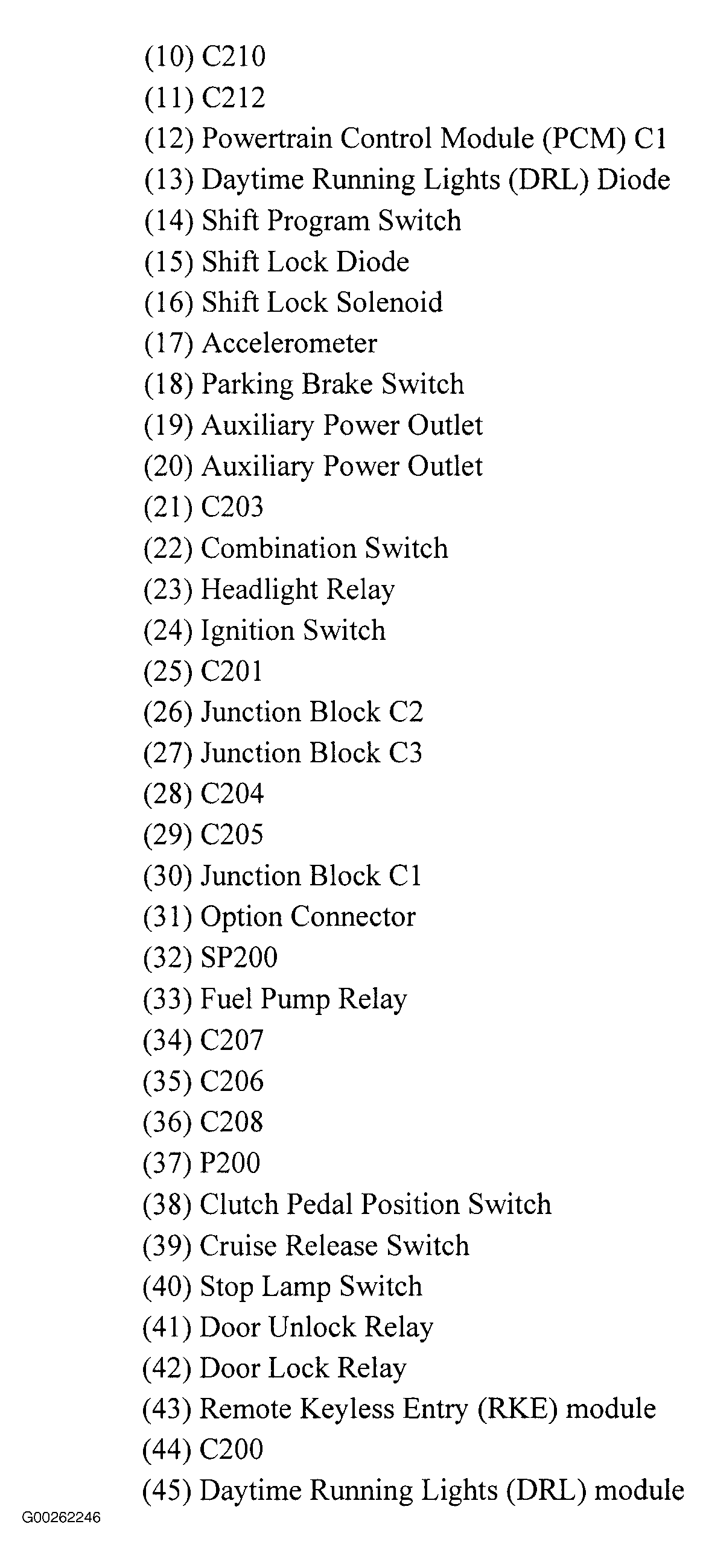

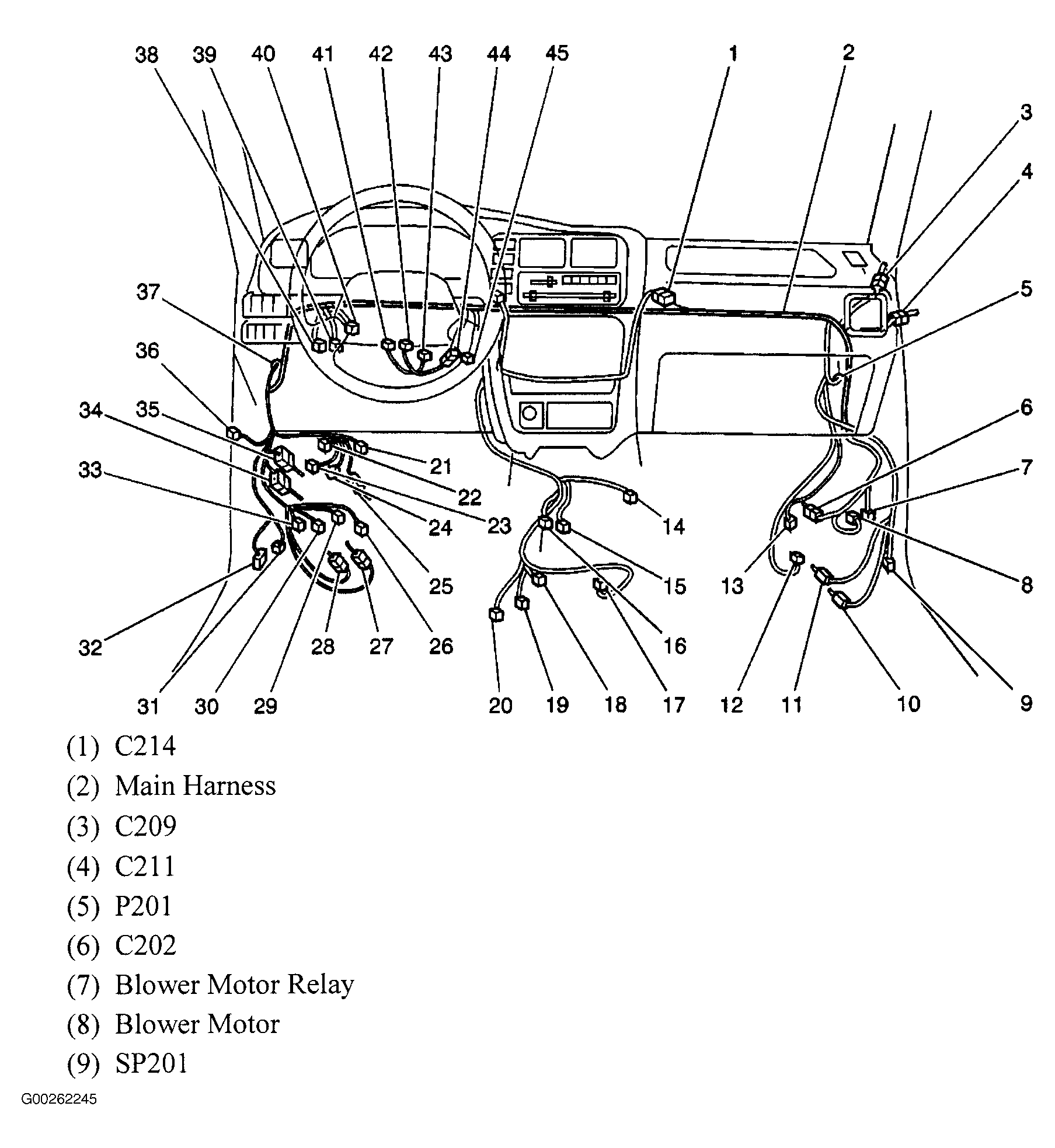

Fig 23: Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

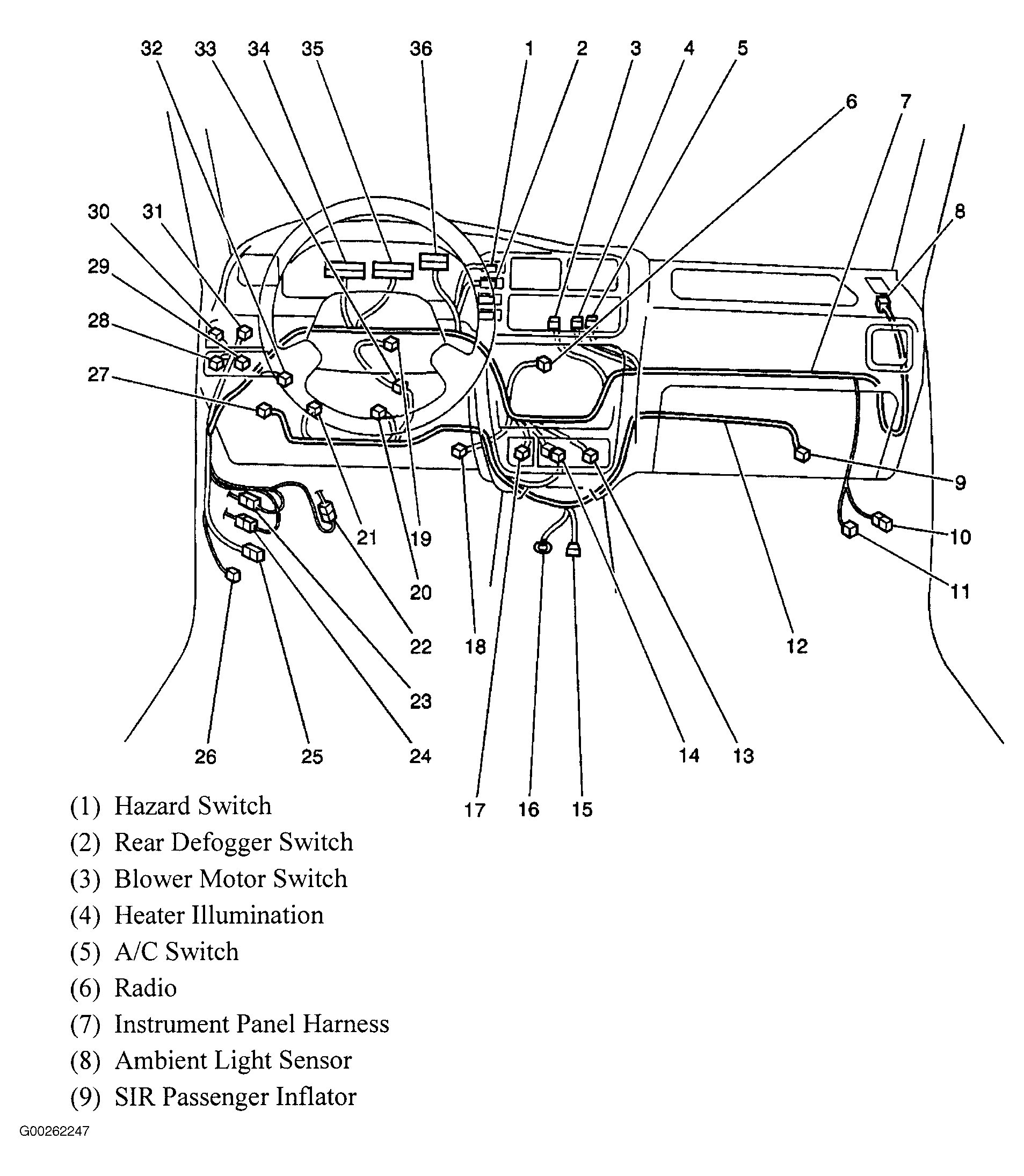

Fig 25: Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

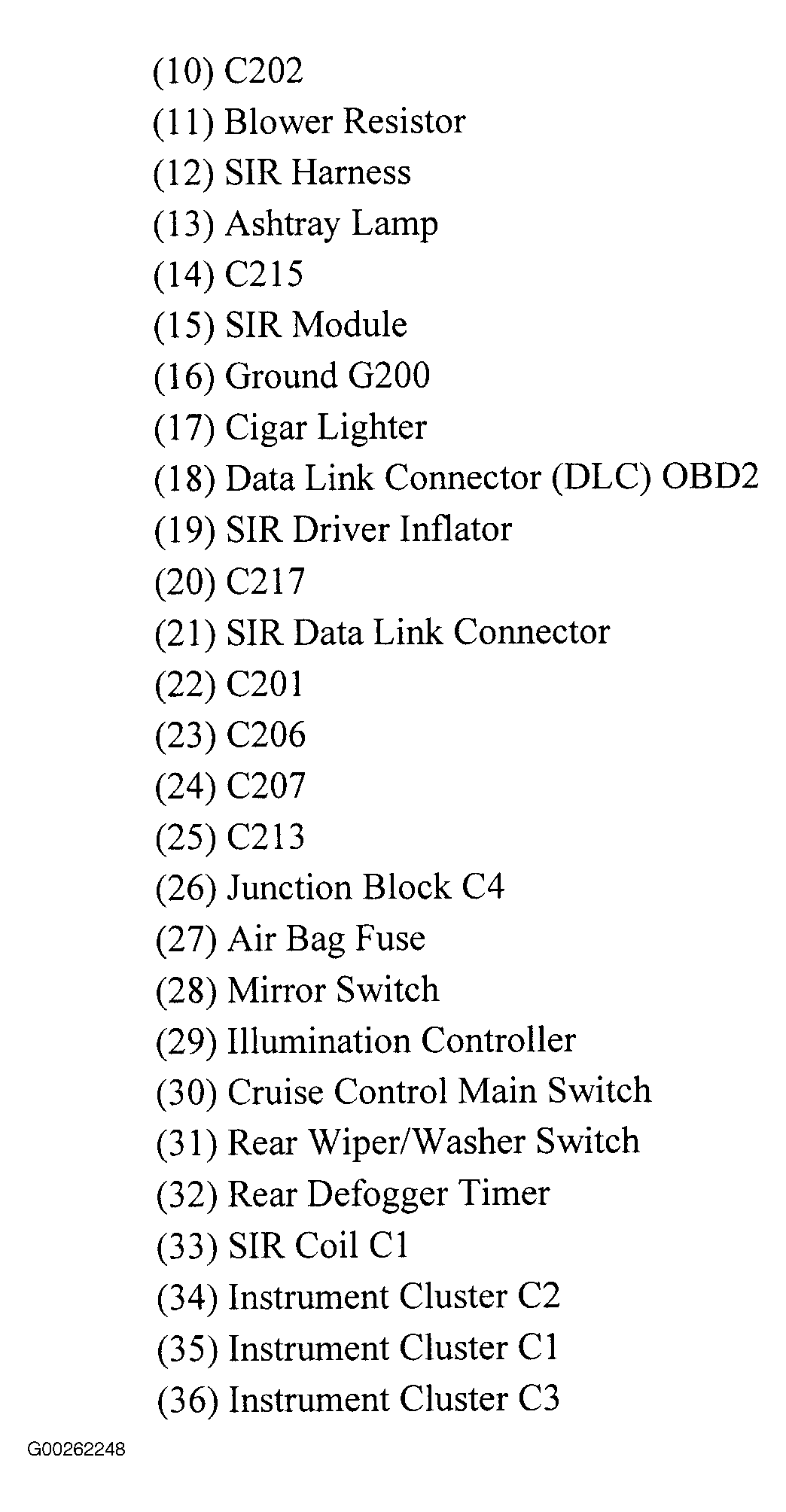

Fig 26: Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

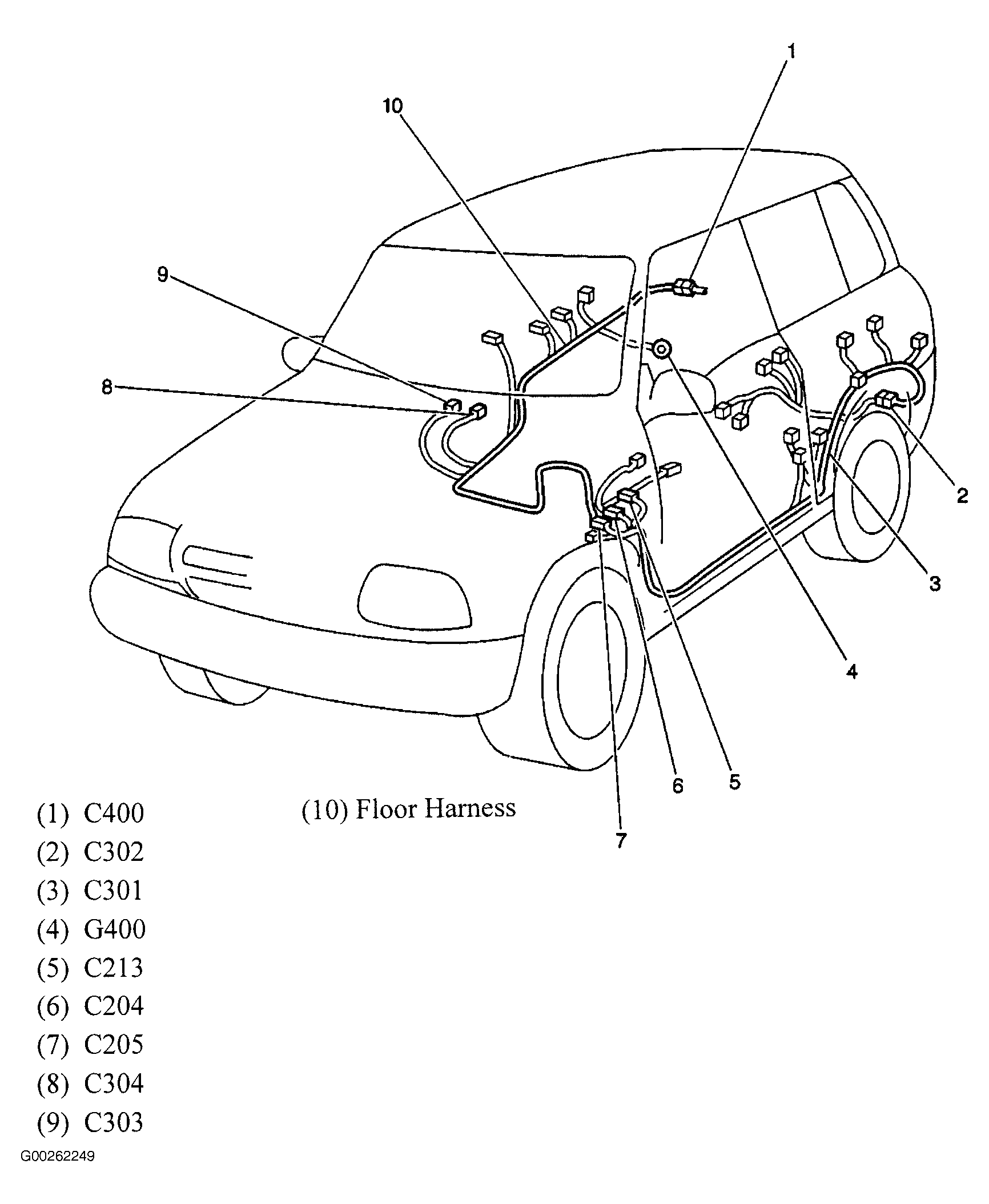

Fig 27: Floor Harness
Courtesy of GENERAL MOTORS CORP.

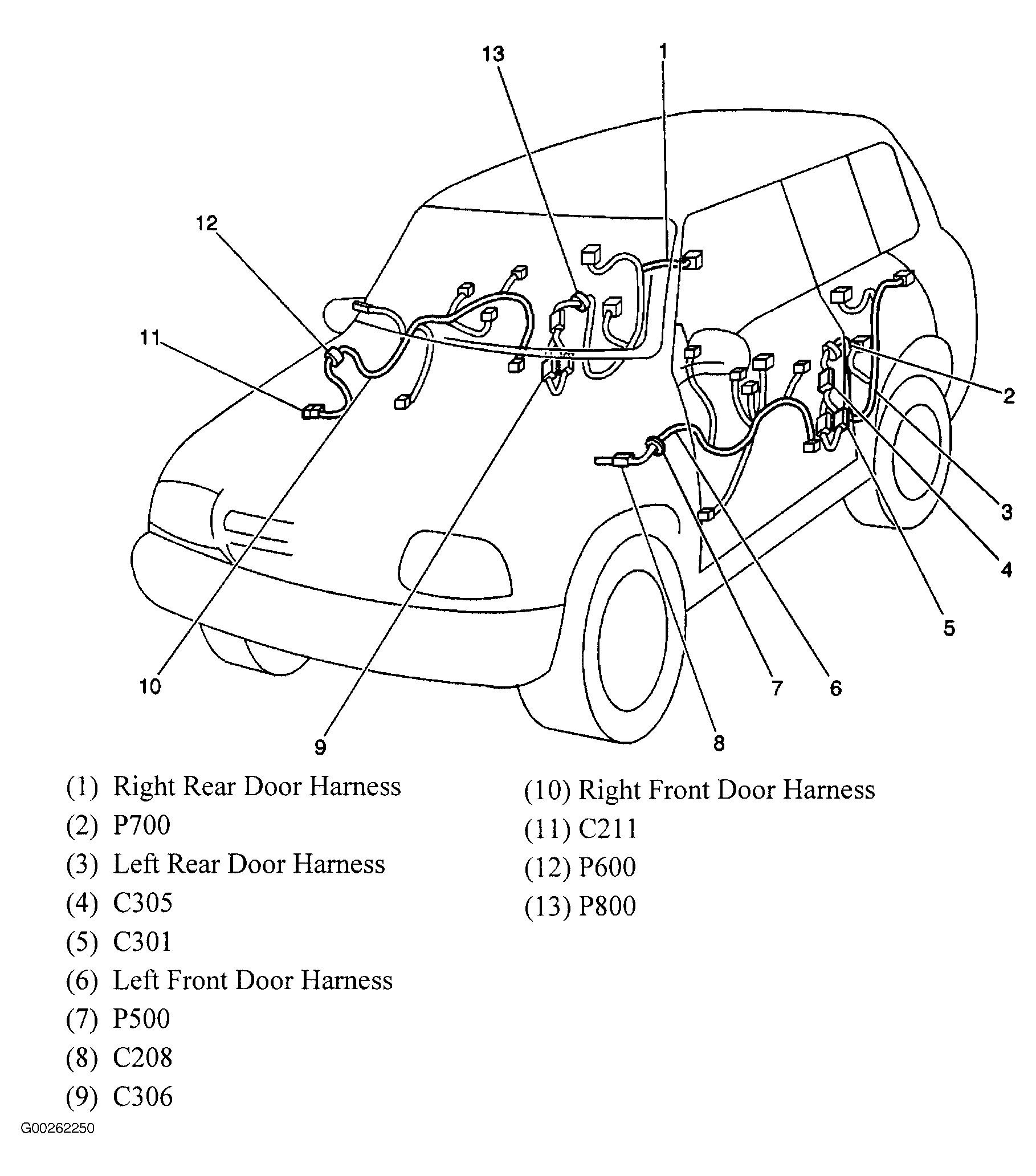

Fig 28: Door Harnesses
Courtesy of GENERAL MOTORS CORP.

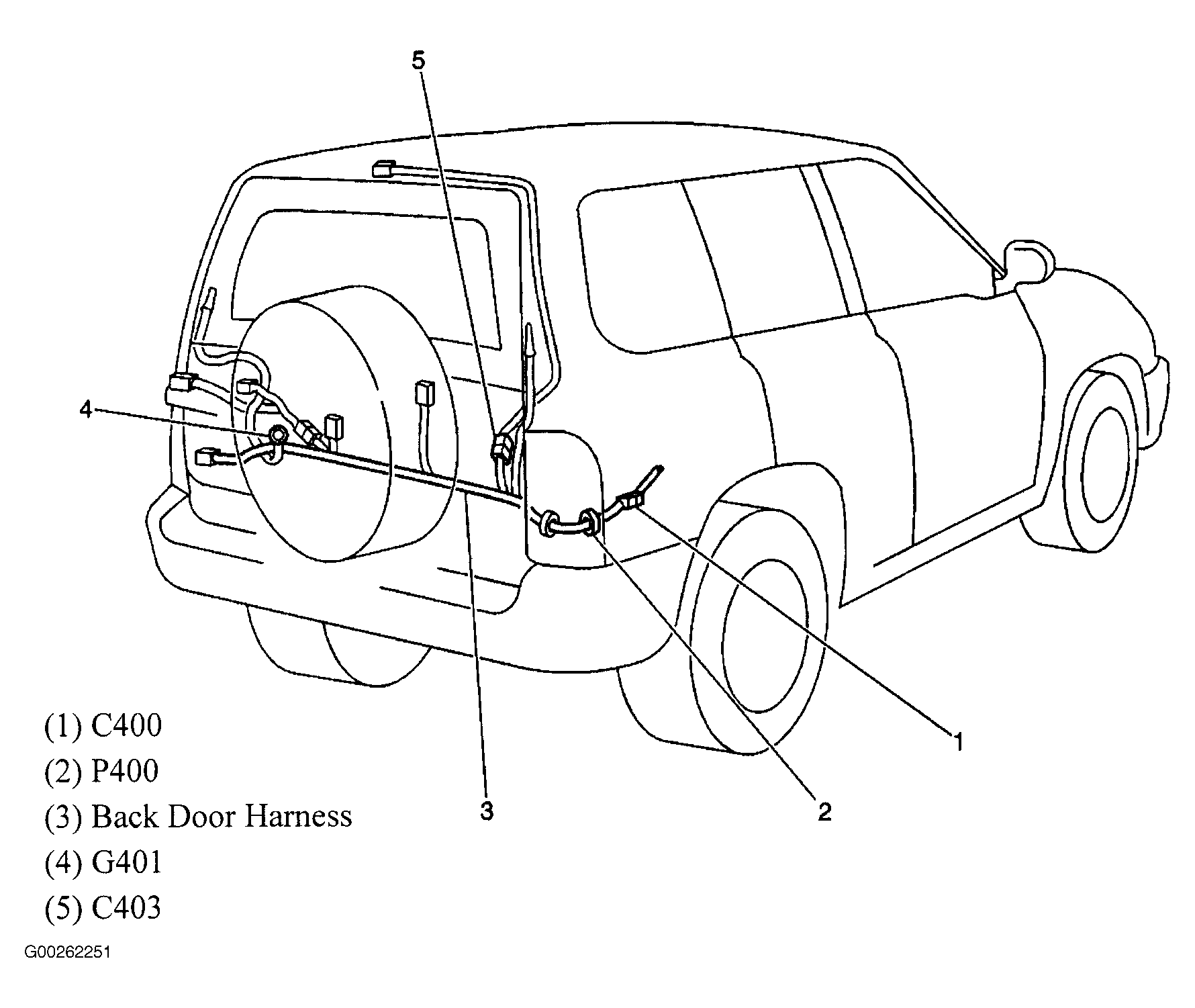

Fig 29: Back Door Harness
Courtesy of GENERAL MOTORS CORP.
