Installation Procedure

  1. Install the EGR valve gasket (4).
  2. Install the EGR valve (2).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install both retaining bolts (3).

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  4. Connect the EGR valve electrical connector.

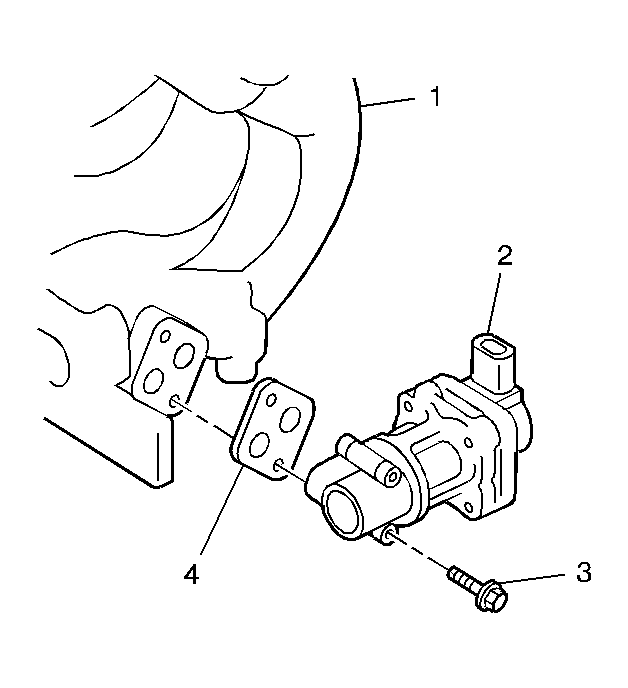

    5. Fig 1: View Of EGR Valve, Gasket, Intake Manifold & Retaining Bolts
    GM419568Courtesy of GENERAL MOTORS CORP.
