Installation Procedure

  1. Connect the fuel tank breather hose (3) to the fuel filler pipe (1).
  2. Connect the fuel tank filler hose (2) to the fuel filler pipe (1).

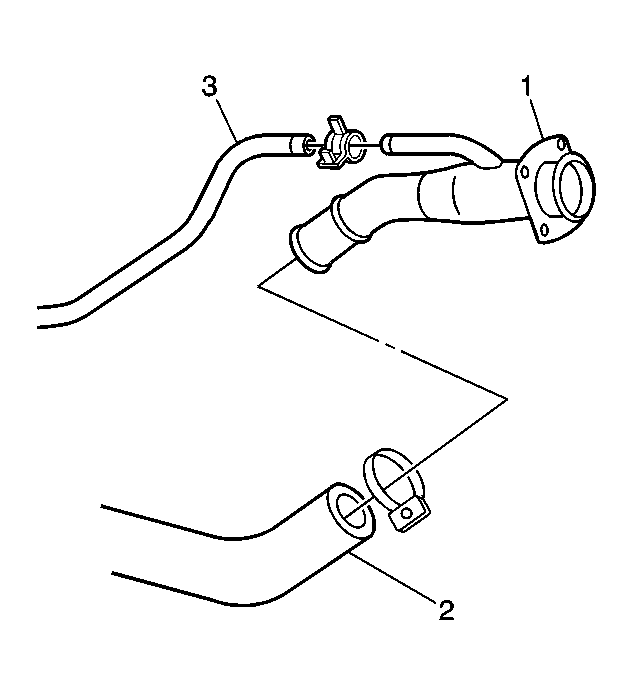

    3. Fig 1: View Of Fuel Filler Pipe, Filler Hose & Fuel Tank Breather Hose
    GM486299Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel filler pipe (1) and gasket up into the fuel filler door compartment.
  4. Lower the vehicle.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Secure the fuel tank filler pipe (1) to the opening in the fuel filler door compartment with the 3 bolts (2).

    Tighten:  Tighten the bolts to 3.5 N.m (26 lb in).

  6. Install the fuel filler cap.

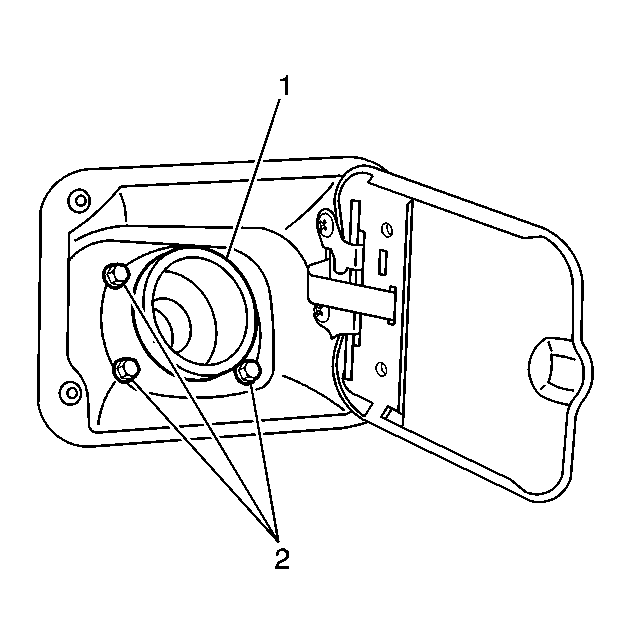

    7. Fig 2: View Of Fuel Filler Pipe & Bolts
    GM479552Courtesy of GENERAL MOTORS CORP.
