Ignition System Timing Adjustment Procedure

  1. Install a scan tool.
  2. Start the engine.
  3. Allow the engine to reach normal operating temperature.
  4. Perform the following checks:
    • The A/C is Off, if equipped.
    • The gearshift control lever is set in Neutral or the manual selector lever is in Park.
    • The parking brake lever is fully engaged.
  5. Connect an inductive timing light (2) to the number 1 ignition coil (1) wiring harness.
  6. Select the Engine Output Controls feature under Special Functions of the scan tool Diagnostic menu.
  7. TURN ON the Fixed Spark mode with the scan tool.
  8. Observe that the Spark parameter on the scan tool data list displays 5 degrees, indicating that the Fixed Spark mode has been activated.

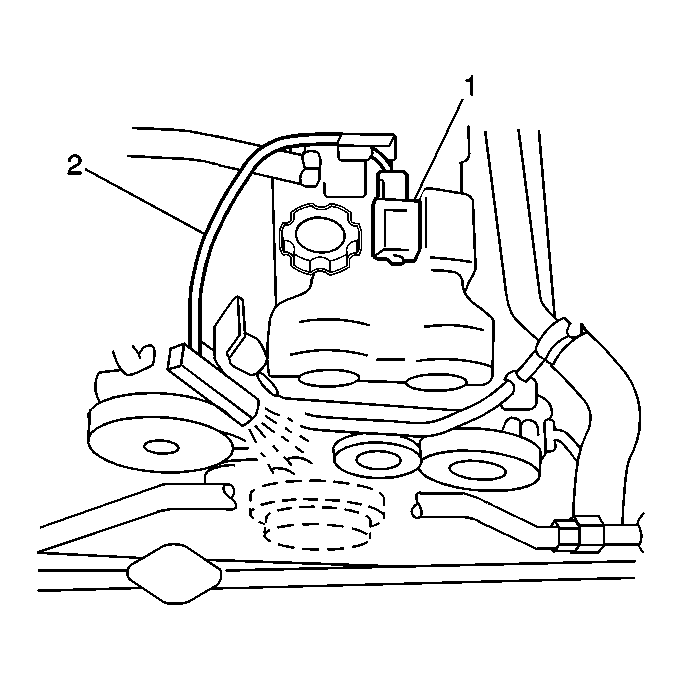

    9. Fig 1: View Of 1 Ignition Coil & Inductive Timing Light
    GM486604Courtesy of GENERAL MOTORS CORP.
  9. Inspect with the timing light (3) that the crankshaft pulley notch (2) lines up with the timing pointer (1), indicating that the timing is correctly set at 5 degrees.

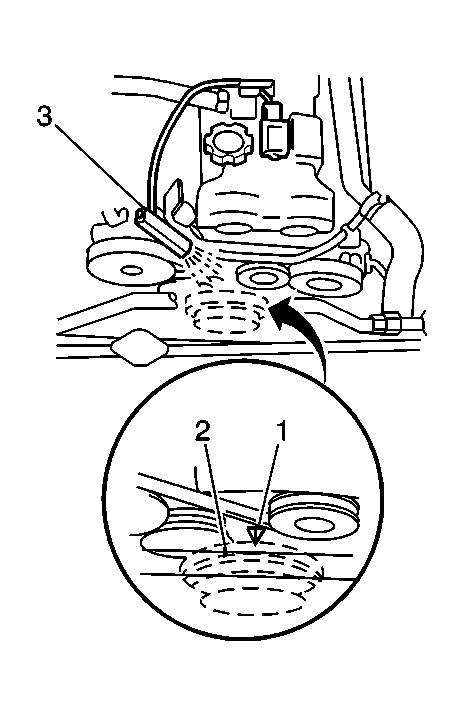

    10. Fig 2: View Of Crankshaft Pulley Notch, Timing Pointer & Timing Light
    GM486502Courtesy of GENERAL MOTORS CORP.
  10. If the timing marks are not correctly aligned, adjust the ignition timing as follows:
    1. Loosen the camshaft position (CMP) sensor housing bolt (2).
      • Rotate the CMP sensor housing (1) clockwise in order to advance the timing.
      • Rotate the CMP sensor housing (1) counterclockwise in order to retard the ignition timing.
    2. Tighten the CMP sensor housing bolt (2).
    3. Review the ignition timing with the timing light as in step 9.
  11. Repeat step 11 if the timing marks are not correctly aligned.
    12. NOTE: Refer to Fastener Notice in Cautions and Notices.
  12. Tighten the CMP sensor housing bolt (2) to the correct value.

    Tighten:  Tighten the CMP sensor housing bolt to 15 N.m (11 lb ft).

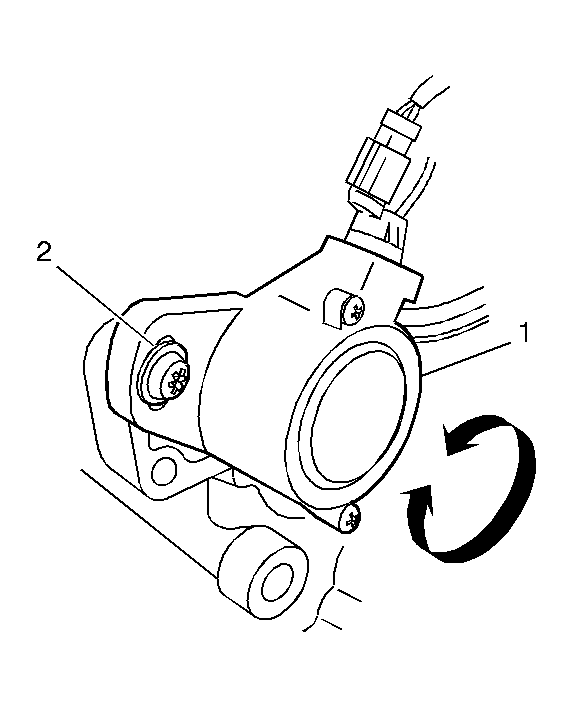

    13. Fig 3: View Of CMP Sensor Housing & Bolt
    GM466959Courtesy of GENERAL MOTORS CORP.
  13. Inspect with the timing light (3) that the crankshaft pulley mark (2) and the timing pointer (1) are still correctly aligned.
  14. TURN OFF the Fixed Spark mode with the scan tool.
  15. Observe the timing marks with the timing light.
  16. The crankshaft pulley mark should now be approximately 13 mm (0.5 inch) to the left of the timing pointer, indicating normal operation.
    17. Fig 4: View Of Crankshaft Pulley Notch, Timing Pointer & Timing Light
    GM486502Courtesy of GENERAL MOTORS CORP.
