Installation Procedure

  1. Push in to install IAT sensor (1).
  2. Reconnect the IAT sensor electrical connector (2).

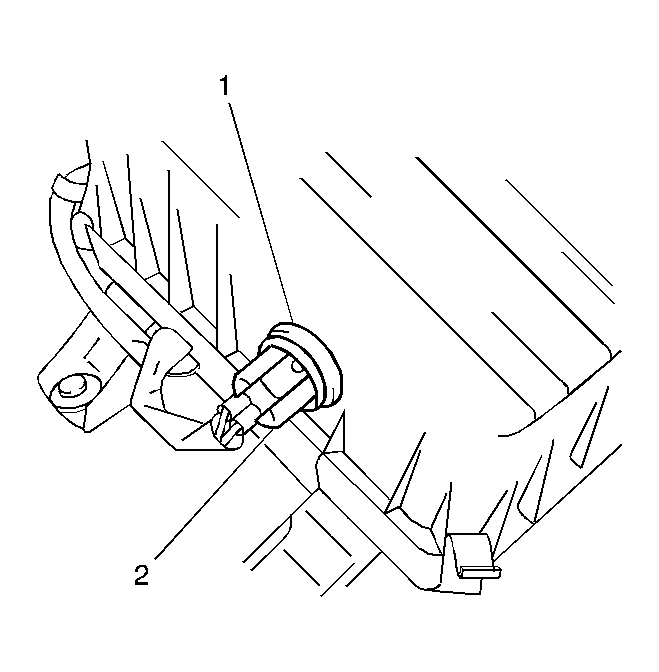

    3. Fig 1: View Of IAT Sensor
    GM451380Courtesy of GENERAL MOTORS CORP.
