Installation Procedure

  1. Install the KS (1) to the engine block.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Secure the KS to the engine with the bolt.

    Tighten:  Tighten the bolt to 23 N.m (17 lb ft).

  3. Connect the KS electrical connector.

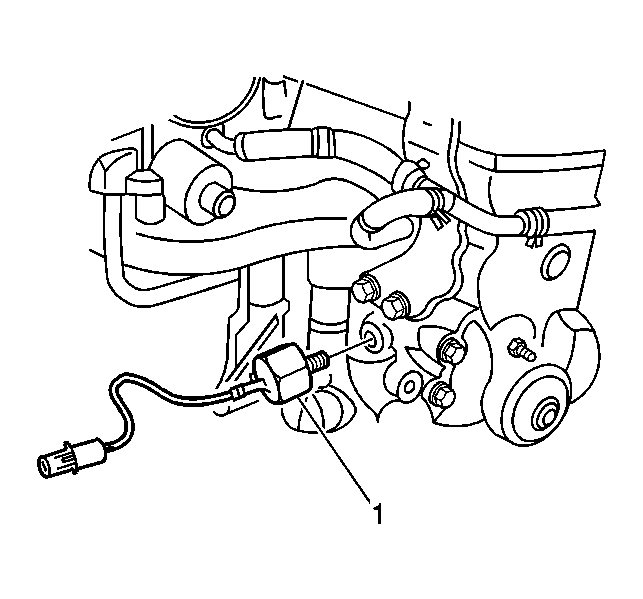

    4. Fig 1: View Of Knock Sensor
    GM728048Courtesy of GENERAL MOTORS CORP.
