Powertrain Control Module (PCM) Connector End Views
Back View of the PCM Connector C1
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| C1-1 | WHT/GRN | Fuel Pump Relay Control |
| C1-2 | - | Not Used |
| C1-3 | PNK/BLU | Cruise Control Module Signal |
| C1-4 | BRN | Tachometer |
| C1-5 | YEL/BLU | A/C Condenser Fan Relay Control |
| C1-6 | GRY | TP Signal (for cruise control, if equipped) |
| C1-7 | WHT/BLK | O/D Indicator Lamp Control |
| C1-8 | BLU | Main Relay Control |
| C1-9 | ORN/BLU | Shift Mode Switch Input |
| C1-10 | GRY/BLU | Power/Normal Indicator Lamp Control |
| C1-11 | - | Not Used |
| C1-12 | BLU/WHT | Fuel Tank Level Sensor Input |
| C1-13 | PNK/WHT | HVAC Blower Motor Idle-Up Signal |
| C1-14 | YEL/RED | O/D Switch Signal |
| C1-15 | BLK/ORN | Electrical Load Idle-Up Signal (rear defogger switch) |
| C1-16 to C1-17 | - | Not Used |
| C1-18 | PNK/BLK | EBCM Idle-Up Signal (ABS equipped vehicles only) |
| C1-19 | GRY/GRN | Fuel Vapor Temperature Sensor Input |
| C1-20 | BRN/RED | Fuel Tank Pressure Sensor Input |
| C1-21 to C1-24 | - | Not Used |
| C1-25 | PPL/GRN | Serial Data Output |
| C1-26 | BLU/ORN | PSP Switch Idle-Up Signal |
| C1-27 | GRY/WHT | A/C Cut-Out Control |
| C1-28 | YEL/BLK | A/C Idle-Up Signal |
| C1-29 | RED/YEL | Tail Lamp Switch Idle-Up Signal |
| C1-30 | - | Not Used |
| C1-31 | GRN/WHT | Brake Switch Signal |
| C1-32 | GRY/YEL | Fuel Tank Pressure Sensor Ground |
| C1-33 | GRY/RED | Fuel Tank Pressure Sensor Reference Voltage |
| C1-34 | PPL/YEL | MIL Control |
| C1-35 | WHT | Battery Positive Voltage |
Back View Of the PCM Connector C2
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| C2-1 | BLU/YEL | VSS Input |
| C2-2 | ORN/BLU | CKP Sensor Signal Low |
| C2-3 | WHT/BLU | CKP Sensor Signal High |
| C2-4 | RED | H02S Bank 1 Sensor 1 Signal |
| C2-5 | BLK/RED | H02S Bank 2 Sensor 1 Heater Control |
| C2-6 | GRY | H02S Bank 1 Sensor 1 Heater Control |
| C2-7 | - | Not Used |
| C2-8 | LT BLU | IAT Sensor Input |
| C2-9 | YEL/GRN | CMP Sensor Signal High |
| C2-10 | YEL/BLU | CMP Sensor Signal Low |
| C2-11 | GRY/RED | Reference Voltage |
| C2-12 | RED/GRN | TP Sensor Input |
| C2-13 | RED/WHT | MAP Sensor Input |
| C2-14 | BLU | H02S Bank 1 Sensor 2 Signal |
| C2-15 | BLU/GRN | H02S Bank 2 Sensor 1 Signal |
| C2-16 | PNK/WHT | H02S Bank 2 Sensor 2 Heater Control |
| C2-17 | WHT/BLK | H02S Bank 1 Sensor 2 Heater Control |
| C2-18 | - | Not Used |
| C2-19 | PPL/RED | EVAP Canister Vent Solenoid Control |
| C2-20 | GRY/YEL | Sensor Ground |
| C2-21 | GRY/YEL | Sensor Ground |
| C2-22 | ORN/BLK | ECT Sensor Input |
| C2-23 | PPL/WHT | MAF Sensor Input |
| C2-24 | BRN | H02S Bank 2 Sensor 2 Signal |
| C2-25 | BLK/GRN | Ground |
| C2-26 | BLK/BLU | Ground |

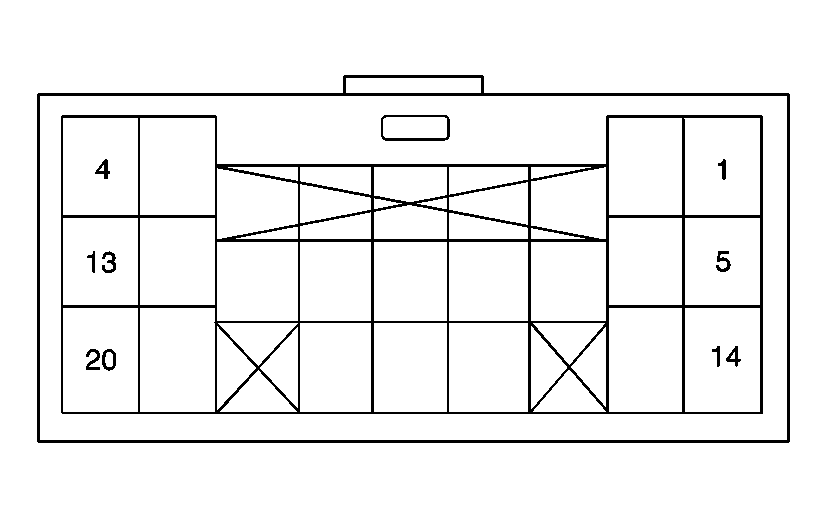

Back View Of the PCM Connector C3
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| C3-1 | LT GRN/RED | Shift Solenoid #2 Control |
| C3-2 | GRN/YEL | TCC Solenoid Control |
| C3-3 | RED | TR Switch R Position Signal |
| C3-4 | ORN/GRN | TR Switch P Position Signal |
| C3-5 | ORN/WHT | 4WD Low Signal |
| C3-6 | LT GRN | Shift Solenoid #1 Control |
| C3-7 | ORN/BLK | 4WD Indicator Lamp Control |
| C3-8 | BLU/GRN | A/T Input Shaft Speed Sensor Signal Low |
| C3-9 | ORN | A/T Output Shaft Speed Sensor Signal Low |
| C3-10 | WHT | A/T Output Shaft Speed Sensor Signal High |
| C3-11 | BLK/ORN | 4WD Signal |
| C3-12 | YEL/GRN | TR Switch D Position Signal |
| C3-13 | ORN/BLU | TR Switch N Position Signal |
| C3-14 | GRY | Shaft Speed Signal Shielded Ground |
| C3-15 | RED | Axle Actuator Control High |
| C3-16 | BLU/YEL | A/T Input Shaft Speed Sensor Signal High |
| C3-17 | - | Not Used |
| C3-18 | PNK | Axle Actuator Control Low |
| C3-19 | GRN/BLU | TR Switch L Position Signal |
| C3-20 | GRN/ORG | TR Switch 2 Position Signal |
Back View Of the PCM Connector C4
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| C4-1 | GRN/BLK | EVAP Canister Purge Valve Control |
| C4-2 | BLK/ORN | Gound |
| C4-3 | BLK/WHT | Ignition Positive Voltage |
| C4-4 | LT GRN/WHT | EGR Valve Coil Control |
| C4-5 | LT GRN | EGR Valve Coil Control |
| C4-6 | PNK/BLK | Fuel Injector #2 Control |
| C4-7 | PNK | Fuel Injector #1 Control |
| C4-8 | BLK/GRN | Ground |
| C4-9 | BLK/BLU | Ground |
| C4-10 | BRN/YEL | Ignition Coil #4 Control |
| C4-11 | BRN/WHT | Ignition Coil #3 Control |
| C4-12 | BRN/BLK | Ignition Coil #2 Control |
| C4-13 | BRN | Ignition Coil #1 Control |
| C4-14 | PPL/BLK | IAC Valve Coil Control |
| C4-15 | LT GRN/BLK | IAC Valve Coil Control |
| C4-16 | LT GRN/RED | EGR Valve Coil Control |
| C4-17 | LT GRN/YEL | EGR Valve Coil Control |
| C4-18 | PNK/BLU | Fuel Injector #4 Control |
| C4-19 | PNK/GRN | Fuel Injector #3 Control |
| C4-20 | BLU/BLK | Ignition Positive Voltage |
| C4-21 | BLU/BLK | Ignition Positive Voltage |
| C4-22 | BLK/BRN | Ignition Coil #6 Control |
| C4-23 | BRN/RED | Ignition Coil #5 Control |
| C4-24 | PPL/YEL | IAC Valve Coil Control |
| C4-25 | GRY/BLU | IAC Valve Coil Control |
| C4-26 | BLK/YEL | Crank Signal |
| C4-27 | GRY/BLK | Fuel Injector #6 Control |
| C4-28 | GRY/GRN | Fuel Injector #5 Control |
