Removal Procedure

  1. Disconnect the accelerator control cable (1) from the accelerator pedal (2).
  2. Push the accelerator control cable through the bulkhead grommet.
    3. Fig 1: View Of Accelerator Pedal & Control Cable
    GM158305Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the accelerator control cable from the throttle body by rotating the throttle lever (1) to wide open throttle (WOT) and removing the cable end from the slot (2).
    4. Fig 2: View Of Throttle Lever & Throttle Lever Slot
    GM720512Courtesy of GENERAL MOTORS CORP.
  4. Loosen the accelerator control cable locknut (3) and the accelerator control cable adjusting nut (2).
  5. Remove the accelerator control cable (1) from the vehicle.

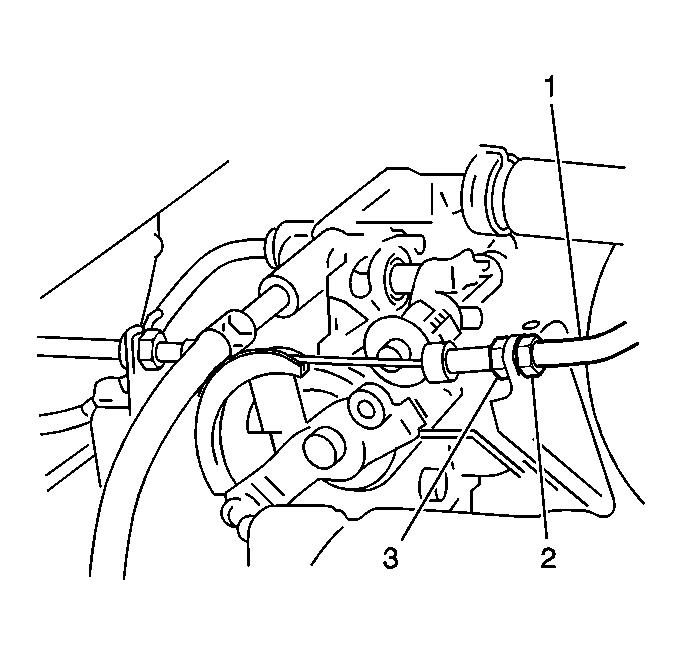

    6. Fig 3: View Of Accelerator Control Cable, Locknut & Adjusting Nut
    GM675861Courtesy of GENERAL MOTORS CORP.
