Installation Procedure

  1. Align the throttle shaft pin (2) with the engagement slot (1) of the TP sensor.
  2. Install TP sensor (2).

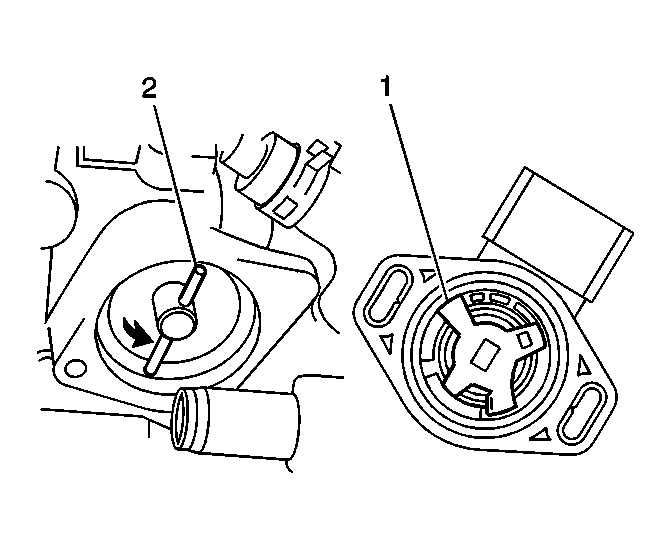

    3. Fig 1: View Of Throttle Shaft Pin & TP Sensor Engagement Slot
    GM674309Courtesy of GENERAL MOTORS CORP.
  3. Slowly rotate the TP sensor in order to align the fastener locations.
  4. Install the two fasteners (1) securing the TP sensor (3) to the throttle body.
  5. DO NOT tighten the TP sensor fasteners.
  6. Connect the TP sensor electrical connector.
  7. Adjust the TP sensor. Refer to Throttle Position (TP) Sensor Adjustment .

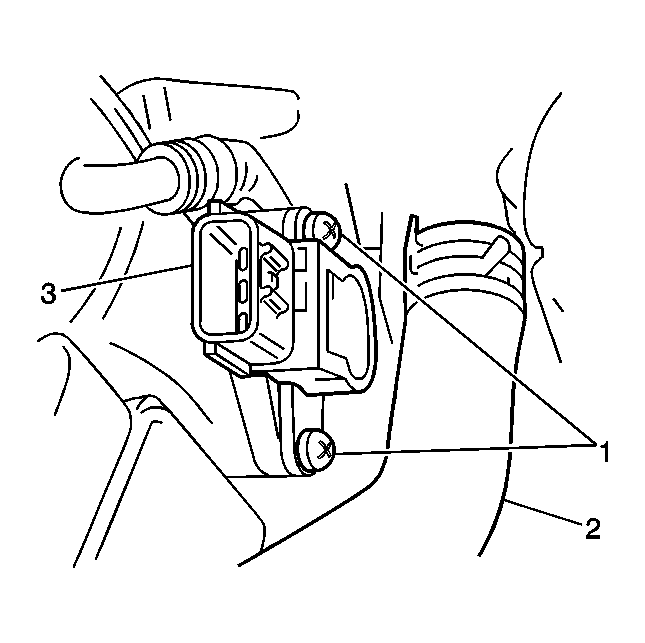

    8. Fig 2: View Of TP Sensor, IAC Bypass Hose & Fasteners
    GM674308Courtesy of GENERAL MOTORS CORP.
