Power Steering Gear Disassembled View

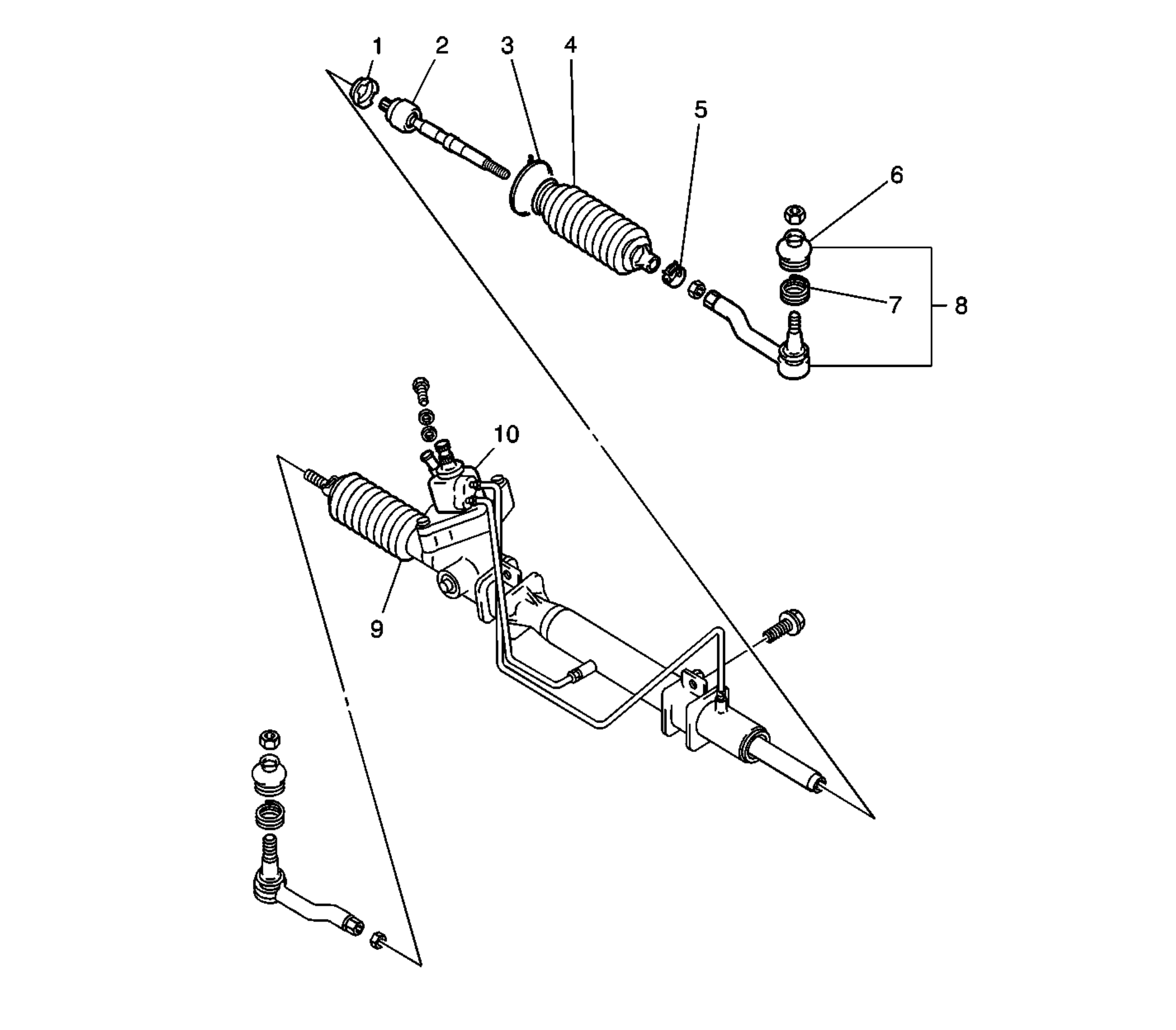

Fig 1: Steering Gear Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inner Tie Rod Washer
2	Inner Tie Rod
3	Steering Gear Boot Retaining Ring
4	Steering Gear Boot
5	Steering Gear Boot Clamp
6	Outer Tie Rod Seal
7	Tie Rod Seal Retainer
8	Outer Tie Rod Kit
9	Steering Gear Boot
10	Steering Gear
