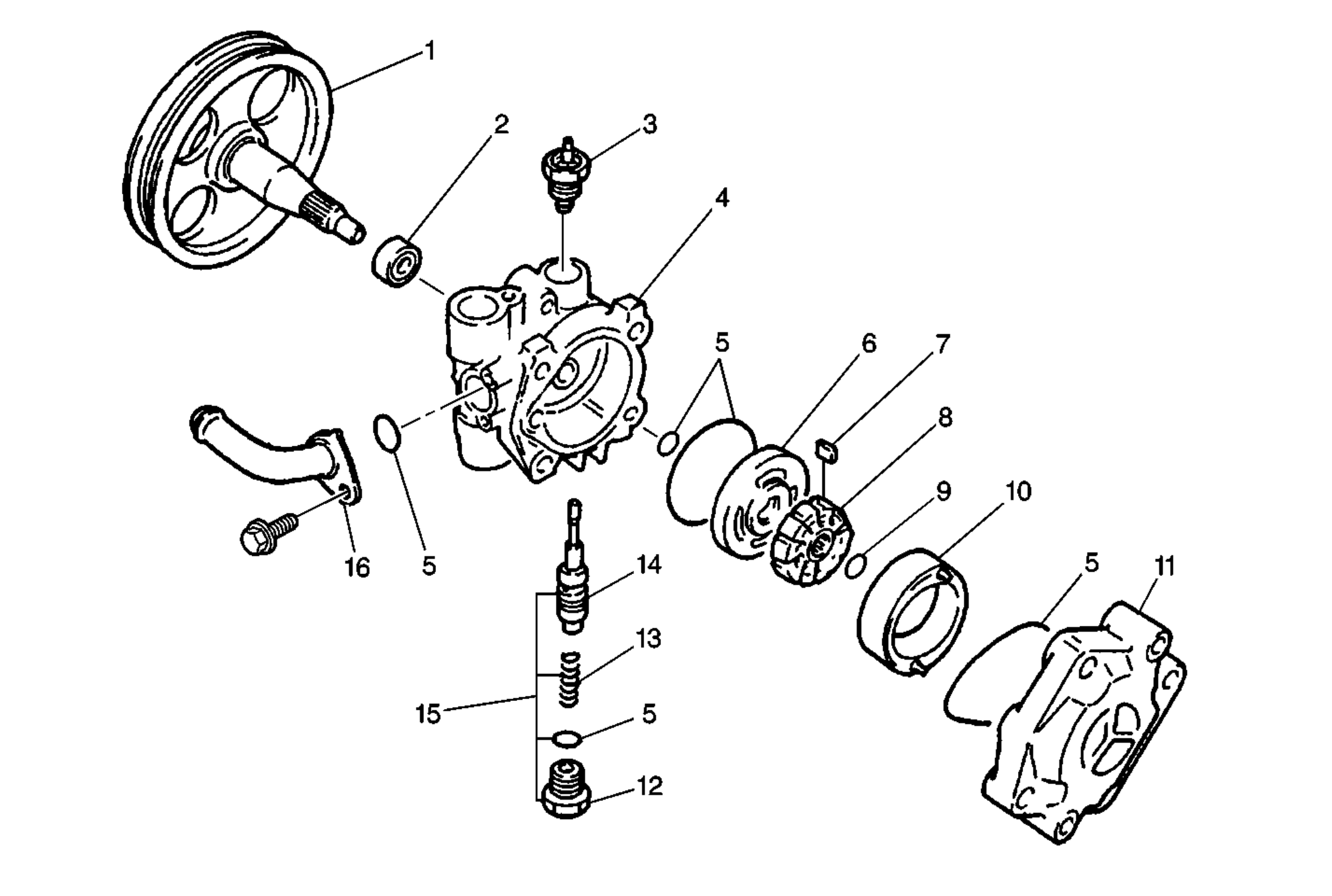

| 1 |
Power Steering Pump Pulley |
| 2 |
Power Steering Pump Seal |
| 3 |
Idle Speed Control Power Steering Pressure Switch |
| 4 |
Power Steering Pump Body |
| 5 |
Power Steering Pump Seal |
| 5 |
Power Steering Pump Seal |
| 5 |
Power Steering Pump Seal |
| 5 |
Power Steering Pump Seal |
| 6 |
Power Steering Pump Side Plate |
| 7 |
Power Steering Pump Vane |
| 8 |
Power Steering Pump Rotor |
| 9 |
Snap Ring |
| 10 |
Power Steering Pump Cam Ring |
| 11 |
Power Steering Pump Cover |
| 12 |
Flow Control Valve Plug |
| 13 |
Flow Control Valve Spring |
| 14 |
Flow Control Valve (Relief Valve) |
| 15 |
Flow Control Valve Assembly |
| 16 |
Power Steering Pump Inlet Hose Connector |
