Installation Procedure

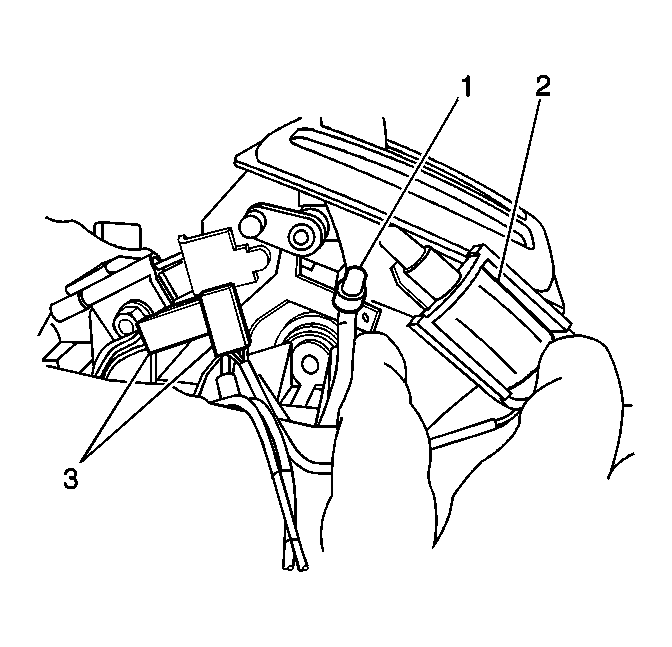

    Fig 1: View Of Shift Lock Solenoid
    GM483643Courtesy of GENERAL MOTORS CORP.
  1. Install the shift lock solenoid (2) to the manual selector.

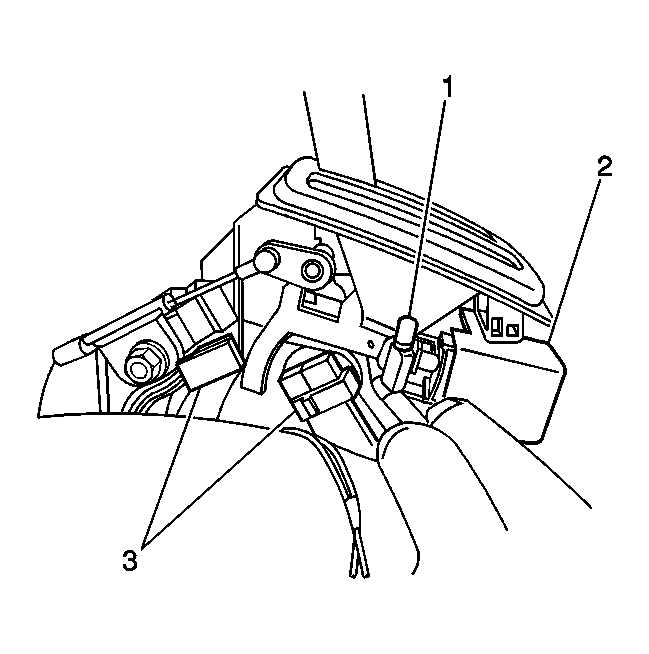

    2. Fig 2: View Of Shift Lock Solenoid Cover, Connector & Indicator Lamp
    GM483639Courtesy of GENERAL MOTORS CORP.
  2. Install the shift lock solenoid cover (2).
  3. Connect the shift indicator lamp electrical connector and the shift lock solenoid connector (3) under the carpet.
  4. Install the shift indicator lamp (1).
    5. Fig 3: Identifying Console Components
    GM480250Courtesy of GENERAL MOTORS CORP.
  5. Install the console box to the floor.
  6. Secure the console box with the 2 plastic retaining clips (2,5) and the 4 screws (1,6,3,4).
  7. Connect the negative battery cable.
