Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

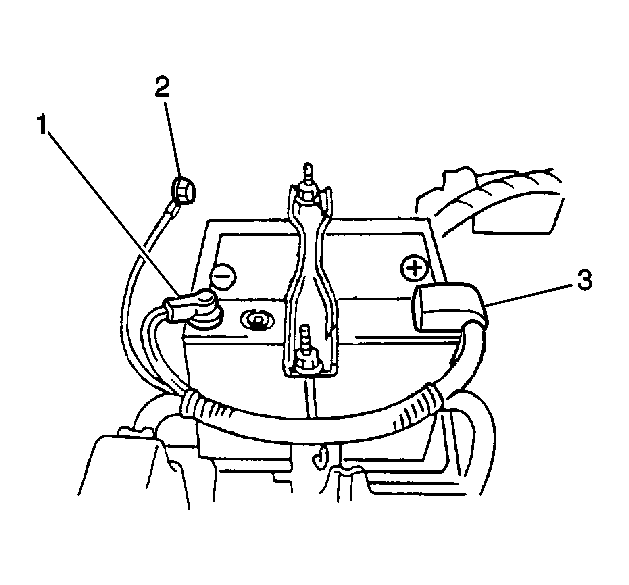

    Fig 1: Identifying Battery Cable Connections
    GM465587Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable (1).
    2. Fig 2: Identifying Console Components
    GM480250Courtesy of GENERAL MOTORS CORP.
  2. Remove the following items from the floor:
    • The 4 screws (1,6,3,4)
    • The 2 plastic retaining clips (2,5)
    • The console box
    3. Fig 3: View Of Shift Lock Solenoid Cover, Connector & Indicator Lamp
    GM483639Courtesy of GENERAL MOTORS CORP.
  3. Remove the shift lock solenoid electrical connector (3) from under the carpet and disconnect.
  4. Remove the shift indicator lamp electrical connector.
  5. Remove the shift indicator lamp (1).
  6. Remove the shift lock solenoid cover (2).
    7. Fig 4: View Of Shift Lock Solenoid
    GM483643Courtesy of GENERAL MOTORS CORP.
  7. Remove the shift lock solenoid (2) from the manual selector.
