Fuel Hose/Pipes Routing Diagram

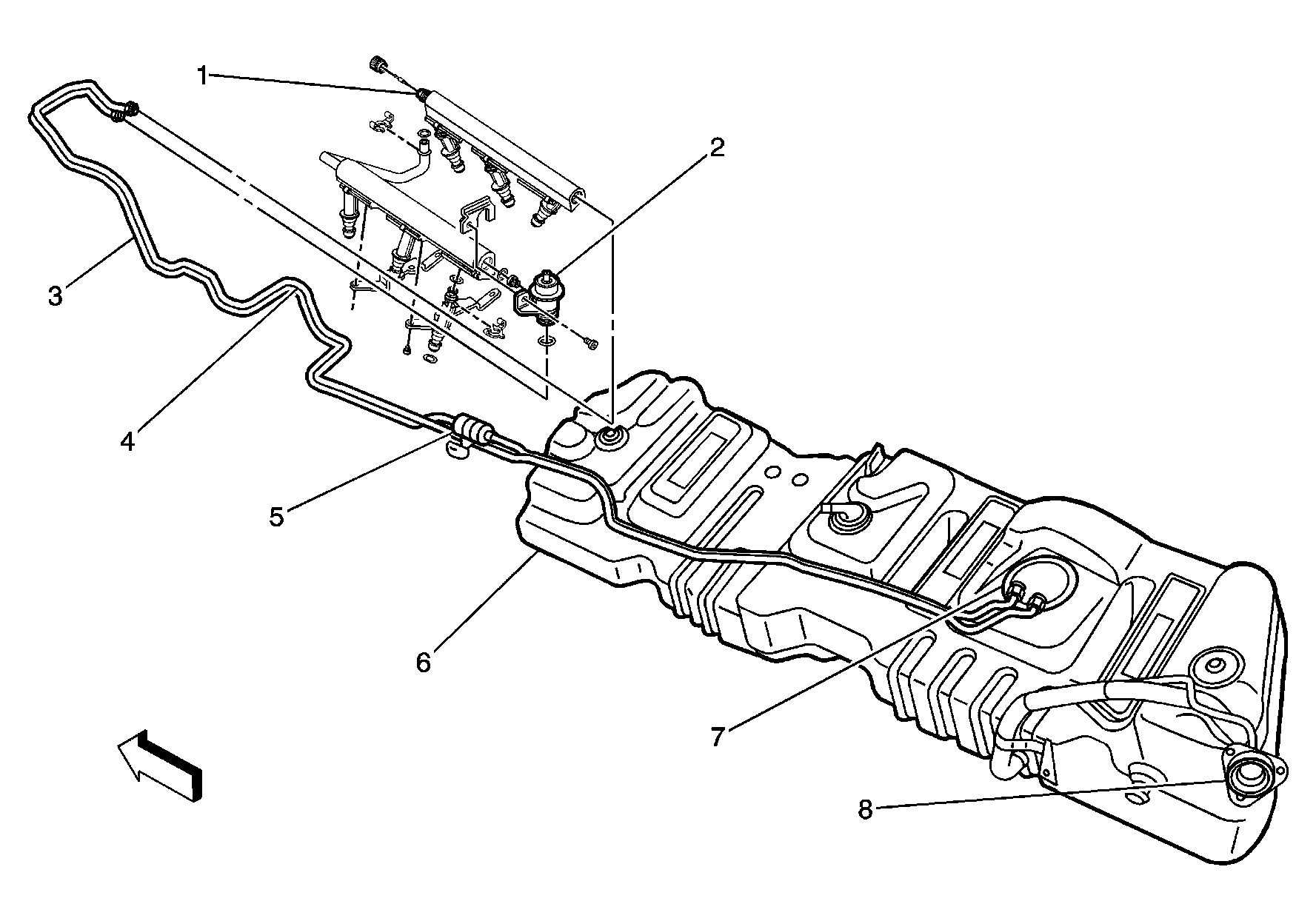

Fig 1: Fuel Hose/Pipes Routing Diagram
GM894954Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pressure Test Port
2 Fuel Pressure Regulator
3 Fuel Feed Pipe
4 Fuel Return Pipe
5 Fuel Filter
6 Fuel Tank
7 Fuel Pump Module
8 Fuel Filler Neck
