Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the bores (3), the inside part of the bolt boot (2) and the caliper pin bolts (4) with GM P/N 18047666, or equivalent.
  2. Press the new caliper pin bolt boots into the caliper pin bores.

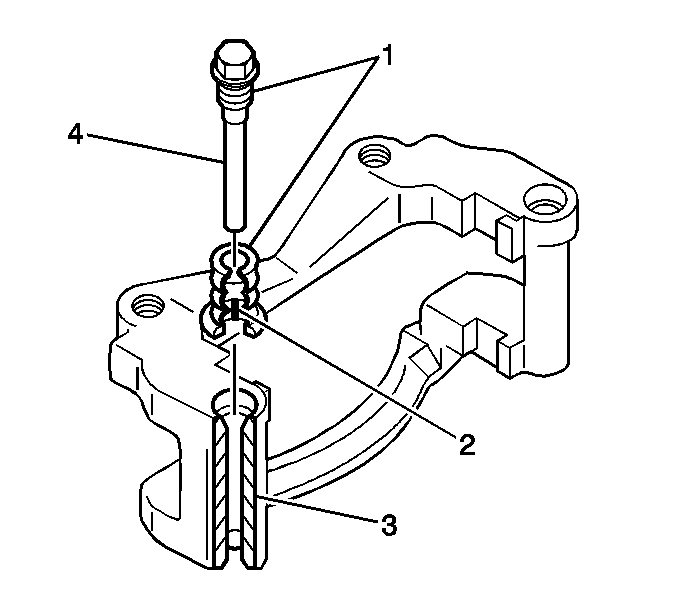

    Fig 1: Installing Front Caliper Pin Bolt Boots
    GM793825Courtesy of GENERAL MOTORS CORP.
  3. Install the brake caliper bracket. Refer to Brake Caliper Bracket Replacement - Front .
  4. Install the brake pad retainers (1) to the caliper bracket.
  5. Install the brake pads (2) to the caliper bracket.

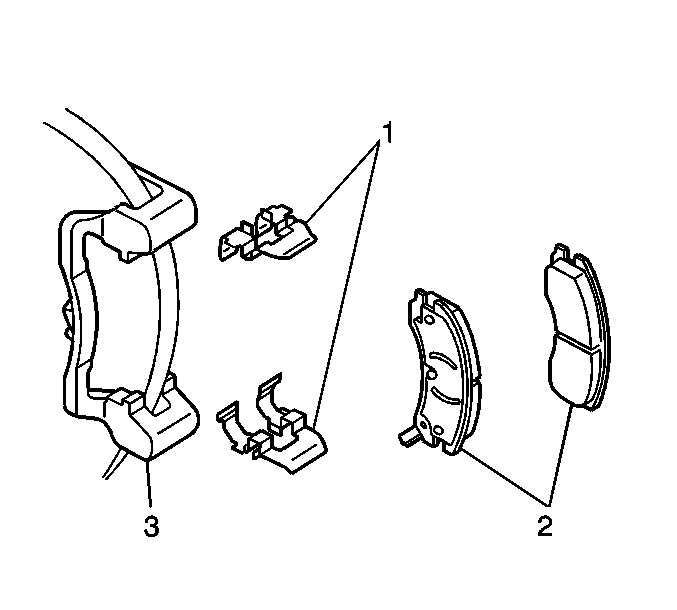

    6. Fig 2: View Of Brake Pads, Brake Pad Retainers, & Caliper Bracket
    GM727742Courtesy of GENERAL MOTORS CORP.
  6. Remove the heavy mechanics wire (1) and install the brake caliper. Refer to Brake Caliper Replacement - Front .

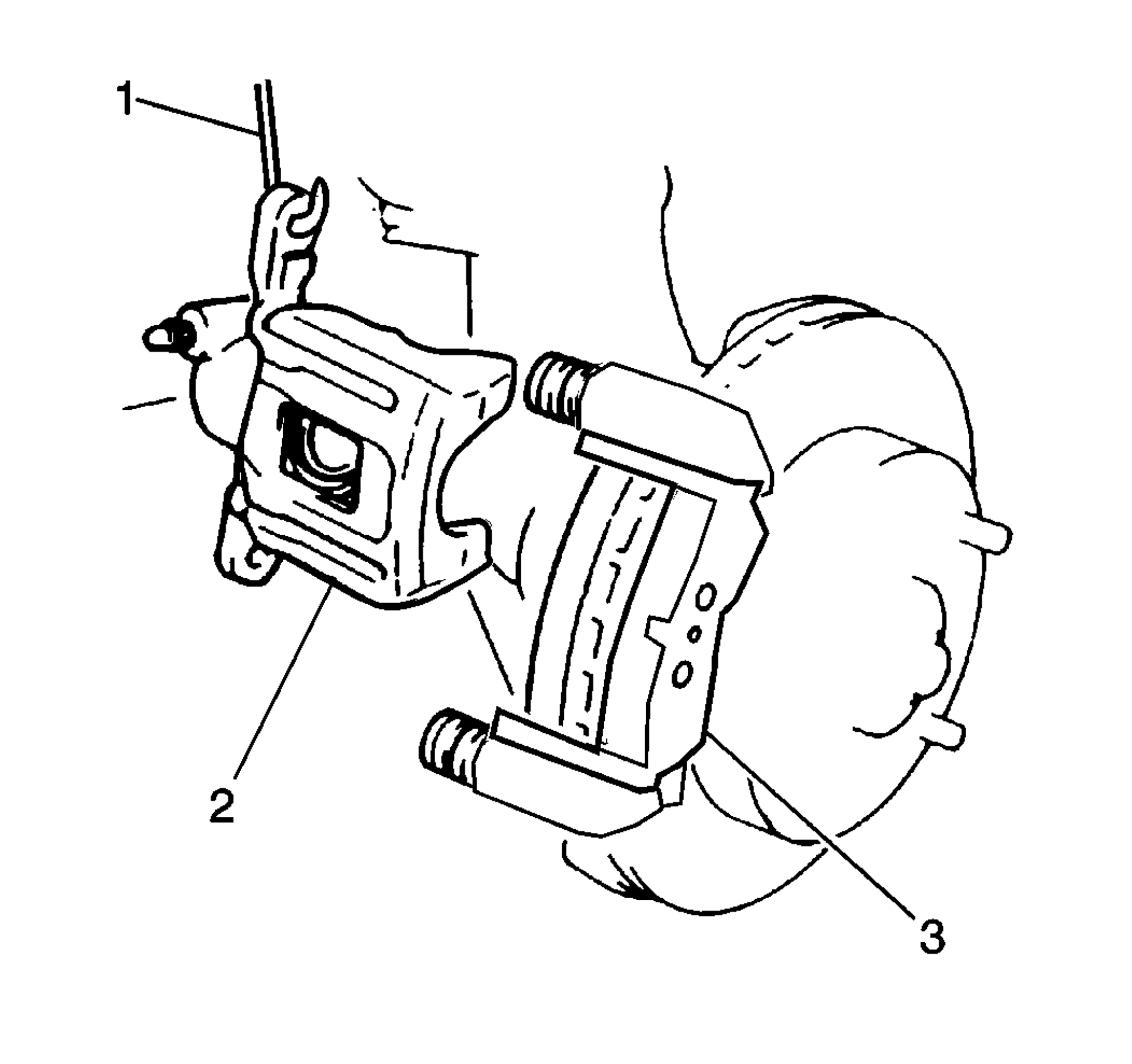

    7. Fig 3: View Of Brake Caliper And Caliper Bracket
    GM178630Courtesy of GENERAL MOTORS CORP.
