Installation Procedure

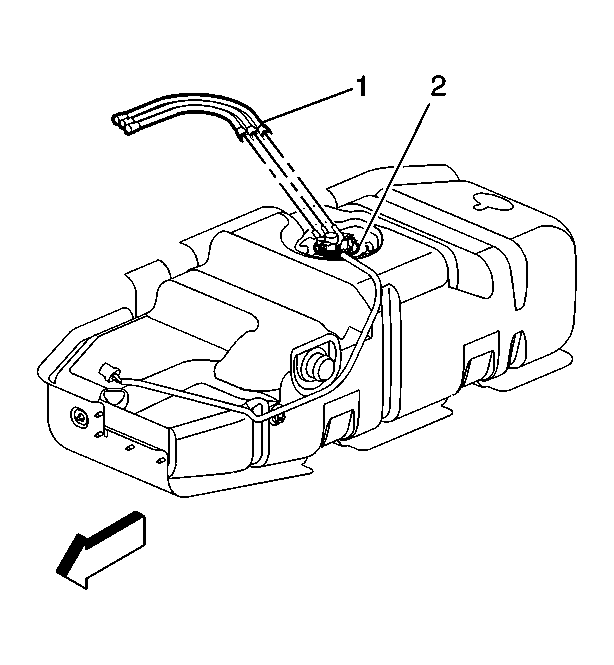

    Fig 1: Identifying Fuel Sender
    GM597097Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fuel Pipe Fitting Caution in Cautions and Notices.
  1. Install fuel pipes (1) to the fuel sender (2).
  2. Install the fuel tank. Refer to Fuel Tank Replacement .
