Installation Procedure

Fig 1: Identifying Fuel Filter Pipes

Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

When replacing the fuel pipes, always replace them with original equipment or parts that meet the GM specifications for those parts. The replacement pipes must have the same type of fittings as the original pipes in order to ensure the integrity of the connection.
Do not use copper or aluminum tubing to replace steel tubing. Only tubing meeting the 124-M specification or its equivalent is capable of meeting all pressure, corrosion and vibration characteristics necessary to ensure the durability standard required.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Connect the chassis fuel feed pipe at the fuel filter outlet.
Tighten: Tighten the fuel feed pipe fitting to 30 N.m (22 lb ft).
Connect the fuel return pipe (2) at the coupler (3).
Tighten: Tighten the return pipe fitting to 27 N.m (20 lb ft).

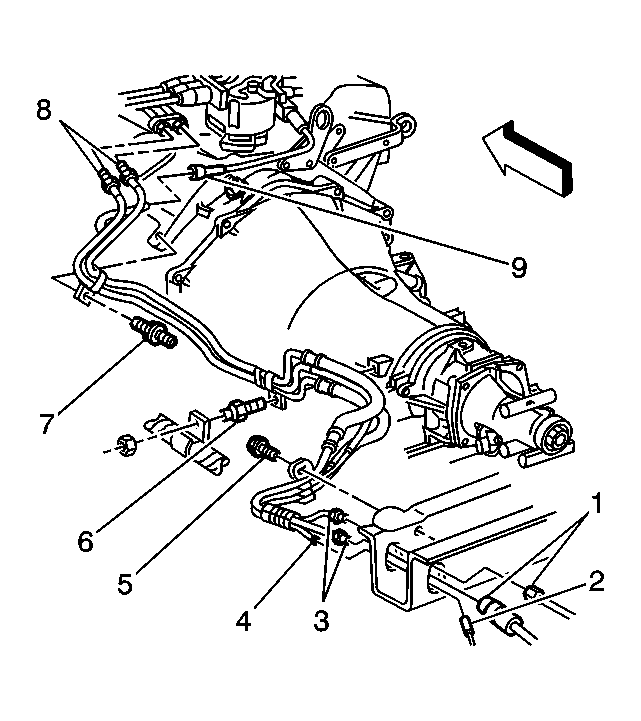

Fig 2: View Of Fuel Hose/Pipes

Courtesy of GENERAL MOTORS CORP.

Install the fuel pipes into the transmission bracket retainer.
Install the mounting stud (6).
Tighten: Tighten the mounting stud to 33 N.m (24 lb ft).
Install the fuel pipes into the cylinder head retainer.
Install the mounting stud (7).
Tighten: Tighten the mounting stud to 33 N.m (24 lb ft).
Install the fuel pipes into the crossrail retainer.
Install the mounting bolt (5) to the crossrail.
Tighten: Tighten the mounting bolt to 11 N.m (97 lb in).
Lower the vehicle.
Remove the caps from the engine compartment fuel pipes.
Connect the fuel feed and return pipes (8) to the engine compartment fuel pipes.
Ensure the O-rings are in place.

Tighten: Tighten the fuel feed and return pipe fittings to 30 N.m (22 lb ft).
Connect the negative battery cable.
Inspect for leaks.
1. Turn ON the ignition, with the engine OFF, for 2 seconds.
2. Turn OFF the ignition for 10 seconds.
3. Turn ON the ignition, with the engine OFF.
4. Inspect for fuel leaks.
Install the engine cover. Refer to Engine Cover Replacement in Interior Trim.
