Removal Procedure

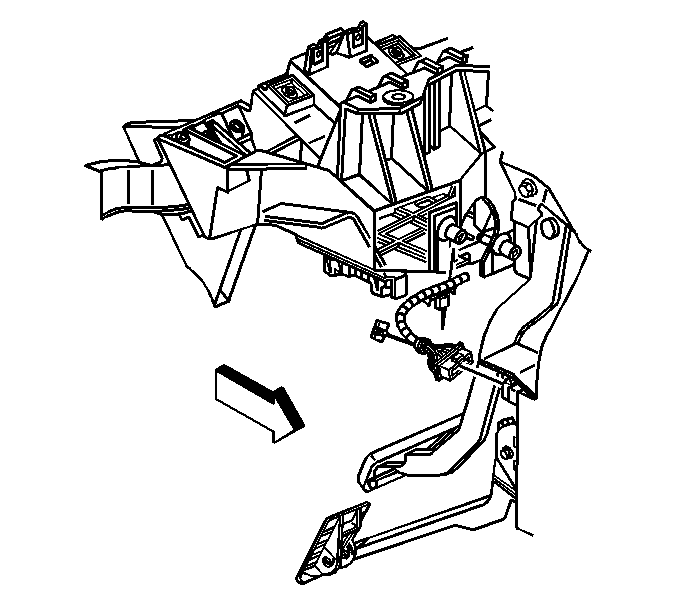

Fig 1: View Of Accelerator Pedal Position Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.

Remove the connector position assurance (CPA) retainer.
Disconnect the accelerator pedal position (APP) sensor electrical connector.
Reposition the carpet to access the lower nut.

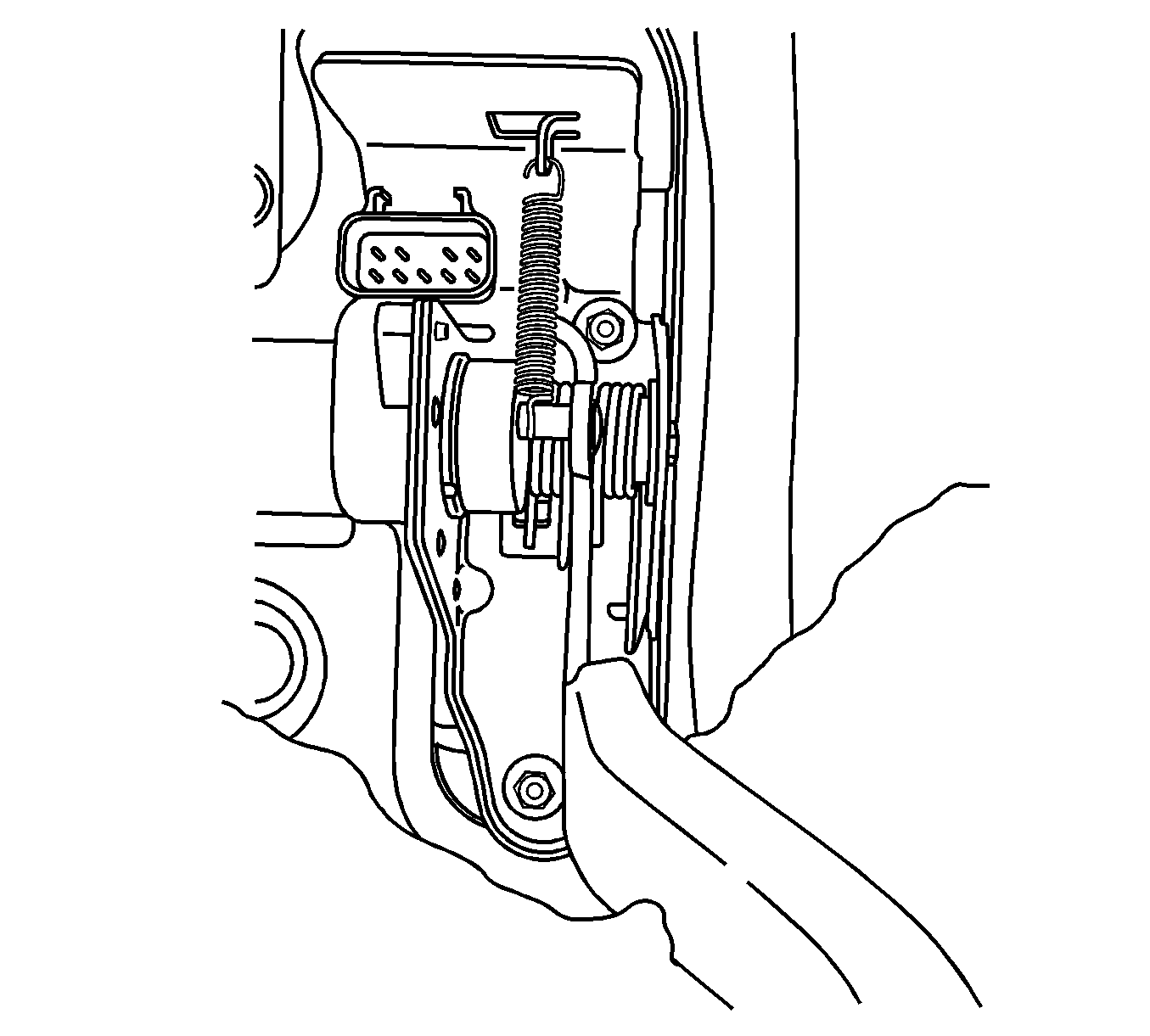

Fig 2: View Of Accelerator Pedal Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the accelerator pedal nuts.
Remove the accelerator pedal assembly.
