Installation Procedure

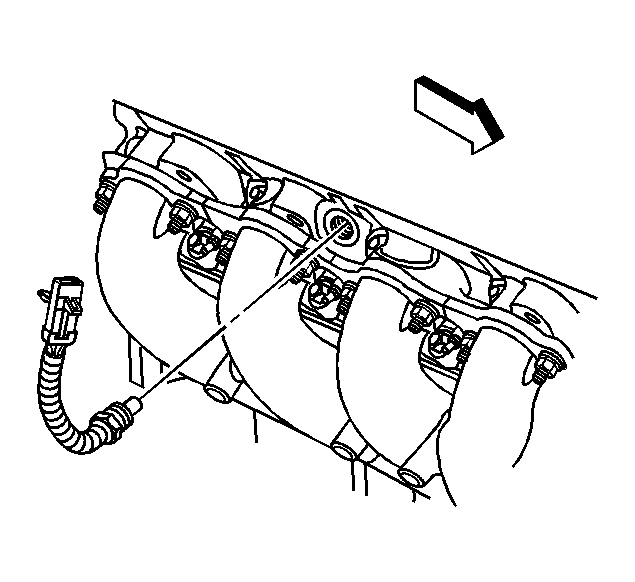

Fig 1: Removing/Installing ECT Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

If installing the old sensor, coat the threads with sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent.
Install the ECT sensor.
Tighten: Tighten the sensor to 50 N.m (37 lb ft).

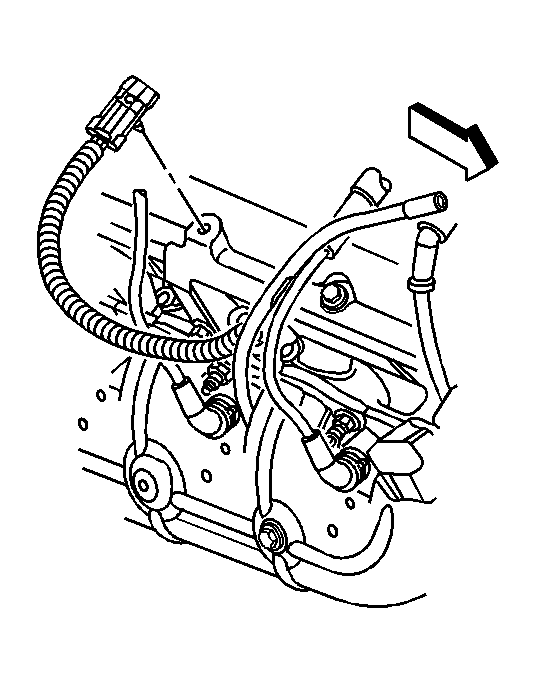

Fig 2: Removing/Installing ECT Sensor Electrical Connector At Oil Fill Tube Bracket

Courtesy of GENERAL MOTORS CORP.

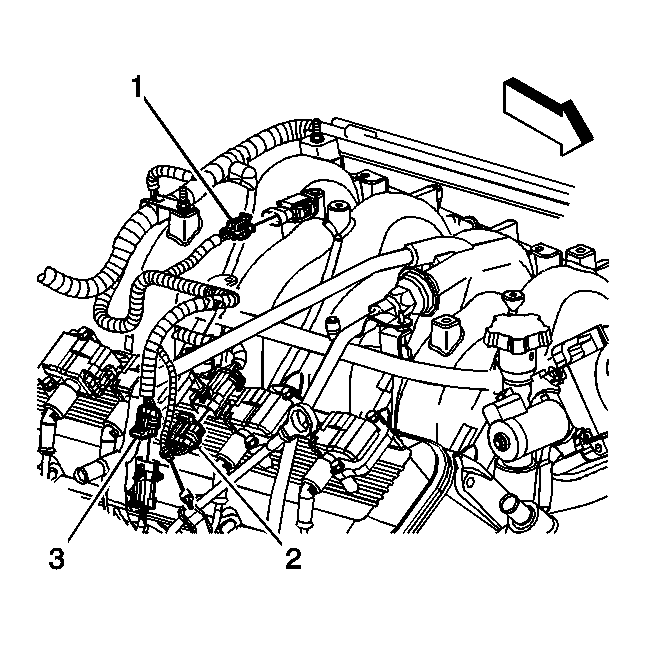

Fig 3: View Of Ignition Coil, ECT And MAP Sensor Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the ECT sensor electrical connector (3).
Refill the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.
