Installation Procedure

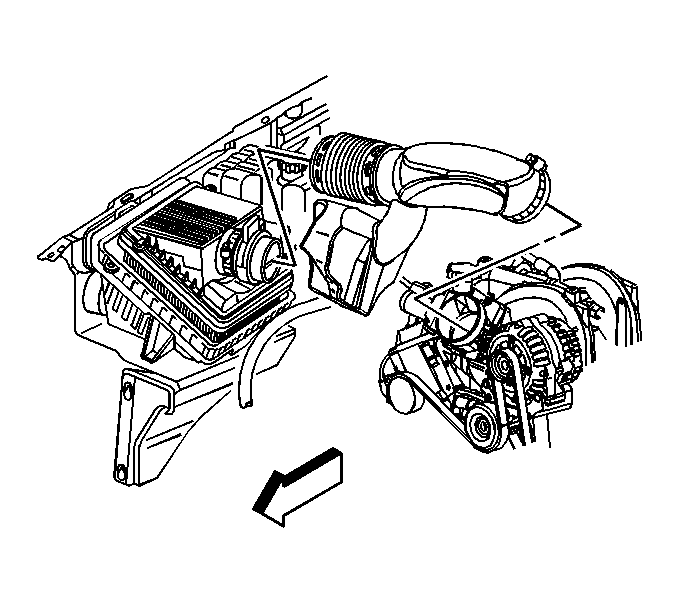

Fig 1: View Of Air Cleaner Resonator Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner resonator outlet duct.
Install the air cleaner resonator outlet duct to the throttle body.
Align the stud on the throttle body with the screw on the clamp.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Tighten the air cleaner resonator outlet duct clamp at the throttle body.
Tighten: Tighten the clamp to 4 N.m (35 lb in).

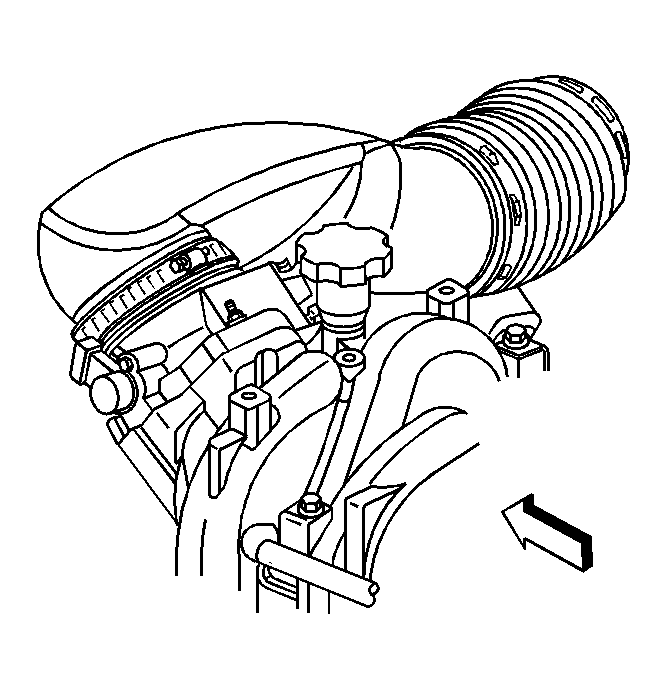

Fig 2: View Of Intake Air Resonator

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner resonator outlet duct to the MAF/IAT sensor.
Tighten the air cleaner resonator outlet duct clamp at the MAF/IAT sensor.
Tighten: Tighten the clamp to 4 N.m (35 lb in).
