Installation Procedure

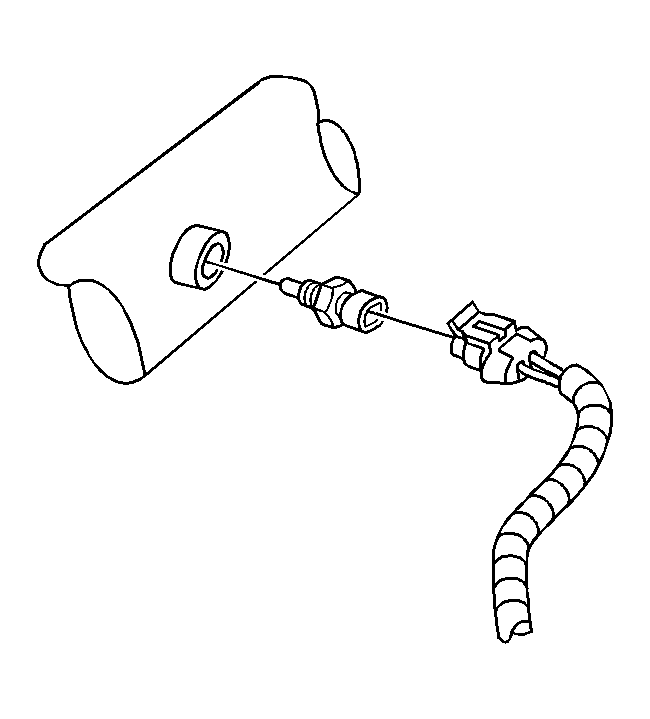

    Fig 1: IAT Sensor & Harness Connector
    GM785336Courtesy of GENERAL MOTORS CORP.
  1. Install the IAT sensor.
  2. Connect the IAT sensor harness connector.
