Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  2. Remove the center console. Refer to Console Replacement in Instrument Panel, Gages, and Console.

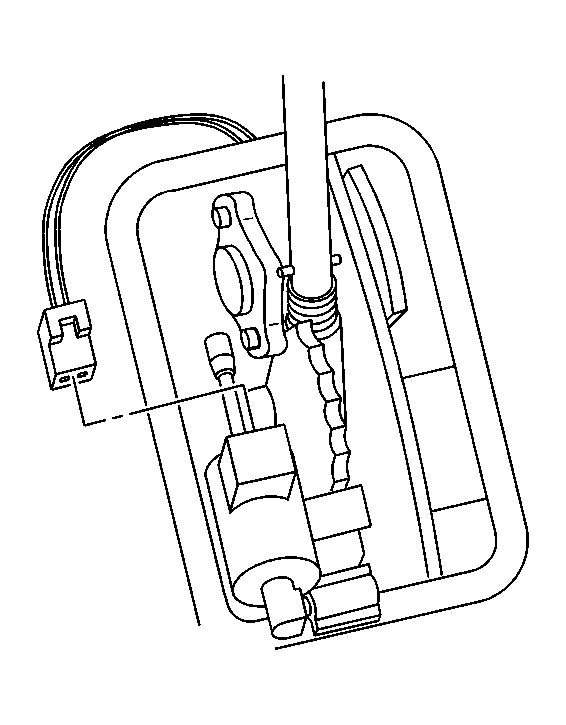

    3. Fig 1: Shift Lock Control Electrical Connector
    GM190956Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the shift lock control for the automatic transmission (AT).

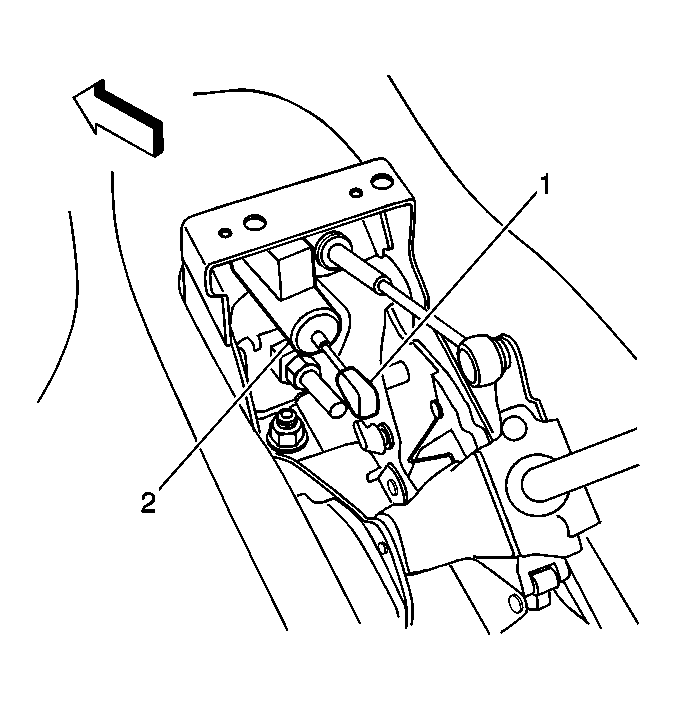

    4. Fig 2: View Of A/T Shift Lock Control & Pivot Points
    GM442716Courtesy of GENERAL MOTORS CORP.
  4. Remove both ends of the AT shift lock control from pivot points (1).
