Engine Controls Component Views

Fig 1: Fuel Tank Components
GM1543937Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Vent Solenoid Valve
2 Evaporative Emission (EVAP) Canister
3 Fuel Tank
4 Fuel Pump and Sender Assembly
5 Fuel Tank Pressure (FTP) Sensor
6 C305
7 Fuel Filter
Fig 2: Pedal Components
GM1543932Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Clutch Pedal Position (CCP) Switch (M86)
2 Clutch Start Switch (M86)
3 Stop Lamp Switch
4 Cruise Control Cancel Switch (M86)
5 Accelerator Pedal Position (APP) Sensor
6 Floor Pan

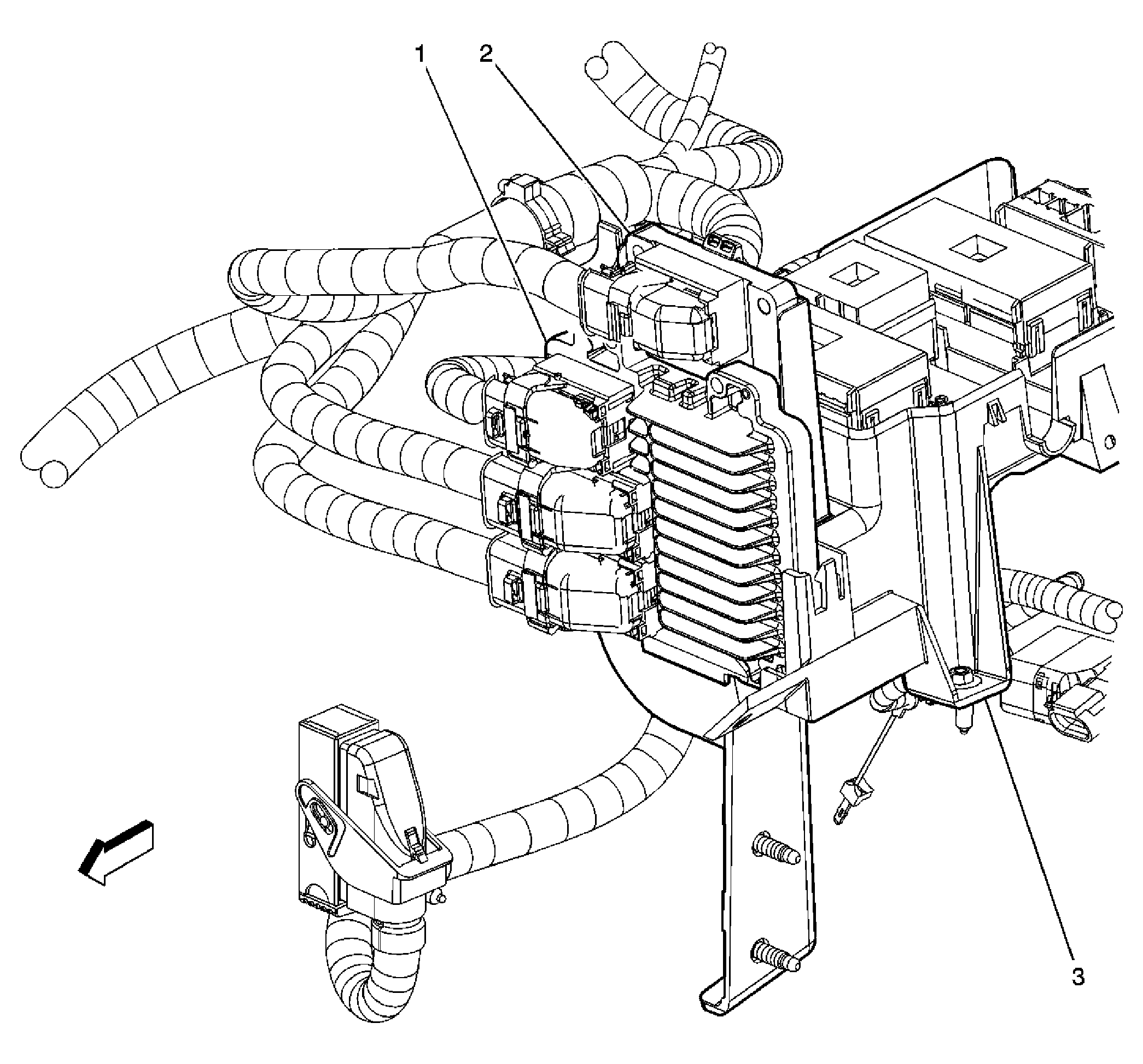

Fig 3: Engine and Transmission Modules (LSJ)
GM1546025Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Powertrain Control Module (PCM)
2 Transmission Control Module (TCM)
3 Fuse Block - Underhood Bracket

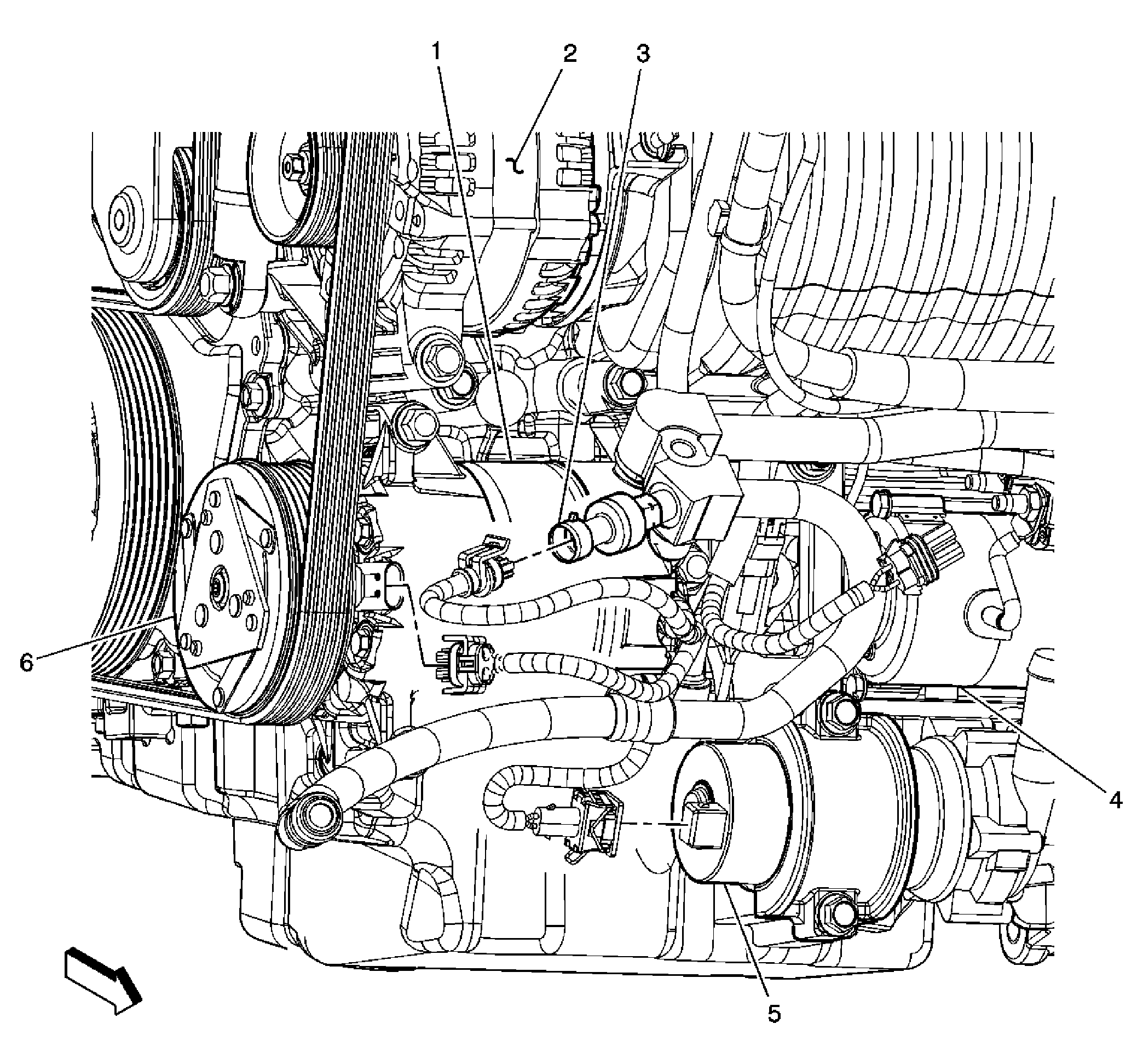

Fig 4: Front Lower Left of the Engine (LSJ)
GM1550909Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor (C67)
2 Generator
3 A/C Refrigerant Pressure Sensor (C67)
4 Starter
5 After Cooling Pump (LSJ)
6 A/C Compressor Clutch (C67)

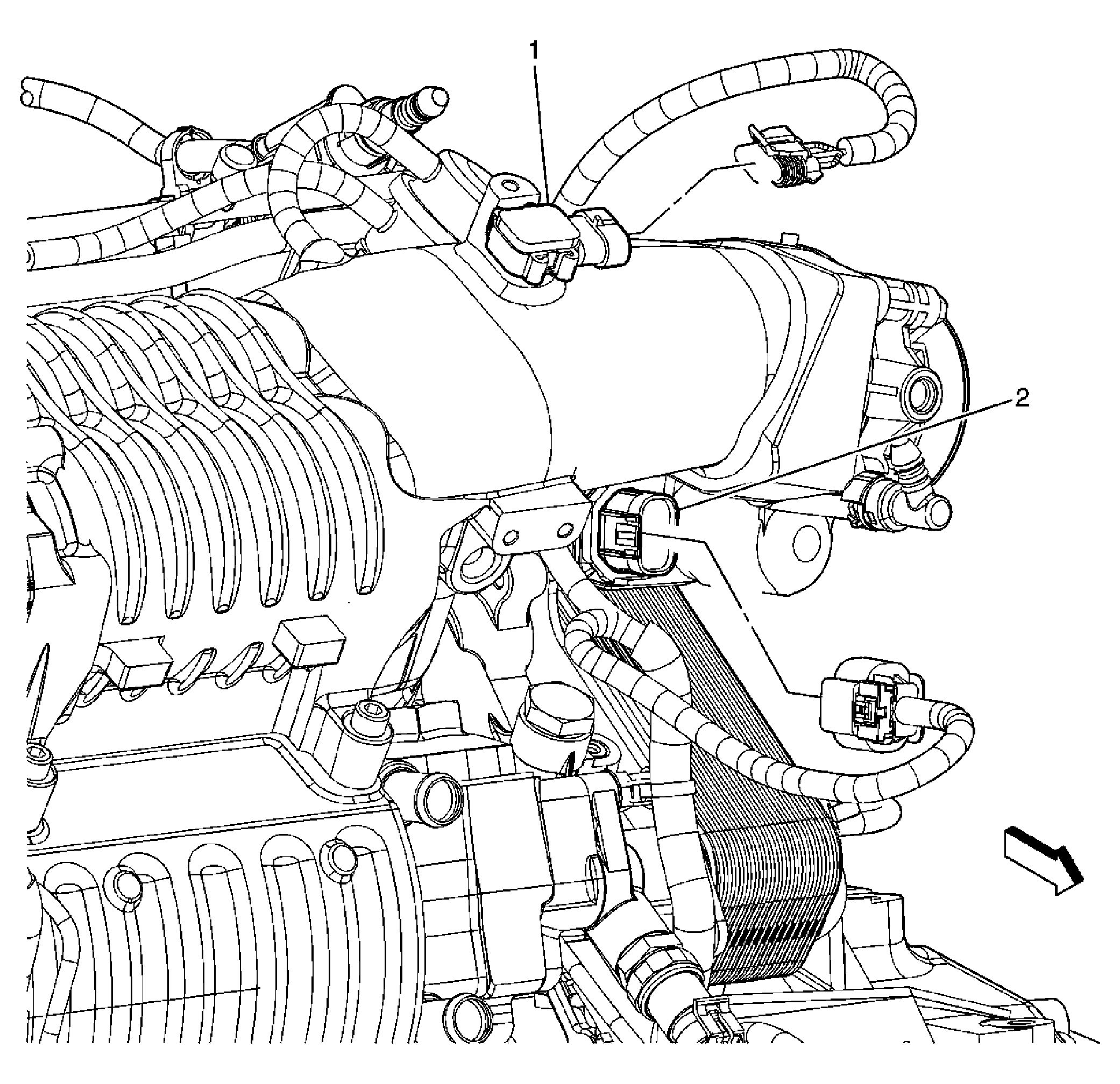

Fig 5: Engine Intake Components (LSJ)
GM1550913Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure (MAP) Sensor
2 Throttle Actuator Control (TAC) Module
Fig 6: Top Left Side Of Engine Component View
GM1403108Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Super Charge Inlet Pressure (SCIP) Sensor
2 Barometric Pressure (BARO) Sensor
3 Throttle Body

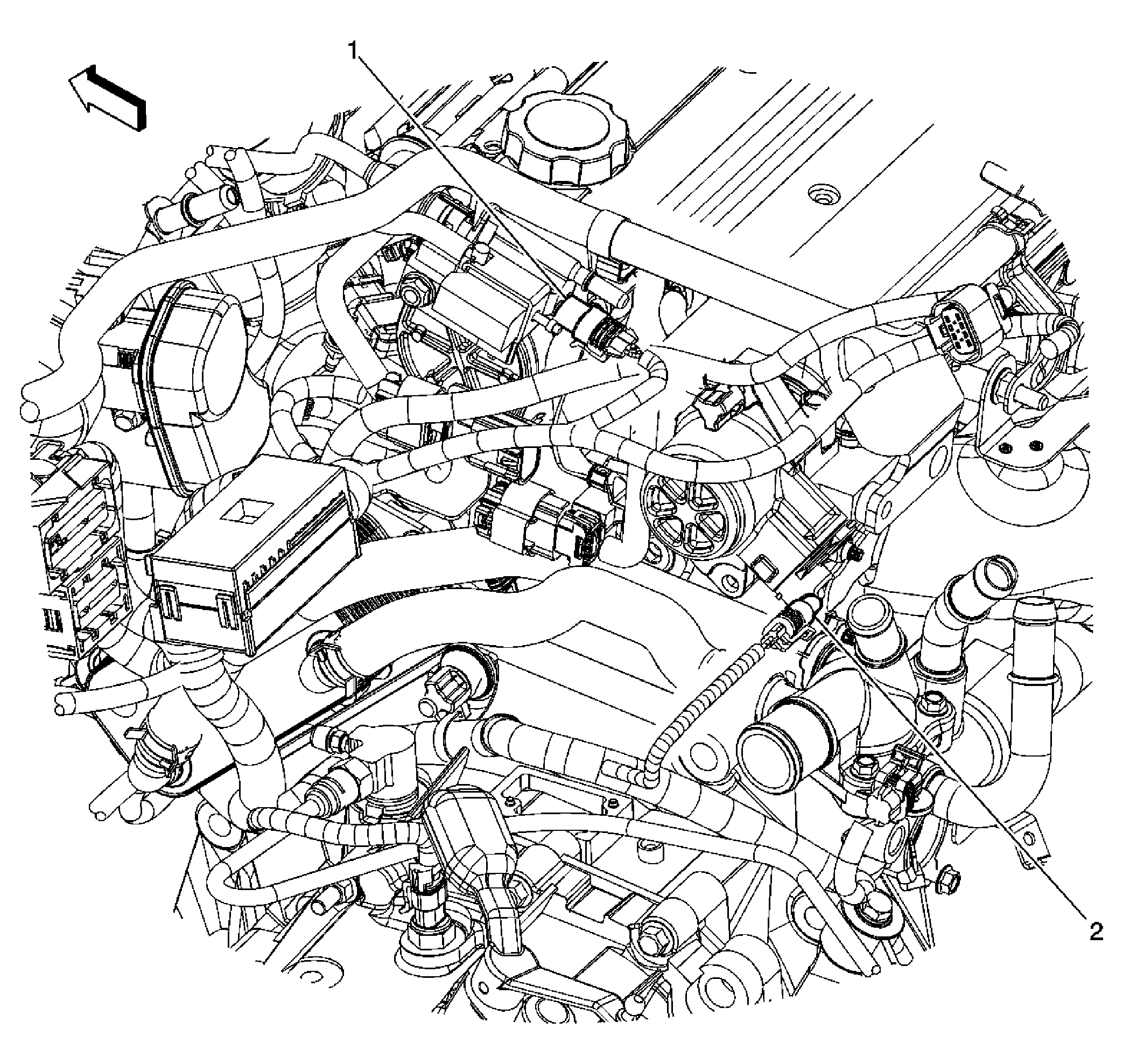

Fig 7: Above the Transmission (LSJ)
GM1550912Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Purge Solenoid
2 Camshaft Position (CMP) Sensor
Fig 8: Rear Of Engine Component View
GM1403101Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) 1 Connector
2 Heated Oxygen Sensor (HO2S) 2 Connector
3 Heated Oxygen Sensor (HO2S) 1
Fig 9: HO2S 2 Component View
GM1403103Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Catalytic Converter
2 Heated Oxygen Sensor (HO2S) 2
Fig 10: Top Of Engine Component View
GM1540555Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 1
2 Ignition Coil 2
3 Ignition Coil 3
4 Ignition Coil 4
Fig 11: Top Front Of Engine Component View
GM1540542Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 1
2 Fuel Injector 2
3 Fuel Injector 3
4 Fuel Injector 4

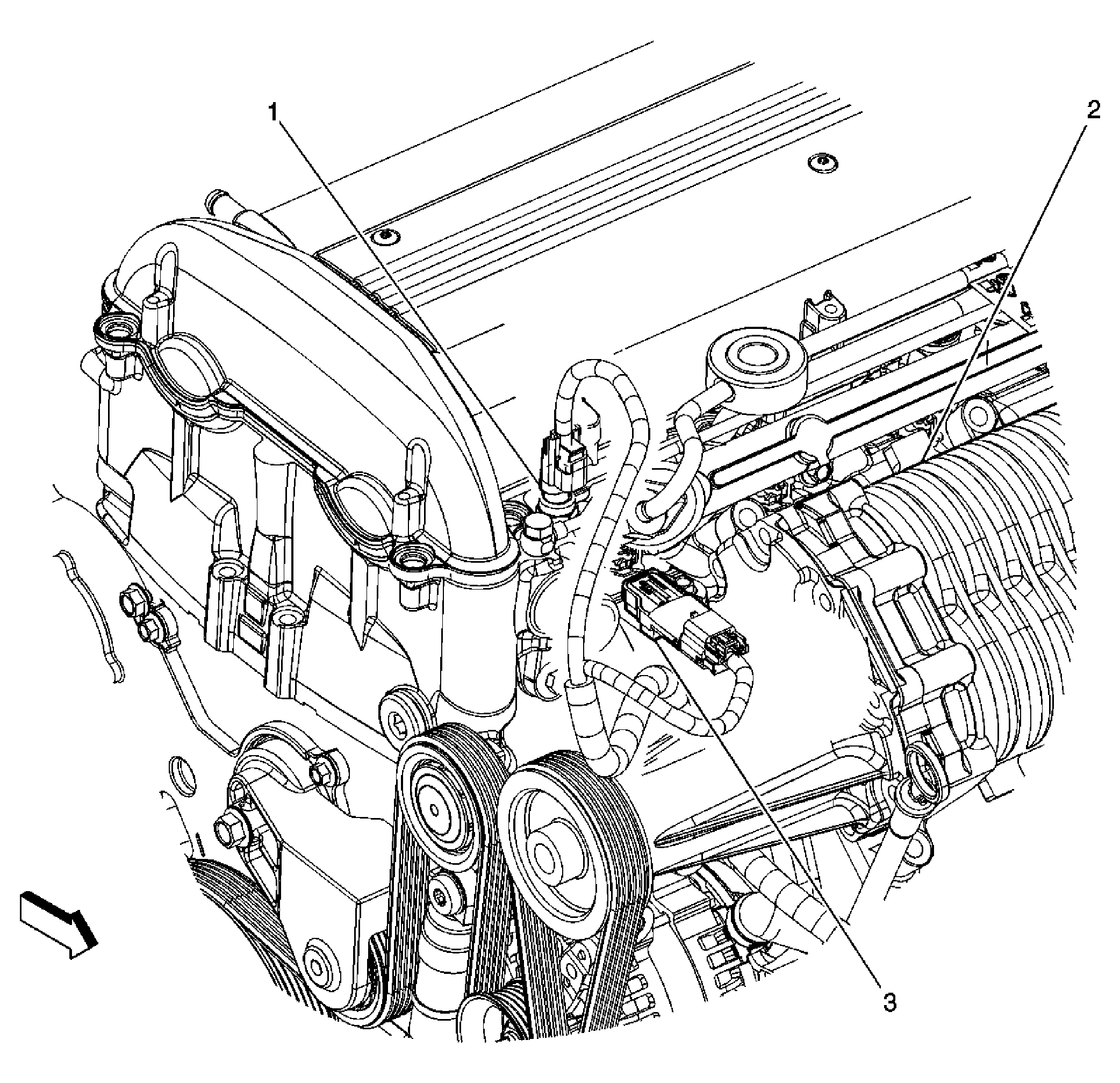

Fig 12: Top Front of the Engine (LSJ)
GM1550911Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Temperature (ECT) Sensor
2 Supercharger
3 Supercharger Inlet Pressure Sensor

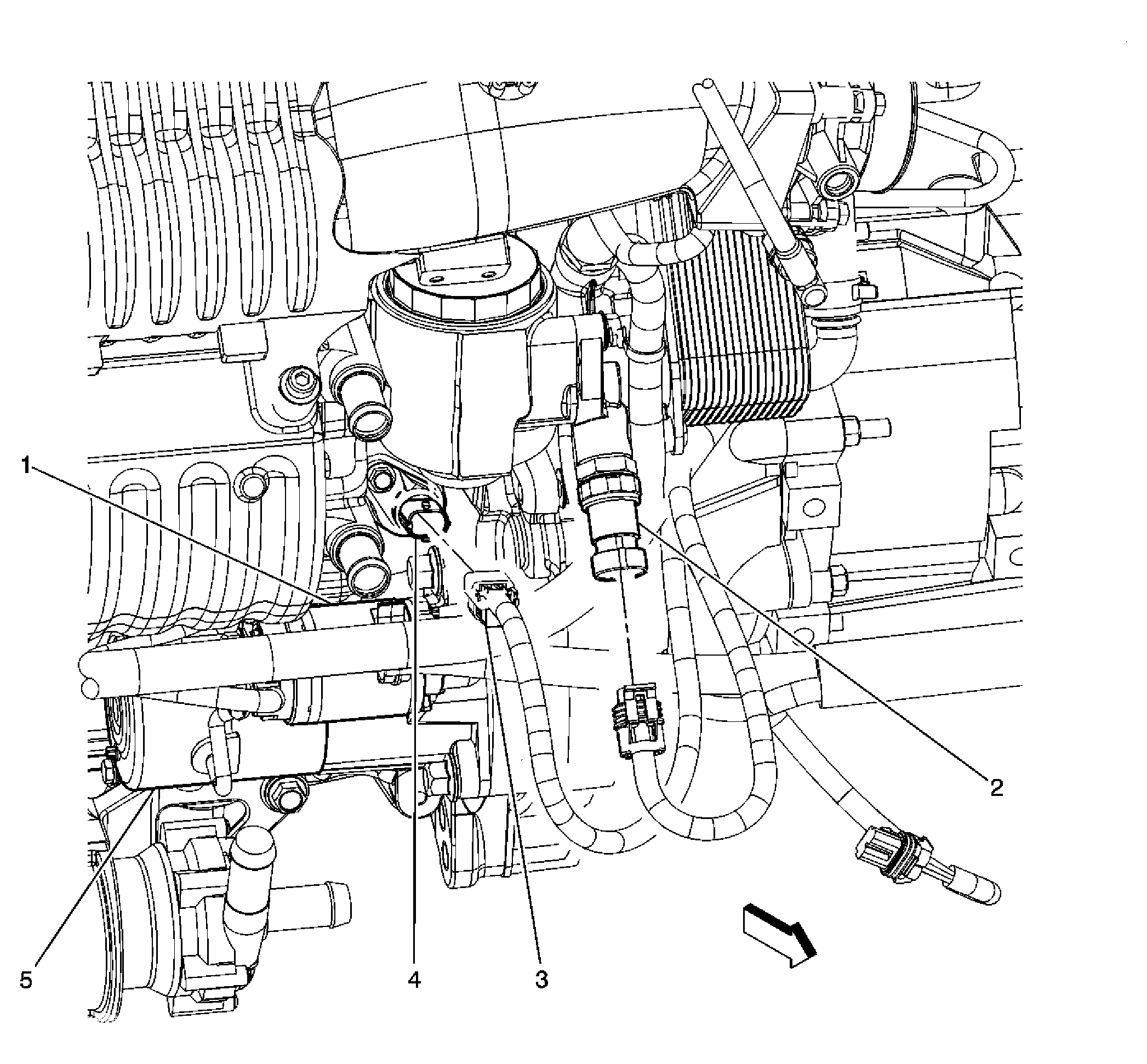

Fig 13: Lower Front of the Engine (LSJ)
GM1550910Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Solenoid
2 Oil Pressure Switch
3 C102
4 Crankshaft Position (CKP) Sensor
5 Starter
Fig 14: Mass Air Flow (MAF)/Inlet Air Temperature (IAT) Sensor
GM1583679Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF)/Inlet Air Temperature (IAT) Sensor
