Engine Controls Schematics

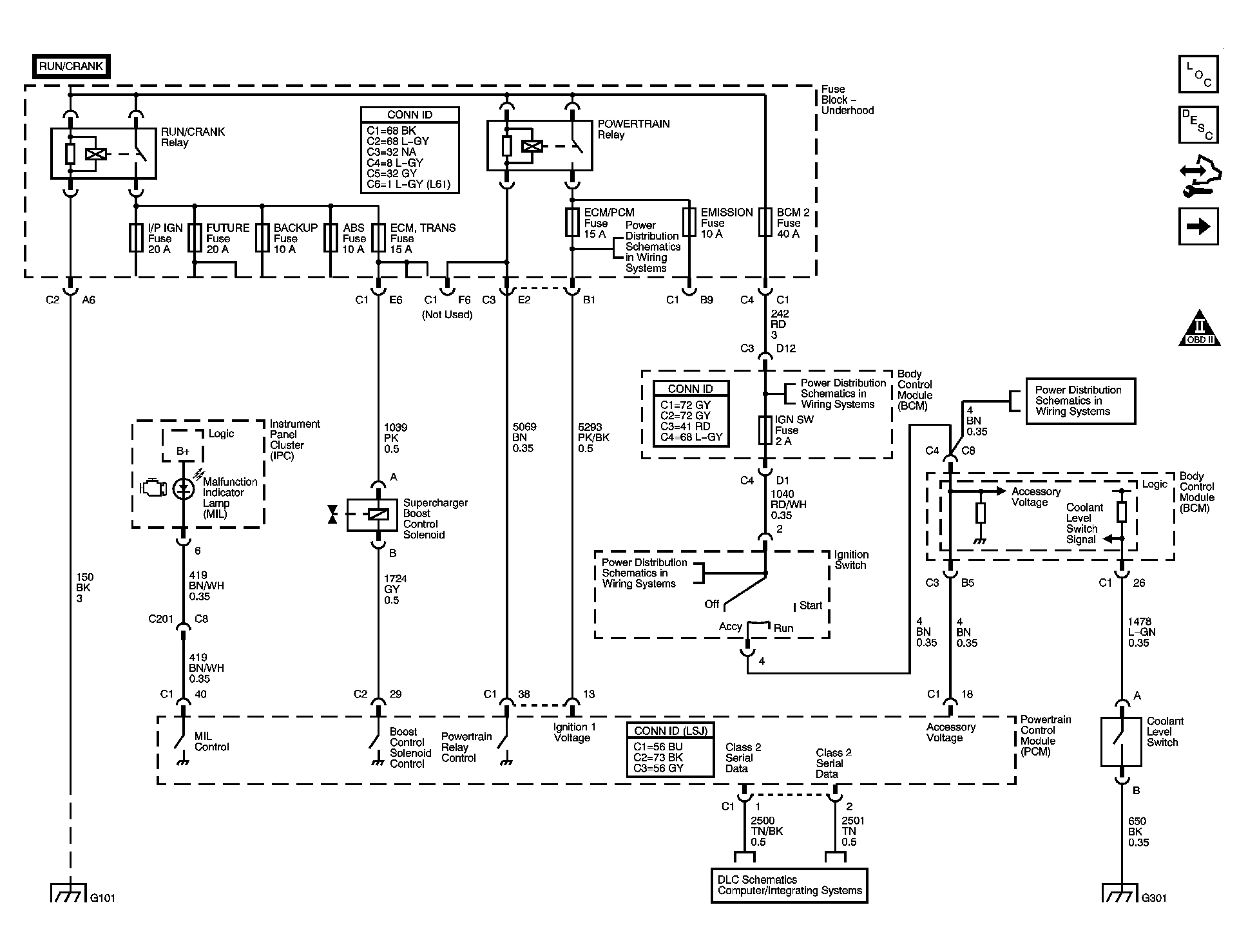

Fig 1: Power, Ground, MIL and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

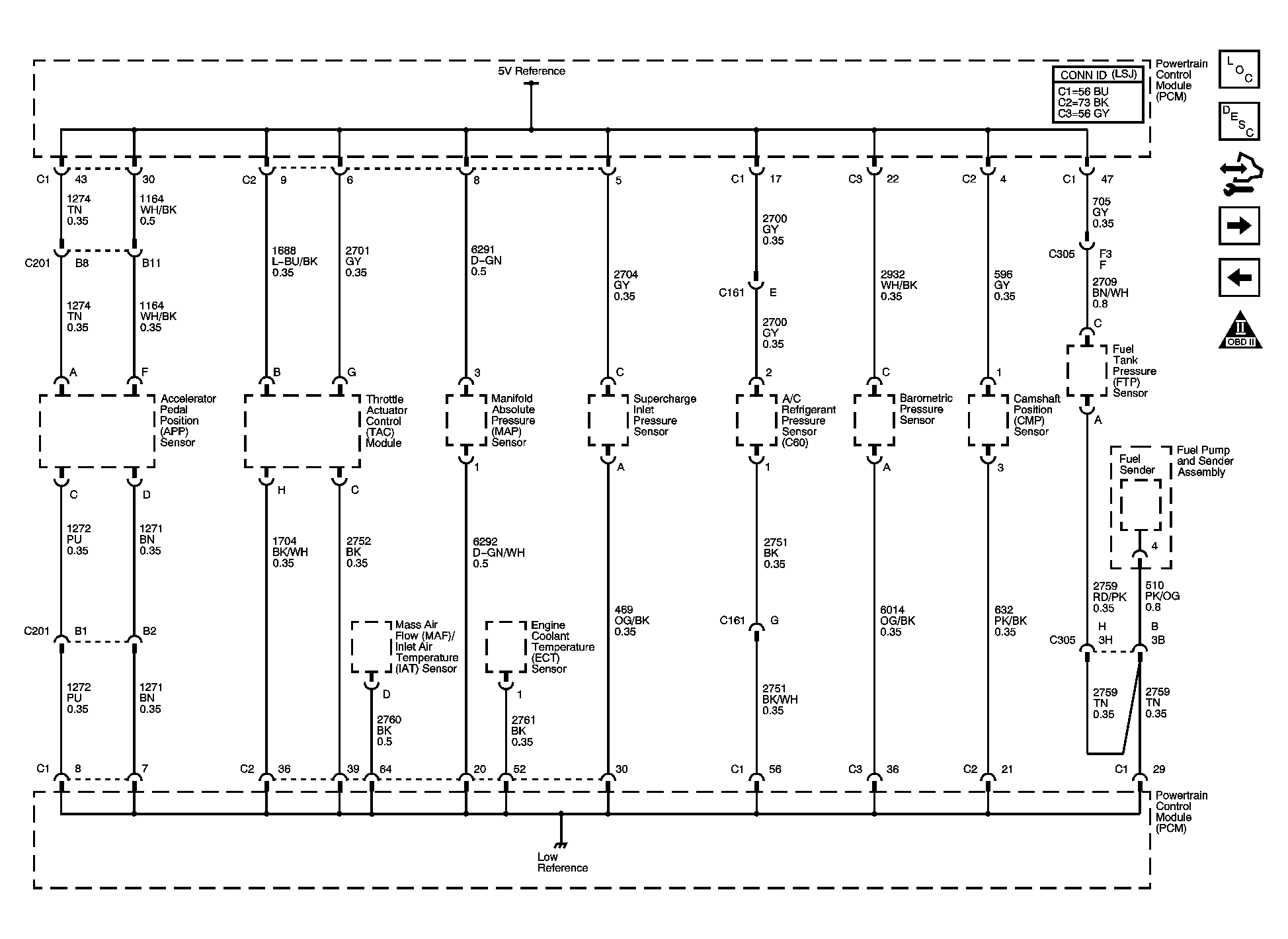

Fig 2: Engine Data Sensors Schematic (5-Volt and Low Reference Bussing)

Courtesy of GENERAL MOTORS CORP.

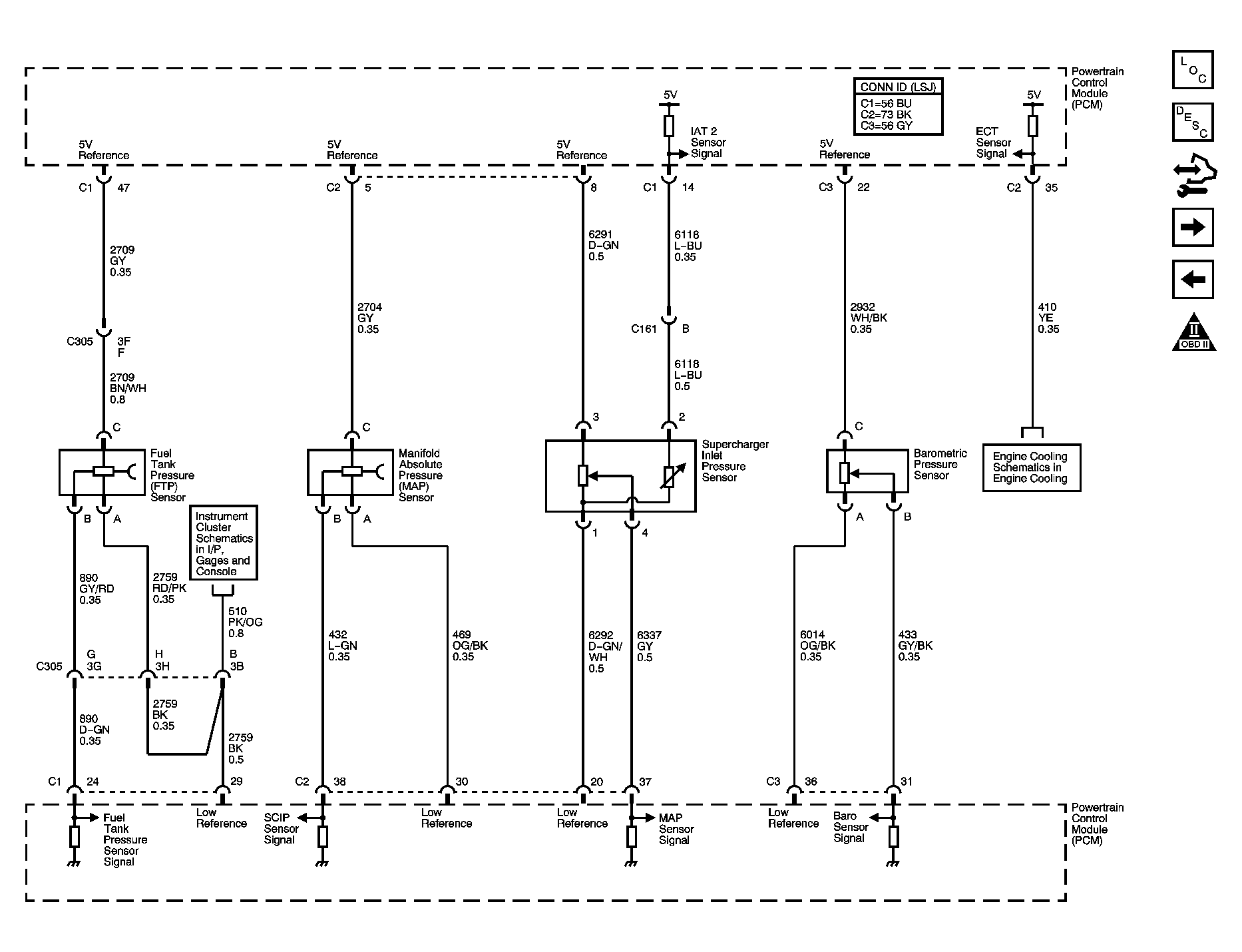

Fig 3: Engine Data Sensors Schematic (Pressure and Temperature)

Courtesy of GENERAL MOTORS CORP.

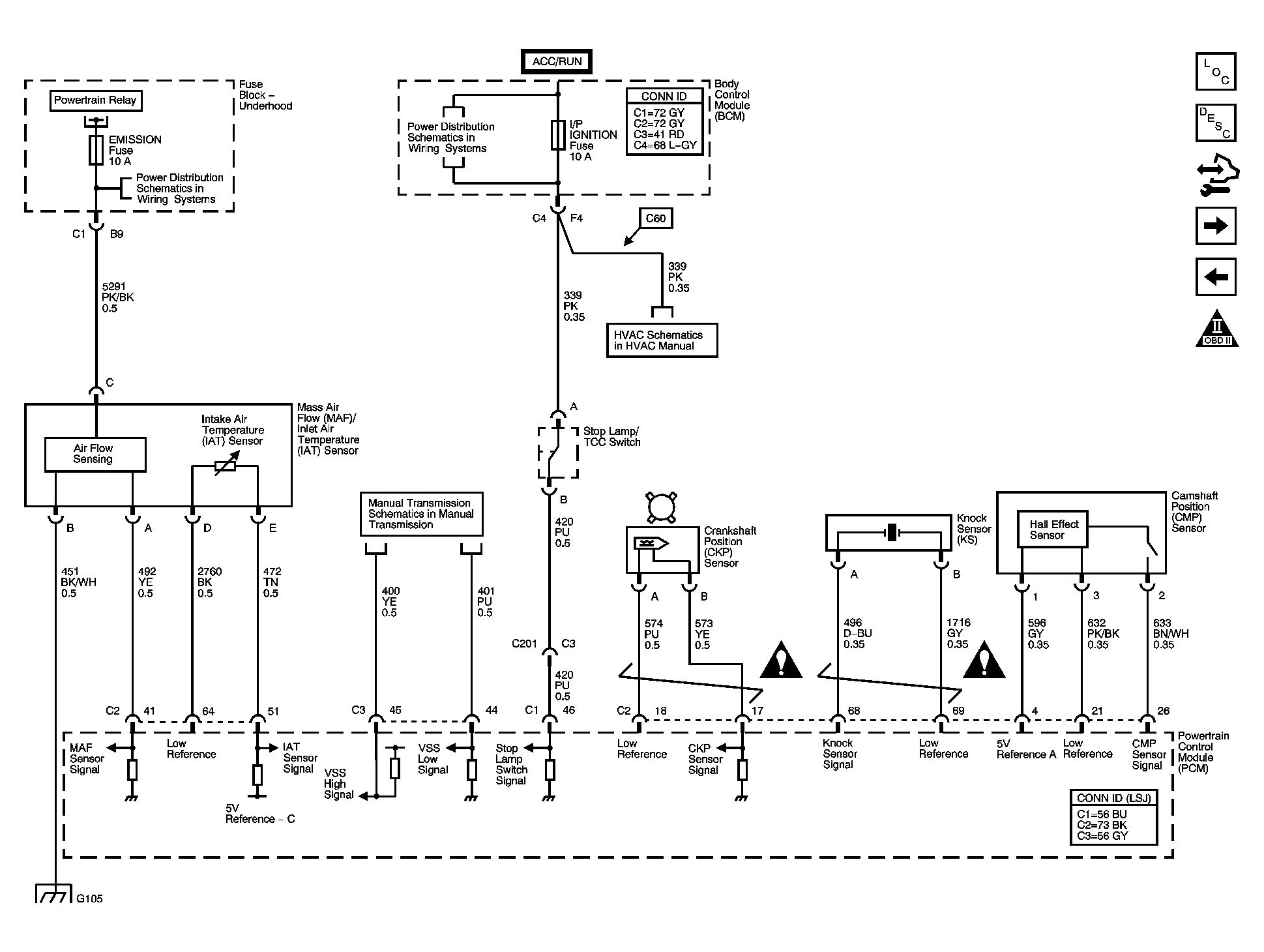

Fig 4: Engine Data Sensors Schematic (MAF/IAT, CKP, KS, and CMP)

Courtesy of GENERAL MOTORS CORP.

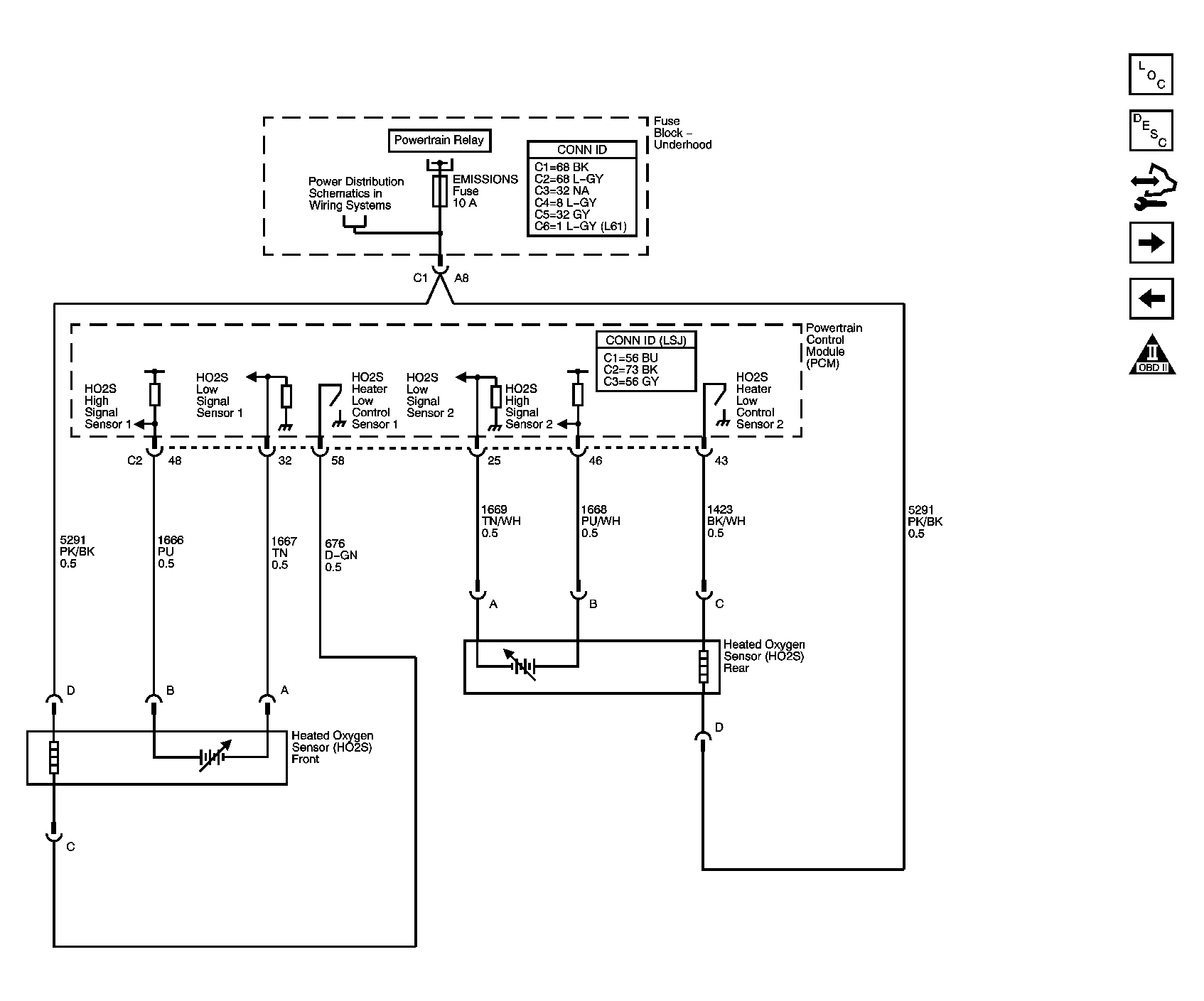

Fig 5: Engine Data Sensors Schematic (HO2S)

Courtesy of GENERAL MOTORS CORP.

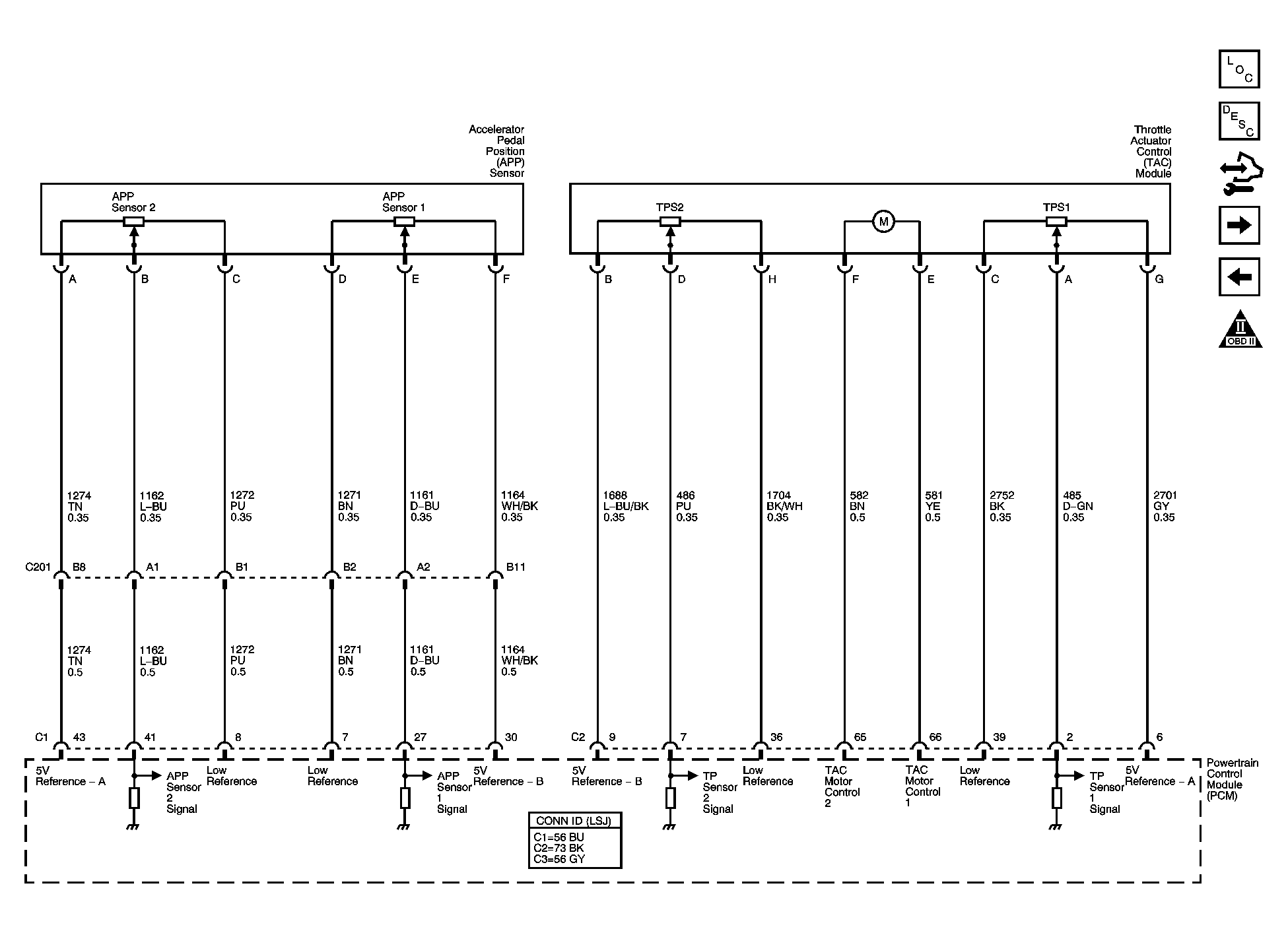

Fig 6: Engine Data Sensors Schematic (APP and TAC)

Courtesy of GENERAL MOTORS CORP.

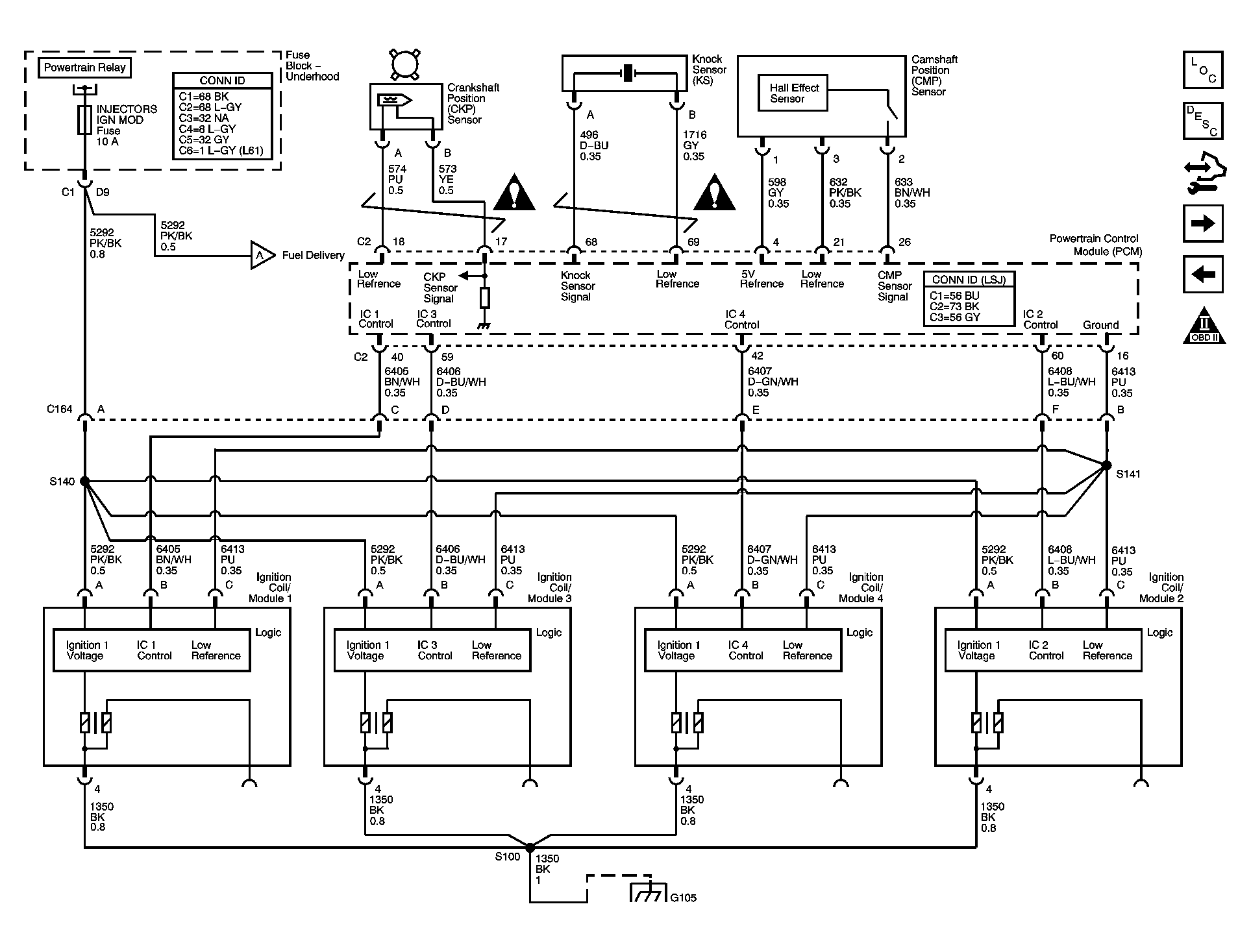

Fig 7: Ignition Controls Schematic

Courtesy of GENERAL MOTORS CORP.

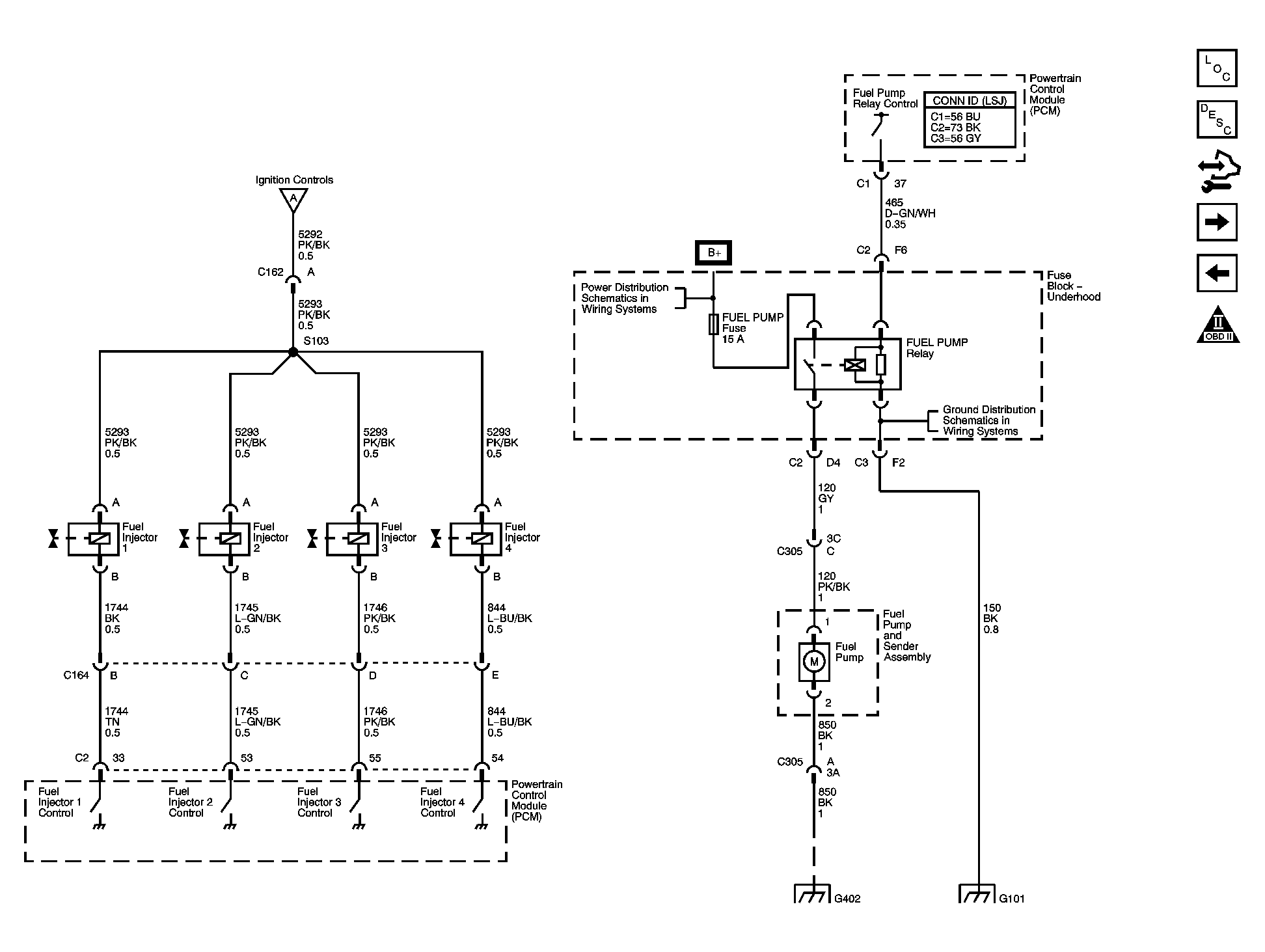

Fig 8: Fuel Controls Schematic

Courtesy of GENERAL MOTORS CORP.

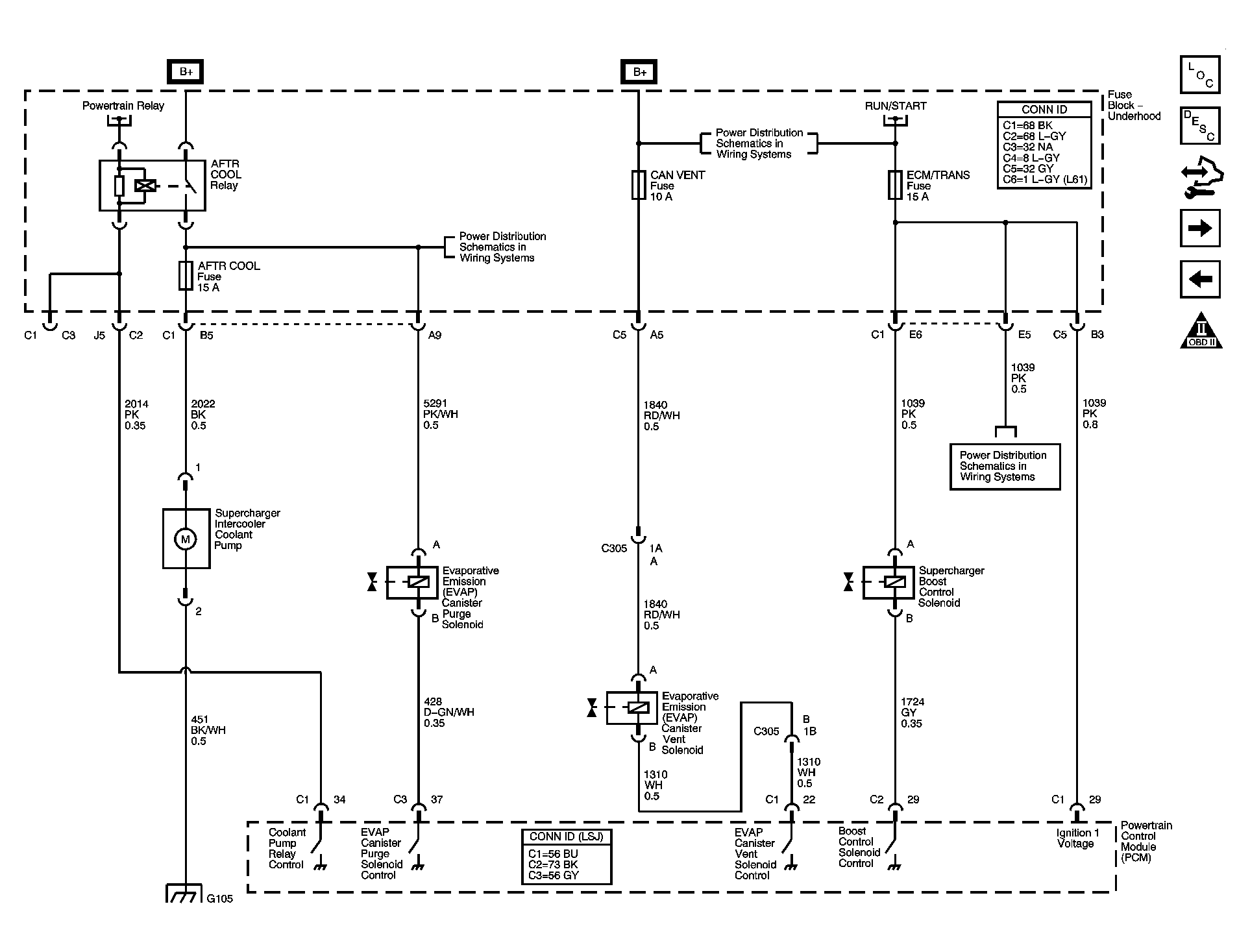

Fig 9: Engine Data Sensors Schematic (EVAP, After Cooler Pump and Supercharger By-Pass Valve Solenoid)

Courtesy of GENERAL MOTORS CORP.

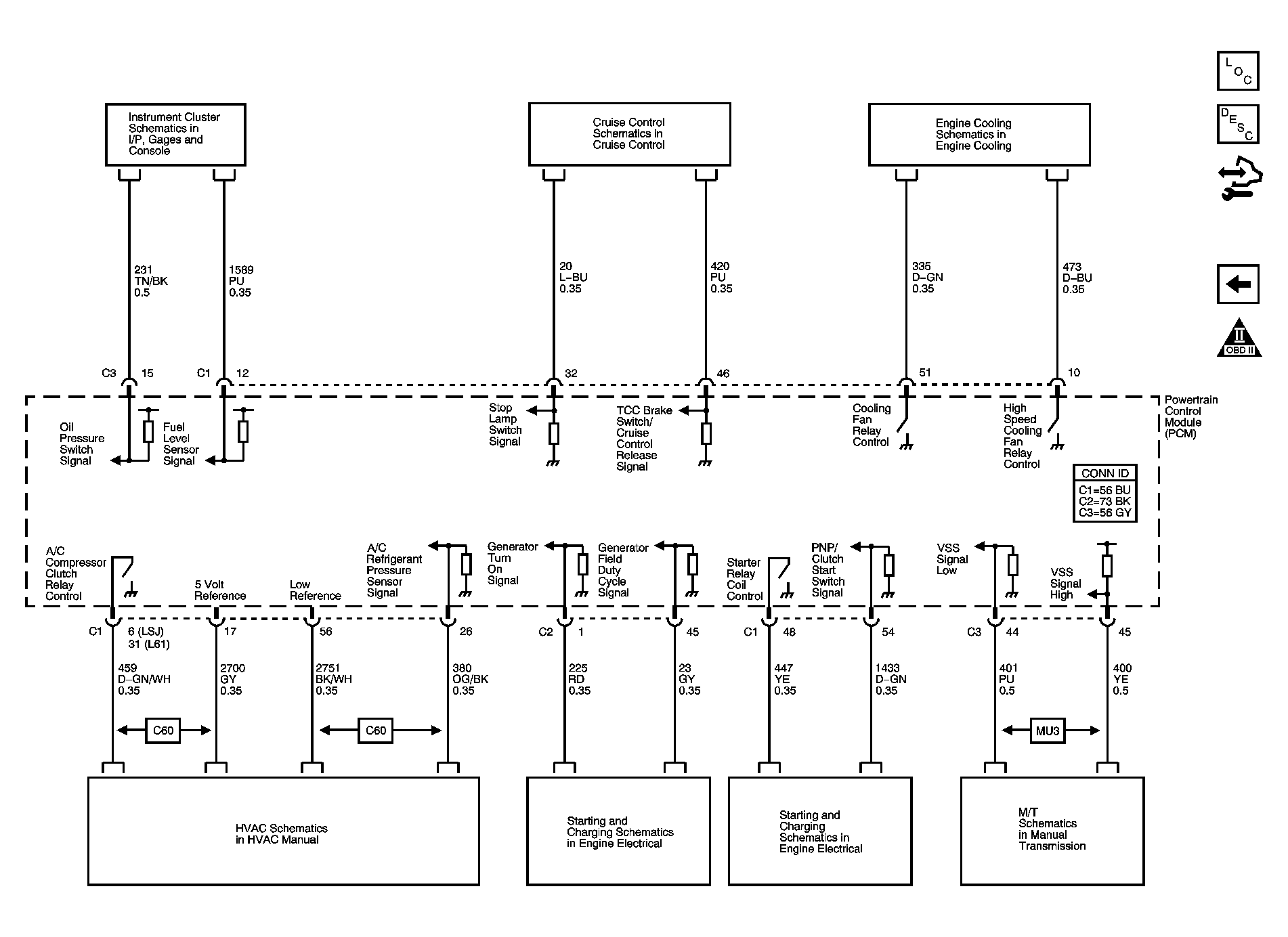

Fig 10: Controlled/Monitored Subsystem Reference Schematic

Courtesy of GENERAL MOTORS CORP.
