Removal Procedure

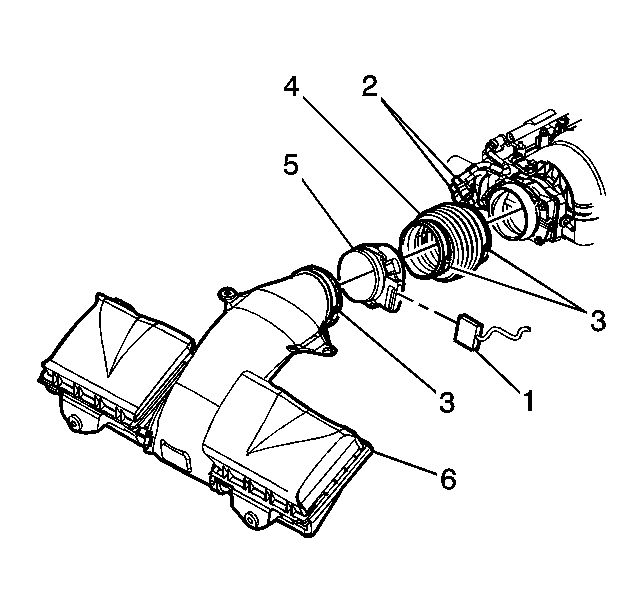

    Fig 1: Air Duct
    GM1465271Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the electrical connector for the mass air flow/intake air temperature sensor (MAF/IAT) (1).
  2. Remove the connection for the IAT sensor (2).
  3. Loosen the clamps (3).
  4. Remove the air intake duct (4).
  5. Remove the MAF/IAT sensor (5).
  6. Remove the air cleaner assembly (6).
