Removal Procedure

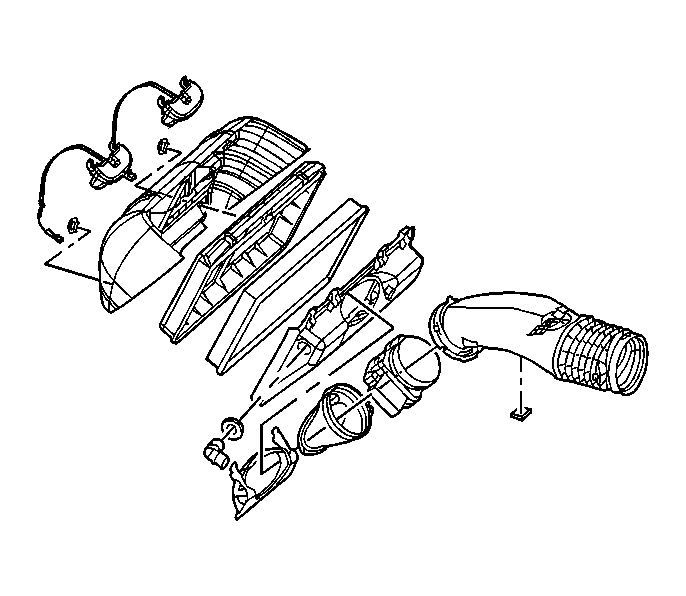

    Fig 1: Air Filter Element
    GM695481Courtesy of GENERAL MOTORS CORP.
  1. Release the retainer strap latches.
  2. Release the air cleaner housing cover.
  3. Pull out the air filter element.
  4. Inspect the air filter element for dust, for dirt, and for water. Clean or replace the air filter element if necessary.
