Installation Procedure

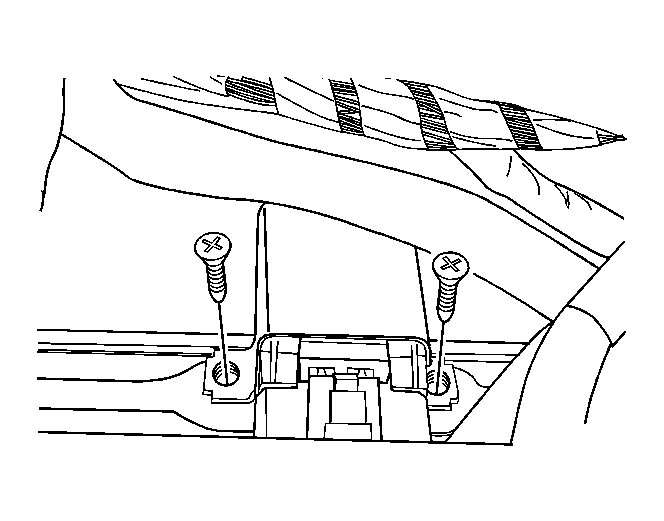

    Fig 1: Identifying Daytime Running Lamp Module And Screws
    GM1256512Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Install the daytime running lamp module with the screws.
  3. Install the stereo cassette radio. Refer to Radio Replacement in Entertainment.
  4. Install the center console. Refer to Console Replacement - Front Floor .
  5. Connect the negative battery cable.
