Installation Procedure

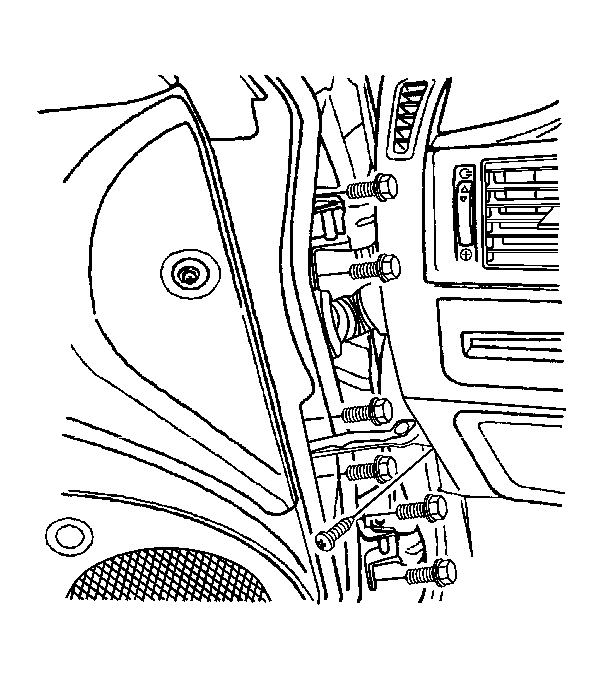

Fig 1: Identifying Door Hinge Bolts

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector and the body-to-door rubber grommet
With the aid of an assistant, lightly secure the front door with the door hinge bolts, (front door shown, rear door similar).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Adjust the door for proper fit.
Tighten: Tighten the door hinge-to-body bolts to 20 N.m (15 lb ft) .

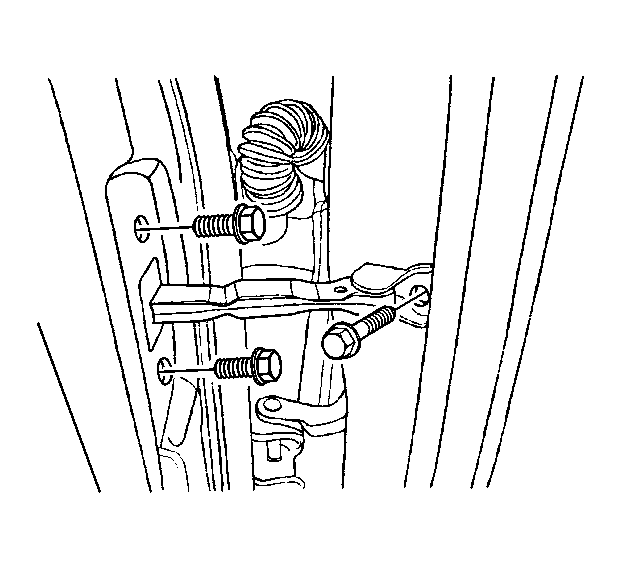

Fig 2: View Of Door Hold-Open Link And Bolts

Courtesy of GENERAL MOTORS CORP.

Install the door hold-open link to the body.
Tighten: Tighten the door hold-open link-to-body bolt to 25 N.m (18 lb ft) .
Connect the negative battery cable.
Perform the waterleak test. Refer to Waterleak Test Preparation in Waterleaks.
Check for windnoise. Refer to Air/Wind Noise in Air/Wind Noise.
