Installation Procedure

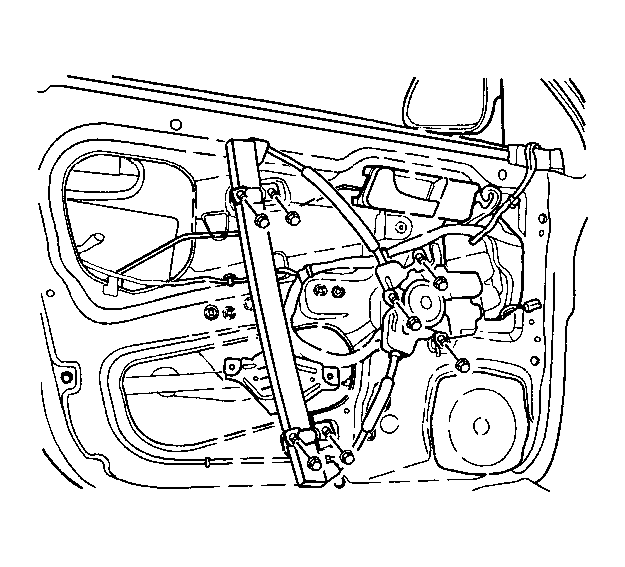

Fig 1: View Of Door Window Regulator And Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the window regulator with the nuts.
Tighten: Tighten the window regulator nuts to 8 N.m (71 lb in) .
Connect the electrical connector.
Install the door glass. Refer to Window Replacement - Front Door or to Window Replacement - Rear Door .
Connect the negative battery cable.
