Installation Procedure

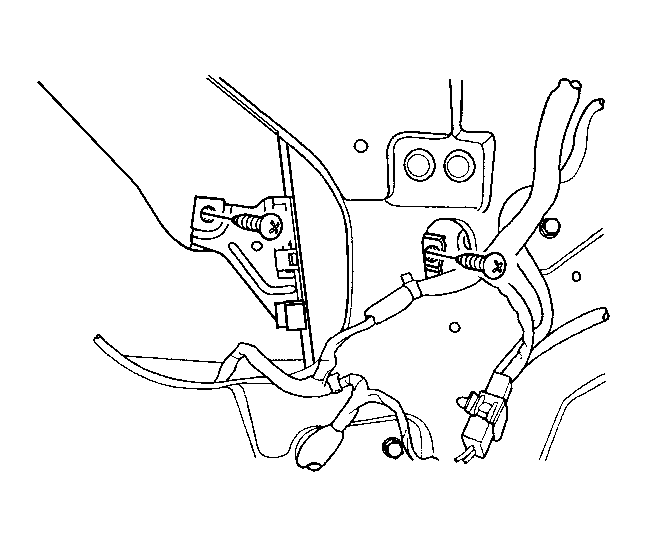

Fig 1: View Of Window Regulator Screws

Courtesy of GENERAL MOTORS CORP.

Install the glass in the door and position the glass within the window regulator.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the glass to the window regulator with the screws.
Tighten: Tighten the glass screws to 7 N.m (62 lb in) .
Install the center pillar molding. Refer to Applique Replacement - Center Pillar Outer in Exterior Trim.
Install the door seal trim. Refer to Water Deflector Replacement - Door .
