Power Door Systems Component Views

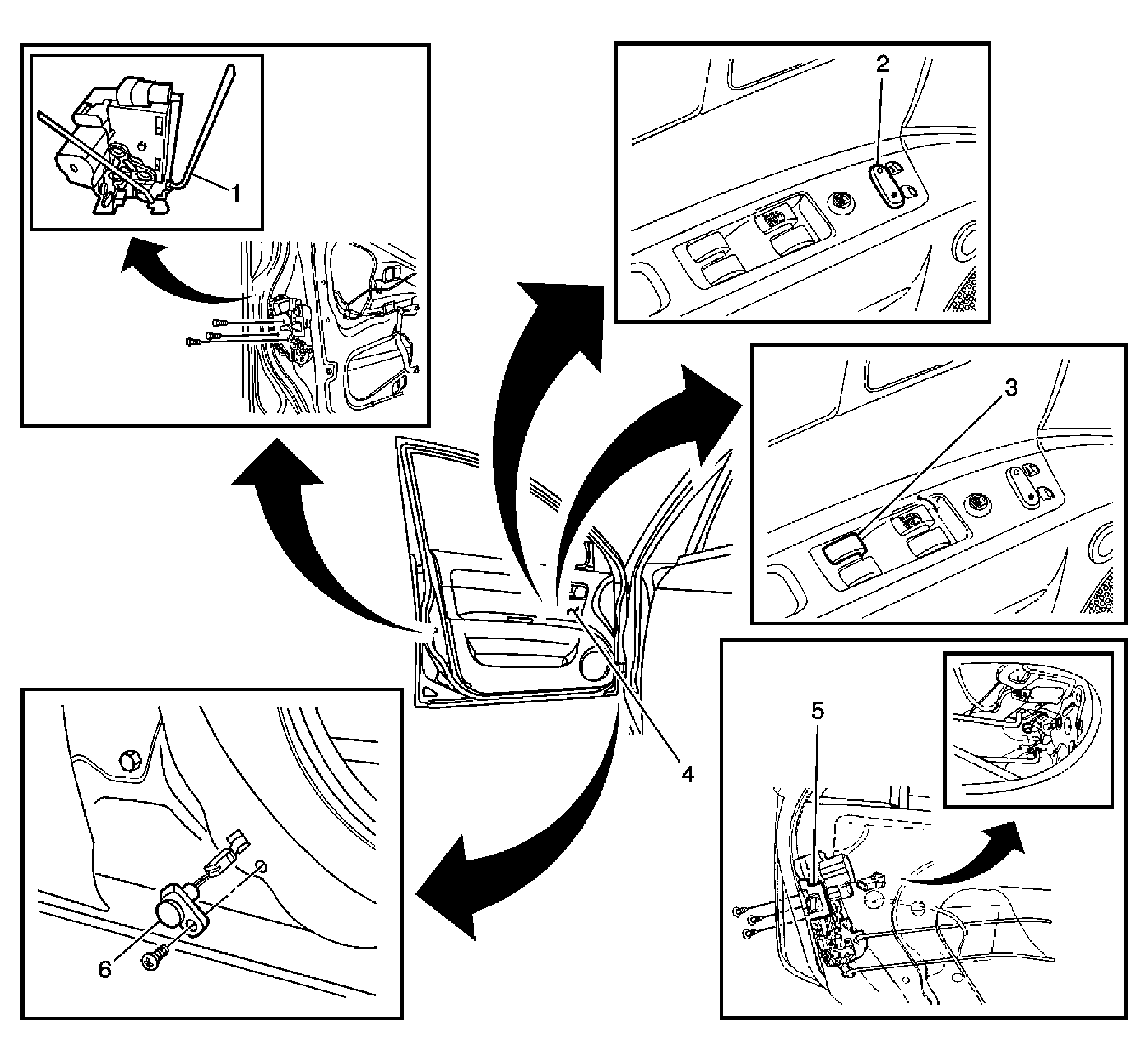

Fig 1: Identifying Vehicle Access Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Front (Left Shown, Right Similar)
2	Door Lock Switch (Optional)
3	Window Switch - Driver (Others Similar)
4	Window Motor (All Similar)
5	Door Latch - Rear (Left Shown, Right Similar)
6	Door Ajar Switch (All Similar)

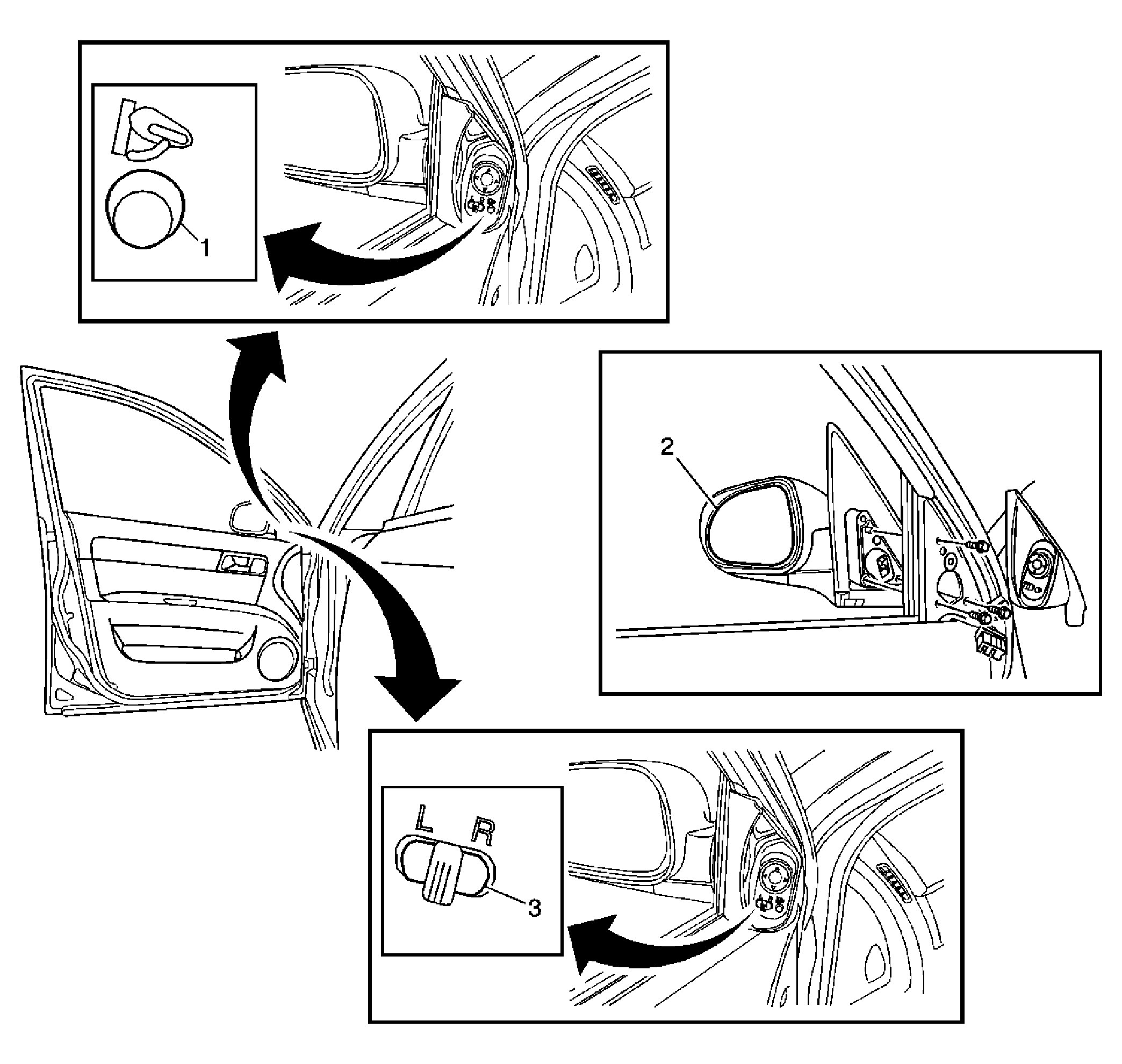

Fig 2: Identifying Outside Rearview Mirror Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch (w/ Folding Option)
2	Outside Rearview Mirror (Left Shown, Right Similar)
3	Outside Rearview Mirror Switch (w/o Folding Option)

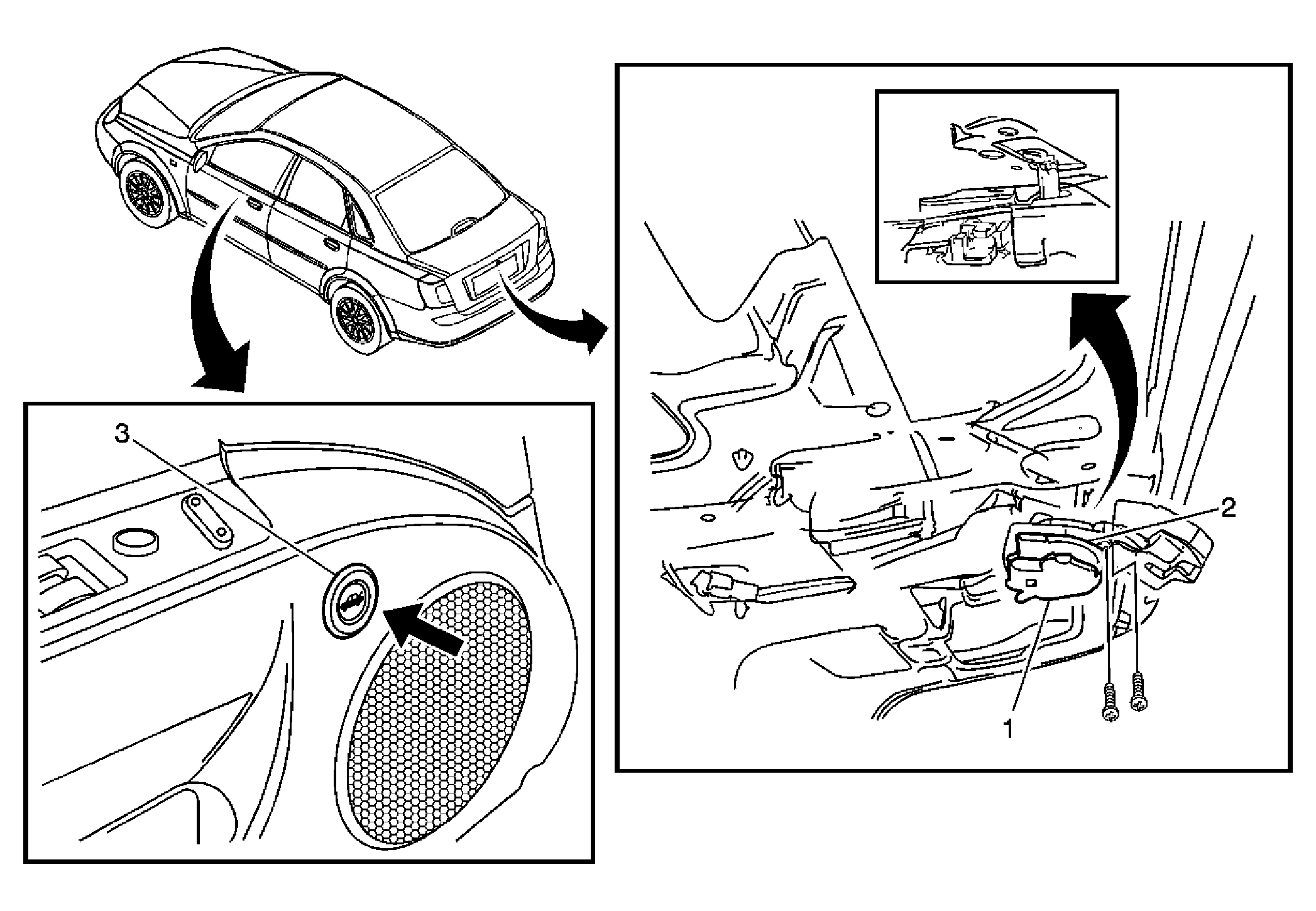

Fig 3: Identifying Rear Compartment Lid Release Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch C1 (Actuator) (Notchback Shown, Hatchback Similar)
2	Rear Compartment Lid Latch C2 (Ajar Switch)
3	Rear Compartment Lid Release Switch
