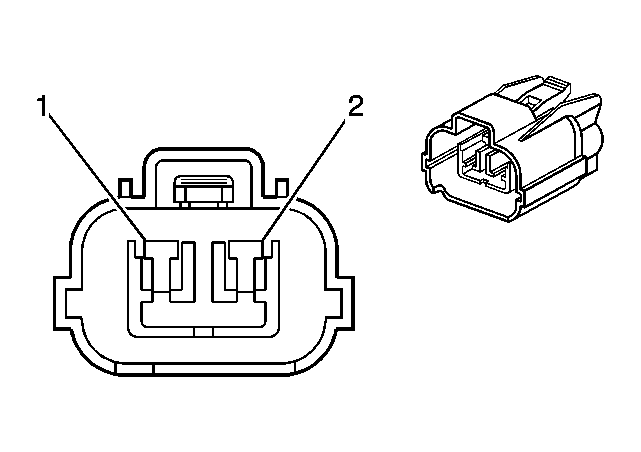

Horns Connector End Views
Horn
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
KET MG 641156
2-Way F 090 WP Series (GY)
Pin
Wire Color
Circuit Number
Function
1
BK
50
Ground (Signal Horn)
BK
150
Ground (Dual Horn)
2
D-GN
29
Horn Control (Signal Horn)
BK-WH
29
Horn Control (Dual Horn)
