Front Toe Adjustment
- Disconnect the outer tie rods from the knuckle assemblies. Refer to Rack and Pinion Outer Tie Rod End Replacement in Power Steering Systems.

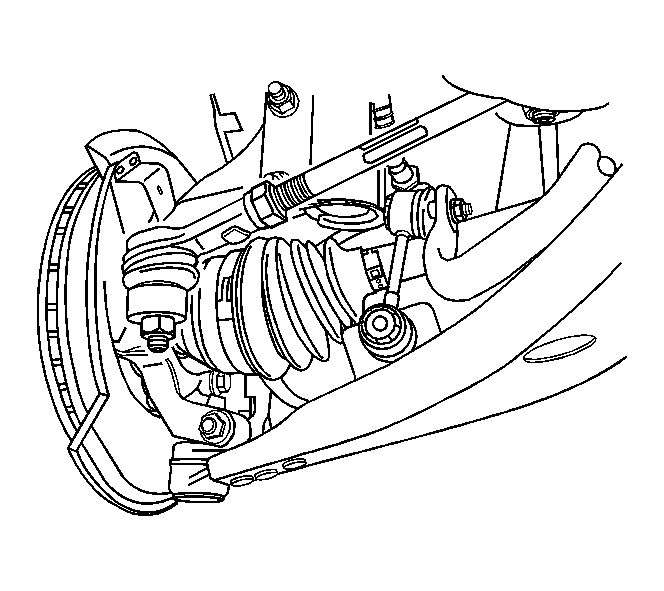

- Turn the right and the left outer tie rods and the adjuster nuts to align the toe to the proper specifications. Refer to Wheel Alignment Specifications .
Specification: Align the toe to 0.0 ± 0.174 degree.
- Reconnect the outer tie rods to the knuckle assemblies. Refer to Rack and Pinion Outer Tie Rod End Replacement in Power Steering Systems.
IMPORTANT:
In this adjustment, the right and the left tie rods must be equal in length, or the tires will wear unevenly.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
IMPORTANT:
In this adjustment, the right and the left tie rods must be equal in length, or the tires will wear unevenly.
