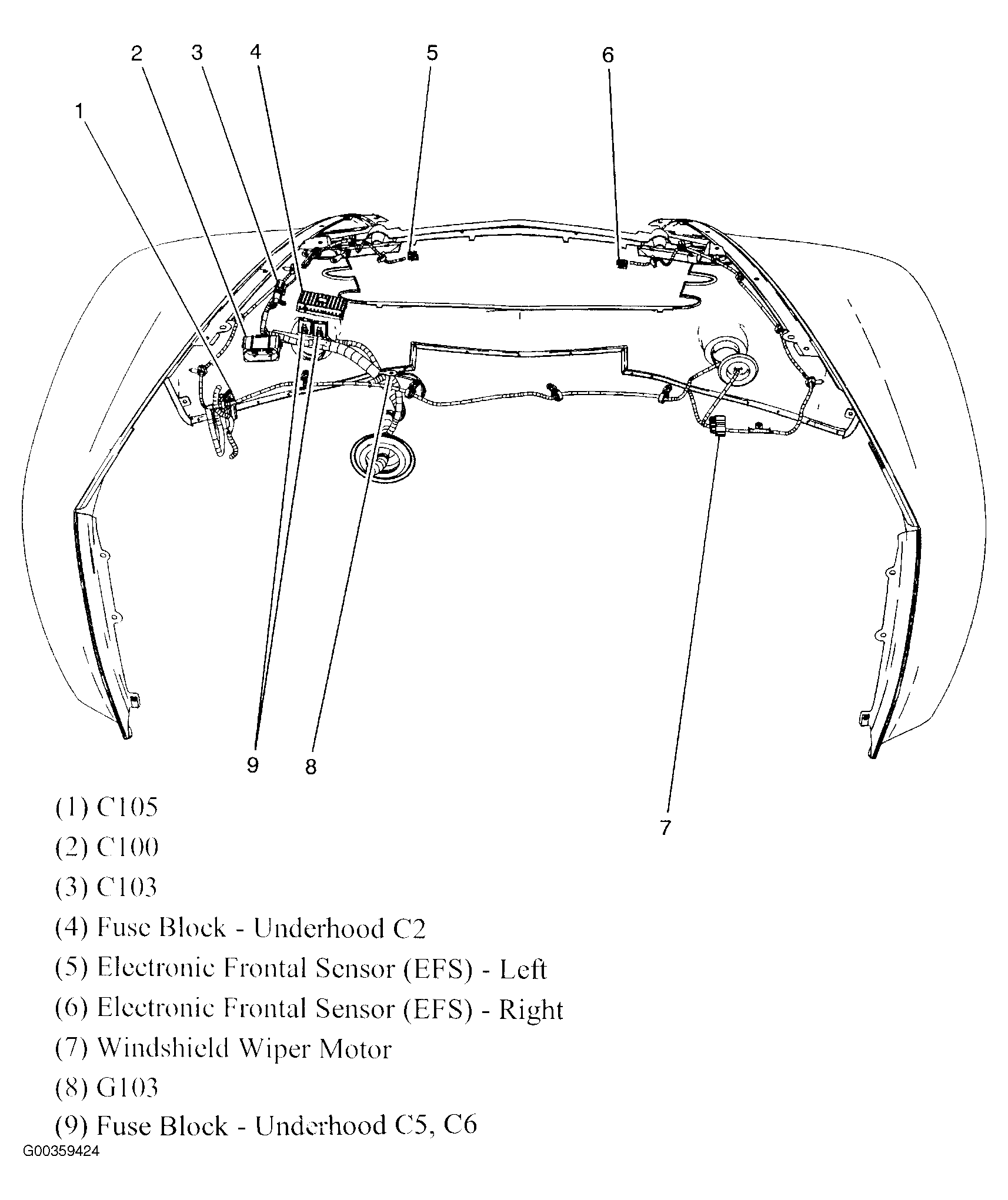

April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

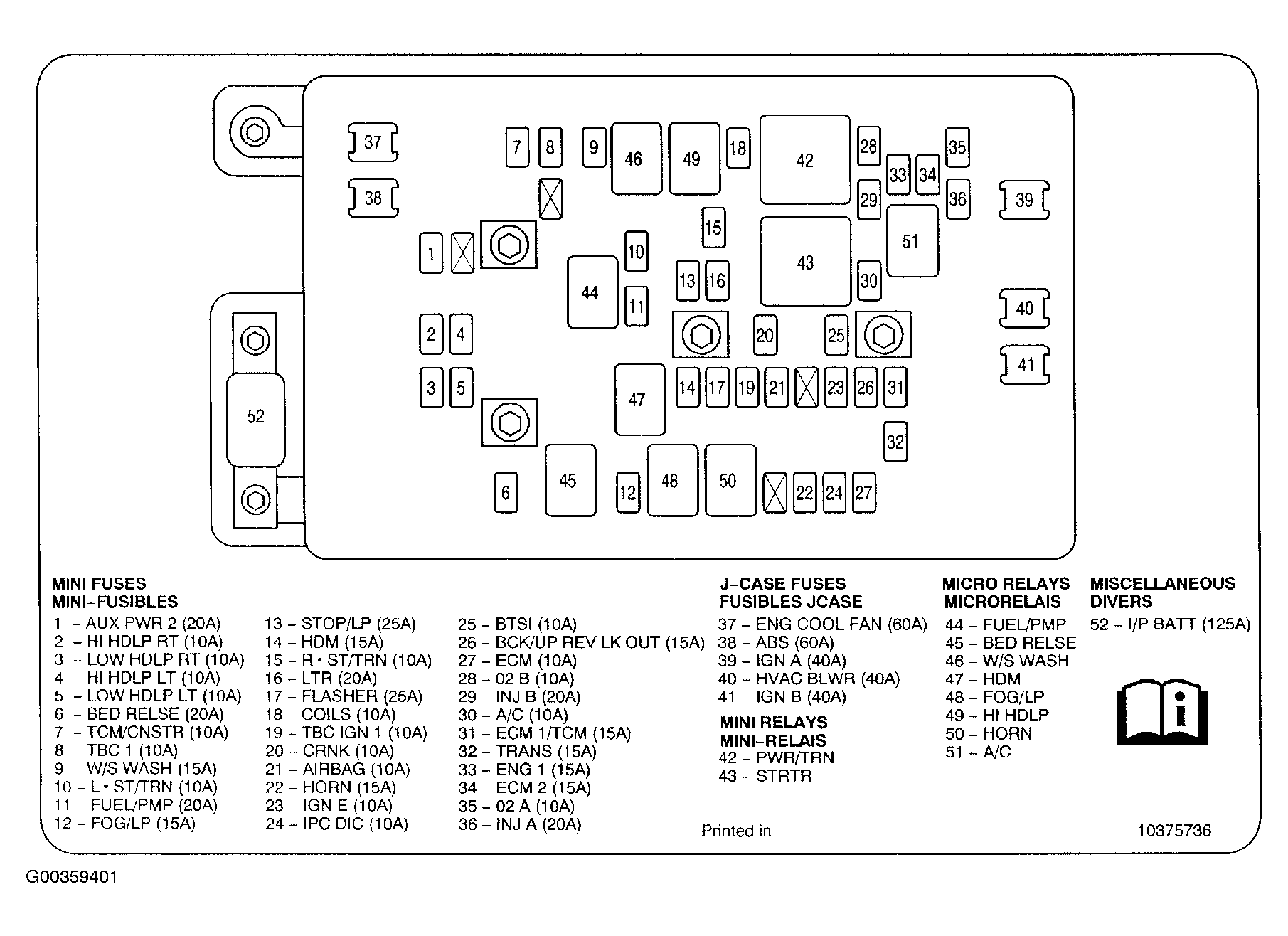

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

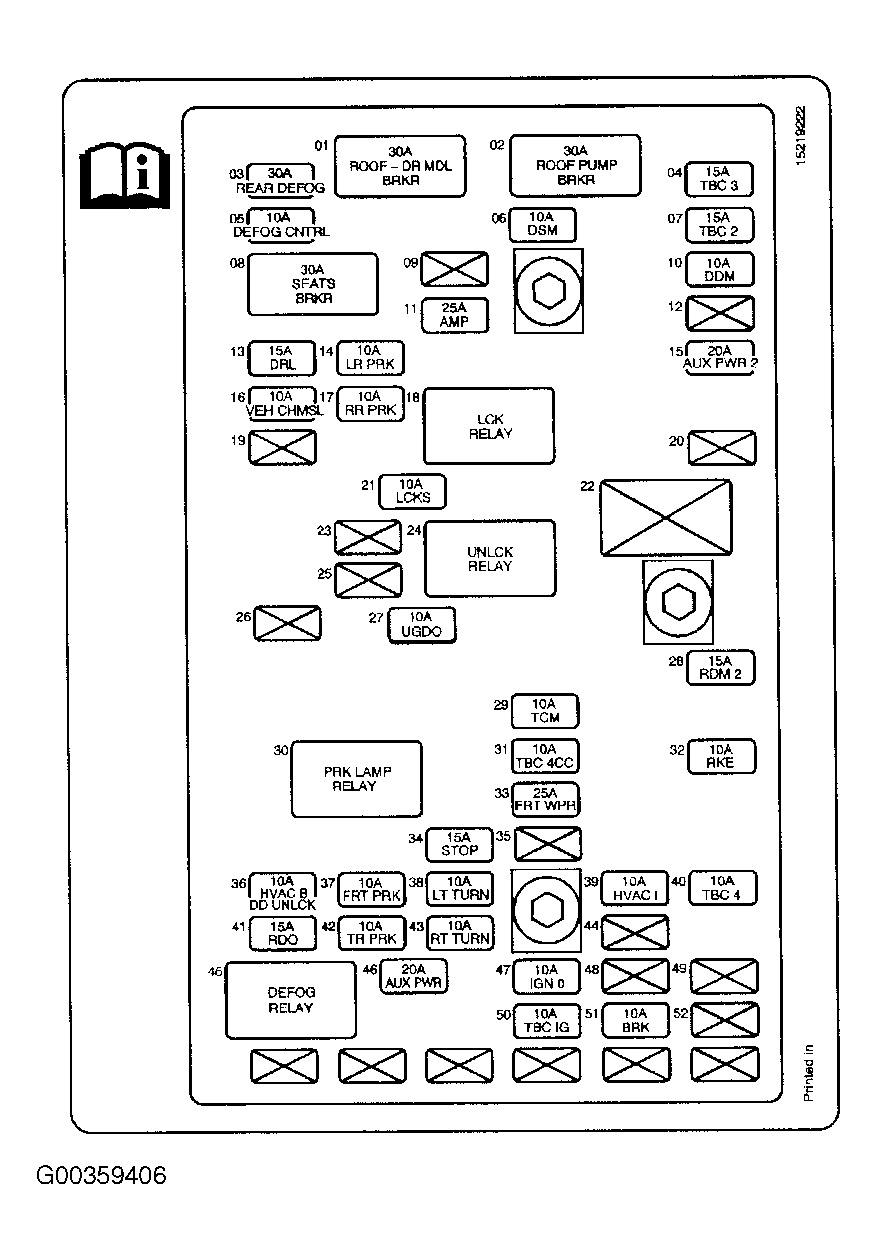

Fig 2: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

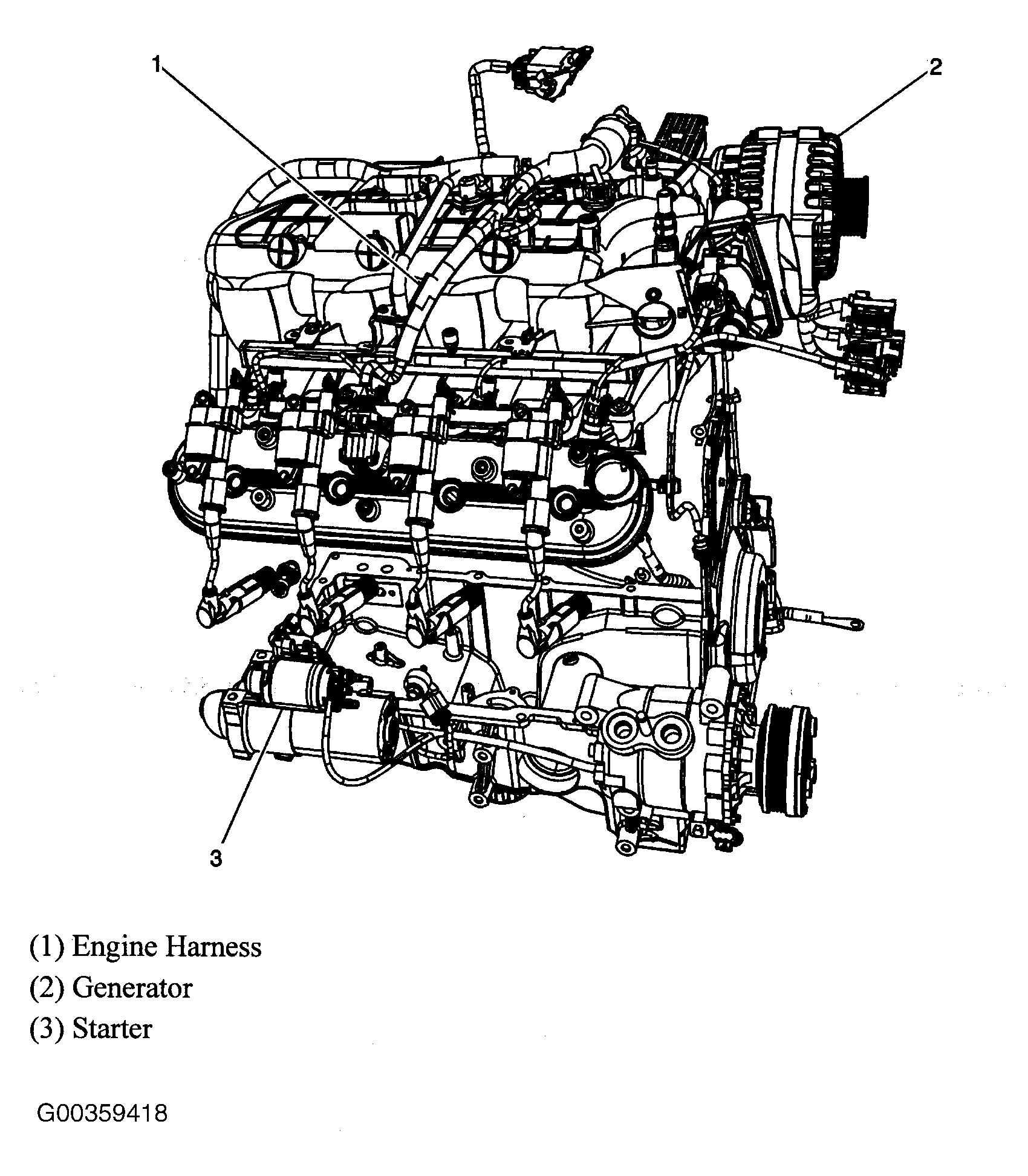

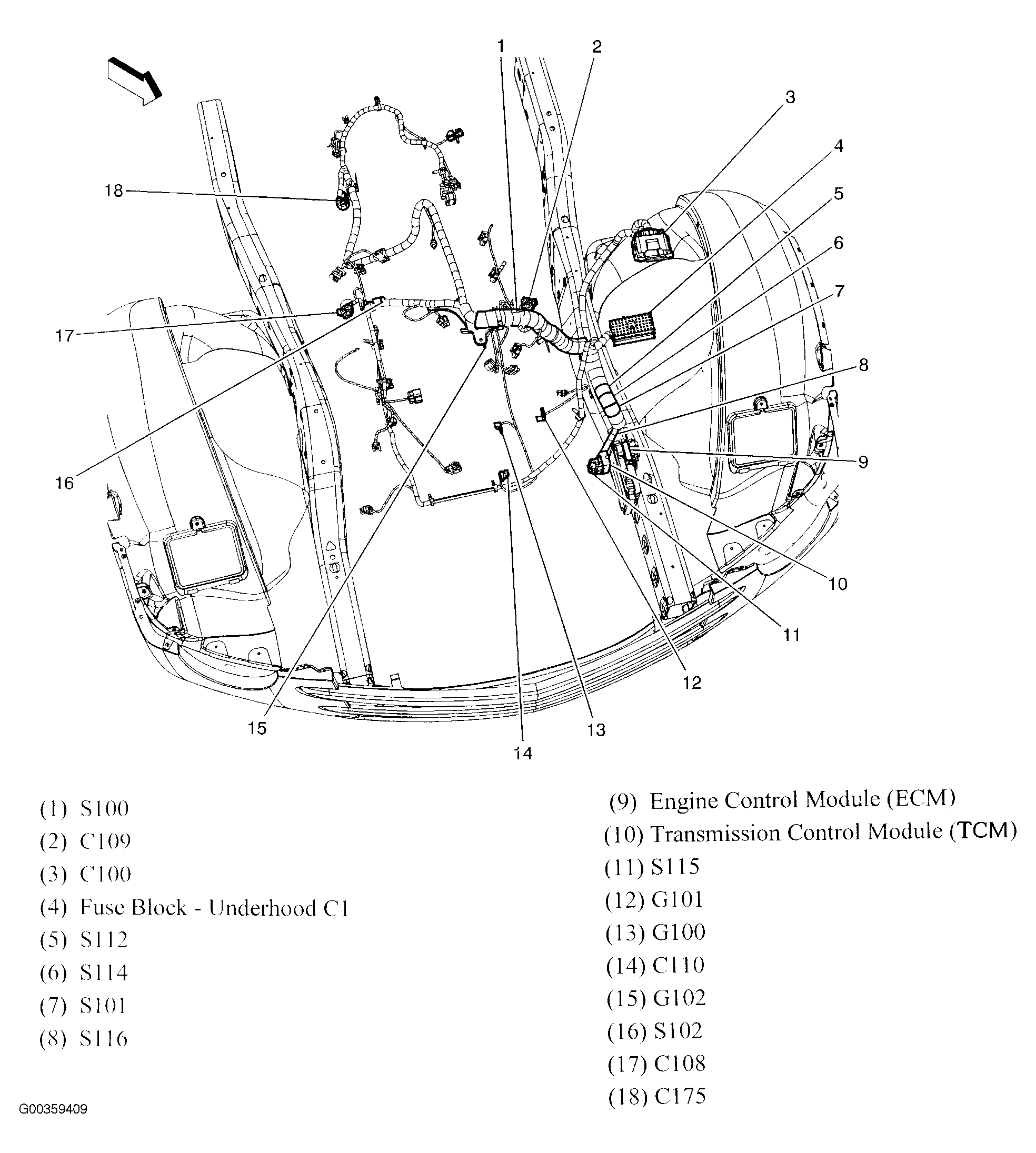

Fig 3: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

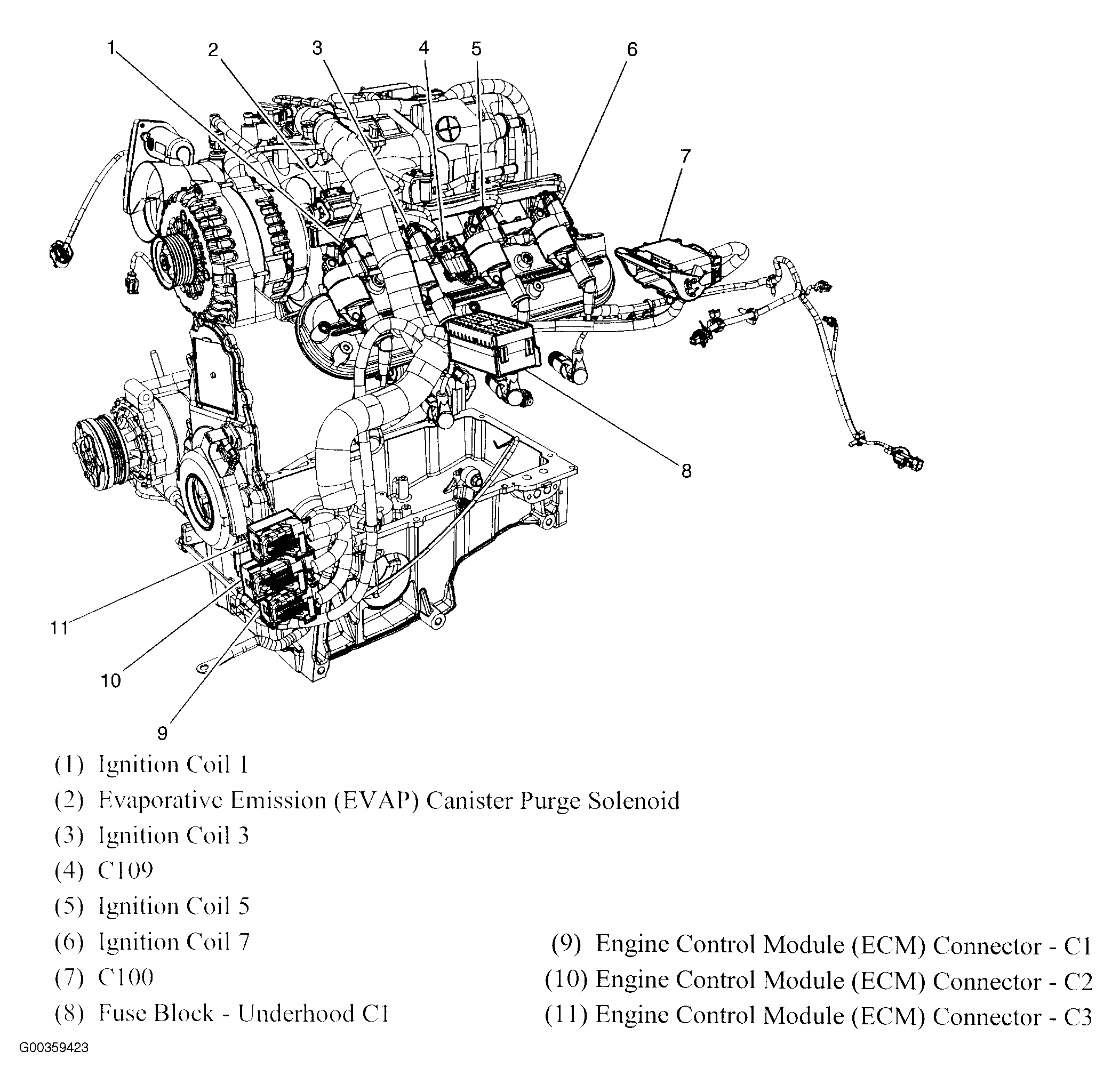

Fig 4: Engine Compartment (M12)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

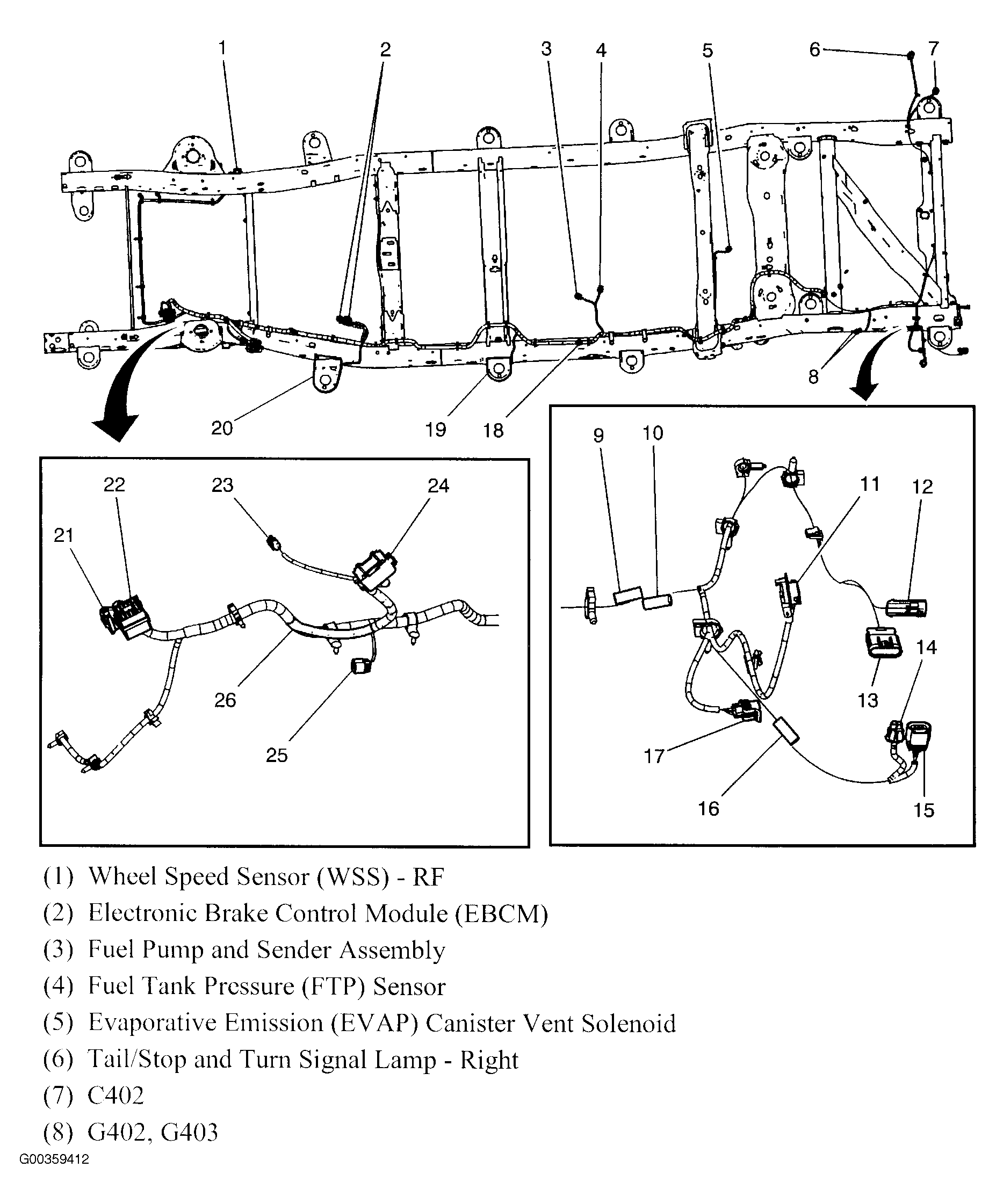

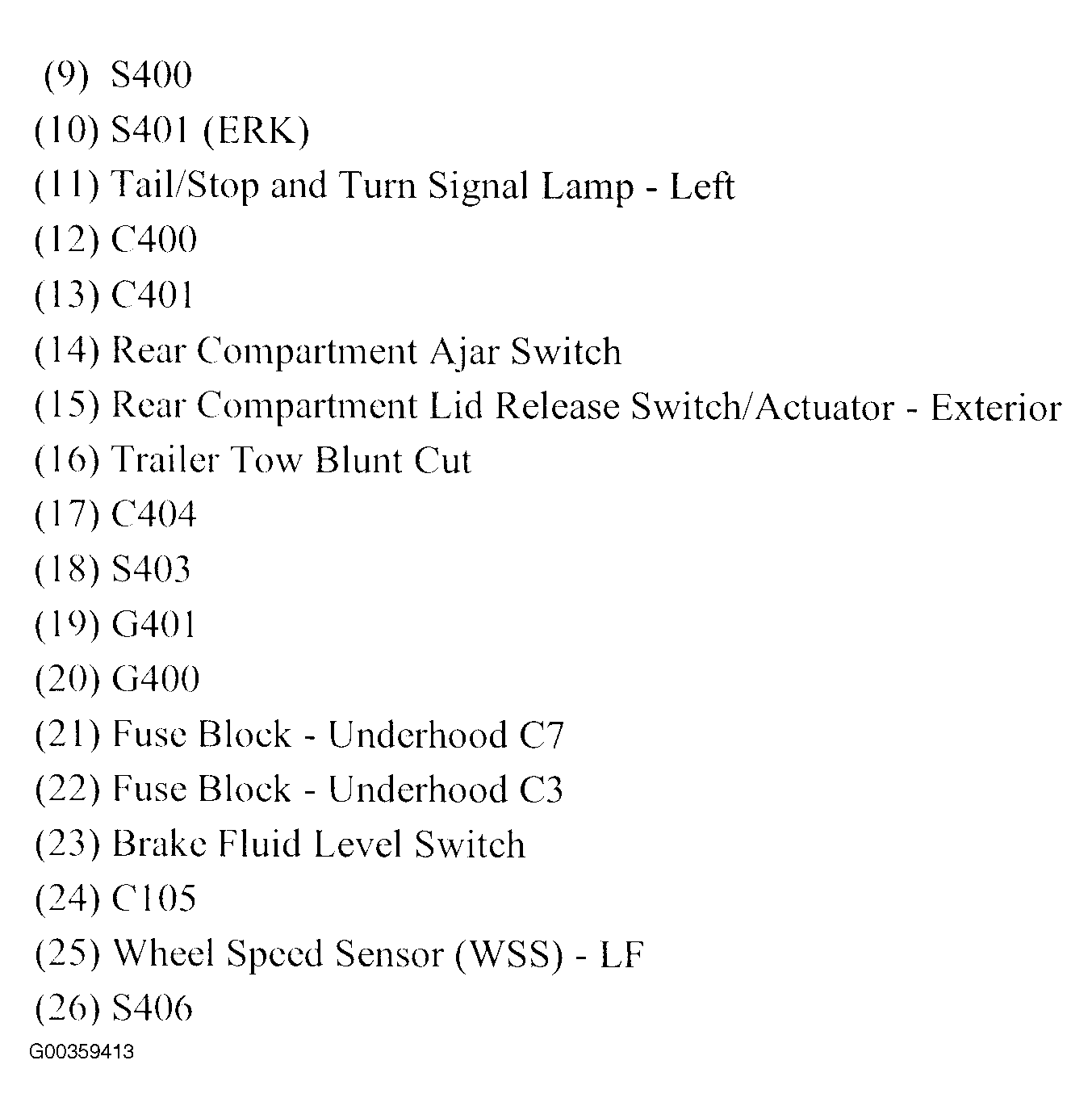

Fig 6: Chassis Harness Routing (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Chassis Harness Routing (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Header Harness Routing
Courtesy of GENERAL MOTORS CORP.

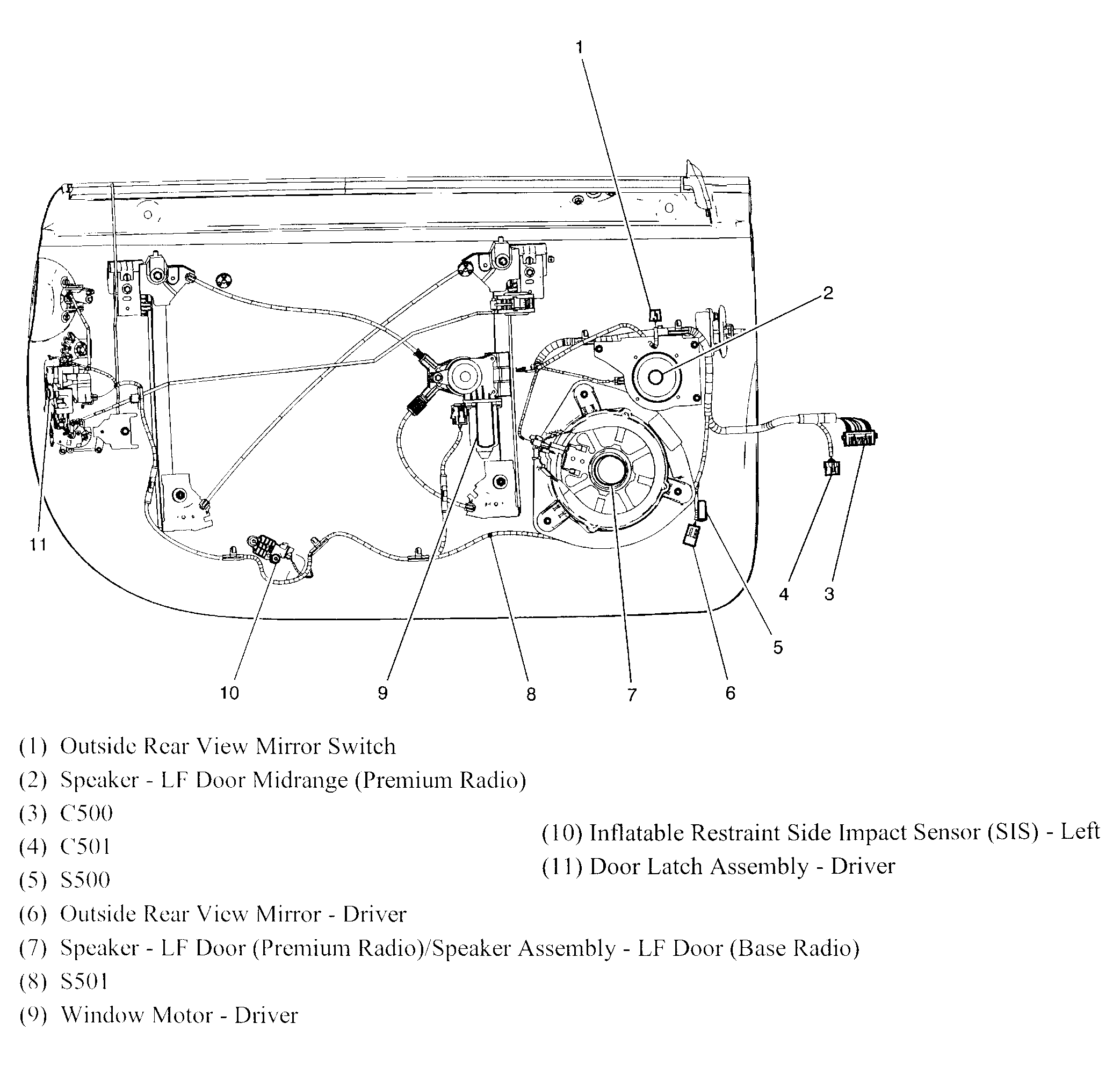

Fig 9: Driver Door
Courtesy of GENERAL MOTORS CORP.

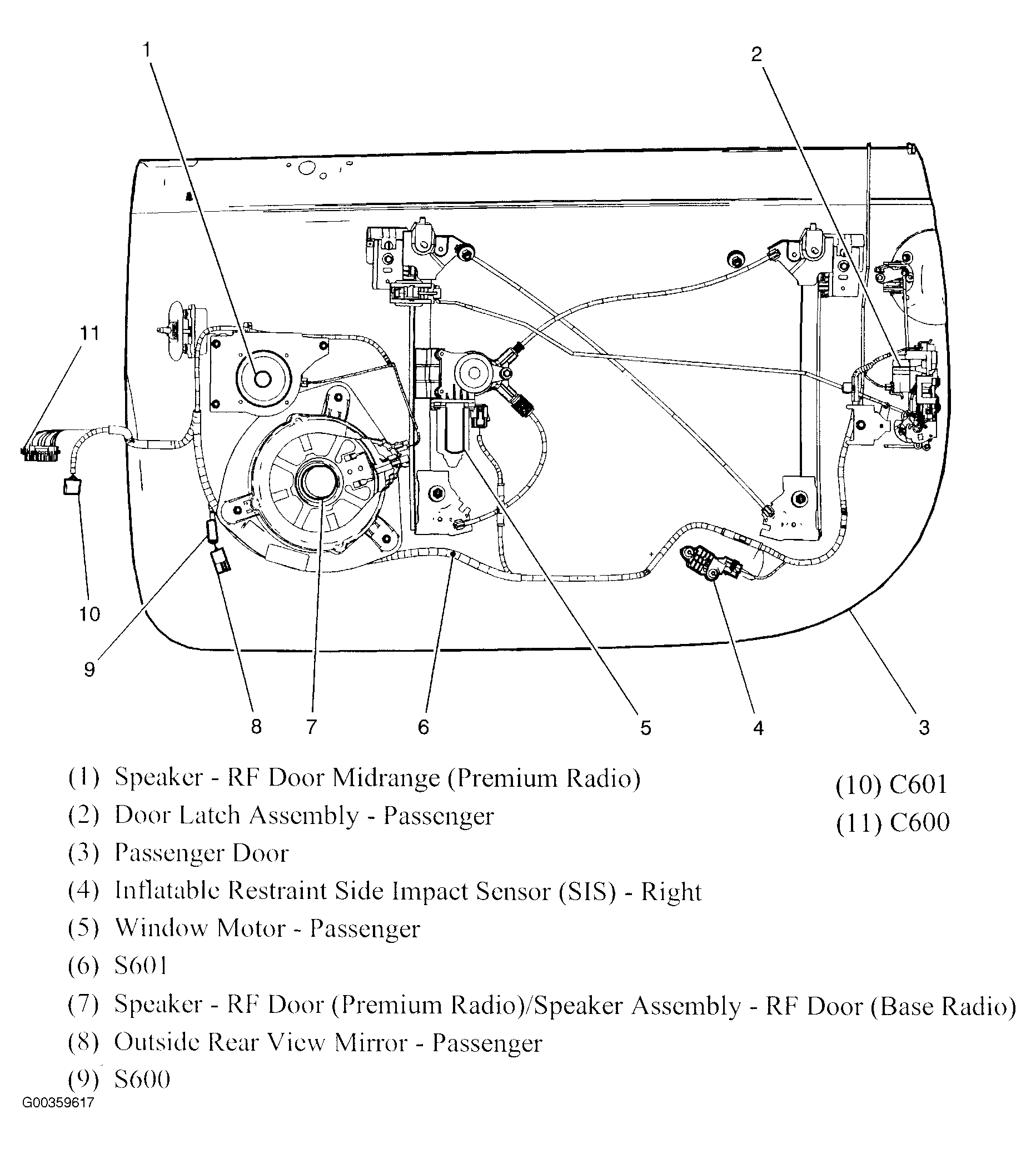

Fig 10: Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 11: Rear Harness
Courtesy of GENERAL MOTORS CORP.

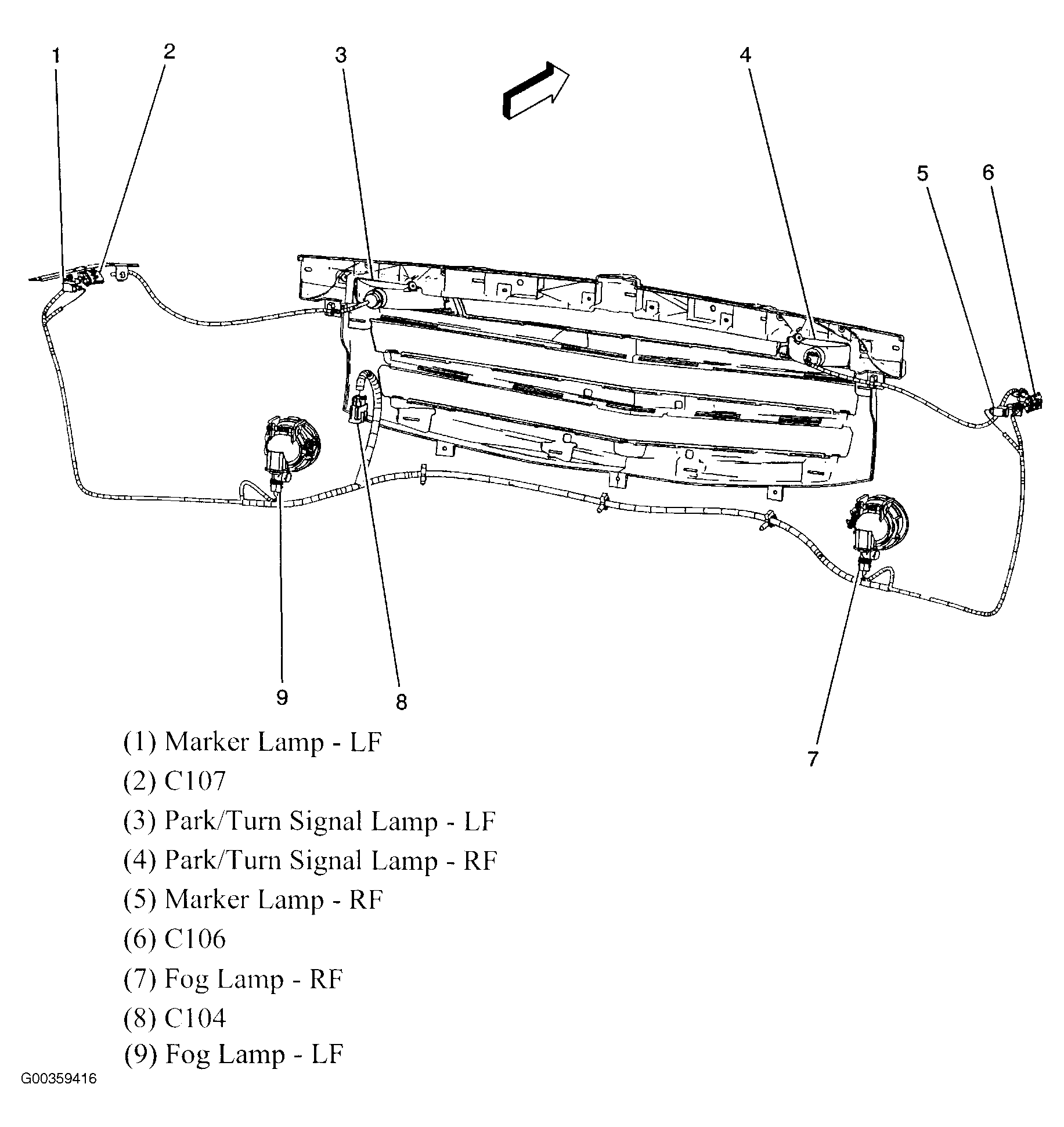

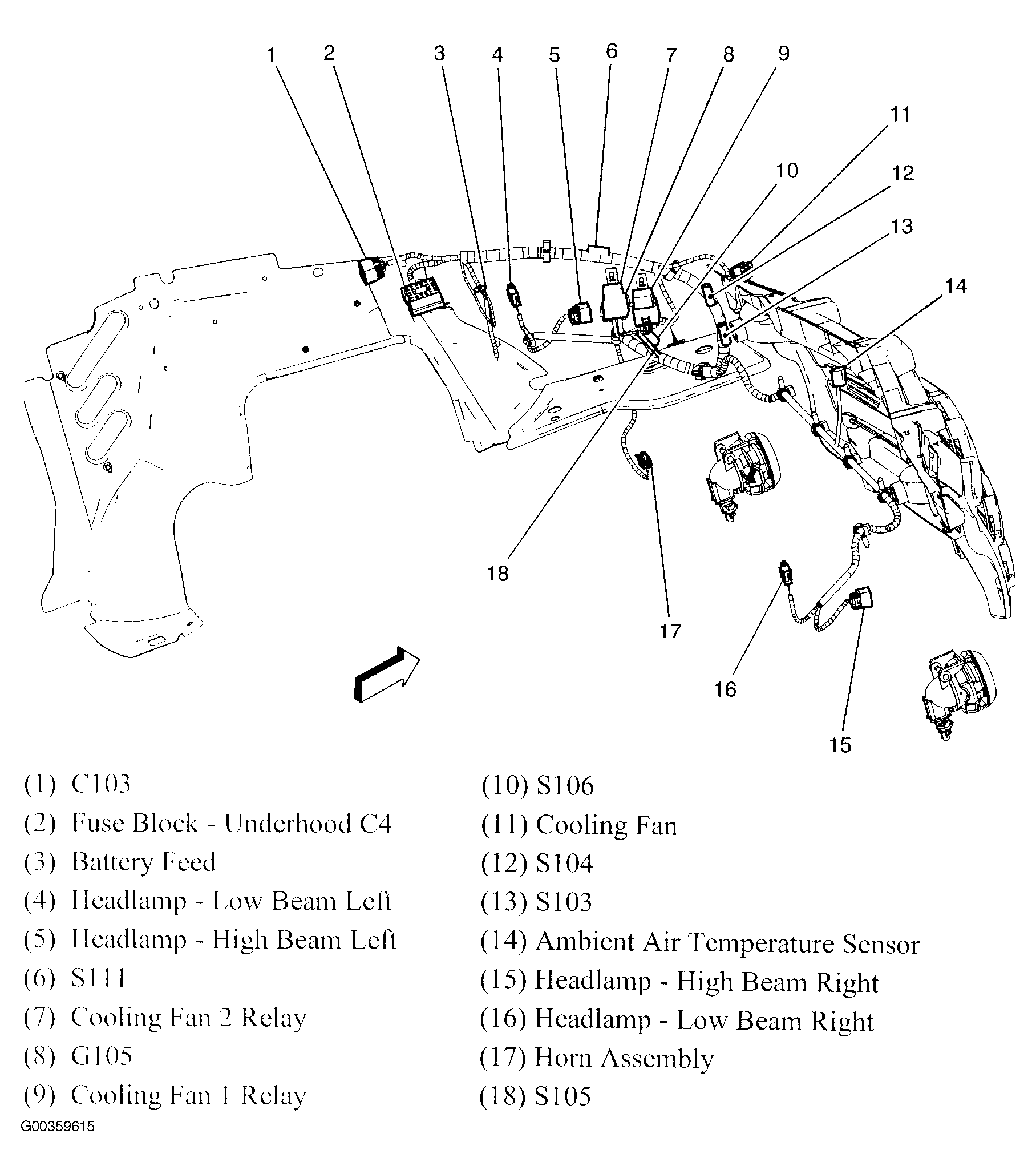

Fig 12: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

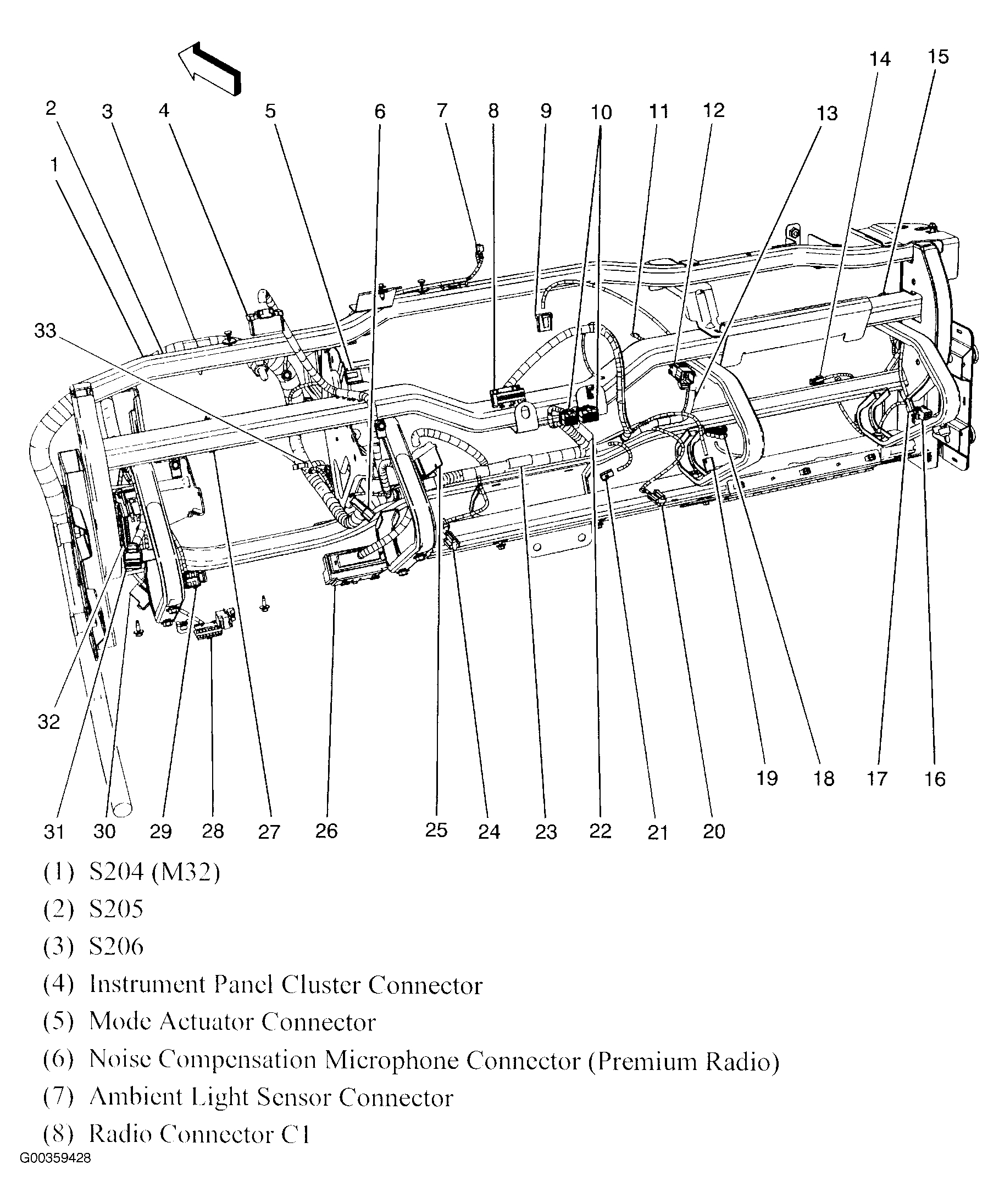

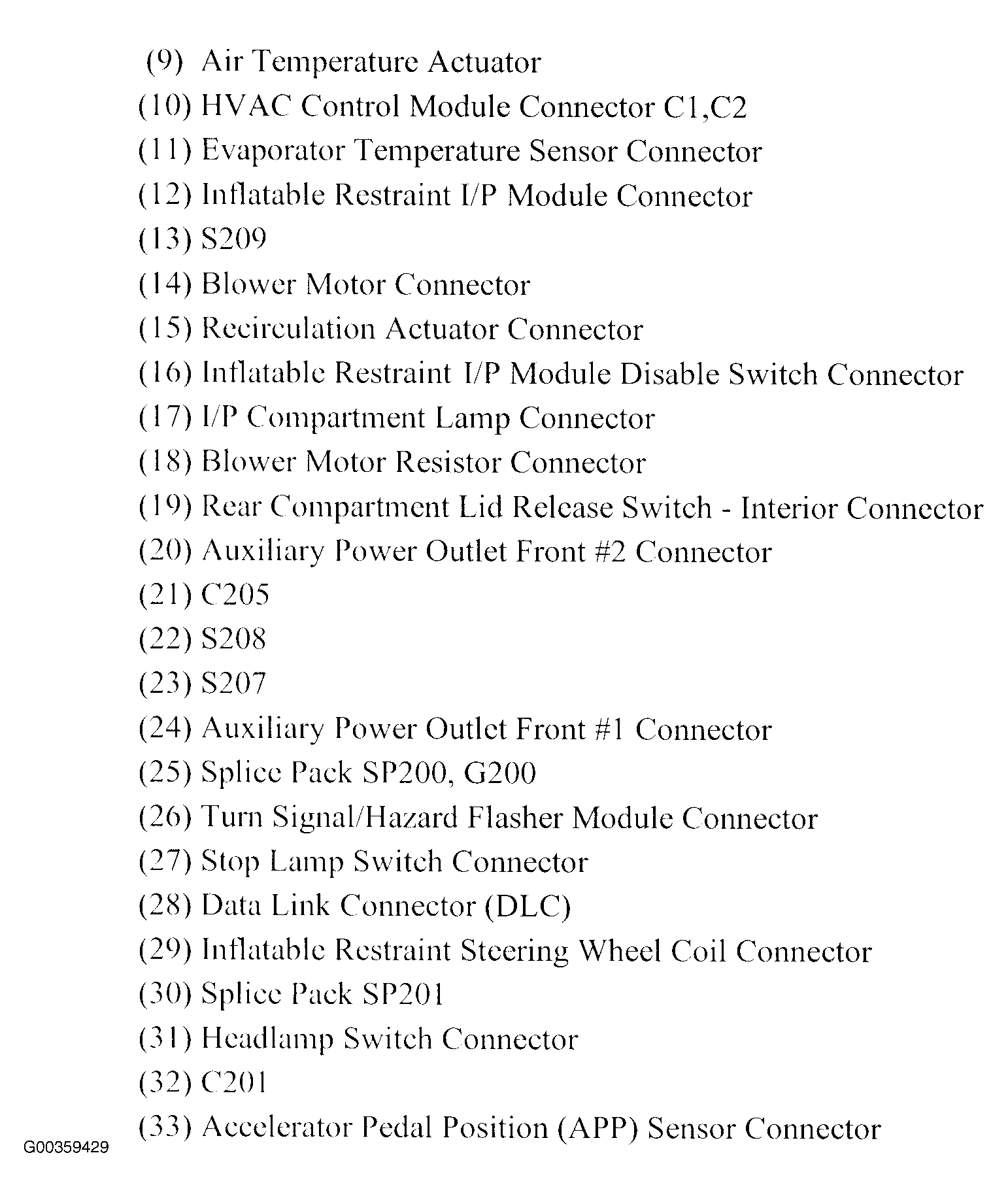

Fig 13: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 15: Passenger Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Passenger Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Driver Seat (Up-Level)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Driver Seat (Up-Level)
Courtesy of GENERAL MOTORS CORP.

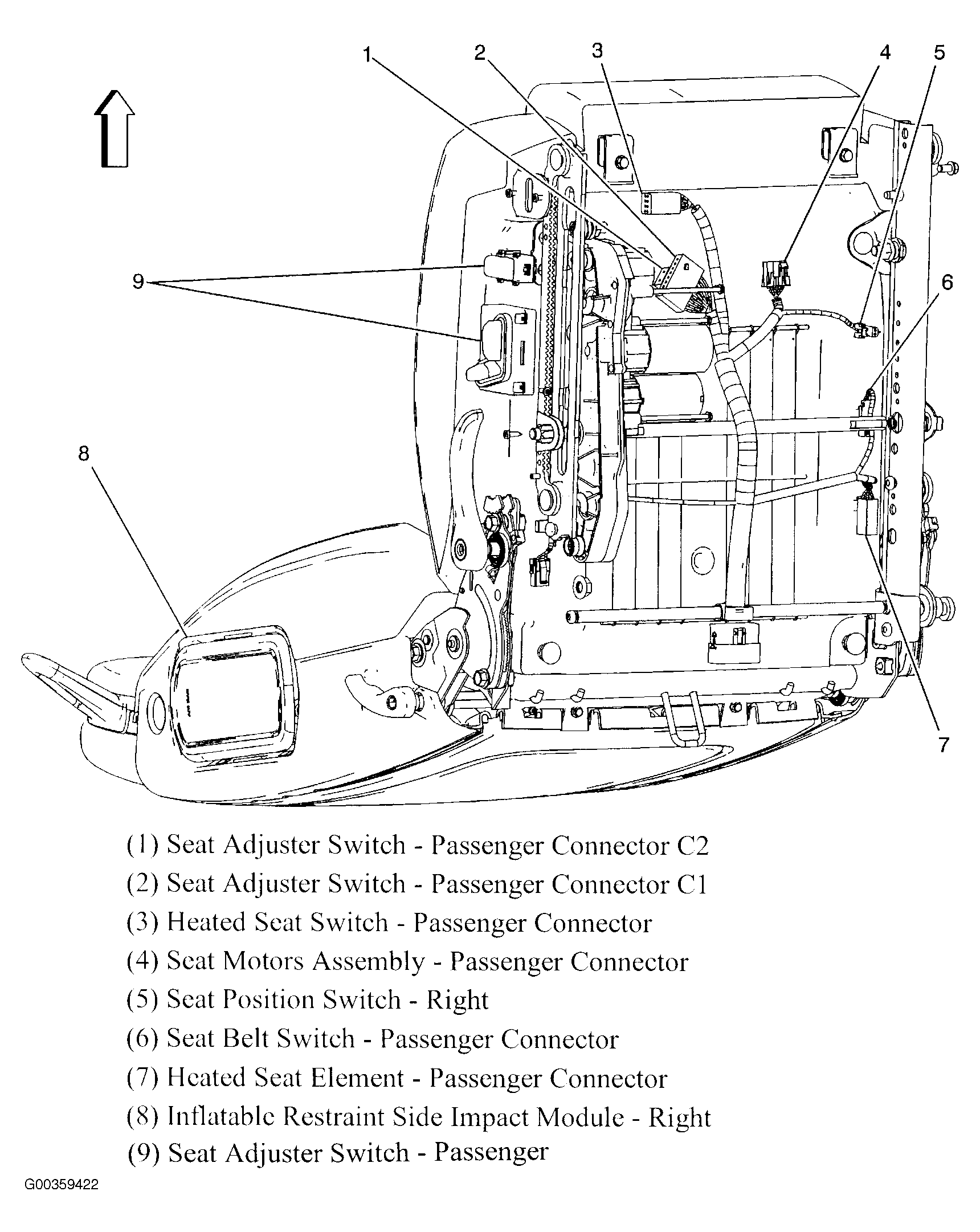

Fig 19: Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 20: Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 21: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 22: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 23: Passenger Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Passenger Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 26: Chassis Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 27: A/C System (Under Dash)
Courtesy of GENERAL MOTORS CORP.

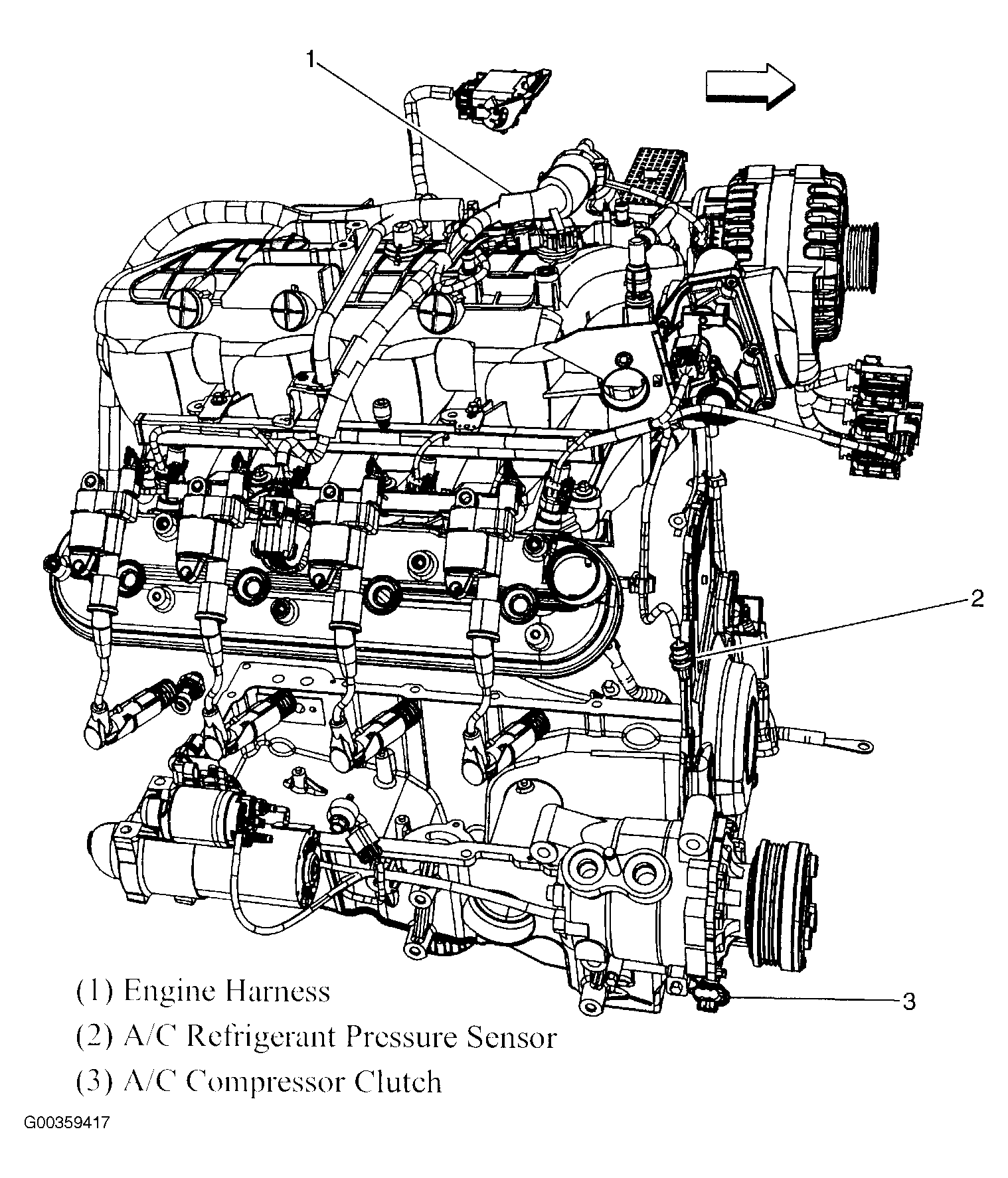

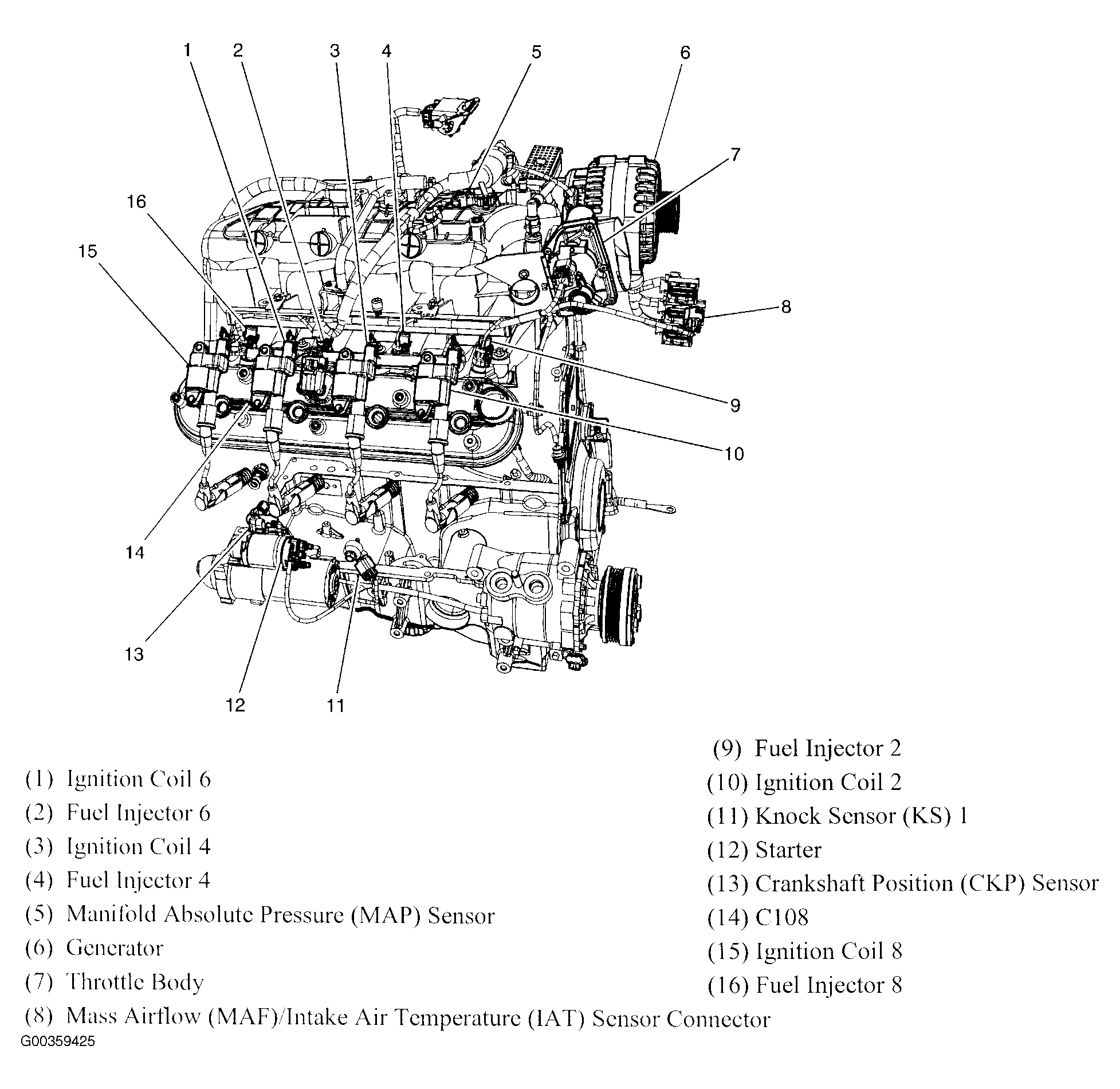

Fig 28: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 29: A/C System (Under Dash)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Steering Column (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Steering Column (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 33: ABS System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 34: Brake Fluid Level Switch
Courtesy of GENERAL MOTORS CORP.
Fig 35: Cooling System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 36: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 37: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

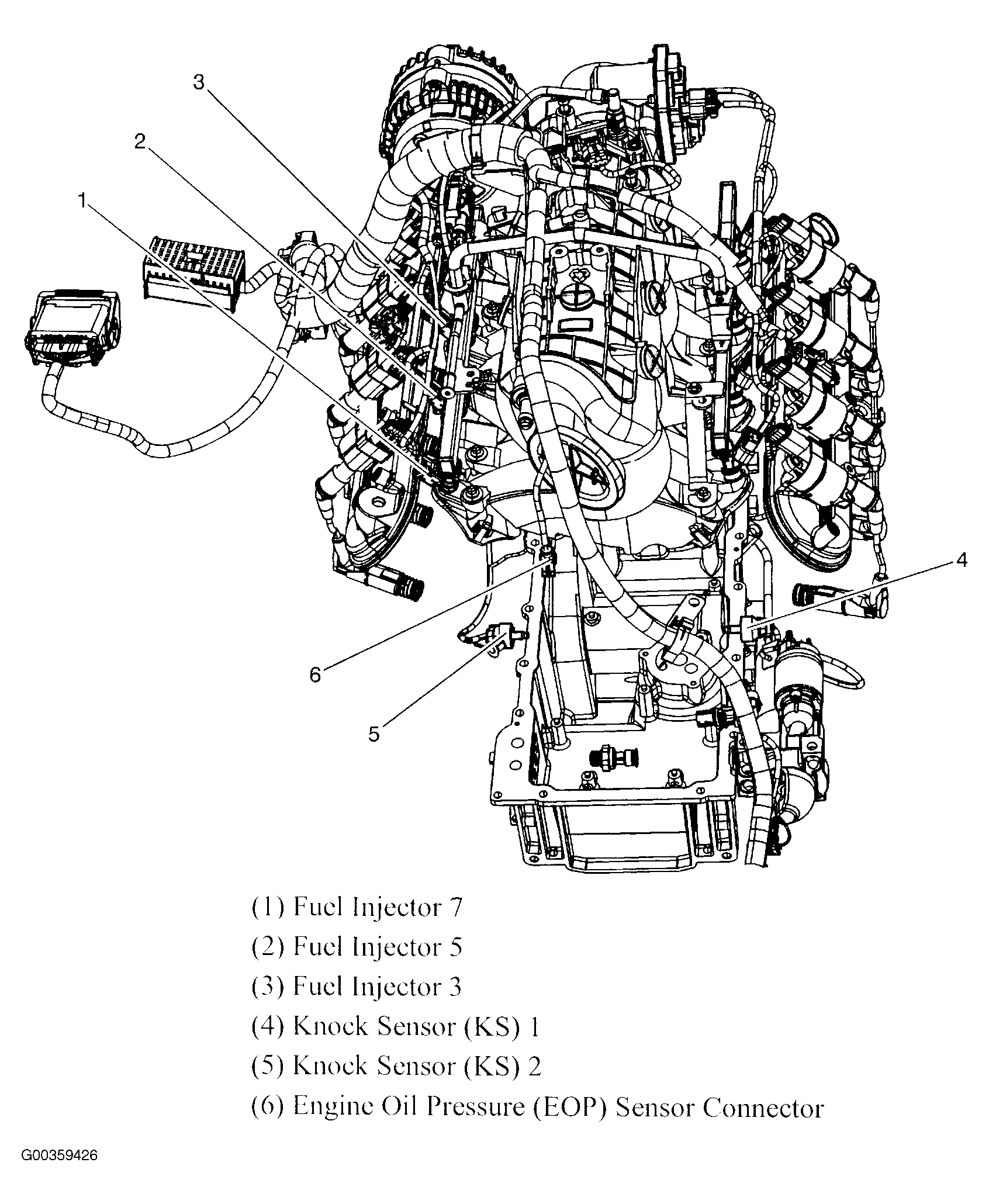

Fig 38: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 39: Fuel System
Courtesy of GENERAL MOTORS CORP.
Fig 40: Exhaust System
Courtesy of GENERAL MOTORS CORP.

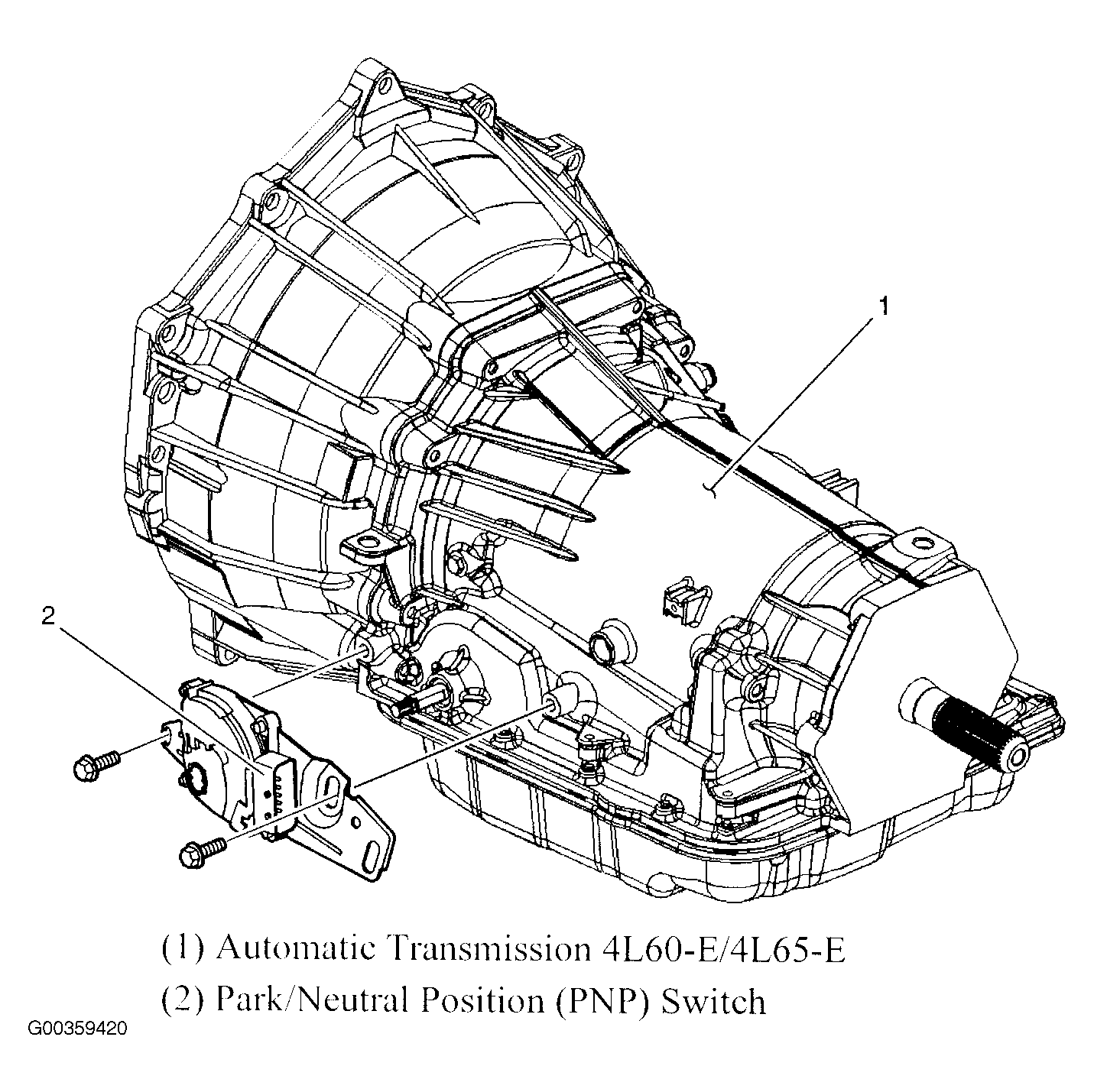

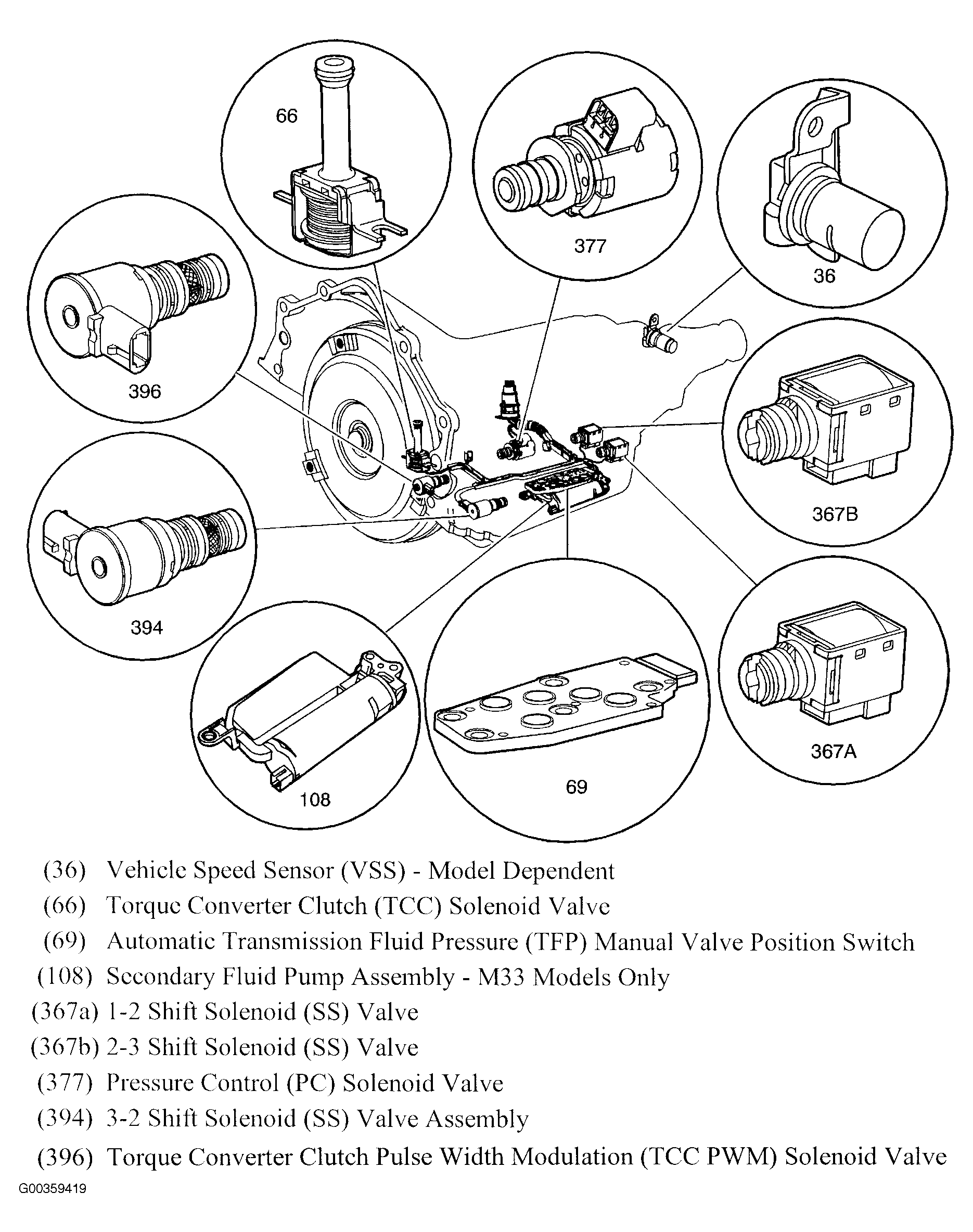

Fig 41: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 42: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 43: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 44: Inflatable Restraint System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 45: Inflatable Restraint System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 46: Anti-Theft System
Courtesy of GENERAL MOTORS CORP.
Fig 47: Right Side Of Dash & Rear Compartment Components
Courtesy of GENERAL MOTORS CORP.
Fig 48: Roof/Door Module & Rear Relay Block
Courtesy of GENERAL MOTORS CORP.
Fig 49: Lighting System
Courtesy of GENERAL MOTORS CORP.
Fig 50: Folding Top
Courtesy of GENERAL MOTORS CORP.
Fig 51: Folding Top Overview
Courtesy of GENERAL MOTORS CORP.
Fig 52: Main Lift Cylinder
Courtesy of GENERAL MOTORS CORP.
Fig 53: Stowage Lid Extension
Courtesy of GENERAL MOTORS CORP.
Fig 54: Wiper/Washer Overview
Courtesy of GENERAL MOTORS CORP.
Fig 55: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 56: Inflatable Restraint Modules
Courtesy of GENERAL MOTORS CORP.
Fig 57: Engine Compartment (M32)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

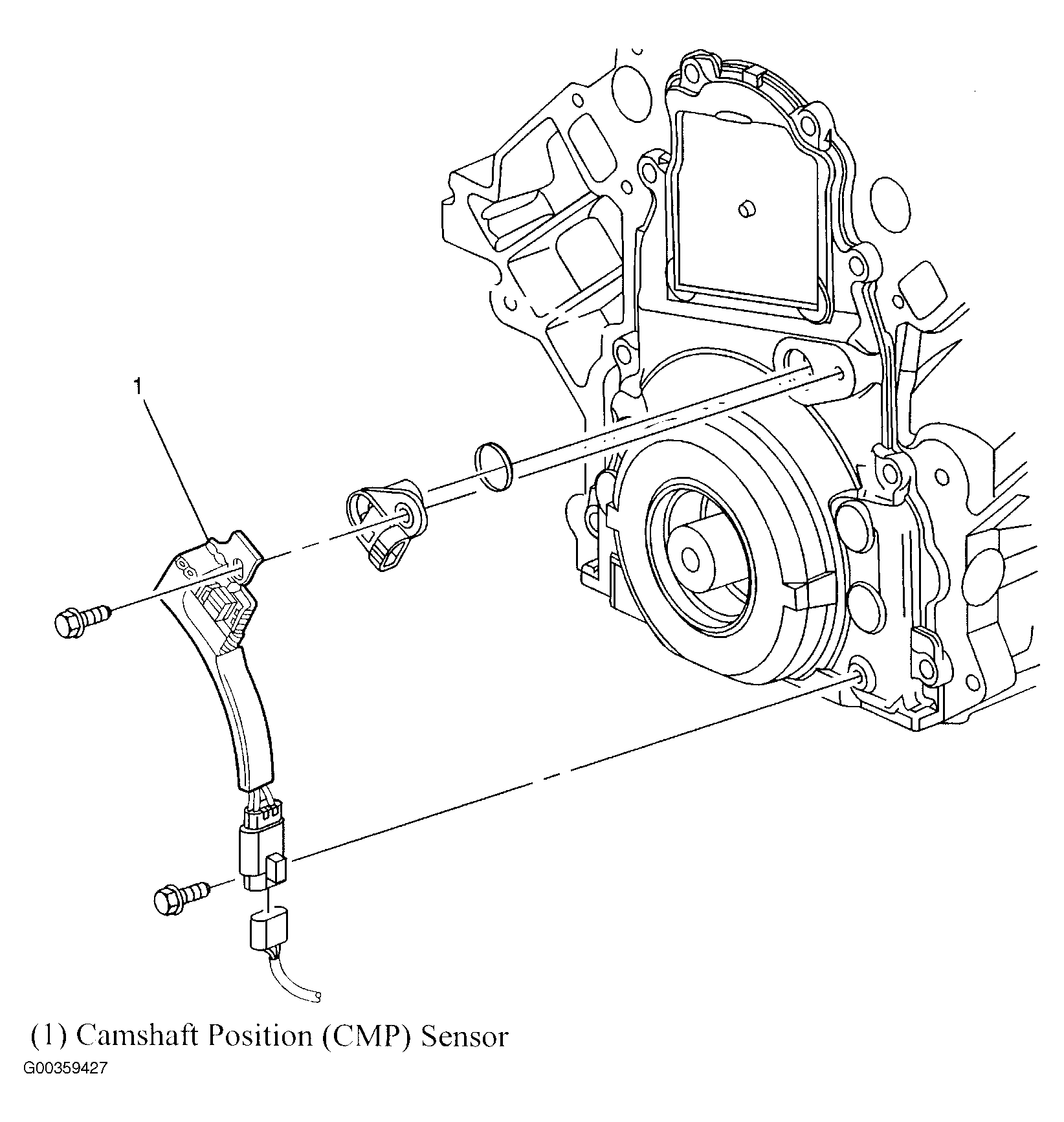

Fig 59: Camshaft Position (CMP) Sensor
Courtesy of GENERAL MOTORS CORP.
