Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|

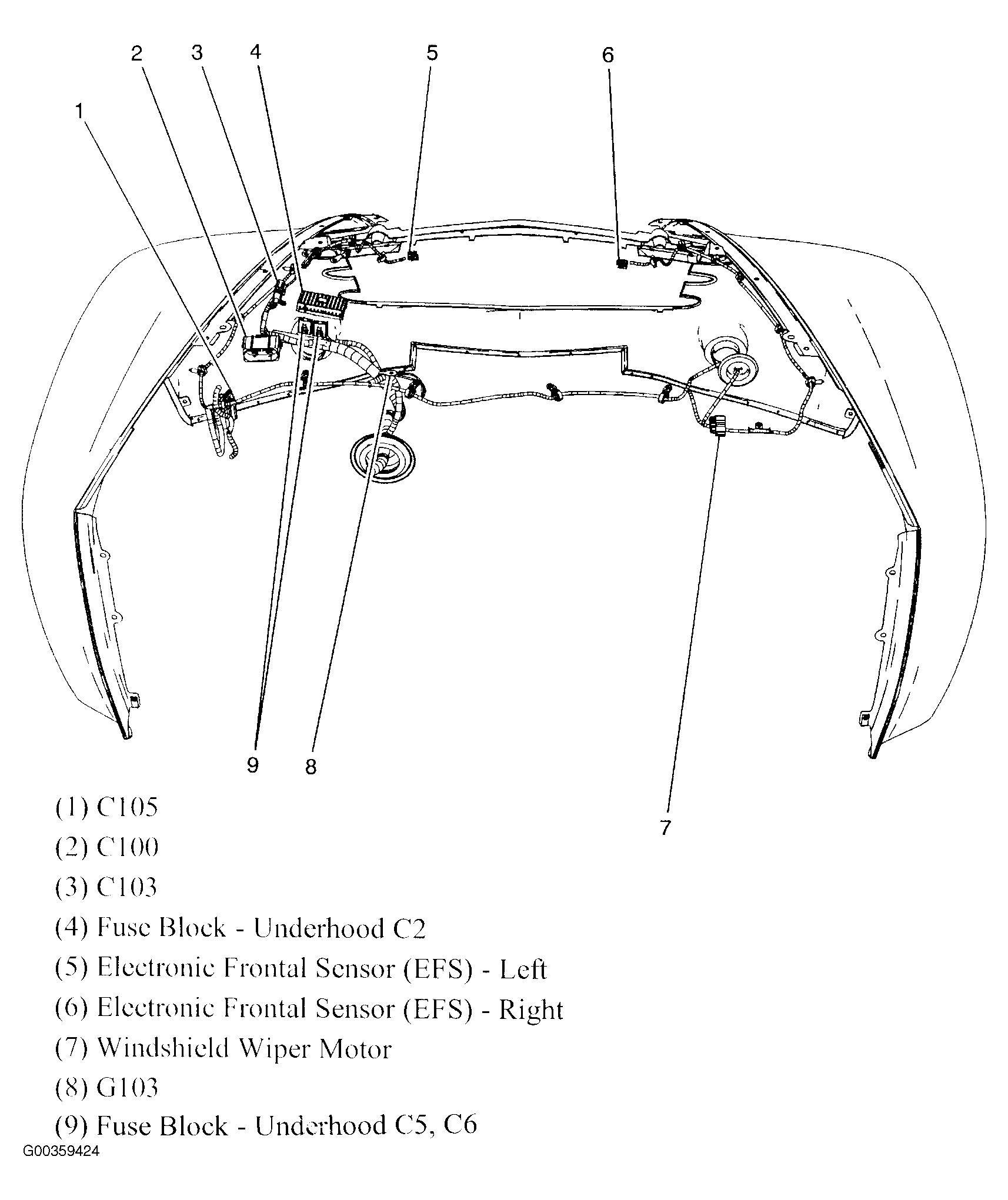

| C100 ((M12) (Black, 38 Pin) | Engine harness to I/P harness, left rear side of engine compartment. See Figure . |
| C100 (M32) (Black, 38 Pin) | Engine harness to I/P harness, left rear side of engine compartment. See Figure . |
| C103 (Black, 10 Pin) | I/P harness to front lamp harness, left front of vehicle. See Figure . |

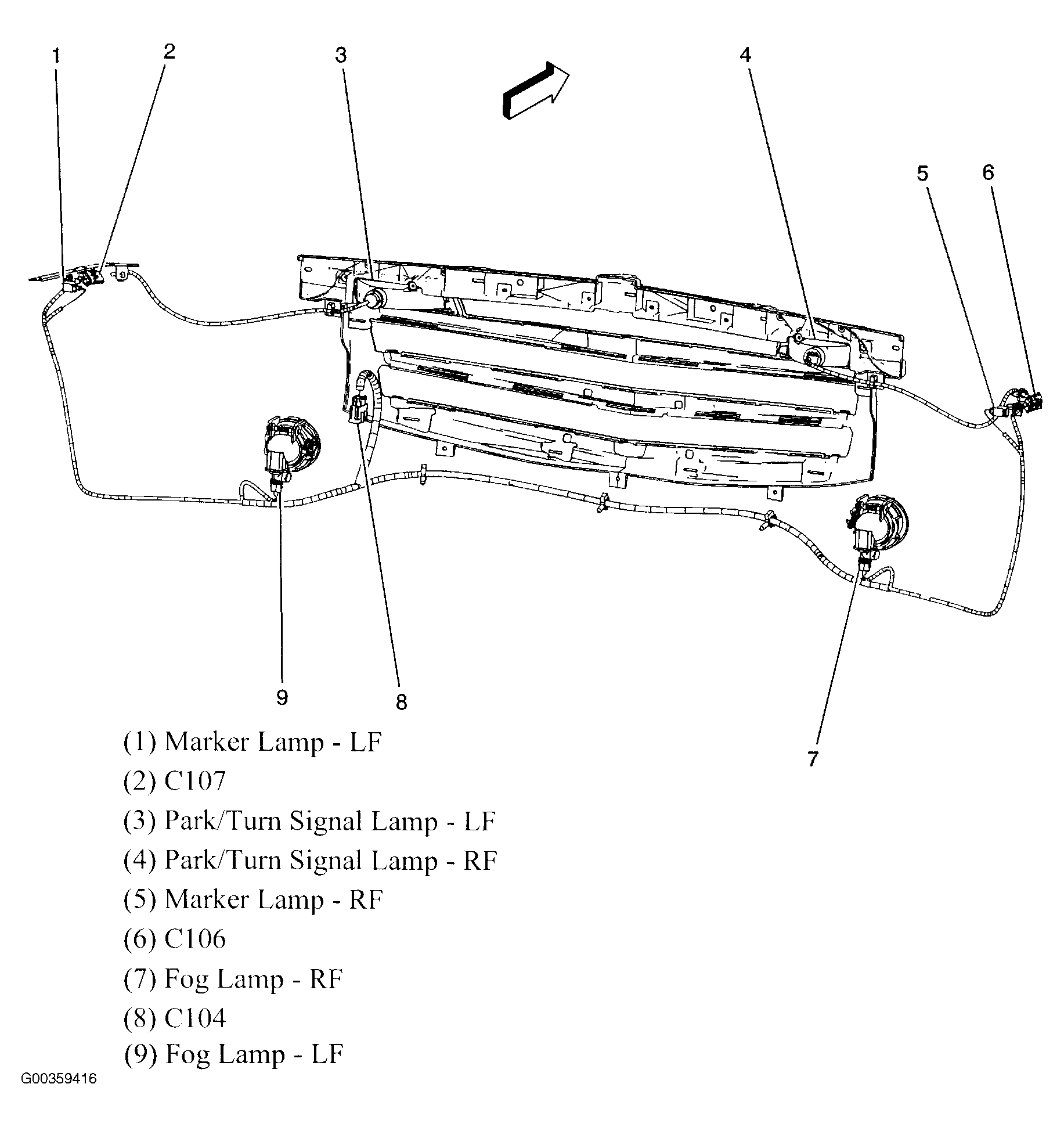

| C104 (Black, 16 Pin) | Front fascia harness to front lamp harness, left side rear of engine. See Figure . |
| C105 (Black, 38 Pin) | Chassis harness to I/P harness, left side of engine compartment. See Figure . |
| C106 (Black, 3 Pin) | Front lamp harness, behind right front fender, front of wheel. See Figure . |
| C107 (Black, 3 Pin) | Front lamp harness, behind left front fender, front of wheel. See Figure . |
| C108 (M12) (Light Gray, 7 Pin) | Coils harness to engine harness, on top of right bank valve cover. See Figure . |
| C108 (M32) (Light Gray, 7 Pin) | Coils harness to engine harness, on top of right bank valve cover. See Figure . |
| C109 (M12) (Light Gray, 7 Pin) | Coils harness to engine harness, on top of left bank valve cover. See Figure . |
| C109 (M32) (Light Gray, 7 Pin) | Coils harness to engine harness, on top of left bank valve cover. See Figure . |
| C110 (M12) (Black, 3 Pin) | Engine harness to camshaft position sensor at left front of engine. See Figure . |
| C110 (M32) (Black, 3 Pin) | Engine harness to camshaft position sensor at left front of engine. See Figure . |
| C175 (Gray, 20 Pin) | Engine harness to A/T harness, right side of transmission. See Figure . |
| C200 (Yellow, 4 Pin) | Body harness to I/P harness, near rear fuse block. See Figure . |
| C201 (Black/Gray, 48 Pin) | Steering column harness to I/P harness, base of steering column. See Figure . |
| C202 (Black, 30 Pin) | I/P harness to body harness, near rear fuse block. See Figure . |
| C204 (Black, 30 Pin) | I/P harness to body harness, near rear fuse block. See Figure . |
| C205 (Black, 2 Pin) | I/P harness to cigar lighter, center of dash. See Figure . |
| C275 (Yellow, 4 Pin) | Center of steering column, under steering wheel. See Figure . |
| C277 (Black, 8 Pin) | Center of steering column, under steering wheel. See Figure . |
| C300 (Black, 16 Pin) | I/P harness to driver seat harness, under driver seat. See Figure . |
| C303 (Gray, 18 Pin) | Body harness to header harness, right kick panel. See Figure . |
| C304 (Black, 2 Pin) | Header harness to PSIR jumper harness, in right front side header. See Figure . |
| C306 (Black, 16 Pin) | Body harness to passenger seat, under passenger seat. See Figure . |
| C308 (Black, 4 Pin) | Body harness to roof harness, under right rear speaker. See Figure . |
| C309 (Gray, 6 Pin) | Body harness to roof harness, under right rear speaker. See Figure . |
| C311 (Black, 10 Pin) | Body harness to seat harness, lower front of driver's seat. |
| C312 (Black, 16 Pin) | Seat harness to seat back harness, under driver's seat. |
| C313 (Black, 2 Pin) | Driver seat harness to seat motor harness, under driver seat. See Figure . |
| C314 (Black, 2 Pin) | Passenger seat harness to seat motor harness, under passenger seat. See Figure . |
| C400 (White, 2 Pin) | Chassis harness to rear fascia harness, on left rear of vehicle. See Figure . |
| C401 (Black, 6 Pin) | Chassis harness to tailgate harness, left rear of vehicle. See Figure . |
| C402 (Black, 2 Pin) | Chassis harness to auxiliary power outlet harness, right rear of vehicle. See Figure . |
| C404 (Black, 4 Pin) | Chassis harness to bed cover harness, left rear of vehicle. See Figure . |
| C500 (Black, 18 Pin) | I/P harness to driver door harness, left kick panel. See Figure . |
| C501 (Blue, 10 Pin) | I/P harness to driver door harness, left kick panel. See Figure . |
| C600 (Black, 18 Pin) | Body harness to passenger door harness, right kick panel. See Figure . |
| C601 (Blue, 10 Pin) | Body harness to passenger door harness, right kick panel. See Figure . |
