Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

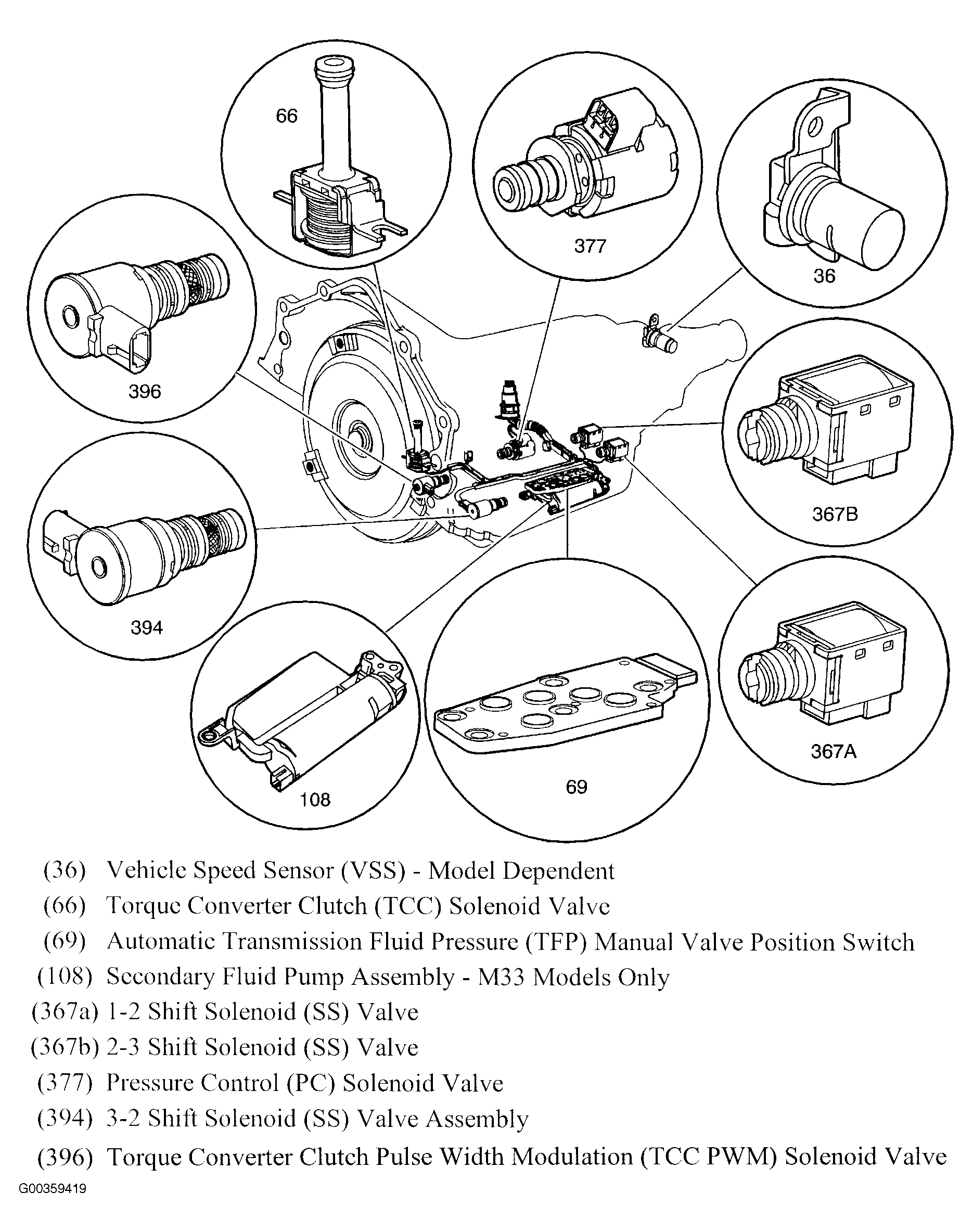

| Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch | Inside automatic transmission assembly. See Figure . |
| Backup Lamp Switch | On left side of transmission. |
| Brake Fluid Level Switch | On brake master cylinder fluid reservoir. See Figure . |
| Clutch Pedal Position (CPP) Switch | Under dash on clutch master cylinder push rod. |
| Clutch Start Switch | Top of clutch pedal. |
| Engine Oil Level Switch | Lower front of engine. |
| Folding Top Outer Latch Position Switch | In header, above left visor. See Figure . |
| Folding Top Outer Latch Striker Position Switch | In header center, attached to actuator. See Figure . |
| Ignition Key Alarm Switch | In steering column. See Figure . |
| Inflatable Restraint I/P Module Disable Switch | In dash compartment box. See Figure . |
| Park Brake Switch | Attached to park brake. See Figure . |

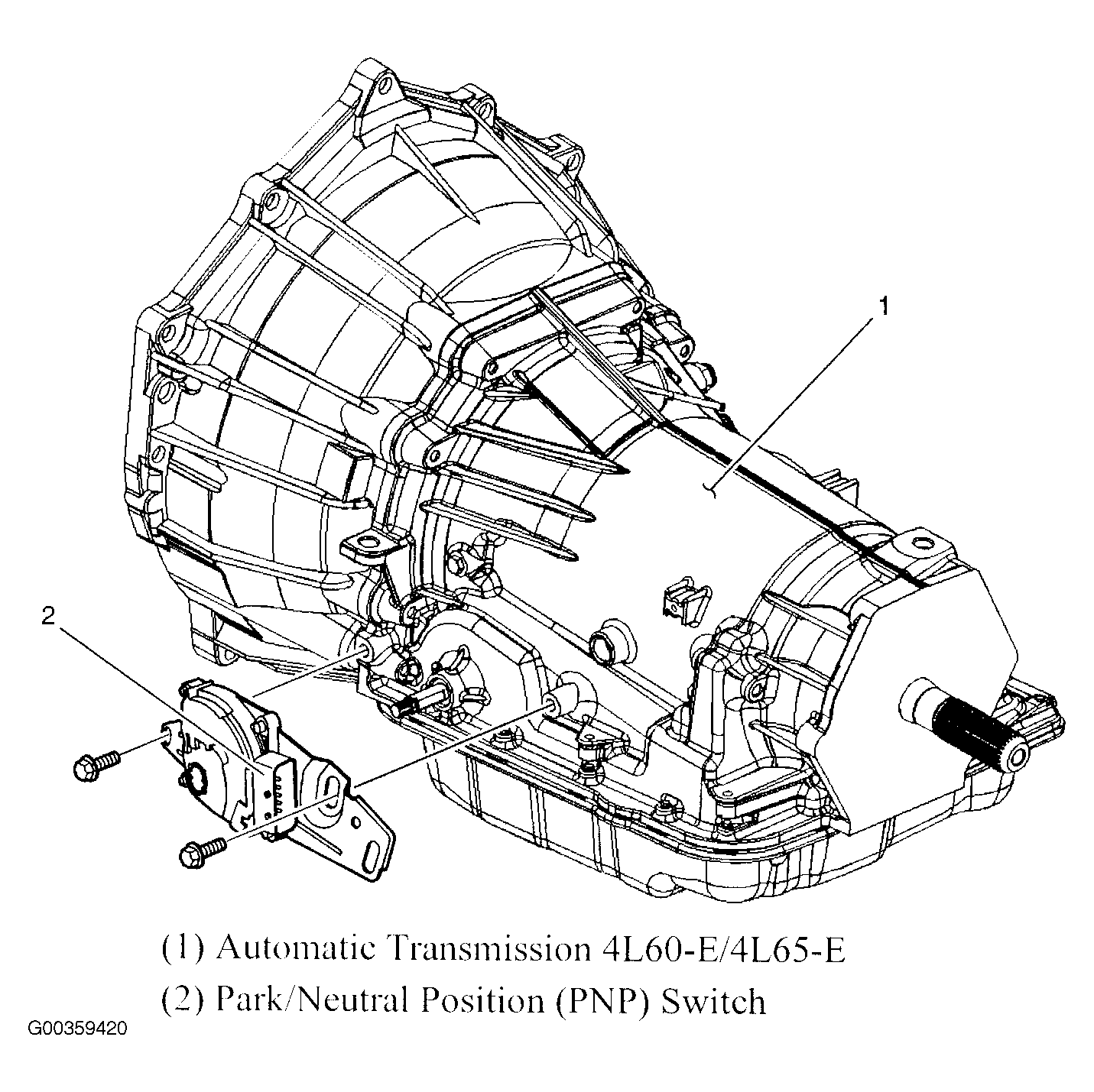

| Park/Neutral Position (PNP) Switch | On lower left side of transmission. See Figure . |
| Rear Compartment Ajar Switch | In rear compartment left rear latch. See Figure . |
| Rear Compartment Present Switch | In rear compartment left rear hinge. See Figure . |
| Seat Belt Switch (Driver) | In driver seat belt buckle. See Figure . |
| Seat Belt Switch (Passenger) | In passenger seat belt buckle. See Figure . |
| Stop Lamp Switch Connector | Top of brake pedal assembly. See Figure . |
