Installation Procedure

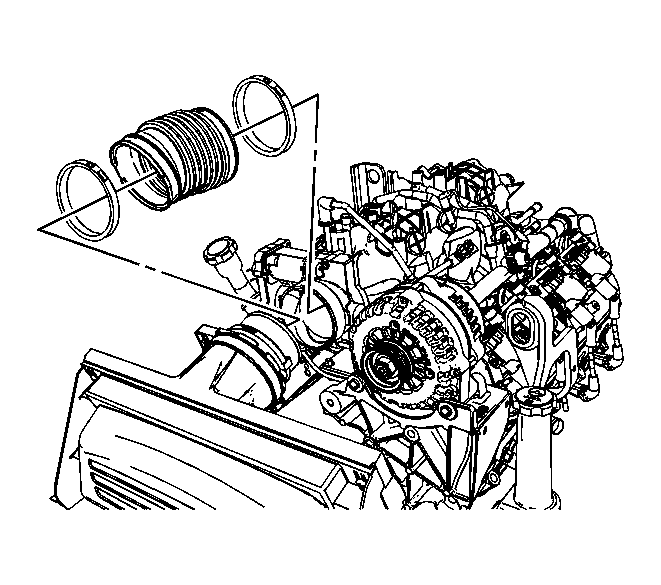

    Fig 1: Removing/Installing Air Cleaner Outlet Duct
    GM1530789Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the air cleaner outlet duct.

    Tighten:  Tighten the clamps to 4 N.m (35 lb in).

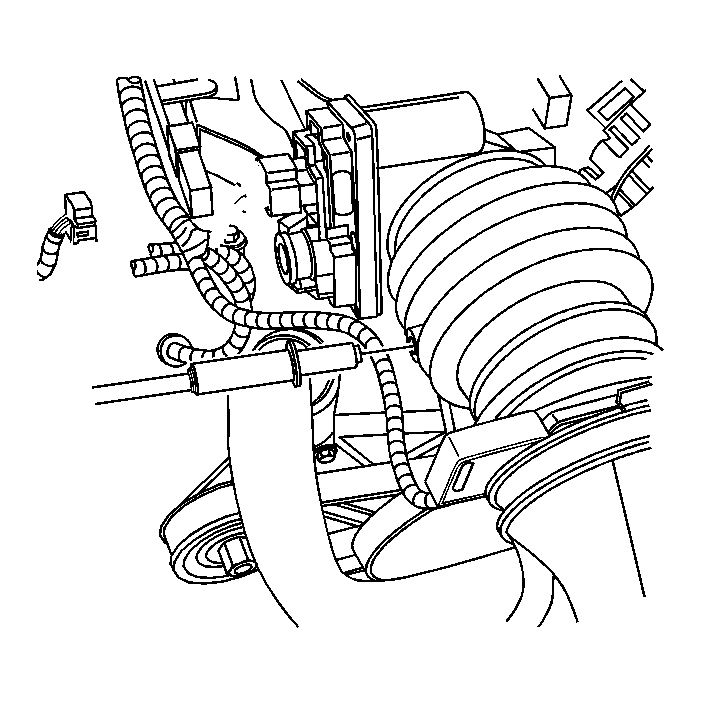

    2. Fig 2: Removing/Installing Air Cleaner Outlet Duct Clamp
    GM1530323Courtesy of GENERAL MOTORS CORP.
  2. Install the pipe in the outlet duct.
  3. Close the hood.
