Installation Procedure

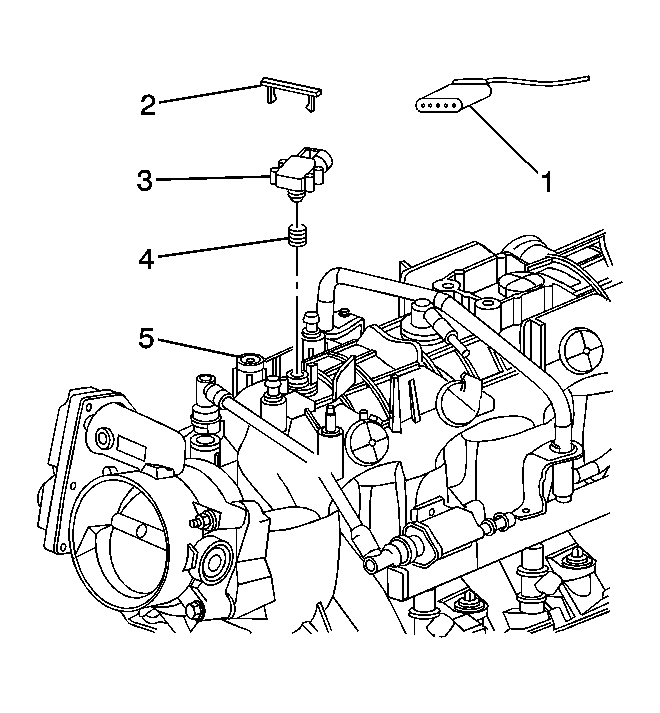

    Fig 1: Removing/Installing MAP Sensor & Seal
    GM1491729Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor (3) and the seal (4) in the intake manifold (5).
  2. Install the retaining clip (2) for the MAP sensor (3).
  3. Install the electrical connector (1).
    4. Fig 2: View of Engine Sight Shield
    GM1231427Courtesy of GENERAL MOTORS CORP.
  4. Install the engine sight shield and the mounting bracket. Refer to Engine Sight Shield Replacement in Engine Mechanical - 6.0L.
