Installation Procedure

    Fig 1: Identifying MAF/IAT Sensor
    GM1275969Courtesy of GENERAL MOTORS CORP.
  1. Install the MAF/IAT sensor (1) and clamp (2) in the air cleaner assembly.
    2. Fig 2: Removing/Installing Air Intake Duct Clamps
    GM1530789Courtesy of GENERAL MOTORS CORP.
  2. Install the air intake duct and clamps.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Tighten all the clamps. Two clamps are shown, the rest are similar.

    Tighten:  Tighten the clamps 2-4 N.m (35 lb in).

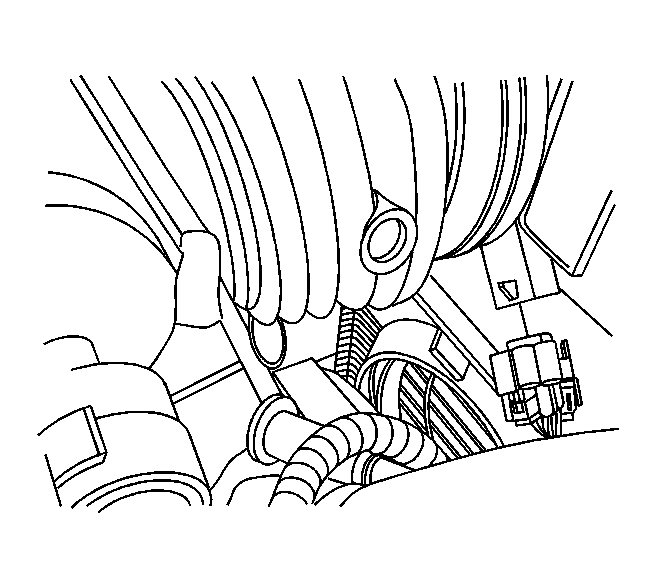

    4. Fig 3: Disconnecting/Reconnecting Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor Connector
    GM1530328Courtesy of GENERAL MOTORS CORP.
  4. Install the electrical connector.
    5. Fig 4: Breather Pipe To/From Air Intake Duct
    GM1530323Courtesy of GENERAL MOTORS CORP.
  5. Install the breather pipe in the air intake duct.
  6. Close the hood.
